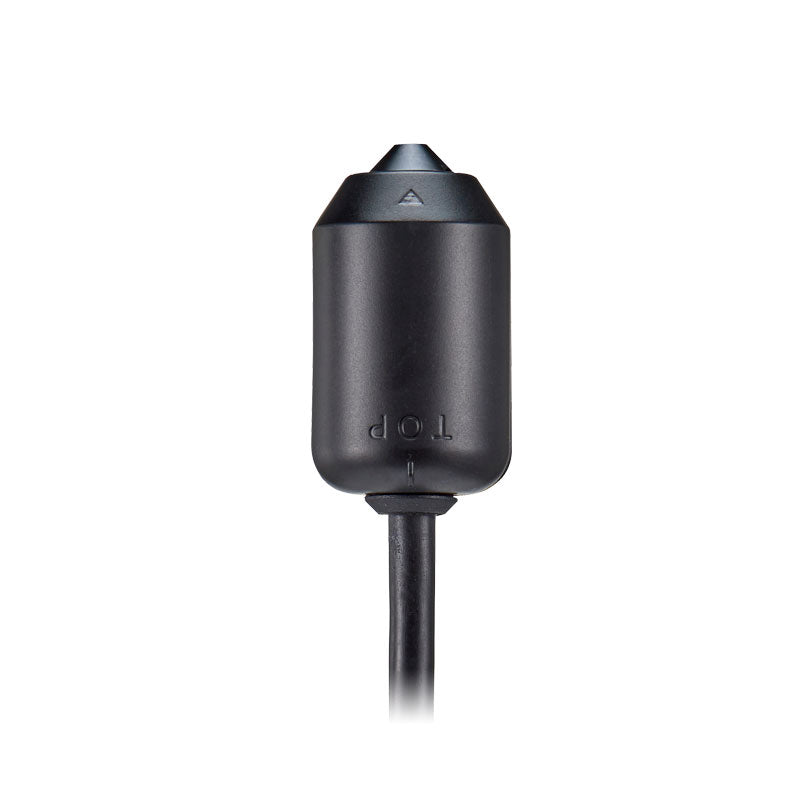

Hanwha Wisenet SLA-T4680 2MP Indoor Straight Pinhole Lens Module to suit XNB-6001, 4.6mm
2M Lens Module
The SLA-T4680 integrates seamlessly with Hanwha Vision's camera systems, offering users flexibility and ease of installation. This lens module enhances the overall efficacy of surveillance setups, providing precise and dependable monitoring solutions.
Key Features
- Compatible with XNB-6001
- Max. 2M (1920 x 1080) resolution
- 0.06 Lux@F2.5
- 4.6mm pinhole lens
Code/SKU: SLA-T4680
Quick Specs:
- 120dB WDR
- Field of View (FoV): Horizontal 73°
- 8m/26ft cable
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The SLA-T4680 is a versatile 2-megapixel lens module from Hanwha Vision designed for enhanced image clarity and detail in various surveillance applications. Featuring advanced optical technology, this module provides sharp, high-resolution visuals, making it ideal for capturing detailed images in diverse lighting conditions. Its compact and durable design ensures reliable performance in a range of environments, from indoor to outdoor settings. The SLA-T4680 integrates seamlessly with Hanwha Vision's camera systems, offering users flexibility and ease of installation. This lens module enhances the overall efficacy of surveillance setups, providing precise and dependable monitoring solutions.
Features
- 4.6mm pinhole lens module
- straight body style
- 2MP resolution
- 0.06 Lux
- 120dB WDR
- FoV: H: 73°
- 8m/26ft cable
Technical Specifications:
| Feature | SLA-T2480 | SLA-T2480V | SLA-T4680 | SLA-T4680V | SLA-T1080F |
|---|---|---|---|---|---|
| VIDEO | |||||
| Imaging Device | 1/2.8" 2M CMOS | 1/2.8" 2M CMOS | 1/2.8" 2M CMOS | 1/2.8" 2M CMOS | 1/2.8" 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M | 1,945(H) x 1,109(V) 2.16M | 1,945(H) x 1,109(V) 2.16M | 1,945(H) x 1,109(V) 2.16M | 1,945(H) x 1,109(V) 2.16M |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M | 1,945(H) x 1,097(V) 2.13M | 1,945(H) x 1,097(V) 2.13M | 1,945(H) x 1,097(V) 2.13M | 1,945(H) x 1,097(V) 2.13M |
| Scanning System | Progressive Scan | Progressive Scan | Progressive Scan | Progressive Scan | Progressive Scan |
| Min. Illumination | Color: 0.45Lux (F2.0) B/W: 0.45Lux (F2.0) |
Color: 0.45Lux (F2.0) B/W: 0.45Lux (F2.0) |
Color: 0.06Lux (F2.5) B/W: 0.06Lux (F2.5) |
Color: 0.06Lux (F2.5) B/W: 0.06Lux (F2.5) |
Color: 0.03Lux (F1.6) |
| S/N Ratio | 50dB | 50dB | 50dB | 50dB | 50dB |
| Wide Dynamic Range | 120dB | 120dB | 120dB | 120dB | 120dB |
| Day & Night | Electrical | Electrical | Electrical | Electrical | Electrical |
| LENS | |||||
| Focal Length (Zoom Ratio) | 2.4mm | 2.4mm | 4.6mm | 4.6mm | 1.6mm |
| Max. Aperture Ratio | F2.0 | F2.0 | F2.5 | F2.5 | F1.6 |
| Angular Field of View | H: 138° / V: 73° / D: 168° | H: 138° / V: 73° / D: 168° | H: 73° / V: 39° / D: 85° | H: 73° / V: 39° / D: 85° | H: 187° / V: 113.9° |
| Min. Object Distance | 0.3m (0.98ft) | 0.3m (0.98ft) | 0.3m (0.98ft) | 0.3m (0.98ft) | 0.3m (0.98ft) |
| Lens Type | Fixed focal | Fixed focal | Pinhole | Pinhole | Fixed focal |
| Mount Type | RJ12 connected with main unit | RJ12 connected with main unit | RJ12 connected with main unit | RJ12 connected with main unit | RJ12 connected with main unit |
| ENVIRONMENTAL | |||||
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66 | ||||
| MECHANICAL | |||||
| Color / Material | Lens: Black / Plastic Cable: Black |
Lens: Black / Plastic, Metal Cable: Black |
Lens: Black / Plastic Cable: Black |
Lens: Black / Plastic, Metal Cable: Black |
Lens: Black / Plastic, Metal Cable: Black |
| Dimensions (WxHxD) | Lens: Ø24 x 49.8mm (Ø0.94" x 1.96") Cable: 8m (314.96") |
Lens: 30 x 27.9 x 45mm (1.18" x 0.10" x 1.77") Cable: 8m (314.96") |
Lens: Ø24 x 42mm (Ø0.94" x 1.65") Cable: 8m (314.96") |
Lens: 30 x 20.2 x 45mm (1.18" x 0.80" x 1.77") Cable: 8m (314.96") |
Lens: Ø35 x 68.9mm (Ø1.38" x 2.71") Cable: 8m (314.96") |
| Weight | 318g (0.70 lb) | 328g (0.72 lb) | 310g (0.68 lb) | 321g (0.71 lb) | 321g (0.71 lb) |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
2M Lens Module
The SLA-T4680 integrates seamlessly with Hanwha Vision's camera systems, offering users flexibility and ease of installation. This lens module enhances the overall efficacy of surveillance setups, providing precise and dependable monitoring solutions.
Key Features
- Compatible with XNB-6001
- Max. 2M (1920 x 1080) resolution
- 0.06 Lux@F2.5
- 4.6mm pinhole lens
Code/SKU: SLA-T4680
Quick Specs:
- 120dB WDR
- Field of View (FoV): Horizontal 73°
- 8m/26ft cable
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Feature | SLA-T2480 | SLA-T2480V | SLA-T4680 | SLA-T4680V | SLA-T1080F |
|---|---|---|---|---|---|
| VIDEO | |||||
| Imaging Device | 1/2.8" 2M CMOS | 1/2.8" 2M CMOS | 1/2.8" 2M CMOS | 1/2.8" 2M CMOS | 1/2.8" 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M | 1,945(H) x 1,109(V) 2.16M | 1,945(H) x 1,109(V) 2.16M | 1,945(H) x 1,109(V) 2.16M | 1,945(H) x 1,109(V) 2.16M |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M | 1,945(H) x 1,097(V) 2.13M | 1,945(H) x 1,097(V) 2.13M | 1,945(H) x 1,097(V) 2.13M | 1,945(H) x 1,097(V) 2.13M |
| Scanning System | Progressive Scan | Progressive Scan | Progressive Scan | Progressive Scan | Progressive Scan |
| Min. Illumination | Color: 0.45Lux (F2.0) B/W: 0.45Lux (F2.0) | Color: 0.45Lux (F2.0) B/W: 0.45Lux (F2.0) | Color: 0.06Lux (F2.5) B/W: 0.06Lux (F2.5) | Color: 0.06Lux (F2.5) B/W: 0.06Lux (F2.5) | Color: 0.03Lux (F1.6) |
| S/N Ratio | 50dB | 50dB | 50dB | 50dB | 50dB |
| Wide Dynamic Range | 120dB | 120dB | 120dB | 120dB | 120dB |
| Day & Night | Electrical | Electrical | Electrical | Electrical | Electrical |
| LENS | |||||
| Focal Length (Zoom Ratio) | 2.4mm | 2.4mm | 4.6mm | 4.6mm | 1.6mm |
| Max. Aperture Ratio | F2.0 | F2.0 | F2.5 | F2.5 | F1.6 |
| Angular Field of View | H: 138° / V: 73° / D: 168° | H: 138° / V: 73° / D: 168° | H: 73° / V: 39° / D: 85° | H: 73° / V: 39° / D: 85° | H: 187° / V: 113.9° |
| Min. Object Distance | 0.3m (0.98ft) | 0.3m (0.98ft) | 0.3m (0.98ft) | 0.3m (0.98ft) | 0.3m (0.98ft) |
| Lens Type | Fixed focal | Fixed focal | Pinhole | Pinhole | Fixed focal |
| Mount Type | RJ12 connected with main unit | RJ12 connected with main unit | RJ12 connected with main unit | RJ12 connected with main unit | RJ12 connected with main unit |
| ENVIRONMENTAL | |||||
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66 | ||||
| MECHANICAL | |||||
| Color / Material | Lens: Black / Plastic Cable: Black | Lens: Black / Plastic, Metal Cable: Black | Lens: Black / Plastic Cable: Black | Lens: Black / Plastic, Metal Cable: Black | Lens: Black / Plastic, Metal Cable: Black |
| Dimensions (WxHxD) | Lens: Ø24 x 49.8mm (Ø0.94" x 1.96") Cable: 8m (314.96") | Lens: 30 x 27.9 x 45mm (1.18" x 0.10" x 1.77") Cable: 8m (314.96") | Lens: Ø24 x 42mm (Ø0.94" x 1.65") Cable: 8m (314.96") | Lens: 30 x 20.2 x 45mm (1.18" x 0.80" x 1.77") Cable: 8m (314.96") | Lens: Ø35 x 68.9mm (Ø1.38" x 2.71") Cable: 8m (314.96") |
| Weight | 318g (0.70 lb) | 328g (0.72 lb) | 310g (0.68 lb) | 321g (0.71 lb) | 321g (0.71 lb) |
