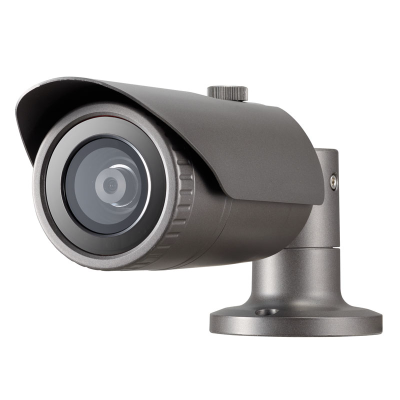

Hanwha Wisenet QNO-7010R 4MP Outdoor Bullet Camera, H.265, 20fps, 120dB WDR, 20m IR, 2.8mm
4M H.265 IR Bullet Camera
The QNO-7010R is equipped with a 2.8mm fixed lens offering a wide 108° horizontal field of view, ideal for covering large areas. It supports advanced image enhancement technologies, including 120dB Wide Dynamic Range (WDR) and digital noise reduction, ensuring high-quality images in various lighting conditions. The camera also includes intelligent video analytics such as motion detection and virtual line crossing, enhancing its security capabilities. Built to withstand harsh environments, it is IP66 and IK10 rated for water, dust, and vandal resistance.
Key Features
- Maximum 4MP resolution.
- Built-in 2.8mm fixed lens.
- Supports up to 20fps at 4MP and up to 30fps at resolutions under 2MP (H.265/H.264).
- H.265, H.264, and MJPEG codecs supported with multiple streaming options.
- Features motion detection, tampering detection, and defocus detection.
- Includes a microSD slot supporting up to 128GB, PoE, and 12V DC power.
- IR viewable length of 20 meters.
- Hallway view and WiseStream support, with IP66 and IK10 ratings.
- Lens Distortion Correction (LDC) supported.
Code/SKU: QNO-7010R
Quick Specs:
- Resolution: 2592x1520, 2560x1440, 2304x1296, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240.
- Max. Framerate: H.265/H.264: Max. 20fps@4MP, Max. 30fps/25fps (60Hz/50Hz) 2MP, all resolutions; MJPEG: Max. 15fps/12fps (60Hz/50Hz).
- Min. Illumination: Color: 0.5Lux (F2.2, 1/30sec); BW: 0Lux (IR LED on).
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision QNO-7010R is a robust 4MP IR Bullet Camera designed for efficient and reliable surveillance. It features H.265 video compression, which reduces bandwidth usage and storage requirements while maintaining high video quality. The camera's 4MP resolution ensures clear and detailed images, even in challenging conditions. With an IR LED providing illumination up to 20 meters, it captures clear footage in complete darkness. The QNO-7010R is equipped with a 2.8mm fixed lens offering a wide 108° horizontal field of view, ideal for covering large areas. It supports advanced image enhancement technologies, including 120dB Wide Dynamic Range (WDR) and digital noise reduction, ensuring high-quality images in various lighting conditions.
The camera also includes intelligent video analytics such as motion detection and virtual line crossing, enhancing its security capabilities. Built to withstand harsh environments, it is IP66 and IK10 rated for water, dust, and vandal resistance. Power over Ethernet (PoE) support simplifies installation by reducing the need for additional power cables. The QNO-7010R also supports edge storage with a microSD card slot for local recording, adding redundancy to the surveillance system.
Features
- Maximum 4MP resolution.
- Built-in 2.8mm fixed lens.
- Supports up to 20fps at 4MP and up to 30fps at resolutions under 2MP (H.265/H.264).
- H.265, H.264, and MJPEG codecs supported with multiple streaming options.
- Features motion detection, tampering detection, and defocus detection.
- Includes a microSD slot supporting up to 128GB, PoE, and 12V DC power.
- IR viewable length of 20 meters.
- Hallway view and WiseStream support, with IP66 and IK10 ratings.
- Lens Distortion Correction (LDC) supported.
Technical Specifications:
| Video | |
|---|---|
| Imaging Device | 1/3" 4MP CMOS |
| Resolution | 2592x1520, 2560x1440, 2304x1296, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 20fps@4MP, Max. 30fps/25fps(60Hz/50Hz) 2MP, all resolution, MJPEG: Max 15fps/12fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.5Lux(F2.2, 1/30sec) BW: 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.2 |
| Angular Field of View | H: 110.0° / V: 63.0° / D: 128.0° |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 20 characters per line(Max.5 lines) |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Line in Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| IR Viewable Length | 20m(65.62ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | WiseStreamⅠ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) |
| General | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.00W 12VDC: Max 6.00W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product Dimensions / Weight | Ø70.0x246.0mm(Ø2.76x9.69"), 730g(1.61 lb) |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
4M H.265 IR Bullet Camera
The QNO-7010R is equipped with a 2.8mm fixed lens offering a wide 108° horizontal field of view, ideal for covering large areas. It supports advanced image enhancement technologies, including 120dB Wide Dynamic Range (WDR) and digital noise reduction, ensuring high-quality images in various lighting conditions. The camera also includes intelligent video analytics such as motion detection and virtual line crossing, enhancing its security capabilities. Built to withstand harsh environments, it is IP66 and IK10 rated for water, dust, and vandal resistance.
Key Features
- Maximum 4MP resolution.
- Built-in 2.8mm fixed lens.
- Supports up to 20fps at 4MP and up to 30fps at resolutions under 2MP (H.265/H.264).
- H.265, H.264, and MJPEG codecs supported with multiple streaming options.
- Features motion detection, tampering detection, and defocus detection.
- Includes a microSD slot supporting up to 128GB, PoE, and 12V DC power.
- IR viewable length of 20 meters.
- Hallway view and WiseStream support, with IP66 and IK10 ratings.
- Lens Distortion Correction (LDC) supported.
Code/SKU: QNO-7010R
Quick Specs:
- Resolution: 2592x1520, 2560x1440, 2304x1296, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240.
- Max. Framerate: H.265/H.264: Max. 20fps@4MP, Max. 30fps/25fps (60Hz/50Hz) 2MP, all resolutions; MJPEG: Max. 15fps/12fps (60Hz/50Hz).
- Min. Illumination: Color: 0.5Lux (F2.2, 1/30sec); BW: 0Lux (IR LED on).
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Imaging Device | 1/3" 4MP CMOS |
| Resolution | 2592x1520, 2560x1440, 2304x1296, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 20fps@4MP, Max. 30fps/25fps(60Hz/50Hz) 2MP, all resolution, MJPEG: Max 15fps/12fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.5Lux(F2.2, 1/30sec) BW: 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.2 |
| Angular Field of View | H: 110.0° / V: 63.0° / D: 128.0° |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 20 characters per line(Max.5 lines) |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Line in Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| IR Viewable Length | 20m(65.62ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | WiseStreamⅠ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) |
| General | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.00W 12VDC: Max 6.00W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product Dimensions / Weight | Ø70.0x246.0mm(Ø2.76x9.69"), 730g(1.61 lb) |
