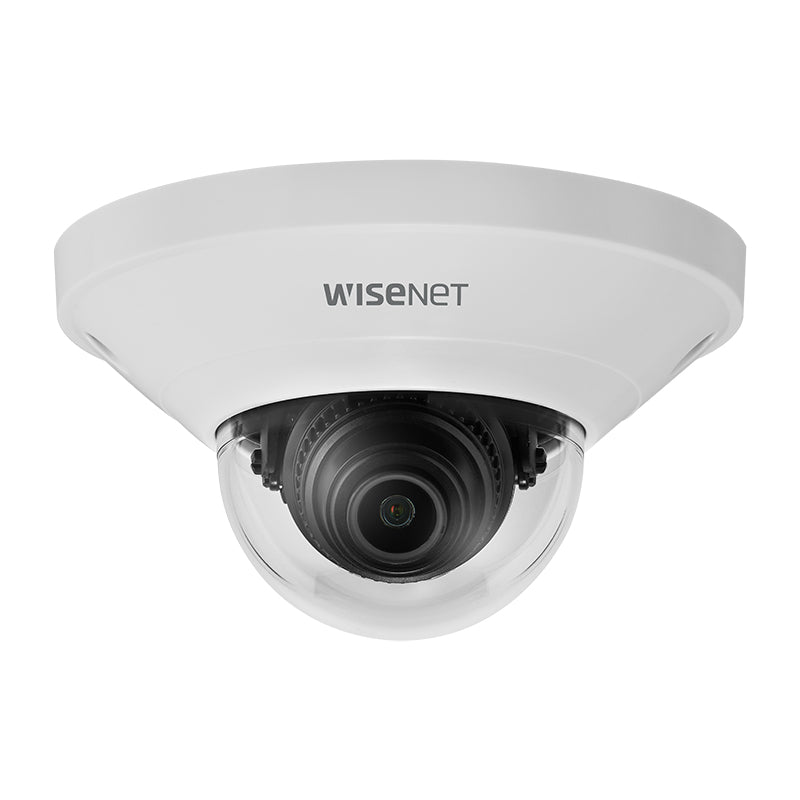

Hanwha Wisenet QND-8011 NEW-Q 5MP Indoor Mini Dome Camera,H.265, WDR, IK08, HDMI, 2.8mm

$386.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

5M H.265 Dome Camera(Q mini)

The QND-8011 is equipped with intelligent analytics, such as motion detection and tampering detection, for proactive security measures. Its compact size and sleek design make it ideal for discreet installation in environments like offices, retail stores, and residential areas. The camera is compatible with various mounting options, allowing for flexible installation on walls or ceilings. It supports Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power cables. The QND-8011 also features Wide Dynamic Range (WDR) technology, ensuring clear images in challenging lighting situations. The camera's durable housing is rated for indoor use, providing reliable performance in various indoor environments.

Key Features

  • Max. 5 Megapixel (2592 x 1944) resolution
  • 2.8mm fixed lens
  • 0.15 Lux (Color), WDR (120dB)
  • Max. 30 fps @ 5MP (H.265 / H.264)
  • H.265, H.264, MJPEG codec support, Multiple streaming
  • Tampering, Motion detection, Defocus detection
  • Micro SD / SDHC / SDXC memory slot (Max. 128GB)
  • Hallway view, WiseStream II support
  • LDC, PoE

Code/SKU: QND-8011
Quick Specs:

  • Ethernet: RJ-45 (10/100BASE-T)
  • Video Compression: H.265/H.264 (Main/High), MJPEG
  • Smart Codec: WiseStream II

Specifications

Video
Imaging Device 1/2.8" CMOS
Resolution 5MP mode : 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
4MP mode : 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps(@5MP Max. 2fps)
Min. Illumination Color: 0.15Lux(F2.0, 1/30sec, 30IRE)
BW: 0.15Lux(F2.0, 1/30sec, 30IRE)
Video Out micro HDMI: 1080p@30/25fps(60/50Hz)
Lens
Focal Length (Zoom Ratio) 2.8mm fixed focal
Max. Aperture Ratio F2.0
Angular Field of View H: 105°/ V: 77°/ D: 137°
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0˚~350˚ / 0˚~69˚ / 0˚~355˚
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(Electrical)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Defocus detection, Motion detection, Tampering
Business Intelligence People counting
Alarm Triggers Analytics, Network disconnect
Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Handover: PTZ preset
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Smart Codec WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
Security
OS / Firmware Protect Firmware encryption
User authentication Digest Authentication, Prevent brute-force attack
Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication HTTPS, SRTP, WSS(Websocket secure)
Access Control Access control based on IP address
Data Protect Authentication information encryption, ZIP compression encryption
Audit User Access/System/Event log management
Device ID Device Certificate(Hanwha Private Root CA)
Secure Storage SDcard partition encrypt
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C~+40°C(+14°F~+104°F) / 0~90% RH(non-condensing)
Storage Temperature / Humidity -30°C~+60°C(-22°F~+140°F) / 0~90% RH
Certification IP42, IK08
Input Voltage PoE(IEEE802.3af, Class2)
Power Consumption PoE: Max 5.00W, typical 4.00W
Mechanical
Color / Material White / Plastic
RAL Code RAL9003
Product Dimensions / Weight ø99.0x56.0mm(ø3.9x2.2"), 165g(0.36 lb)
Hanging Mount (Dome) SBP-099HMW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 40.2m(12.26ft)
Observe (63PPM/ 19PPF) 16.1m(4.90ft)
Recognize (125PPM/ 38PPF) 8.0m(2.45ft)
Identify (250PPM/ 76PPF) 4.0m(1.23ft)
