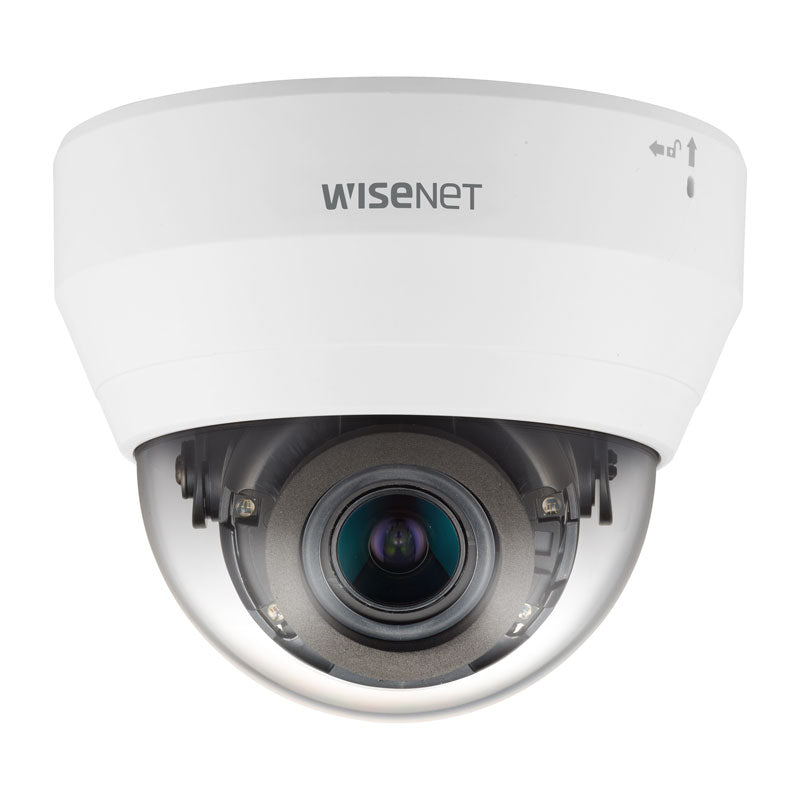

Hanwha Wisenet QND-7080R 4MP Indoor Dome Camera, H.265, 20fps, 120dB WDR, 20m IR, 2.8-12mm WHITE
4M H.265 IR Dome Camera
The QND-7080R is built with Wide Dynamic Range (WDR) technology, enhancing visibility in scenes with both bright and dark areas. It includes motion detection and tampering alarms, offering enhanced security and real-time alerts. The camera is IP66-rated for weather resistance and IK10-rated for vandal resistance, making it durable in harsh outdoor conditions. With a built-in microSD/SDHC/SDXC slot, it allows for edge storage, ensuring continuous recording even if the network connection is lost. The camera's sleek design and compact size make it ideal for discreet installation in various environments. The QND-7080R is compatible with Hanwha’s WiseNet Viewer and other third-party management software, providing flexible monitoring options.
Key Features
- Max. 4M resolution
- 2.8 ~ 12mm (4.3x) motorized varifocal lens
- Max. 20fps @ 4M resolutions, Max. 30fps @ 2M resolutions
- H.265, H.264, MJPEG codec supported
- Motion detection, Tampering, Defocus detection
- microSD (128GB) memory slot, PoE / 12V DC
- IR viewable length 20m
- Hallway view support
- LDC support (Lens Distortion Correction)
Code/SKU: QND-7080R
Quick Specs:
- Focal Length (Zoom Ratio): 2.8~12mm (4.3x) motorized varifocal
- Max. Aperture Ratio: F1.4 (Wide) ~ F3.6 (Tele)
- Angular Field of View:
- Horizontal: 109.7° (Wide) ~ 26° (Tele)
- Vertical: 60.8° (Wide) ~ 15.2° (Tele)
- Diagonal: 131.3° (Wide) ~ 30.1° (Tele)
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision QND-7080R is a robust 4MP H.265 IR dome camera designed for reliable and high-quality surveillance. It features a 2.8-12mm motorized varifocal lens, offering flexible zoom options to suit various monitoring needs. This camera supports a 2560 x 1440 resolution, ensuring clear and detailed image capture. Equipped with infrared LEDs, the QND-7080R provides effective night vision up to 30 meters, making it suitable for low-light environments. The camera's H.265 compression technology significantly reduces bandwidth and storage requirements without compromising video quality. It also supports H.264 and MJPEG compression for compatibility with older systems.
The QND-7080R is built with Wide Dynamic Range (WDR) technology, enhancing visibility in scenes with both bright and dark areas. It includes motion detection and tampering alarms, offering enhanced security and real-time alerts. The camera is IP66-rated for weather resistance and IK10-rated for vandal resistance, making it durable in harsh outdoor conditions. With a built-in microSD/SDHC/SDXC slot, it allows for edge storage, ensuring continuous recording even if the network connection is lost. The camera's sleek design and compact size make it ideal for discreet installation in various environments. The QND-7080R is compatible with Hanwha’s WiseNet Viewer and other third-party management software, providing flexible monitoring options. It supports PoE (Power over Ethernet), simplifying installation by allowing power and data transmission through a single cable. The camera also features defog and digital noise reduction capabilities, ensuring clear images in challenging conditions. This model is NDAA-compliant, making it suitable for use in sensitive government projects.
Features
- 4 Megapixel (2560 x 1440) resolution
- Max. 30fps at all resolutions (H.265/H.264)
- Motorized Varifocal lens (3.1-9.4mm)
- Built-in IR LED (up to 30 meters)
- H.265, H.264, MJPEG codec support
- Motion Detection, Tampering Detection, Defocus Detection
- SD/SDHC/SDXC memory slot (max. 128GB)
- PoE (Power over Ethernet) support
- IP66-rated weather-resistant housing
- IK10-rated vandal-resistant housing
- WiseStream II technology for efficient bandwidth management
Specifications
- Image Sensor: 1/3" 4MP CMOS
- Lens: Motorized Varifocal (3.1-9.4mm)
- IR Distance: Up to 30 meters
- Video Compression: H.265, H.264, MJPEG
- Frame Rate: Max. 30fps
- Audio: Bi-directional audio support
- Operating Temperature: -30°C to +55°C (-22°F to +131°F)
- Power Supply: 12V DC, PoE
- Power Consumption: Max. 9W
Additional Details
| General | |
|---|---|
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C(14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.20W 12VDC: Max 6.40W |
| Mechanical | |
| Color / Material | Ivory / Plastic |
| Product Dimensions / Weight | Ø119.8x98.8mm(Ø4.72x3.89"), 355g(0.78 lb) |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
4M H.265 IR Dome Camera
The QND-7080R is built with Wide Dynamic Range (WDR) technology, enhancing visibility in scenes with both bright and dark areas. It includes motion detection and tampering alarms, offering enhanced security and real-time alerts. The camera is IP66-rated for weather resistance and IK10-rated for vandal resistance, making it durable in harsh outdoor conditions. With a built-in microSD/SDHC/SDXC slot, it allows for edge storage, ensuring continuous recording even if the network connection is lost. The camera's sleek design and compact size make it ideal for discreet installation in various environments. The QND-7080R is compatible with Hanwha’s WiseNet Viewer and other third-party management software, providing flexible monitoring options.
Key Features
- Max. 4M resolution
- 2.8 ~ 12mm (4.3x) motorized varifocal lens
- Max. 20fps @ 4M resolutions, Max. 30fps @ 2M resolutions
- H.265, H.264, MJPEG codec supported
- Motion detection, Tampering, Defocus detection
- microSD (128GB) memory slot, PoE / 12V DC
- IR viewable length 20m
- Hallway view support
- LDC support (Lens Distortion Correction)
Code/SKU: QND-7080R
Quick Specs:
- Focal Length (Zoom Ratio): 2.8~12mm (4.3x) motorized varifocal
- Max. Aperture Ratio: F1.4 (Wide) ~ F3.6 (Tele)
- Angular Field of View:
- Horizontal: 109.7° (Wide) ~ 26° (Tele)
- Vertical: 60.8° (Wide) ~ 15.2° (Tele)
- Diagonal: 131.3° (Wide) ~ 30.1° (Tele)
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Imaging Device | 1/3" 4MP CMOS |
| Resolution | 2592x1520, 2560x1440, 2304x1296, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 20fps@4MP, Max. 30fps/25fps(60Hz/50Hz) 2MP, all resolution, MJPEG: Max 15fps/12fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.15Lux(F1.4, 1/30sec) BW: 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifocal |
| Max. Aperture Ratio | F1.4(Wide)~F3.6(Tele) |
| Angular Field of View | H: 109.7°(Wide)~26°(Tele) / V: 60.8°(Wide)~15.2°(Tele) / H: 131.3°(Wide)~30.1°(Tele) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 20 characters per line(Max.5 lines) |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Built-in mic |
| IR Viewable Length | 20m(65.62ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | WiseStreamⅠ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C(14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.20W 12VDC: Max 6.40W |
| Mechanical | |
| Color / Material | Ivory / Plastic |
| Product Dimensions / Weight | Ø119.8x98.8mm(Ø4.72x3.89"), 355g(0.78 lb) |
