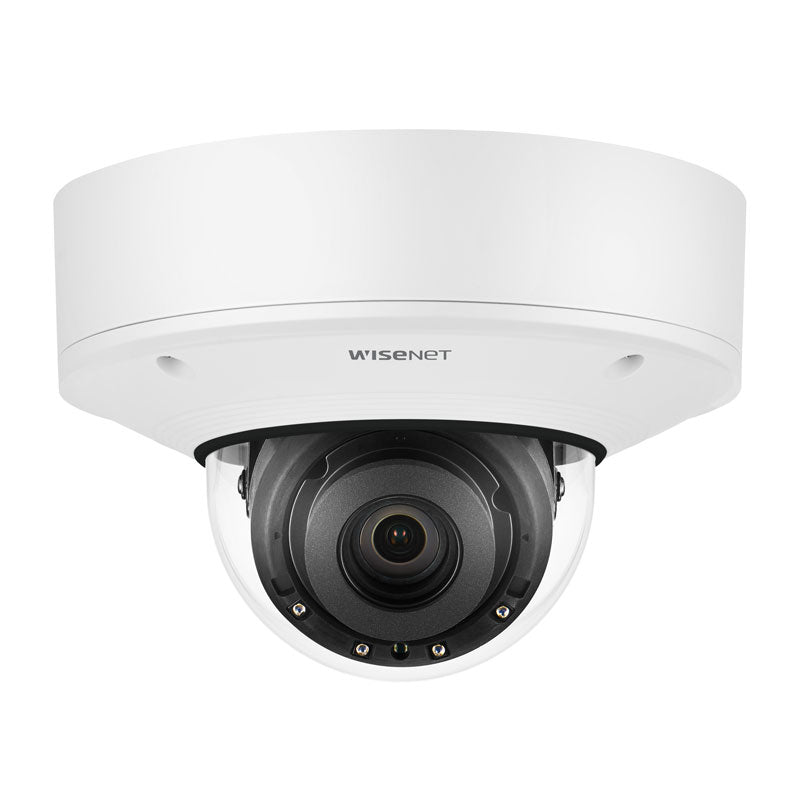

4K AI IR Vandal Dome Camera
The PNV-A9081R offers flexible zoom capabilities and precise focus adjustments. It supports H.265 compression technology, which significantly reduces bandwidth and storage requirements without compromising video quality. The camera is also equipped with infrared LEDs for effective night vision, enabling clear imaging even in total darkness. With its IP67 rating, the PNV-A9081R is highly resistant to harsh weather conditions and can withstand outdoor environments. The camera features advanced analytics, including motion detection and intrusion detection, enhancing its capability to identify and alert on suspicious activities.
Key Features
Code/SKU: PNV-A9081R
Quick Specs:
Video | |
---|---|
Imaging Device | 1/1.8" CMOS |
Resolution | 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360 |
Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
Min. Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0.005Lux(F1.6, 1/30sec), 0Lux(IR LED on) |
Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
Lens | |
Focal Length (Zoom Ratio) | 4.5~10mm(2.2x) motorized varifocal |
Max. Aperture Ratio | F1.6(Wide)~F2.65(Tele) |
Angular Field of View | H:101.4°(Wide)~45.5°(Tele) / V:53.6°(Wide)~25.5°(Tele) / D:120.7°(Wide)~52.3°(Tele) |
Min. Object Distance | 0.5m(1.64ft) |
Focus Control | Simple focus |
Lens Type | P iris |
Pan / Tilt / Rotate | |
Pan / Tilt / Rotate Range | 0˚~360˚ / -45˚~85˚ / 0˚~355˚ |
Operational | |
Camera Title | Displayed up to 85 characters |
Day & Night | Auto(ICR) |
Backlight Compensation | BLC, WDR, SSDR |
Digital Noise Reduction | WiseNR Ⅱ(using AI engine) SSNRⅤ |
Digital Image Stabilization | Stabilization Support(built-in gyro sensor) |
Motion Detection | 8ea, polygonal zones |
Privacy Masking | 6ea, rectangle zones - Color: GrayBlack/White |
Gain Control | Low / Middle / High |
White Balance | ATW / AWC / Manual / Indoor / Outdoor |
LDC | Support |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control based on AI engine |
Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
Analytics | Classified object type: Person/Face/Vehicle/License plate Attributes: Person(Gender, Color and Bag), Face(Age, Gender, Mask and Glasses), Vehicle(Type: car/bus/truck/motorcycle/bicycle and Color) Support BestShot per object Analytics events based on AI engine - Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit), Face mask detection, Social distancing detection, Slip&Fall detection Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) Support WiseDetector for Adding custom objects *Some of the video analytics only works with people and vehicle detection |
Business Intelligence | People/Vehicle/Crowd counting, Queue management, Heatmap based on AI engine |
Alarm I/O | 2 configurable I/O ports, DC 12V output(Max. 50mA) |
Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication |
Audio In | Selectable(mic in/line in) |
Audio Out | Line out |
Light Type | IR LED (850nm) |
IR Viewable Length | WiseIR 30m(98.42ft) |
Network | |
Ethernet | Metal shielded RJ-45(10/100/1000 BASE-T) |
Video Compression | H.265/H.264: Main/High, MJPEG |
Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(using AI engine) |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 6 profiles) |
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT |
Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform - WiseAI application included(Analytic based on AI, Business intelligence) |
Security | |
OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
User authentication | Digest Authenticaton, Prevent brute-force attack |
Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
Secure Communication | HTTPS, WSS (WebSocket Secure) |
Access Control | IP-based access control |
Data Protect | Encryption Credentials, Encrypt compress for live recording file |
Audit | Access / System / Event Log management |
Device ID | Device certificate (Hanwha Techwin Root CA) |
Secure Storage | SDcard partition encrypt |
General | |
Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
Edge Storage | Micro SD/SDHC/SDXC 2slots 512GB |
Memory | 4096MB RAM, 512MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -50°C ~ +55°C(-58°F ~ +131°F) / Less than 90% RH * Start up should be done at above -30°C |
Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
Certification | IP66/IP67/IP6K9K, IK10+, NEMA4X |
Input Voltage | PoE+(IEEE802.3at), 12VDC |
Power Consumption | PoE+: Max 20.00W, typical 17.00W 12VDC: Max 18.70W, typical 15.00W |
Mechanical | |
Color / Material | White / Aluminum, Hard-coated dome bubble |
RAL Code | RAL9003 |
Product Dimensions / Weight | Ø180x125mm(7.09x4.92"), Weight : 1.90Kg (4.19lb) |
Compatible Conduit hole / Gangbox | 3/4"(M25) Single, Double, 4"Octagon, Square |
Hanging Mount (Dome) | SBP-187HMW |
DORI (EN62676-4 standard) | |
Detect (25PPM/ 8PPF) | Wide: 62.2m(204.04ft) / Tele: 185.4m(608.31ft) |
Observe (63PPM/ 19PPF) | Wide: 24.9m(81.62ft) / Tele: 74.2m(243.32ft) |
Recognize (125PPM/ 38PPF) | Wide: 12.4m(40.81ft) / Tele: 37.1m(121.66ft) |
Identify (250PPM/ 76PPF) | Wide: 6.2m(20.40ft) / Tele: 18.5m(60.83ft) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hanwha Wisenet PNV-A9081R 4K AI Outdoor Vandal Dome Camera, 30fps, WDR, IR, IP67, 4.5-10mm
The Hanwha Vision PNV-A9081R is a high-performance network camera designed for demanding surveillance applications. It features an 8MP resolution, providing exceptionally clear and detailed images. The camera utilizes a 1/1.8" CMOS sensor to ensure superior low-light performance and accurate color reproduction. Equipped with a motorized varifocal lens, the PNV-A9081R offers flexible zoom capabilities and precise focus adjustments. It supports H.265 compression technology, which significantly reduces bandwidth and storage requirements without compromising video quality. The camera is also equipped with infrared LEDs for effective night vision, enabling clear imaging even in total darkness. With its IP67 rating, the PNV-A9081R is highly resistant to harsh weather conditions and can withstand outdoor environments. The camera features advanced analytics, including motion detection and intrusion detection, enhancing its capability to identify and alert on suspicious activities. It is compatible with various management systems, offering seamless integration into existing security infrastructures.
Additionally, the PNV-A9081R supports two-way audio communication, allowing for interactive surveillance. Its sleek, compact design ensures it blends seamlessly with various architectural styles. The camera's remote accessibility features enable users to monitor live feeds and access recorded footage from anywhere using a compatible device. Its robust build quality ensures long-term reliability and durability. The PNV-A9081R also supports PoE (Power over Ethernet), simplifying installation by eliminating the need for additional power cables.
Features
Specifications
General | |
---|---|
Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
Edge Storage | Micro SD/SDHC/SDXC 2slots 512GB |
Memory | 4096MB RAM, 512MB Flash |
Environmental & Electrical | |
Operating Temperature / Humidity | -50°C ~ +55°C(-58°F ~ +131°F) / Less than 90% RH * Start up should be done at above -30°C |
Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
Certification | IP66/IP67/IP6K9K, IK10+, NEMA4X |
Input Voltage | PoE+(IEEE802.3at), 12VDC |
Power Consumption | PoE+: Max 20.00W, typical 17.00W 12VDC: Max 18.70W, typical 15.00W |
Mechanical | |
Color / Material | White / Aluminum, Hard-coated dome bubble |
RAL Code | RAL9003 |
Product Dimensions / Weight | Ø180x125mm(7.09x4.92"), Weight : 1.90Kg (4.19lb) |
Compatible Conduit hole / Gangbox | 3/4"(M25) Single, Double, 4"Octagon, Square |
Hanging Mount (Dome) | SBP-187HMW |
