  • Sku: QRN-810S
  • Vendor: SecurityAustralia

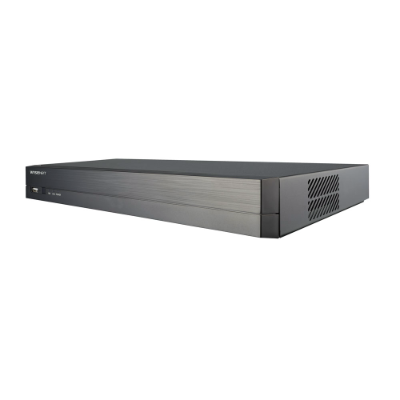

Hanwha Wisenet QRN-810S NEW-Q 8ch 4K PoE NVR, H.265, 80Mbps, 3TB HDD (1 SATA 6TB max)

$712.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

8 CH PoE NVR

The QRN-810S features robust network security protocols to protect data and ensure reliable operation. Additionally, it supports remote access via mobile and web applications, enabling users to monitor their security systems from anywhere. The NVR is built with durable components and designed for reliable 24/7 operation in various environments. With a compact form factor, it can be easily integrated into existing setups without taking up much space.

Key Features

  • Up to 8ch 8 megapixel supported
  • H.265, H.264, MJPEG codec supported
  • 80Mbps network camera recording
  • Plug & play by 8 PoE ports
  • Maximum 1 HDD (up tp 6Tb) supported
  • HDMI local monitor
  • P2P service (QR code connect) support

Code/SKU: QRN-810S
Quick Specs:

  • Operating System: Embedded Linux
  • Record Compression: H.265, H.264, MJPEG
  • Recording Bandwidth: Max. 80Mbps
  • Resolution: CIF ~ 8MP

Specifications

Product Specifications
DISPLAY
Network Camera Inputs Max. 8ch
Resolution CIF ~ 8MP
Protocols Wisenet, ONVIF (Profile-S)
Live Local Display 1x HDMI
Multi-Channel Display [Local Monitor] 1 / 2H / 2V / 3V / 4 / 6 / 8 / Auto Sequence
[Web] 1 / 4 / 8 / Auto Sequence
Performance [Local Monitor] 8MP (60fps)
5MP (90fps), 3MP (120fps), 2MP (240fps), 720p (240fps), D1 (240fps)
PERFORMANCE
Operating System Embedded Linux
Record Compression H.265, H.264, MJPEG
Recording Bandwidth Max. 80Mbps
Resolution CIF ~ 8MP
Record Type Manual, Schedule (Continuous / Event), Event (Pre / Post)
Event Trigger Video Loss, Camera event (Sensor, MD, Video analytics, Defocus)
Event Action e-Mail, PTZ Preset, Buzzer, Monitor Out
Search & Play Playback Bandwidth 32Mbps (8ch simultaneously)
Performance Max. 3 Users (Local 1, Remote 3)
Mode Date & Time (Calendar), Event Log list, Text Search (POS), ARB Search, Smart Search (Virtual Line w / direction, Enter / Exit)
Simultaneous Playback Max. 8ch (Local, Network)
Resolution CIF ~ 8MP
Fish-Eye Dewarping N/A (processed on Web / CMS)
Playback Control Fast / Slow Forward / Backward, Move one step Up / Down
Storage Default Built-In 0 ~ 6TB
Internal 1 (Max.6TB)
Backup File Backup BU / Exe (USB), JPG / AVI (Web, CMS)
Function Multi channel (Up to 8ch) Play, Date-Time / Title display
Sensor I/O N/A
AUDIO
Input 8 ch (network)
Compression G.711, G.726, AAC (16 / 48KHz)
Audio Communication 2-Way
NETWORK
Protocol TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client)
DDNS Hanwha Security DDNS
Transmission Bandwidth 80Mbps
Max Remote Users Search (3), Live Unicast (10), Multicast (20)
IP Version IPv4 / IPv6
Security User access Log, IP Filtering, 802.1x, Encryption
LANGUAGE
GUI English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (Simplified), Japanese, Thai
Web English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (Simplified), Japanese, Thai
OS Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11
Web Browser Plug-in free web viewer : Google Chrome 47, MS Edge 20
Plug-in Webviewer : MS Explorer 11, Apple Safari 9 (Mac OS X only)
VIEWER
Software Type SSM, Webviewer, Smart Viewer, Wisenet Mobile
CMS Support Support SDK / CGI (SUNAPI)
FUNCTIONS
Camera Setup Register PnP, Manual
Setup Items IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
Camera video setup (Simple focus, Brightness / Contrast, Flip / Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping setup, Hallway View Setup, Camera Webpage
Camera Control PoE Monitor PoE Power consumption, On / Off Control for each PoE camera, Remote Reset for each PoE camera
Easy Configuration Setup Wizard (Date / Time, Network, Auto Camera Configuration)
P2P (QR code)
ARB Yes
PTZ Control Via GUI, Webviewer, 255 preset
Smartphone Support Model iPhone, Android
Protocol Support RTP, RTSP, HTTP, CGI (SUNAPI)
Control Live (8ch) : Multi-Profile Support, Playback (4ch), Event push
Max. Remote Users Search (3), Live Unicast (10), Multicast (20)
System Control Mouse, Web, IR Remote control
INDICATOR / INTERFACE
Front Indicator LED 3ea (Power Status 1, LAN 1, Record 1)
Connectors VGA N/A
HDMI 1 EA (3840 x 2160, 1920x1080, 1280x720)
Audio N/A
Ethernet 8EA (PoE, 100Mbps)
1EA (WAN, 1Gbps) - WAN : Uplink to CMS
Alarm N/A
USB Front 1EA (USB2.0), Rear 1 (USB3.0)
Ext. Storage N/A
Serial N/A
Reset Switch (1EA)
Power Cord Included
SYSTEM
Log List Max. 20000 (System Log, Event Log each)
ENVIRONMENTAL
Operating Temperature / Humidity +0°C to +40°C (+32℉ to +104℉)
Humidity 20% ~ 85% RH
ELECTRICAL
Power Input 54V DC / 1.67A
Power Consumption Max. 76.2W (1HDD, PoE on), Max. 8.1W (1HDD, PoE off)
PoE Budget Max. 50W
MECHANICAL
Color / Material Black / Metal
Dimension (WxHxD) W300.0 x H47.1 x D208.4 mm (1U) (11.81" x 1.85" x 8.20")
Weight 1.01Kg (2.22 Ib) (without HDD)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hanwha Wisenet QRN-810S NEW-Q 8ch 4K PoE NVR, H.265, 80Mbps, 3TB HDD (1 SATA 6TB max)

$712.00 AUD
 per

The QRN-810S is an advanced 8-channel PoE NVR from Hanwha Vision designed to meet diverse surveillance needs. This model supports up to 8MP resolution, ensuring high-quality video recording and playback. Equipped with PoE (Power over Ethernet) capabilities, it simplifies installation by providing both power and data through a single cable. The NVR offers seamless integration with various Hanwha Vision cameras, enhancing overall system compatibility. It includes advanced H.265 compression technology to optimize storage efficiency while maintaining video clarity. The device supports real-time streaming and recording, allowing for responsive monitoring and recording. Its intuitive user interface provides ease of navigation and configuration, making it user-friendly for both professionals and beginners.

The QRN-810S features robust network security protocols to protect data and ensure reliable operation. Additionally, it supports remote access via mobile and web applications, enabling users to monitor their security systems from anywhere. The NVR is built with durable components and designed for reliable 24/7 operation in various environments. With a compact form factor, it can be easily integrated into existing setups without taking up much space. Overall, the QRN-810S delivers a comprehensive solution for effective video surveillance and management.

Features

  • 8 Channels: Supports up to 8 cameras for a comprehensive surveillance setup.
  • 8MP Resolution: Records high-definition 8MP video for clear and detailed imagery.
  • H.265 Compression: Utilizes H.265 codec to reduce bandwidth and storage needs while maintaining video quality.
  • PoE Ports: Equipped with Power over Ethernet (PoE) ports for easy installation and power management.
  • Advanced Analytics: Integrates with Hanwha's advanced analytics tools for improved security and monitoring.
  • Remote Access: Allows for remote viewing and management of video feeds from anywhere.
  • User-Friendly Interface: Provides an intuitive interface for easy configuration and operation.
Technical Specifications
SYSTEM
Log List Max. 20000 (System Log, Event Log each)
ENVIRONMENTAL
Operating Temperature / Humidity +0°C to +40°C (+32℉ to +104℉)
Humidity 20% ~ 85% RH
ELECTRICAL
Power Input 54V DC / 1.67A
Power Consumption Max. 76.2W (1HDD, PoE on), Max. 8.1W (1HDD, PoE off)
PoE Budget Max. 50W
MECHANICAL
Color / Material Black / Metal
Dimension (WxHxD) W300.0 x H47.1 x D208.4 mm (1U) (11.81" x 1.85" x 8.20")
Weight 1.01Kg (2.22 Ib) (without HDD)
