5M H.265 IR Dome Camera
The QND-8080R is equipped with infrared (IR) capabilities, providing exceptional night vision up to 30 meters, making it suitable for 24/7 surveillance. Its compact dome design allows for discreet installation, while the camera’s vandal-resistant housing ensures durability in challenging environments. The camera supports wide dynamic range (WDR) technology, enhancing visibility in scenes with both bright and dark areas. Its built-in motion detection and alert systems provide real-time notifications, adding an extra layer of security.
Key Features
Code/SKU: QND-8080R
Quick Specs:
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 5MP mode : 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 4MP mode : 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps(@5MP Max. 2fps) |
| Min. Illumination | Color: 0.15Lux(F1.6, 1/30sec, 30IRE) BW: 0.015Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F2.9(Tele) |
| Angular Field of View | H: 101°(Wide)~31°(Tele) V: 73°(Wide)~23°(Tele) D: 134°(Wide)~38°(Tele) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 20m(65.62ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C~+55°C(+14°F~+131°F) / 0~90% RH(non-condensing) |
| Storage Temperature / Humidity | -30°C~+60°C(-22°F~+140°F) / 0~90% RH |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 8.90W, typical 6.60W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø120.3x102.0mm(ø4.74x4.02"), 430g(0.95 lb) |
| Hanging Mount (Dome) | SBP-122HMW |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 43.3m(141.94ft) / Tele: 185.7m(609.09ft) |
| Observe (63PPM/ 19PPF) | Wide: 17.3m(56.78ft) / Tele: 74.3m(243.64ft) |
| Recognize (125PPM/ 38PPF) | Wide: 8.7m(28.39ft) / Tele: 37.1m(121.82ft) |
| Identify (250PPM/ 76PPF) | Wide: 4.3m(14.19ft) / Tele: 18.6m(60.91ft) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

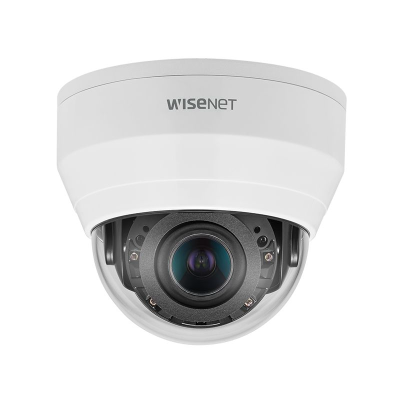

Hanwha Wisenet QND-8080R NEW-Q 5MP Indoor VF Dome Camera, H.265, 30m IR, WDR, 3.2-10mm
The Hanwha Vision QND-8080R is a 5 Megapixel H.265 IR Dome Camera designed for high-resolution surveillance with efficient storage capabilities. This camera boasts advanced H.265 compression technology, which ensures reduced bandwidth and storage requirements without compromising image quality. It features a high-performance 5MP sensor that delivers crisp and clear video footage even in low-light conditions. The QND-8080R is equipped with infrared (IR) capabilities, providing exceptional night vision up to 30 meters, making it suitable for 24/7 surveillance. Its compact dome design allows for discreet installation, while the camera’s vandal-resistant housing ensures durability in challenging environments.
The camera supports wide dynamic range (WDR) technology, enhancing visibility in scenes with both bright and dark areas. Its built-in motion detection and alert systems provide real-time notifications, adding an extra layer of security. The QND-8080R is compatible with various network protocols, ensuring seamless integration with existing security systems. Additionally, it offers remote access features, allowing users to monitor live footage and playback from any location via compatible devices. Overall, the QND-8080R combines high-resolution imaging, advanced features, and reliable performance for comprehensive security solutions.
Features
WiseNet HD+ series is an analog HD solution that provides better performance than existing analog products. WiseNet HD+ can transmit 1080p Full-HD high quality images through existing coaxial cable at a distance up to 1640ft. It is also backwards compatible with any existing analog system.
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 5MP mode : 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 4MP mode : 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps(@5MP Max. 2fps) |
| Min. Illumination | Color: 0.15Lux(F1.6, 1/30sec, 30IRE) BW: 0.015Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide)~F2.9(Tele) |
| Angular Field of View | H: 101°(Wide)~31°(Tele) V: 73°(Wide)~23°(Tele) D: 134°(Wide)~38°(Tele) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris |
