Free Shipping

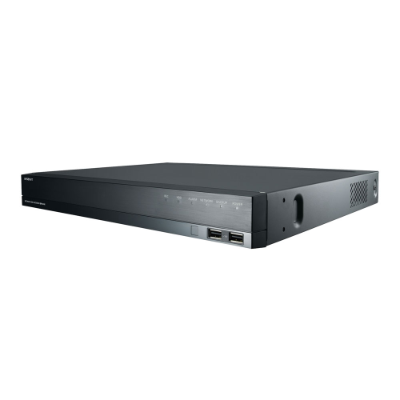

Hanwha Wisenet HAN-XRN-820S 8ch PoE NVR, AI Search, H.265, 100Mbps, No HDD (2 SATA 12TB)
$1,495.00 AUD
Tax included.
Shipping calculated at checkout.
In stock - Ready to ship
Free shipping on orders over $100. Usually ships within 1 business day when available.
Quick Buying Summary
Hanwha Vision 8CH AI NVR with 8 x PoE
The HAN-XRN-820S supports high-definition video recording, ensuring clear and detailed footage with resolutions up to 8MP. Its robust processing power allows for smooth playback and efficient handling of multiple camera feeds simultaneously. The NVR includes a user-friendly interface, making configuration and operation straightforward for both novice and experienced users. With ample storage capacity, it supports extended recording times, accommodating the needs of various surveillance environments.
Key Features
- Up to 8 channels, Supports up to 32-megapixel camera resolution
- 120Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor HDMI/VGA video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 2 internal HDDs (12TB)
- ARB & failover (N+1), dynamic event, Wisenet AI metadata search support
Code/SKU: HAN-XRN-820S
Quick Specs:
- Front Indicator: HDD, Alarm, Power, Record, Backup, Network
- HDMI: 1EA, 3840x2160 at 30Hz
- VGA: 1EA, 1920x1080 at 60Hz
- Audio: Out 1EA (3.5mm Audio Jack)
Accessories
Select options before adding this product to cart.
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Free shipping
Enjoy free shipping when your order exceeds $100.
Fast dispatch
Orders are dispatched within the next business day.
Best local support in Aus
We back all products with manufacturer warranty support.
Official Australian stock
Genuine products with local warranty support.
Product Overview
The Hanwha Vision HAN-XRN-820S is a cutting-edge 8-channel AI Network Video Recorder designed to enhance surveillance capabilities with its advanced features. Equipped with 8 PoE (Power over Ethernet) ports, this NVR simplifies installation by delivering both power and data through a single cable, streamlining connectivity for IP cameras. Its AI-driven technology enables intelligent video analysis, improving accuracy in motion detection, object recognition, and facial recognition. The XRN-820S supports high-definition video recording, ensuring clear and detailed footage with resolutions up to 8MP. Its robust processing power allows for smooth playback and efficient handling of multiple camera feeds simultaneously. The NVR includes a user-friendly interface, making configuration and operation straightforward for both novice and experienced users. With ample storage capacity, it supports extended recording times, accommodating the needs of various surveillance environments.
The XRN-820S also offers advanced network management features, ensuring reliable performance and security. It integrates seamlessly with other Hanwha Vision products, creating a cohesive and scalable surveillance solution. Additionally, its compatibility with remote access tools allows for convenient monitoring from anywhere. Built with durability and reliability in mind, the XRN-820S is an ideal choice for both small and large-scale installations. Its comprehensive support for various recording modes and settings provides flexibility to meet specific security requirements. Overall, the Hanwha Vision XRN-820S represents a powerful and versatile solution for modern surveillance needs, combining innovative technology with user-friendly functionality.
Features
- 8-Channel AI NVR: Supports up to 8 IP cameras with advanced AI features.
- AI-Enhanced Analytics: Includes intelligent video analytics for enhanced monitoring.
- 8 PoE Ports: Provides Power over Ethernet for easy and flexible installation of cameras.
- High-Resolution Recording: Records in 8MP resolution for detailed video quality.
- H.265 Compression: Efficient video compression to reduce storage requirements and bandwidth.
- Dual Storage Support: Supports internal HDD and external USB storage for increased capacity.
- Advanced Event Management: Includes event recording, notification, and alert features.
- Remote Access: Allows for remote monitoring and management via web browsers or mobile apps.
- User-Friendly Interface: Intuitive user interface for easy setup and operation.
- Robust Security: Offers various security features to protect data and system integrity.
Technical Specifications
| Display | |
|---|---|
| Network Camera | Inputs: Max. 8CH |
| Resolution | 32MP ~ CIF |
| Protocols | SUNAPI, ONVIF |
| Decoding | |
| Local Display | FHD: HDMI & VGA Dual monitor, UHD: HDMI Single monitor |
| Multi Screen Display |
Local Monitor: - Dynamic layout, Virtual channel view - Clone mode: Up to 16 Division - Expand mode: Up to 9 Division Web: 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
| Resolution |
Local Monitor: FHD Clone mode: 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps) UHD Single mode: 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps) FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps) |
| Performance | |
| Operating System | Embedded Linux |
| Record | |
| Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 120Mbps |
| Resolution | 32MP ~ CIF |
| Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
| Search & Play | |
| Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous Playback | Max. 32CH (Local 8CH, Remote 8CH per user) |
| Fisheye Dewarping | CMS |
| Mode | Date & Time (Calendar), Event list, Text Search, Smart Search |
| Resolution | CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP) |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Supported HDD | Up to 6TB |
| HDD Slot | SATA 2ea (Max. 12TB) |
| RAID | RAID-1 |
| Backup | |
| File Backup | BU/Exe/AVI (GUI), JPG/AVI (Network) |
| Function | Multi channel (Up to 8CH) Play, Date-Time/Title display |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Hanwha Vision 8CH AI NVR with 8 x PoE
The HAN-XRN-820S supports high-definition video recording, ensuring clear and detailed footage with resolutions up to 8MP. Its robust processing power allows for smooth playback and efficient handling of multiple camera feeds simultaneously. The NVR includes a user-friendly interface, making configuration and operation straightforward for both novice and experienced users. With ample storage capacity, it supports extended recording times, accommodating the needs of various surveillance environments.
Key Features
- Up to 8 channels, Supports up to 32-megapixel camera resolution
- 120Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor HDMI/VGA video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 2 internal HDDs (12TB)
- ARB & failover (N+1), dynamic event, Wisenet AI metadata search support
Code/SKU: HAN-XRN-820S
Quick Specs:
- Front Indicator: HDD, Alarm, Power, Record, Backup, Network
- HDMI: 1EA, 3840x2160 at 30Hz
- VGA: 1EA, 1920x1080 at 60Hz
- Audio: Out 1EA (3.5mm Audio Jack)
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Display | ||
|---|---|---|
| Network camera | ||
| Inputs | Max. 8CH | |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | FHD : HDMI & VGA Dual monitor UHD : HDMI Single monitor | |
| Multi Screen Display | [Local Monitor] - Dynamic layout, Virtual channel view - Clone mode : Up to 16 Division - Expand mode : Up to 9 Division [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | [Local Monitior] FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(480fps) UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps), 1080p(240fps), D1(270fps) FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps), 1080p(90fps), D1(200fps) | |
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 120Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 32CH(Local 8CH, Remote 8CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Up to 6TB | |
| HDD Slot | SATA 2ea(Max. 12TB) | |
| RAID | RAID-1 | |
| Backup | ||
| File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 8CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 120Mbps | |
| Audio | ||
| GUI | 8 CH(network) | |
| Web | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | ||
| Supported OS | Windows 10, macOS 10.13 | |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS | |
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | ||
| Control | Via GUI, Webviewer, SPC-2000 | |
| Preset | 300 Presets | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 8CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||
| Front | ||
| Indicator | HDD, Alarm, Power, Record, Backup, Network | |
| Storage | OK | |
| HDMI | 1EA 3840x2160 30Hz | |
| VGA | 1EA 1920x1080 60Hz | |
| Audio | Out 1EA (3.5mm Audio Jack) | |
| Ethernet | PoE+ RJ-45 8EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps) | |
| Alarm | In 4EA, Out 2EA | |
| USB | 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | Max 160W | |
| PoE Budget | 100W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 370 x 50.7 x 324.3 mm (14.57 x 2 x 12.77 inch) | |
| Weight | 2.7Kg (5.95lb) | |
| Intelligent Analysis | ||
| AI Search | ||
| Object Attribute | Compatible for Hanwha AI Camera | |
