  • Sku: HAN-XNP-8300RW
  • Vendor: SecurityAustralia

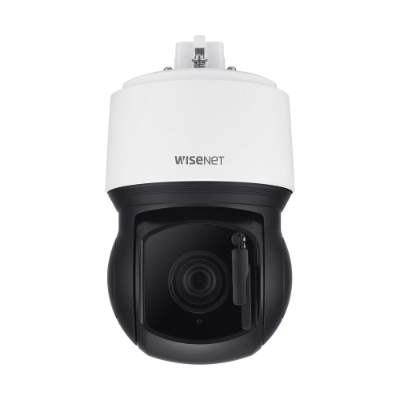

Hanwha Wisenet HAN-XNP-8300RW 6MP Outdoor IR PTZ Camera, H.265, 30x Zoom, Wiper, 5 - 150mm

$4,337.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

6MP 30x IR PTZ with built-in wiper

The camera supports advanced video analytics, enhancing security by enabling features like motion detection and object tracking. Its robust design is built to withstand harsh environments, making it suitable for both indoor and outdoor installations. The XNP-8300RW is equipped with H.265 compression, reducing bandwidth and storage requirements without compromising image quality. It also includes a range of intelligent features, such as auto-tracking and privacy masking, to meet various security needs.

Key Features

  • Max. 6MP resolution
  • 5~150mm (30x) optical zoom (digital 32x, total 960x zoom)
  • Max. IR viewable length 200m
  • Day & Night (ICR), extreme WDR, DIS (Built-in gyro sensor)
  • Intelligent Analytics, Object auto-tracking (Person/Vehicle), Target lock tracking
  • H.264, H.265, MJPEG codec, WiseStreamII
  • IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
  • PTZ PLUS Design applied (Compact, Lighter, Simple cabling)
  • SFP-supported by injector

Code/SKU: XNP-8300RW
Quick Specs:

  • Ethernet: Metal shielded RJ-45 (10/100BASE-T)
  • Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
  • Smart Codec: Manual (5 areas), WiseStreamⅡ

Specifications

Video
Imaging Device 1/2.8" CMOS
Resolution 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720,
1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz) (@6MP Max. 5fps)
Min. Illumination Color: 0.1Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED On)
Lens
Focal Length (Zoom Ratio) 5~150mm(30x) zoom (digital 32x, total 960x zoom)
Optical Zoom 30x
Max. Aperture Ratio F1.6(Wide) - F4.56(Tele)
Angular Field of View H: 57.42°(Wide)~2.19°(Tele) / V: 33.54°(Wide)~1.25°(Tele)
Min. Object Distance 3m(9.84ft)
Focus Control Oneshot AF, Focus save
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360° Endless
Pan Speed Max. 500°/sec, Manual: 0.024°/sec~250°/sec
Tilt Range 110°(90°~-20°)
Tilt Speed Max. 350°/sec, Manual: 0.024°/sec~250°/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.1°, Pan/Tilt correction
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)/Color/BW/Schedule
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range Extreme WDR(120dB)
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, 4point Quadrangle zones
- Color: Gray/Green/Red/Blue/Black/White
- Mosaic
Gain Control Manual / Max
White Balance ATW /Narrow ATW /AWC /Manual /Indoor /Outdoor /Mercury /Sodium
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection
* Audio detection, Sound classification(with NW I/O Box)
Alarm Triggers Analytics, Network disconnect
* Alarm input(with NW I/O Box)
Alarm Events When alarm trigger occurred
- File upload(image) : e-mail/FTP/SFTP
- FIle upload(video clip): FTP/SFTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback
- MQTT: publication
* Alarm output / Audio clip playback(Via optional I/O box SPM-4210)
Light Type IR LED(850nm)
IR Viewable Length 200m(656.17ft), Wise IR
Water Removal Support(with Wiper, Lens heater)
Auto Tracking Support
Object auto tracking(Person/Vehicle)
Target lock tracking
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast (128 user)
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Hanwha Vision Open Platform
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authentication, Prevent brute-force attacks
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage HTPM(Hanwha trusted platform module), SDcard partition encrypt
Security Certificate CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 1TB
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F ~ +131°F) /
+74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7)
* Start up should be done at above -30°C
0~100%RH(Condensing) Humidity control with AIR vent
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9)
Input Voltage PoE++(IEEE802.3bt, Class6, Type3, Injector included)
Power Consumption Typical 20W, Max 42W
Mechanical
Color / Material White, Black / Aluminum+Polycarbontate
RAL Code White: RAL9003 / Black: RAL9005
Product Dimensions / Weight ø184.9x318.8mm(7.28x12.55") / 5400g(11.90lb)
Hanging Mount (Dome) SBP-156HMW
Ceiling Mount (Assy) SBP-156CMW, SBP-300CMTS, SBP-300CMW1/900CMW, SBP-150CMI/300CMI
Wall Mount SBP-156WMW, SBP-390WMW2
Pole Mount SBP-300PMW2
Parapet Mount SBP-156LMW, SBP-156LMW1, SBP-300LMW
Corner Mount SBP-156KMW, SBP-300KMW1
Cabinet SBP-300NBW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 121.5m(398.7ft) / Tele: 3482.3m(11424.9ft)
Observe (63PPM/ 19PPF) Wide: 48.6m(159.5ft)/ Tele: 1392.9m(4570.0ft)
Recognize (125PPM/ 38PPF) Wide: 24.3m(79.7ft)/ Tele: 696.5m(2285.0ft)
Identify (250PPM/ 76PPF) Wide: 12.2m(39.9ft) / Tele: 348.2m(1142.5ft)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hanwha Wisenet HAN-XNP-8300RW 6MP Outdoor IR PTZ Camera, H.265, 30x Zoom, Wiper, 5 - 150mm

$4,337.00 AUD
 per

The 6MP 30x IR PTZ camera, model XNP-8300RW from Hanwha Vision, is a versatile surveillance solution offering high-resolution imaging with its 6MP sensor, ensuring detailed and clear footage. It features a powerful 30x optical zoom, allowing for close-up views of distant objects without losing image quality. The camera is equipped with infrared (IR) capabilities, enabling it to capture clear images even in complete darkness. Additionally, it includes a built-in wiper, which helps maintain clear visibility in adverse weather conditions by removing rain or debris from the lens. The PTZ (Pan-Tilt-Zoom) functionality provides extensive coverage and flexible monitoring, allowing users to remotely control the camera's position for comprehensive area surveillance. The camera supports advanced video analytics, enhancing security by enabling features like motion detection and object tracking. Its robust design is built to withstand harsh environments, making it suitable for both indoor and outdoor installations. The XNP-8300RW is equipped with H.265 compression, reducing bandwidth and storage requirements without compromising image quality. It also includes a range of intelligent features, such as auto-tracking and privacy masking, to meet various security needs.

The camera is compatible with multiple network protocols, ensuring easy integration with existing security systems. With its durable construction, including IP66 and IK10 ratings, it offers protection against dust, water, and vandalism. The XNP-8300RW also supports PoE (Power over Ethernet), simplifying installation by allowing power and data transmission over a single cable. It is an ideal choice for critical surveillance applications in locations like airports, city centers, and industrial sites. The camera's performance is further enhanced by its wide dynamic range (WDR) technology, which ensures clear images in challenging lighting conditions. Overall, the Hanwha Vision XNP-8300RW provides a reliable and high-performance security solution for demanding environments.

Features

  • Max. 6MP resolution
  • 5~150mm (30x) optical zoom (digital 32x, total 960x zoom)
  • Max. IR viewable length 200m
  • Day & Night (ICR), extreme WDR, DIS (Built-in gyro sensor)
  • Intelligent Analytics, Object auto-tracking (Person/Vehicle), Target lock tracking
  • H.264, H.265, MJPEG codec, WiseStreamII
  • IP66, IK10, NEMA4X, NEMA-TS 2 (2.2.8, 2.2.9)
  • PTZ PLUS Design applied (Compact, Lighter, Simple cabling)
  • SFP-supported by injector
Technical Specifications:
Video
Imaging Device 1/2.8" CMOS
Resolution 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720,
1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz) (@6MP Max. 5fps)
Min. Illumination Color: 0.1Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED On)
Lens
Focal Length (Zoom Ratio) 5~150mm(30x) zoom (digital 32x, total 960x zoom)
Optical Zoom 30x
Max. Aperture Ratio F1.6(Wide) - F4.56(Tele)
Angular Field of View H: 57.42°(Wide)~2.19°(Tele) / V: 33.54°(Wide)~1.25°(Tele)
Min. Object Distance 3m(9.84ft)
Focus Control Oneshot AF, Focus save
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360° Endless
Pan Speed Max. 500°/sec, Manual: 0.024°/sec~250°/sec
Tilt Range 110°(90°~-20°)
Tilt Speed Max. 350°/sec, Manual: 0.024°/sec~250°/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.1°, Pan/Tilt correction
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)/Color/BW/Schedule
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range Extreme WDR(120dB)
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, 4point Quadrangle zones
- Color: Gray/Green/Red/Blue/Black/White
- Mosaic
Gain Control Manual / Max
White Balance ATW /Narrow ATW /AWC /Manual /Indoor /Outdoor /Mercury /Sodium
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection
* Audio detection, Sound classification(with NW I/O Box)
Alarm Triggers Analytics, Network disconnect
* Alarm input(with NW I/O Box)
Alarm Events When alarm trigger occurred
- File upload(image) : e-mail/FTP/SFTP
- FIle upload(video clip): FTP/SFTP
- Notification : e-mail
- Recording : SD/SDHC/SDXC or NAS recording at event triggers
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback
- MQTT: publication
* Alarm output / Audio clip playback(Via optional I/O box SPM-4210)
Light Type IR LED(850nm)
IR Viewable Length 200m(656.17ft), Wise IR
Water Removal Support(with Wiper, Lens heater)
Auto Tracking Support
Object auto tracking(Person/Vehicle)
Target lock tracking
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast (128 user)
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Hanwha Vision Open Platform
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authentication, Prevent brute-force attacks
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage HTPM(Hanwha trusted platform module), SDcard partition encrypt
Security Certificate CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,
Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 1TB
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+55°C(-40°F ~ +131°F) /
+74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7)
* Start up should be done at above -30°C
0~100%RH(Condensing) Humidity control with AIR vent
Storage Temperature / Humidity -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9)
Input Voltage PoE++(IEEE802.3bt, Class6, Type3, Injector included)
Power Consumption Typical 20W, Max 42W
Mechanical
Color / Material White, Black / Aluminum+Polycarbontate
RAL Code White: RAL9003 / Black: RAL9005
Product Dimensions / Weight ø184.9x318.8mm(7.28x12.55") / 5400g(11.90lb)
Hanging Mount (Dome) SBP-156HMW
Ceiling Mount (Assy) SBP-156CMW, SBP-300CMTS, SBP-300CMW1/900CMW, SBP-150CMI/300CMI
Wall Mount SBP-156WMW, SBP-390WMW2
Pole Mount SBP-300PMW2
Parapet Mount SBP-156LMW, SBP-156LMW1, SBP-300LMW
Corner Mount SBP-156KMW, SBP-300KMW1
Cabinet SBP-300NBW
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 121.5m(398.7ft) / Tele: 3482.3m(11424.9ft)
Observe (63PPM/ 19PPF) Wide: 48.6m(159.5ft)/ Tele: 1392.9m(4570.0ft)
Recognize (125PPM/ 38PPF) Wide: 24.3m(79.7ft)/ Tele: 696.5m(2285.0ft)
Identify (250PPM/ 76PPF) Wide: 12.2m(39.9ft) / Tele: 348.2m(1142.5ft)

Recently viewed products

SECURITY AUSTRALIA - YOUR TRUSTED SOURCE FOR SECURITY EQUIPMENT

Discover our wide range of security equipment designed to keep you safe and secure.

We offer competitive prices to trades and commercial projects. Speak to one of our experienced consultants if you require a custom quote on larger orders.

Sales Support & Enquiry Form

Got a question or just want to chat?
