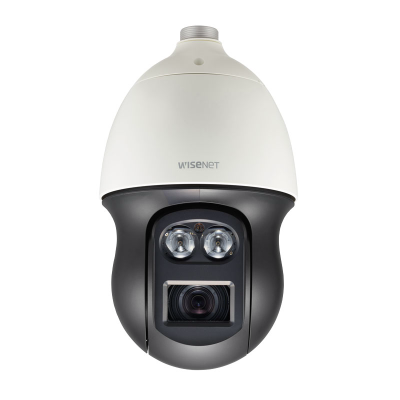

2M H.265 37x IR PTZ Camera
The camera is equipped with a 37x optical zoom lens, allowing for precise and detailed close-ups of distant subjects. Its IR capability ensures effective night vision, with a range that provides clear visibility in total darkness. The PTZ (pan-tilt-zoom) functionality offers extensive coverage with smooth and accurate control, making it ideal for monitoring large areas. Built for durability, the camera is housed in a robust, weather-resistant enclosure, suitable for both indoor and outdoor installations.
Key Features
Code/SKU: XNP-6371RH
Quick Specs:
| Video | |
|---|---|
| Imaging Device | 1/2" 2MP CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.01Lux(F1.5, 1/30sec) BW: 0Lux(IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 6~222mm(37x) zoom |
| Optical Zoom | 37x |
| Max. Aperture Ratio | F1.5(Wide)~F4.6(Tele) |
| Angular Field of View | H: 59.3°(Wide)~1.90°(Tele) / V: 35.8°(Wide)~1.1°(Tele) |
| Min. Object Distance | Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft) |
| Focus Control | AF / One-Shot AF / Manual |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Preset: 400°/sec, Manual: 0.024°/sec~250°/sec |
| Tilt Range | 190°(-5°~185°) |
| Tilt Speed | Preset: 300°/sec, Manual: 0.024°/sec ~ 250°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 4ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Light Type | IR LED (850nm) |
| IR Viewable Length | 350m(1,148.29ft) |
| Auto Tracking | Support |
| Network | |
| Ethernet | RJ-45(10/100BASE-T), SFP(Optional) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP, NTCIP 1205 |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Private Root CA) |
| Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | SD/SDHC/SDXC 1slot 256GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -50°C ~ +55 C°(-58°F ~ +131°F) |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC |
| Power Consumption | 24VAC: Max 90W |
| Mechanical | |
| Color / Material | Body: Ivory / Aluminum+Plastic, Head: Black / Aluminum+Plastic |
| Product Dimensions / Weight | ø236.9x407.7mm(9.33x16.05"), 7.1Kg(15.65 lb) |
| Ceiling Mount (Assy) | SBP-300CM |
| Wall Mount | SBP-300WM1, SBP-300WM |
| Pole Mount | SBP-300PM1 |
| Parapet Mount | SBP-300LM |
| Corner Mount | SBP-300KM1 |
| Other Compatible Models | SBP-303HF |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 67.5m(221.3ft) / Tele: 2315.7m(7597.6ft) |
| Observe (63PPM/ 19PPF) | Wide: 27m(88.5ft) / Tele: 926.3m(3039ft) |
| Recognize (125PPM/ 38PPF) | Wide: 13.5m(44.3ft) / Tele: 463.1m(1519.5ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.7m(22.1ft) / Tele: 231.6m(759.8ft) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hanwha Wisenet HAN-XNP-6371RH 2MP Outdoor IR PTZ Camera, H.265, 37x Zoom WDR, IP66, IK10, 6-222mm
The Hanwha Vision 2M H.265 37x IR PTZ Camera (XNP-6371RH) is a high-performance surveillance solution designed to deliver exceptional image quality and versatile functionality. Featuring a 2-megapixel resolution, it captures clear and detailed images even in low-light conditions, thanks to its advanced H.265 compression technology that reduces bandwidth and storage requirements. The camera is equipped with a 37x optical zoom lens, allowing for precise and detailed close-ups of distant subjects. Its IR capability ensures effective night vision, with a range that provides clear visibility in total darkness. The PTZ (pan-tilt-zoom) functionality offers extensive coverage with smooth and accurate control, making it ideal for monitoring large areas.
Built for durability, the camera is housed in a robust, weather-resistant enclosure, suitable for both indoor and outdoor installations. It supports multiple viewing modes and is compatible with various control protocols for integration with existing security systems. The camera’s intelligent analytics features enhance security by providing real-time alerts and automated responses to specific events. With its user-friendly interface and advanced configuration options, the XNP-6371RH ensures ease of setup and operation. The camera’s sleek design and high-performance features make it a reliable choice for demanding surveillance environments. Additionally, it supports remote viewing and control via mobile devices or computers, providing flexibility and convenience for security management. The integration of cutting-edge technology ensures that the XNP-6371RH delivers superior performance and reliability, meeting the needs of modern security applications.
Features
| Video | |
|---|---|
| Imaging Device | 1/2" 2MP CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.01Lux(F1.5, 1/30sec) BW: 0Lux(IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 6~222mm(37x) zoom |
| Optical Zoom | 37x |
| Max. Aperture Ratio | F1.5(Wide)~F4.6(Tele) |
| Angular Field of View | H: 59.3°(Wide)~1.90°(Tele) / V: 35.8°(Wide)~1.1°(Tele) |
| Min. Object Distance | Wide: 1.5m(4.92ft) / Tele: 2.0m(6.56ft) |
| Focus Control | AF / One-Shot AF / Manual |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Preset: 400°/sec, Manual: 0.024°/sec~250°/sec |
| Tilt Range | 190°(-5°~185°) |
| Tilt Speed | Preset: 300°/sec, Manual: 0.024°/sec ~ 250°/sec |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule |
| Preset Accuracy | ±0.2° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | Support |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection |
| Serial Interface | RS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O | Input 4ea / Output 2ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| Light Type | IR LED (850nm) |
| IR Viewable Length | 350m(1,148.29ft) |
| Auto Tracking | Support |
| Network | |
| Ethernet | RJ-45(10/100BASE-T), SFP(Optional) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP, NTCIP 1205 |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Private Root CA) |
| Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | SD/SDHC/SDXC 1slot 256GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -50°C ~ +55 C°(-58°F ~ +131°F) |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC |
| Power Consumption | 24VAC: Max 90W |
| Mechanical | |
| Color / Material | Body: Ivory / Aluminum+Plastic, Head: Black / Aluminum+Plastic |
| Product Dimensions / Weight | ø236.9x407.7mm(9.33x16.05"), 7.1Kg(15.65 lb) |
| Ceiling Mount (Assy) | SBP-300CM |
| Wall Mount | SBP-300WM1, SBP-300WM |
| Pole Mount | SBP-300PM1 |
| Parapet Mount | SBP-300LM |
| Corner Mount | SBP-300KM1 |
| Other Compatible Models | SBP-303HF |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 67.5m(221.3ft) / Tele: 2315.7m(7597.6ft) |
| Observe (63PPM/ 19PPF) | Wide: 27m(88.5ft) / Tele: 926.3m(3039ft) |
| Recognize (125PPM/ 38PPF) | Wide: 13.5m(44.3ft) / Tele: 463.1m(1519.5ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.7m(22.1ft) / Tele: 231.6m(759.8ft) |
