Skip to product information
  • Sku: HAN-QND-8020R
  • Vendor: SecurityAustralia

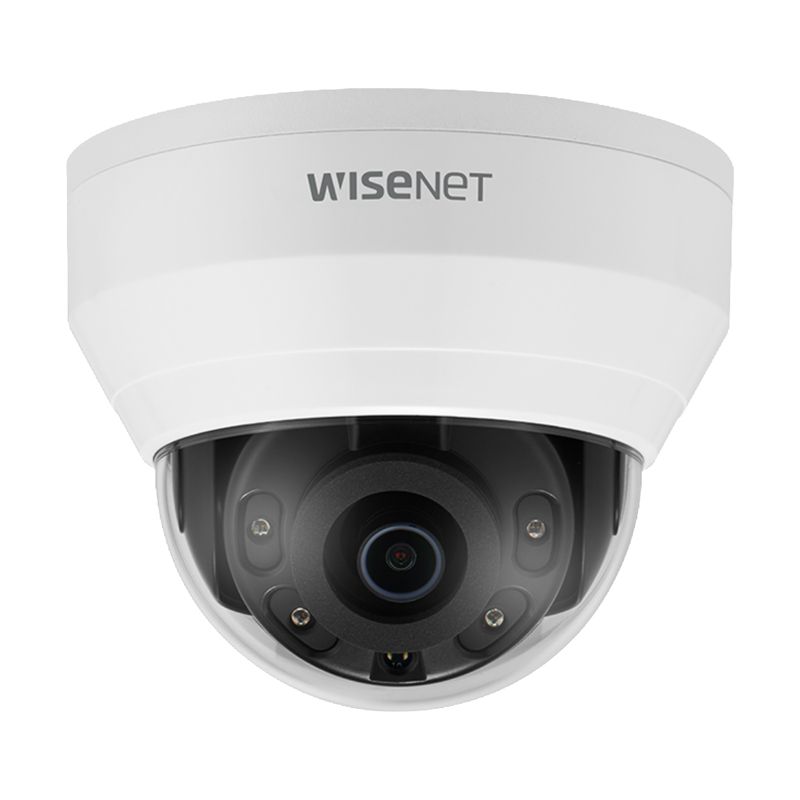

Hanwha Wisenet HAN-QND-8020R NEW-Q 5MP Indoor Dome Camera, H.265, 120dB WDR, 20m IR, 4mm

$286.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

5 MP Network IR Dome Camera with 4mm Lens

The HAN-QND-8020R also features easy integration with Hanwha’s management software and third-party systems via ONVIF compliance. Its compact design makes it discreet yet powerful, fitting seamlessly into various environments. The camera’s advanced noise reduction capabilities ensure clear and sharp images even in low-light conditions. It is ideal for applications in retail, banking, commercial, and residential settings, providing high-resolution surveillance with dependable performance.

Key Features

  • 5 Megapixel resolution
  • Built-in 4mm fixed lens
  • 30fps@all resolutions (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, Multiple streaming
  • Day & Night (ICR), WDR (120dB)
  • Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
  • micro SD (128GB) memory slot, PoE
  • IR viewable length 20m
  • Hallway view support
  • Analog video out for easy installation
  • LDC support (Lens Distortion Correction)

Code/SKU: HAN-QND-8020R
Quick Specs:

  • Operating Temperature / Humidity: -10°C~+55°C (+14°F~+131°F) / 0~90% RH (non-condensing)
  • Storage Temperature / Humidity: -30°C~+60°C (-22°F~+140°F) / 0~90% RH

Specifications

Video
Imaging Device 1/2.8" CMOS
Resolution 5MP mode : 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
4MP mode : 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps(@5MP Max. 2fps)
Min. Illumination Color: 0.15Lux(F1.6, 1/30sec, 30IRE)
BW: 0.015Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 4.0mm fixed focal
Max. Aperture Ratio F1.6
Angular Field of View H: 80°/ V: 59°/ D: 106°
Focus Control Fixed
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~67° / 0°~355°
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR
Motion Detection 4ea, polygonal zones
Privacy Masking 6ea, rectangular zones
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events When alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ preset
Light Type IR LED (850nm)
Light Viewable Length 20m(65.62ft)
Network
Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Smart Codec WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
Security
OS / Firmware Protect Firmware encryption
User authentication Digest Authentication, Prevent brute-force attack
Network authentication 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Secure Communication HTTPS, SRTP, WSS(Websocket secure)
Access Control Access control based on IP address
Data Protect Authentication information encryption, ZIP compression encryption
Audit User Access/System/Event log management
Device ID Device Certificate(Hanwha Private Root CA)
Secure Storage SDcard partition encrypt
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C~+55°C(+14°F~+131°F) / 0~90% RH(non-condensing)
Storage Temperature / Humidity -30°C~+60°C(-22°F~+140°F) / 0~90% RH
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption PoE: Max 6.80W, typical 5.00W
Mechanical
Color / Material White / Plastic, Aluminum
RAL Code RAL9003
Product Dimensions / Weight ø110.6x89.5mm(ø4.35x3.52"), 360g(0.79 lb)
Hanging Mount (Dome) SBP-300HMW7
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 62.0m(203.39ft)
Observe (63PPM/ 19PPF) 24.8m(81.36ft)
Recognize (125PPM/ 38PPF) 12.4m(40.68ft)
Identify (250PPM/ 76PPF) 6.2m(20.34ft)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hanwha Wisenet HAN-QND-8020R NEW-Q 5MP Indoor Dome Camera, H.265, 120dB WDR, 20m IR, 4mm

$286.00 AUD
 per

The QND-8020R is a high-performance 5 MP Network IR Dome Camera from Hanwha Vision, designed to deliver exceptional image quality and reliability. With its 4mm fixed lens, the camera provides a broad field of view, making it ideal for various surveillance applications. The camera features advanced IR illumination, enabling clear night-time monitoring up to a significant distance, ensuring 24/7 surveillance. It supports multiple streaming with H.265, H.264, and MJPEG compression formats, optimizing bandwidth and storage efficiency. The camera's built-in intelligent video analytics includes motion detection, tampering detection, and defocus detection, enhancing security measures. It is equipped with a microSD/SDHC/SDXC slot for edge storage, providing additional reliability in case of network disruptions.

The camera is designed with IP66 and IK10-rated housing, making it highly durable and suitable for outdoor use in harsh environments. With its wide dynamic range (WDR) feature, the QND-8020R can handle challenging lighting conditions, ensuring balanced images in both bright and dark areas. It also includes corridor mode support, optimizing the image for narrow vertical scenes. The camera is NDAA compliant, ensuring it meets specific government regulations for security and reliability. PoE support simplifies installation, reducing the need for additional power cables. The QND-8020R also features easy integration with Hanwha’s management software and third-party systems via ONVIF compliance. Its compact design makes it discreet yet powerful, fitting seamlessly into various environments. The camera’s advanced noise reduction capabilities ensure clear and sharp images even in low-light conditions. It is ideal for applications in retail, banking, commercial, and residential settings, providing high-resolution surveillance with dependable performance. The QND-8020R represents a blend of cutting-edge technology and robust construction, making it a top choice for professional security needs.

Features

  • 5MP resolution for high-quality images
  • Built-in IR illumination with a range of up to 20 meters
  • Wide Dynamic Range (WDR) of 120dB for enhanced image clarity in challenging lighting conditions
  • H.265, H.264, and MJPEG triple codec support for efficient bandwidth and storage management
  • Motorized varifocal lens (3.2~10mm) for easy installation and adjustment
  • Day & Night (ICR) functionality for round-the-clock surveillance
  • Support for intelligent video analytics (tampering, motion detection, virtual line, enter/exit detection)
  • IP66-rated weatherproof and IK10-rated vandal-resistant housing
  • MicroSD/SDHC/SDXC slot for on-board storage



Specifications

  • Camera Type: Network IR Dome Camera
  • Resolution: 5MP (2592 x 1944)
  • Lens: Motorized varifocal lens 3.2~10mm
  • IR Distance: Up to 20 meters
  • WDR: 120dB
  • Video Compression: H.265, H.264, MJPEG
  • Audio Support: Yes (2-way audio)
  • Operating Temperature: -30°C to +55°C (-22°F to +131°F)
  • Power Supply: 12V DC, PoE (Power over Ethernet)
  • Ingress Protection: IP66
  • Vandal Resistance: IK10
Additional Details
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
Edge Storage Micro SD/SDHC/SDXC 1slot 128GB
Memory 512MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity -10°C~+55°C(+14°F~+131°F) / 0~90% RH(non-condensing)
Storage Temperature / Humidity -30°C~+60°C(-22°F~+140°F) / 0~90% RH
Input Voltage PoE(IEEE802.3af, Class3)
Power Consumption PoE: Max 6.80W, typical 5.00W
Mechanical
Color / Material White / Plastic, Aluminum
RAL Code RAL9003
Product Dimensions / Weight ø110.6x89.5mm(ø4.35x3.52"), 360g(0.79 lb)
Hanging Mount (Dome) SBP-300HMW7
