  • Sku: HAN-XRN-6410B2
  • Vendor: SecurityAustralia

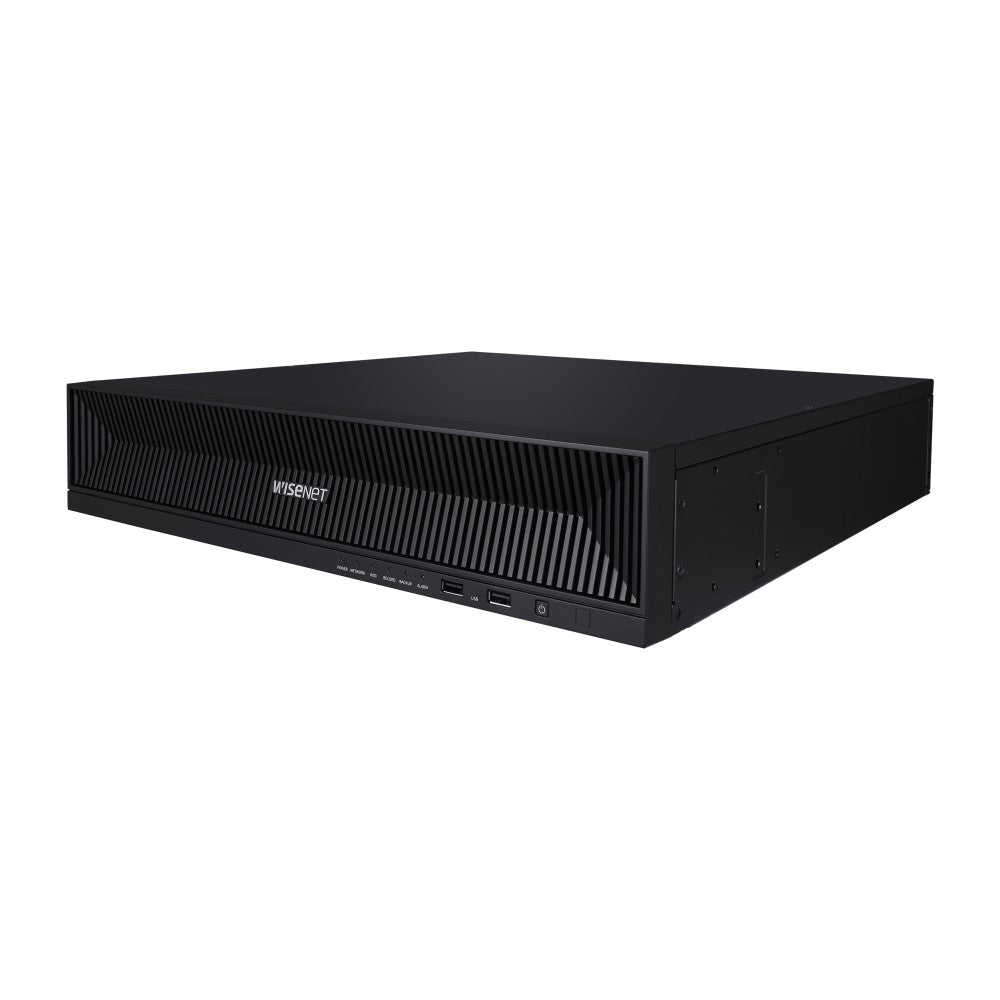

Hanwha Wisenet 64ch NVR, H265, 400Mbps, No HDD, (8 SATA 80TB max)

$3,600.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

Hanwha Vision 64CH AI NVR

The HAN-XRN-6410B2 supports multiple video compression formats, including H.265, which reduces storage requirements while maintaining image quality. It comes with a large storage capacity, accommodating vast amounts of video data for long-term archiving. The NVR offers seamless integration with various Hanwha Vision cameras and other third-party devices, providing flexibility in system design. Its user-friendly interface simplifies setup and operation, allowing for efficient management of surveillance operations.

Key Features

  • Up to 64CH, 32MP Resolution
  • Max. 400Mbps network camera recording
  • HDMI out
  • User-friendly UI/UX
  • AI search support when working with Wisenet AI camera
  • Dynamic Event support
    • New event function of cameras is available without software update
  • Bookmark management (Up to 100 set)
  • H.265, H.264, MJPEG compression support
  • SATA 8ea (Up to 80TB)

Code/SKU: HAN-XRN-6410B2
Quick Specs:

  • Power Input: 100 ~ 240 VAC ±10%; 50/60 Hz, 1.5A (Single SMPS)
  • Power Consumption: Max. 138W (with 10TB HDD 8EA)

Specifications

Display
Network camera
Inputs Max. 64CH
Resolution 32MP ~ CIF
Protocols SUNAPI, ONVIF
Decoding
Local Display [Dual Display]
HDMI 1: 3840 x 2160 (30Hz)
HDMI 2: 1920x1080 (60Hz)
Multi Screen Display [Local Monitor]
- Dynamic layout, Virtual channel view
- Clone Mode : Up to 64 Division
- Expand Mode : HDMI1 up to 32 Div. HDMI2 up to 32 Div.
[Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
Resolution 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps)
Performance
Operating System
Embedded Linux
Record
Compression H.265, H.264, MJPEG
Recording Bandwidth Distributed mode : Up to 400 Mbps
Normal mode : Up to 150 Mbps
Resolution 32MP ~ CIF
Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP,
SUNAPI Command, Shotdown
Search & Play
Playback Bandwidth Max. 32Mbps
User Max. 4 Users (Local 1, Remote 3)
Simultaneous playback Max. 112CH(Local 64CH, Remote 16CH per user)
Fisheye Dewarping Support (Local 1CH), CMS
Mode Date & Time(Calendar), Event list, Text Search, Smart Search
Resolution CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
Storage
Supported HDD Up to 10TB
HDD Slot SATA 8ea(Max. 80TB)
External iSCSI storage
Backup
File backup BU/Exe/AVI(GUI), JPG/AVI(Network)
Function Multi channel(Up to 16CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS Hanwha DDNS
Transmission Bandwidth Max. 400Mbps
Audio
GUI 64 CH(network)
Web G.711, G.726, AAC(16/48KHz)
Audio Communication 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption
Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer
Supported OS Windows 10, macOS 10.13
Supported browser Google Chrome, Microsoft Edge, Mac Safari
Viewer Software WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile
Support CGI(SUNAPI) for integration to 3'rd party VMS
Functions
Camera Setup
Register Auto, Manual
Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon)
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
Control Via GUI, Webviewer, SPC-2000
Preset 300 Presets
Smart phone
Support Model iOS, Android
Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
Control Live 16CH(Multi-Profile Support), Playback 4CH
Max. Remote Users Search(3), Live Unicast(10)
Redundancy
Failover N+1
ARB Support
Easy configuration P2P(QR code)
Interface
Front
Indicator HDD, Alarm, Power, Record, Backup, Network
Storage OK
Reset OK
HDD Key Lock OK
HDMI 2EA ( Playback/Setup → HDMI1)
HDMI1 : 3840x2160 30Hz
HDMI2 : 1920x1080 60Hz
Audio Out 1EA(3.5mm Audio Jack)
Ethernet RJ-45 3EA (LAN/WAN, 1Gbps)
Alarm In 8EA, Out 4EA
USB 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0)
Power inlet AC 1EA
System
Log
Log List Max. 100,000 (System Log, Event Log each)
System Control Mouse, Keyboard, Web, Controller (SPC-2000)
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature 0°C to +40°C(32℉ to 104℉)
Operating Humidity 20% ~ 85% RH
Electrical
Power Input 100 ~ 240 VAC ±10%; 50/60 Hz, 1.5A (Single SMPS)
Power Consumption Max. 138W (with 10TB HDD 8EA)
Mechanical
Color / Material Black / Metal
Dimension (WxHxD) 438 x 86 x 434.9 mm
Weight 7.5Kg (16.5 lb, Except HDD)
Intelligent Analysis
AI Search
Object Attribute Compatible for Wisenet AI Camera

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hanwha Wisenet 64ch NVR, H265, 400Mbps, No HDD, (8 SATA 80TB max)

$3,600.00 AUD
 per

The Hanwha Vision HAN-XRN-6410B2 is a state-of-the-art 64-channel AI NVR designed to offer advanced surveillance solutions. It features a robust architecture capable of managing up to 64 high-resolution cameras simultaneously, ensuring comprehensive coverage of large areas. The device is equipped with powerful AI capabilities that enhance video analytics and object detection, making it easier to identify and track important events. Its high-performance processor ensures smooth playback and recording, even with high-resolution footage. The XRN-6410B2 supports multiple video compression formats, including H.265, which reduces storage requirements while maintaining image quality. It comes with a large storage capacity, accommodating vast amounts of video data for long-term archiving. The NVR offers seamless integration with various Hanwha Vision cameras and other third-party devices, providing flexibility in system design. Its user-friendly interface simplifies setup and operation, allowing for efficient management of surveillance operations.

The XRN-6410B2 includes advanced cybersecurity features to protect against unauthorized access and data breaches. It supports remote monitoring and management through a secure web interface or mobile application. The device is built with high durability and reliability, designed to operate in diverse environments. Its scalability allows for future expansion as surveillance needs grow. With its advanced AI-driven analytics, the XRN-6410B2 improves operational efficiency and response times. The NVR is backed by Hanwha Vision’s comprehensive support and warranty services, ensuring long-term reliability. Overall, the XRN-6410B2 is an ideal choice for large-scale surveillance systems requiring high performance and advanced features.

Features

  • Up to 64 Channels: Supports up to 64 channels with a maximum resolution of 32MP.
  • High Bandwidth: Capable of recording up to 400Mbps of network camera data.
  • User-Friendly Interface: Enhanced UI/UX for ease of use.
  • AI Search Functionality: Compatible with Wisenet AI cameras, allowing advanced search options based on various attributes.
  • Dynamic Event Support: New camera event functions are supported without requiring a software update.
  • Bookmark Management: Allows up to 100 bookmarks for efficient event tracking and retrieval.
  • Advanced Compression: Supports H.265, H.264, and MJPEG compression formats.
  • High Storage Capacity: Supports up to 8 SATA drives with a maximum storage capacity of 80TB.



Specifications

  • Resolution: Supports resolutions ranging from 32MP down to CIF.
  • HDMI Outputs: Dual HDMI outputs with resolutions of 3840x2160 at 30Hz (HDMI1) and 1920x1080 at 60Hz (HDMI2).
  • Operating System: Embedded Linux.
  • Recording Modes: Supports normal, dual stream, schedule, event-based (pre/post), and bookmark recording modes.
  • Playback: Simultaneous playback of up to 112 channels (64 local, 16 remote per user).
  • Network Protocols: Includes support for IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, NTP, HTTP, HTTPS, SNMP, and more.
  • Storage Options: Up to 10TB per HDD with support for external iSCSI storage.
  • Security Features: IP address filtering, user access logs, 802.1x authentication, and encryption with device certificates.
  • Remote Access: Supports up to 20 multicast remote users and various remote user access controls.
  • Redundancy: Features N+1 failover support and ARB (Auto Reboot Backup).



Display
Network camera
Inputs Max. 64CH
Resolution 32MP ~ CIF
Protocols SUNAPI, ONVIF
Decoding
Local Display [Dual Display]
HDMI 1: 3840 x 2160 (30Hz)
HDMI 2: 1920x1080 (60Hz)
Multi Screen Display [Local Monitor]
- Dynamic layout, Virtual channel view
- Clone Mode : Up to 64 Division
- Expand Mode : HDMI1 up to 32 Div. HDMI2 up to 32 Div.
[Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
Resolution 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps)
Performance
Operating System
Embedded Linux
Record
Compression H.265, H.264, MJPEG
Recording Bandwidth Distributed mode : Up to 400 Mbps
Normal mode : Up to 150 Mbps
Resolution 32MP ~ CIF
Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP,
SUNAPI Command, Shotdown
Search & Play
Playback Bandwidth Max. 32Mbps
User Max. 4 Users (Local 1, Remote 3)
Simultaneous playback Max. 112CH(Local 64CH, Remote 16CH per user)
Fisheye Dewarping Support (Local 1CH), CMS
Mode Date & Time(Calendar), Event list, Text Search, Smart Search
Resolution CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
Storage
Supported HDD Up to 10TB
HDD Slot SATA 8ea(Max. 80TB)
External iSCSI storage
Backup
File backup BU/Exe/AVI(GUI), JPG/AVI(Network)
Function Multi channel(Up to 16CH) Play, Date-Time/Title display
