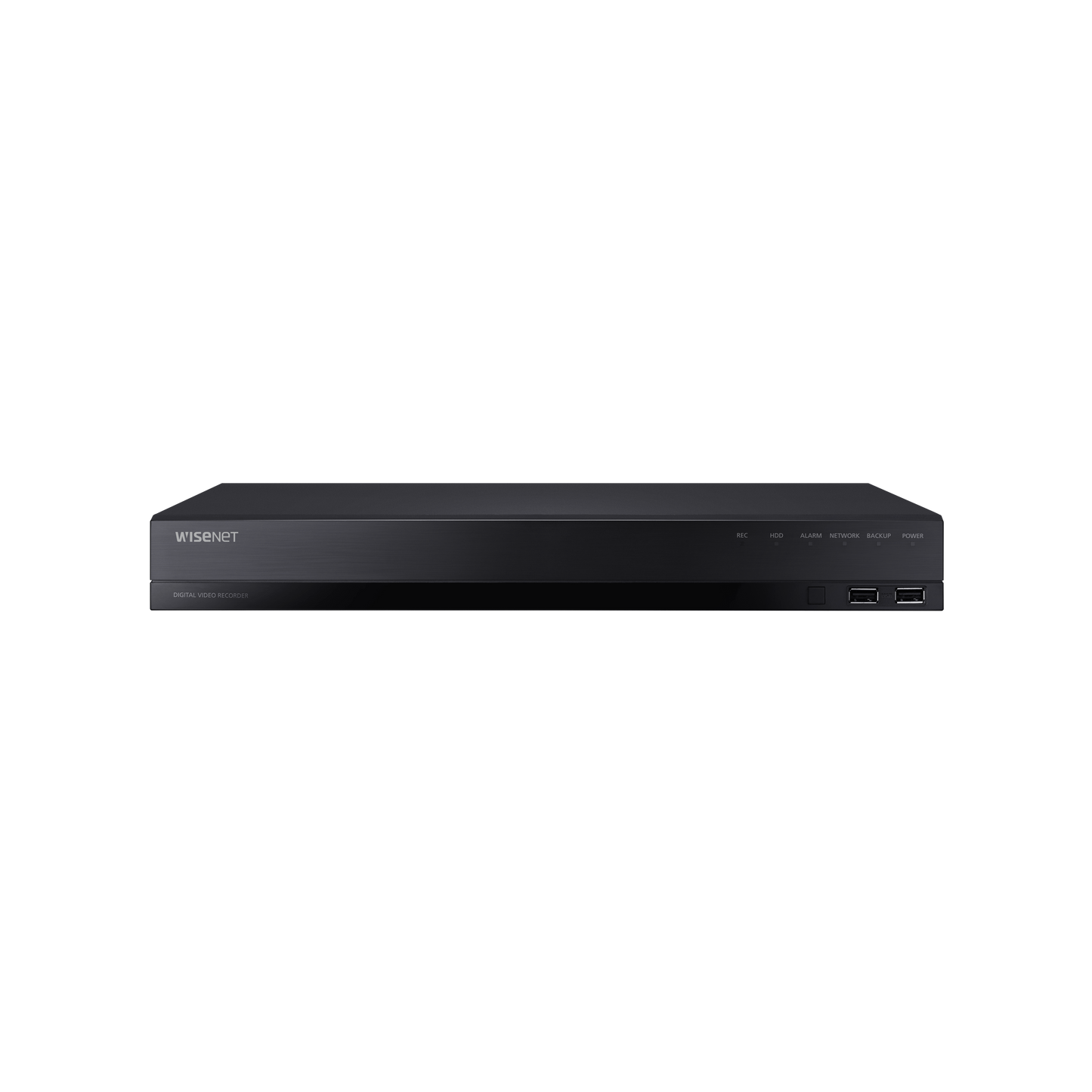

Hanwha Wisenet 16ch Pentabrid DVR, AHD/TVI/CVI/CVBS/IP H.265, 2x SATA, No HDD
16CH Pentabrid DVR
The HRX-1634 includes robust remote access options, allowing users to monitor live and recorded video from virtually anywhere. Its user-friendly interface simplifies system management and configuration. Built with reliability in mind, the DVR incorporates fail-safe mechanisms to protect against data loss. The HRX-1634 supports a range of storage options, including internal hard drives and external backups. It also integrates seamlessly with various camera types, providing flexibility in camera deployment. The device is designed to be compatible with Hanwha Vision's range of cameras and other accessories, ensuring a cohesive security solution.
Key Features
- 5-in-1 16CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 18 Channels (Analog Maximum 16 channel + Network Maximum 2-18 channels, depending on number of analog channels), up to 8MP
- H.265, H.264, MJPEG codec
- Recording Analog Camera up 8MP(15fps), 5MP(20fps), 4MP(30fps), 2MP(30fps),1MP(30fps), 960H(or 720H)(30fps) , per channel
- Recording Bandwidth Max. 128Mbps, Playback Bandwidth 32Mbps.
- 4 channel audio input/ 1 channel audio output, 16 alarm input and 4 relay output
- Coaxial control
- Up to 2 SATA HDDs (6TB/HDD)
- HDMI/VGA video output, 1 X spot monitor output
- P2P service (QR code connect) for easy Wisenet Viewer / Wisenet Mobile app connection
- NDAA & FCC Compliant
Code/SKU: HRX-1634
Quick Specs:
- Power Input: DC12V
- Power Consumption: Max. 40W (with 6T HDD 2ea)
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The HRX-1634 is a cutting-edge 16-channel Pentabrid DVR designed by Hanwha Vision to offer unparalleled versatility and performance in video surveillance. It supports multiple video formats, including analog, AHD, TVI, CVI, and IP, making it adaptable to a wide range of security setups. This DVR is equipped with high-resolution recording capabilities, ensuring clear and detailed footage for all 16 channels. It features advanced compression technology to optimize storage space while maintaining video quality. The HRX-1634 includes robust remote access options, allowing users to monitor live and recorded video from virtually anywhere. Its user-friendly interface simplifies system management and configuration.
Built with reliability in mind, the DVR incorporates fail-safe mechanisms to protect against data loss. The HRX-1634 supports a range of storage options, including internal hard drives and external backups. It also integrates seamlessly with various camera types, providing flexibility in camera deployment. The device is designed to be compatible with Hanwha Vision's range of cameras and other accessories, ensuring a cohesive security solution. With its comprehensive feature set, the HRX-1634 is ideal for both residential and commercial applications. Its durability and high performance make it a dependable choice for enhancing overall security infrastructure.
Features
- Pentabrid DVR: Supports multiple video formats (Analog, AHD, HD-TVI, HD-CVI, IP).
- High Resolution Recording: Capable of recording up to 16MP.
- Integrated 16 Channels: Supports up to 16 camera inputs.
- User-Friendly Interface: Includes an intuitive GUI for easy operation.
- Remote Access: Allows remote viewing and management via mobile apps and web browsers.
- H.265 Compression: Utilizes H.265 codec for efficient storage and bandwidth usage.
- Flexible Storage Options: Compatible with multiple HDDs for scalable storage.
- Advanced Search: Offers smart search functions for quick and efficient video retrieval.
- Alarm and Event Management: Integrated alarm and event handling features.
- Backup Functionality: Supports backup to USB, network storage, and more.
Specifications
- Model: HRX-1634
- Channels: 16
- Video Inputs: 16 x BNC
- Video Output: HDMI, VGA
- Resolution: Up to 16MP recording
- Compression: H.265, H.264
- Audio Input/Output: 4/1
- Storage: Up to 8 HDDs (supports RAID)
- Network: 1 x Ethernet (10/100/1000 Mbps)
- Remote Access: iOS and Android compatible apps
- Backup: USB, Network, eSATA
- Power Supply: 100-240V AC
- Dimensions: 440mm x 360mm x 70mm
- Weight: Approximately 4.5 kg
| System | ||
|---|---|---|
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000, SPC-2001) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC, UKCA | |
| Electrical | ||
| Power Input | DC12V | |
| Power Consumption | Max. 40W (6T HDD 2ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | W370.0x H44.0 xD320(14.57” x 1.73” x12.6”) | |
| Weight | Approx. 2.9Kg (6.4 lb, 4TB HDD 1ea) | |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
16CH Pentabrid DVR
The HRX-1634 includes robust remote access options, allowing users to monitor live and recorded video from virtually anywhere. Its user-friendly interface simplifies system management and configuration. Built with reliability in mind, the DVR incorporates fail-safe mechanisms to protect against data loss. The HRX-1634 supports a range of storage options, including internal hard drives and external backups. It also integrates seamlessly with various camera types, providing flexibility in camera deployment. The device is designed to be compatible with Hanwha Vision's range of cameras and other accessories, ensuring a cohesive security solution.
Key Features
- 5-in-1 16CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 18 Channels (Analog Maximum 16 channel + Network Maximum 2-18 channels, depending on number of analog channels), up to 8MP
- H.265, H.264, MJPEG codec
- Recording Analog Camera up 8MP(15fps), 5MP(20fps), 4MP(30fps), 2MP(30fps),1MP(30fps), 960H(or 720H)(30fps) , per channel
- Recording Bandwidth Max. 128Mbps, Playback Bandwidth 32Mbps.
- 4 channel audio input/ 1 channel audio output, 16 alarm input and 4 relay output
- Coaxial control
- Up to 2 SATA HDDs (6TB/HDD)
- HDMI/VGA video output, 1 X spot monitor output
- P2P service (QR code connect) for easy Wisenet Viewer / Wisenet Mobile app connection
- NDAA & FCC Compliant
Code/SKU: HRX-1634
Quick Specs:
- Power Input: DC12V
- Power Consumption: Max. 40W (with 6T HDD 2ea)
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Display | ||
|---|---|---|
| Analog camera | ||
| Inputs | 16CH(1Vp-p 75ohm, BNC) | |
| Signal Type | - AHD(8MP, 5MP, 4MP, 1080p, 720p) - HDTVI(8MP, 5MP, 4MP, 1080p, 720p) - HDCVI(8MP, 5MP, 4MP, 1080p, 720p) - NTSC/PAL | |
| Network camera | ||
| Inputs | 2CH (Up to 18CH) | |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI(Wisenet), ONVIF | |
| Live | ||
| Local Display | 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 | |
| Resolution | [Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - 2MP(up to 30fps/CH) | |
| Performance | ||
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Record Rate(Analog) | (Main Stream, NT/PAL) 8M 8/8fps, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, Under 960H 30/25fps/CH (Sub Stream) 720p/CH or Higher : 640x368 Full fps, SD : up to SD Full fps * The maximum recording frame rate depends on the frame rate of the input camera. | |
| Recording Bandwidth | Max. 128Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Playback | ||
| Playback Bandwidth | Max. 32Mbps (18CH simultaneously) | |
| User | Max. 4 users (Set 1, Remote 3) | |
| Simultaneous playback | 18CH(Local Monitor),18Ch (CMS), 4Ch (Wisenet Mobile), 1Ch(Web) | |
| Fisheye Dewarping | CMS (only N/W Camera) | |
| Storage | ||
| Supported HDD | Up to 6TB | |
| HDD Slot | SATA 2ea(Max. 12TB) | |
| Backup | ||
| File backup | Set : Recorder, SEC, AVI Webviewer : AVI | |
| Function | Max. 16 CH play, Date-time/title display | |
| Functions | ||
| PTZ | ||
| Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live(16ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| ARB | Support | |
| Easy configuration | Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) | |
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI | |
| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| BNC | 16CH In / 1CH Out(Spot Output) | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Alarm | In 16EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) | |
| USB | 3EA(Front 2ea USB2.0, Rear USB 3.0)) | |
| Serial(Protocols) | RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ | |
| Power inlet | 1EA AC ( AC100V) | |
| System | ||
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000, SPC-2001) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC, UKCA | |
| Electrical | ||
| Power Input | DC12V | |
| Power Consumption | Max. 40W (6T HDD 2ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | W370.0x H44.0 xD320(14.57” x 1.73” x12.6”) | |
| Weight | Approx. 2.9Kg (6.4 lb, 4TB HDD 1ea) | |
| Network | ||
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Transmission speed | - Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : up to CIF full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. | |
| Transmission Bandwidth | Max. 100Mbps | |
| Audio | ||
| Input/Output | 4 Line in / 1 Line out | |
| Compression | G.711 (N/W Camera G.711, 726) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Vision Root CA) | |
| Viewer Software | SSM, Webviewer, SmartViewer, Wisenet Mobile Viewer, Wisenet Viewer | |
