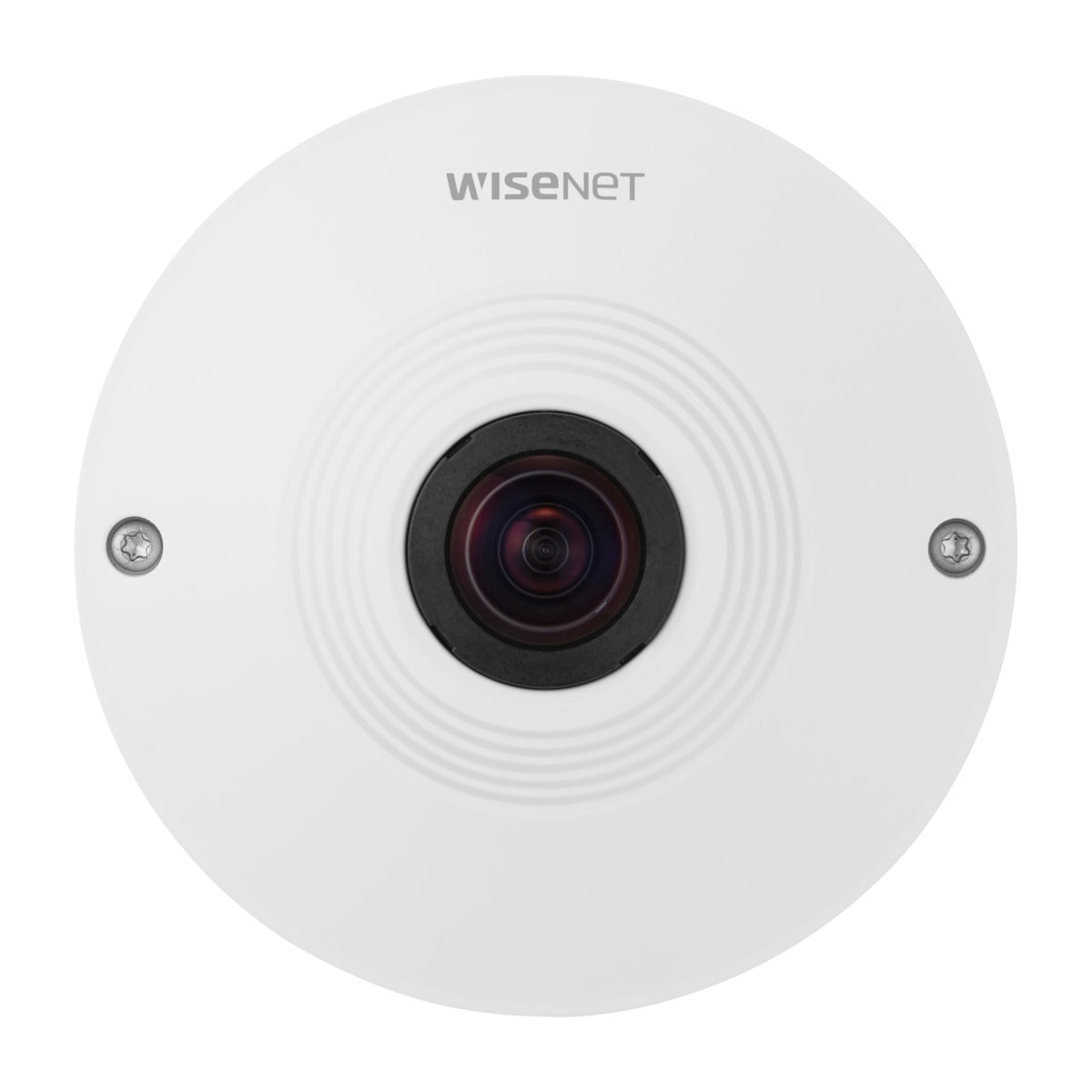

Hanwha Vision HV-QNF-8010 Q Series 6 MP Sensor 360° Indoor Fisheye Camera
6MP Fisheye Camera
The QNF-8010 also includes advanced analytics such as people counting and heat mapping, which are particularly useful in retail environments to optimize store layouts and customer flow. For storage, it supports a microSD card of up to 256GB, and it can be powered through Power over Ethernet (PoE), simplifying installation. The camera is built to operate in various environmental conditions, with a durable design that meets IP42 standards for dust and water resistance.
Key Features
- Max. 30fps @ 2048 x 2048
- H.265, H.264, MJPEG codec
- Original fisheye view, Single panorama, Double panorama, Quad view
- WDR 120dB, WiseStreamII
- Digital PTZ
- People counting, Heatmap
- Micro SD/SDHC/SDXC 1 slot, 256 GB, PoE
Code/SKU: QNF-8010
Quick Specs:
- Focal Length (Zoom Ratio): 1.14mm fixed focal
- Max. Aperture Ratio: F2.5
- Angular Field of View: H: 187° / V: 187° / D: 187°
- Min. Object Distance: 0.3m
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision QNF-8010 is a 6MP fisheye network camera designed to offer comprehensive surveillance with high image quality. It features a maximum resolution of 2048x2048 pixels at 30 frames per second, making it ideal for capturing clear, detailed images. The camera supports multiple viewing modes, including original fisheye, single panorama, double panorama, and quad view, allowing for flexible monitoring of large areas without blind spots. Equipped with WDR (Wide Dynamic Range) at 120dB and WiseStream II compression technology, it ensures efficient bandwidth usage and superior image clarity even in challenging lighting conditions. The QNF-8010 also includes advanced analytics such as people counting and heat mapping, which are particularly useful in retail environments to optimize store layouts and customer flow. For storage, it supports a microSD card of up to 256GB, and it can be powered through Power over Ethernet (PoE), simplifying installation. The camera is built to operate in various environmental conditions, with a durable design that meets IP42 standards for dust and water resistance. Its compact size makes it suitable for unobtrusive installation in both indoor and outdoor settings.
Features
- Max. 30fps @ 2048 x 2048
- H.265, H.264, MJPEG codec
- Original fisheye view, Single panorama, Double panorama, Quad view
- WDR 120dB, WiseStreamII
- Digital PTZ
- People counting, Heatmap
- Micro SD/SDHC/SDXC 1 slot, 256 GB, PoE
Technical Specifications:
| Video | |
|---|---|
| Imaging Device | 1/1.8" 6MP CMOS |
| Resolution | Original view: 2048x2048, 1280x1280, 1080x1080, 960x960, 768x768, 720x720, 640x640, 480x480 Single panorama: 2048x512, 1920x480, 1280x320, 640x160, 704x176 Double panorama: 2048x1024, 1920x960, 1280x640, 640x320, 704x352 Quad view: 2048x1536, 1600x1200, 1280x960, 1024x768, 800x600, 640x480, 704x576 Q1/2/3/4: 1024x768, 800x600, 640x480 |
| Max. Framerate | H.264/H.265 : 30fps/25fps@2048x2048(60Hz/50Hz) MJPEG : Max 15fps |
| Min. Illumination | Color: 0.2 Lux (F2.5, 1/30sec) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for Installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.14mm fixed focal |
| Max. Aperture Ratio | F2.5 |
| Angular Field of View | H: 187° / V: 187° / D: 187° |
| Min. Object Distance | 0.3m |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
6MP Fisheye Camera
The QNF-8010 also includes advanced analytics such as people counting and heat mapping, which are particularly useful in retail environments to optimize store layouts and customer flow. For storage, it supports a microSD card of up to 256GB, and it can be powered through Power over Ethernet (PoE), simplifying installation. The camera is built to operate in various environmental conditions, with a durable design that meets IP42 standards for dust and water resistance.
Key Features
- Max. 30fps @ 2048 x 2048
- H.265, H.264, MJPEG codec
- Original fisheye view, Single panorama, Double panorama, Quad view
- WDR 120dB, WiseStreamII
- Digital PTZ
- People counting, Heatmap
- Micro SD/SDHC/SDXC 1 slot, 256 GB, PoE
Code/SKU: QNF-8010
Quick Specs:
- Focal Length (Zoom Ratio): 1.14mm fixed focal
- Max. Aperture Ratio: F2.5
- Angular Field of View: H: 187° / V: 187° / D: 187°
- Min. Object Distance: 0.3m
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Imaging Device | 1/1.8" 6MP CMOS |
| Resolution | Original view: 2048x2048, 1280x1280, 1080x1080, 960x960, 768x768, 720x720, 640x640, 480x480 Single panorama: 2048x512, 1920x480, 1280x320, 640x160, 704x176 Double panorama: 2048x1024, 1920x960, 1280x640, 640x320, 704x352 Quad view: 2048x1536, 1600x1200, 1280x960, 1024x768, 800x600, 640x480, 704x576 Q1/2/3/4: 1024x768, 800x600, 640x480 |
| Max. Framerate | H.264/H.265 : 30fps/25fps@2048x2048(60Hz/50Hz) MJPEG : Max 15fps |
| Min. Illumination | Color: 0.2 Lux (F2.5, 1/30sec) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for Installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.14mm fixed focal |
| Max. Aperture Ratio | F2.5 |
| Angular Field of View | H: 187° / V: 187° / D: 187° |
| Min. Object Distance | 0.3m |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, Rectangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting, Heatmap |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP42 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 6.4W, typical 4.6W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø99x49mm(Ø3.9x1.93"), 320g(0.705 lb) |
