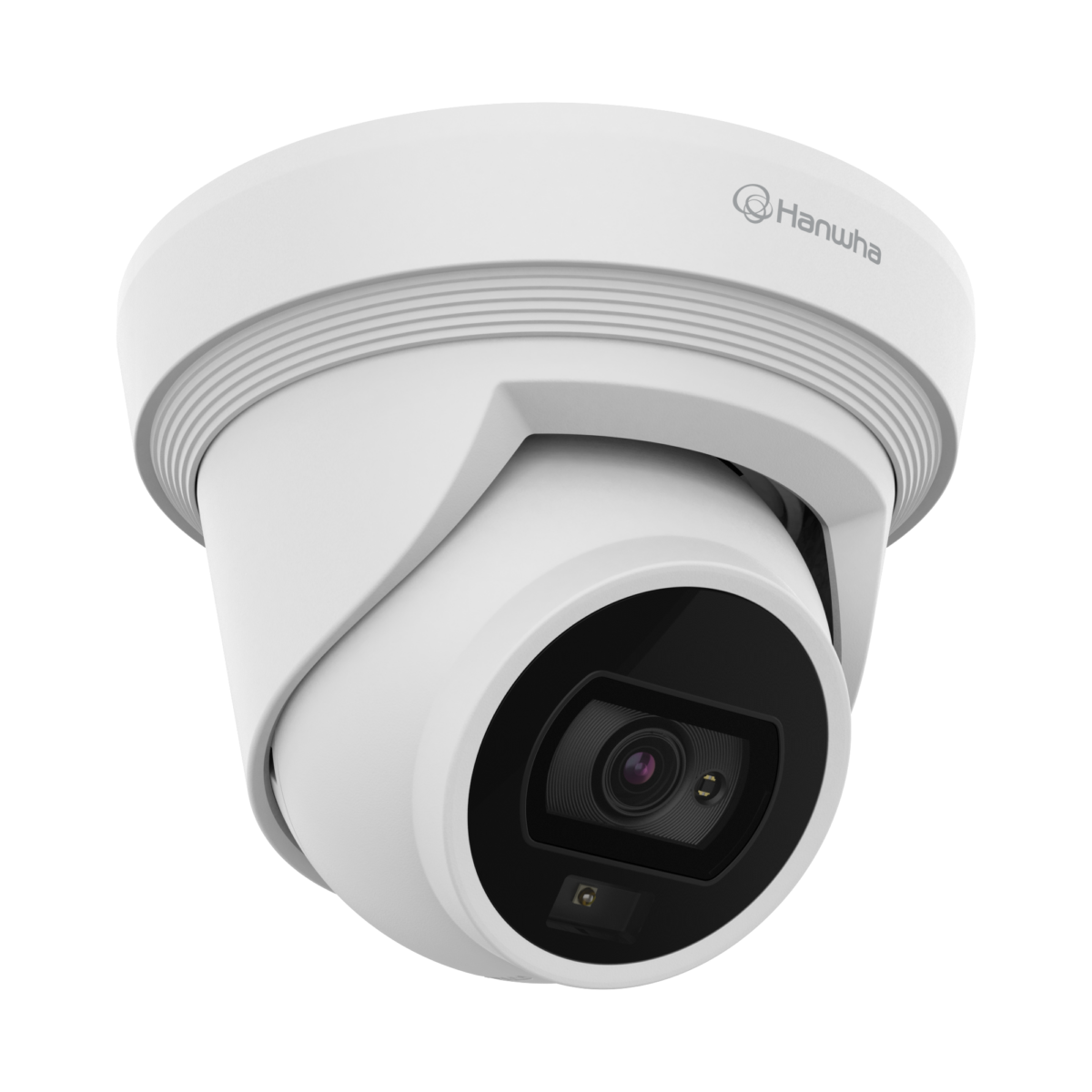

Hanwha Vision HV-QNE-C8013RL 5MP H.265 IR Flateye Camera
5MP H.265 AI IR Flateye Camera
The QNE-C8013RL camera supports H.265 video compression, reducing bandwidth and storage requirements without compromising video quality. Equipped with AI-based analytics, it can detect and classify objects, enhancing security monitoring efficiency. The IR LEDs provide excellent night vision capabilities, allowing the camera to capture clear images in complete darkness. The flateye design helps reduce IR reflection, ensuring consistent image quality. It features a wide dynamic range (WDR) of 120dB, which effectively balances exposure in scenes with both bright and dark areas. The camera is IP66-rated, making it resistant to dust and water, suitable for outdoor installations.
Key Features
- Max. 5 Megapixel (2592x1944) resolution
- 3.0mm fixed lens
- Color: 0.022 Lux (F1.2, 1/30 sec) / BW: 0.0022 Lux (F1.2, 1/30 sec, 30 IRE), 0 Lux (IR LED on)
- Max. 30fps @ 5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec, WiseStreamⅢ (Based on AI engine), Multiple streaming
- Day & Night, WDR (120dB), WiseNRⅡ (Using AI engine)
- Object Classification, Attributes, and DetectionShot
- Micro SD / SDHC / SDXC memory slot (Max. 256GB)
- Hallway view, WiseStreamⅢ (Based on AI engine)
- ONVIF Profile S/G/T/M, SUNAPI (HTTP API)
- LDC, PoE
- IR Viewable Length:
- White LED: 30m (98.42ft)
- IR: 30m (98.42ft)
Code/SKU: HV-QNE-C8013RL
Quick Specs:
- Camera Title: Displayed up to 85 characters
- Day & Night: Auto (ICR)
- Backlight Compensation: BLC, WDR, SSDR
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision QNE-C8013RL is a 5MP H.265 AI IR Flateye Camera designed for high-quality surveillance with advanced features. It offers a 5-megapixel resolution, ensuring sharp and clear images, even in challenging lighting conditions. The camera supports H.265 video compression, reducing bandwidth and storage requirements without compromising video quality. Equipped with AI-based analytics, it can detect and classify objects, enhancing security monitoring efficiency. The IR LEDs provide excellent night vision capabilities, allowing the camera to capture clear images in complete darkness. The flateye design helps reduce IR reflection, ensuring consistent image quality. It features a wide dynamic range (WDR) of 120dB, which effectively balances exposure in scenes with both bright and dark areas. The camera is IP66-rated, making it resistant to dust and water, suitable for outdoor installations. It also has an IK10 rating, providing robust protection against vandalism.
The QNE-C8013RL supports PoE (Power over Ethernet), simplifying installation by eliminating the need for separate power cables. The camera includes a microSD card slot for edge storage, offering a backup solution in case of network failure. With advanced event triggers and alarm features, it can promptly notify security personnel of potential threats. The camera’s compact design allows for discreet installation in various environments. It also supports multiple viewing options, including live view, playback, and video export. The QNE-C8013RL is an ideal choice for applications requiring reliable and intelligent surveillance.
Features
- 5 MP resolution for clear and detailed images
- Motorized varifocal lens for flexible installation
- IR illumination for night-time visibility up to a certain distance
- H.265, H.264, and MJPEG triple codec support
- Wide Dynamic Range (WDR) for enhanced image quality in diverse lighting conditions
- Built-in analytics, including motion detection, tampering, and virtual line detection
- Weather-resistant design (IP66) for outdoor use
- IK10-rated vandal resistance for added durability
- MicroSD/SDHC/SDXC memory slot for edge storage
- PoE (Power over Ethernet) support for simplified installation
Specifications
- Camera Type: Network IR Dome Camera
- Image Sensor: 1/2.8" CMOS
- Effective Pixels: 5 MP (2592 x 1944)
- Lens: 2.8-12 mm motorized varifocal lens
- Field of View: Horizontal: 103.1° - 33.2°, Vertical: 54.4° - 18.7°
- IR Distance: Up to 30m (98.4 ft)
- Video Compression: H.265, H.264, MJPEG
- Max Frame Rate: 30fps @ 5MP
- WDR: 120dB
- Ingress Protection: IP66
- Impact Protection: IK10
- Power Supply: PoE (IEEE 802.3af), 12V DC
- Operating Temperature: -30°C ~ +55°C (-22°F ~ +131°F)
Additional Details
| General | |
|---|---|
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+60°C(-40°F~+140°F) / 0~95% RH * Start up should be done at above -30°C Humidity control /w Air sheet |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~95% RH |
| Certification | IP66/IP67, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 10.0W, typical 4.5W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø140.0x99.6mm(ø5.51x3.92"), 790g(1.74 lb) |
| Compatible Conduit hole / Gangbox | Conduit hole : None Gangbox : Single, Double, 4" Octagon |
| Hanging Mount (Dome) | SBP-140HMW |
| Backbox | SBV-140BW |
| Ceiling Mount (Assy) | SBP-300CMW1/900CMW, SBP-150CMI/300CMI, SBP-300CMTW, SBP-300CMTS |
| Wall Mount | SBP-140WMW, SBP-300WMW/WMW1, SBP-390WMW2 |
| Pole Mount | SBD-140PMW, SBP-300PMW2, SBD-140PMB |
| Parapet Mount | SBP-300LMW, SBP-156LMW1 |
| Corner Mount | SBP-300KMW1, SBD-140KMB |
| Tilt Mount | SBV-140TMW |
| Cabinet | SBP-300NBW |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
5MP H.265 AI IR Flateye Camera
The QNE-C8013RL camera supports H.265 video compression, reducing bandwidth and storage requirements without compromising video quality. Equipped with AI-based analytics, it can detect and classify objects, enhancing security monitoring efficiency. The IR LEDs provide excellent night vision capabilities, allowing the camera to capture clear images in complete darkness. The flateye design helps reduce IR reflection, ensuring consistent image quality. It features a wide dynamic range (WDR) of 120dB, which effectively balances exposure in scenes with both bright and dark areas. The camera is IP66-rated, making it resistant to dust and water, suitable for outdoor installations.
Key Features
- Max. 5 Megapixel (2592x1944) resolution
- 3.0mm fixed lens
- Color: 0.022 Lux (F1.2, 1/30 sec) / BW: 0.0022 Lux (F1.2, 1/30 sec, 30 IRE), 0 Lux (IR LED on)
- Max. 30fps @ 5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec, WiseStreamⅢ (Based on AI engine), Multiple streaming
- Day & Night, WDR (120dB), WiseNRⅡ (Using AI engine)
- Object Classification, Attributes, and DetectionShot
- Micro SD / SDHC / SDXC memory slot (Max. 256GB)
- Hallway view, WiseStreamⅢ (Based on AI engine)
- ONVIF Profile S/G/T/M, SUNAPI (HTTP API)
- LDC, PoE
- IR Viewable Length:
- White LED: 30m (98.42ft)
- IR: 30m (98.42ft)
Code/SKU: HV-QNE-C8013RL
Quick Specs:
- Camera Title: Displayed up to 85 characters
- Day & Night: Auto (ICR)
- Backlight Compensation: BLC, WDR, SSDR
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@5MP Max. 5fps) |
| Min. Illumination | Color: 0.022Lux (F1.2, 1/30sec) BW: 0.0022Lux (F1.2, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.0mm fixed focal |
| Max. Aperture Ratio | F1.2 |
| Angular Field of View | H: 97° / V: 53° / D: 113° |
| Min. Object Distance | 2.0m(6.56ft) |
| Focus Control | Fixed |
| Lens Type | Fixed IRIS |
| Mount Type | M12 |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~75° / 0°~360° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ, WiseNRⅡ(Based on AI engine) |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point quadrangle zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type: Person/Vehicle(Type:car/bus/truck/motorcycle/bicycle) Attributes: Person, Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Tampering, Virtual area(Appear/Disappear) * Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Light alarm |
| Light Type | Dual light (White warm light, IR) |
| IR Viewable Length | White LED : 30m(98.42ft) IR : 30m(98.42ft) |
| IR Wavelength | long-life 850 nm IR LED |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+60°C(-40°F~+140°F) / 0~95% RH * Start up should be done at above -30°C Humidity control /w Air sheet |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~95% RH |
| Certification | IP66/IP67, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 10.0W, typical 4.5W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø140.0x99.6mm(ø5.51x3.92"), 790g(1.74 lb) |
| Compatible Conduit hole / Gangbox | Conduit hole : None Gangbox : Single, Double, 4" Octagon |
| Hanging Mount (Dome) | SBP-140HMW |
| Backbox | SBV-140BW |
| Ceiling Mount (Assy) | SBP-300CMW1/900CMW, SBP-150CMI/300CMI, SBP-300CMTW, SBP-300CMTS |
| Wall Mount | SBP-140WMW, SBP-300WMW/WMW1, SBP-390WMW2 |
| Pole Mount | SBD-140PMW, SBP-300PMW2, SBD-140PMB |
| Parapet Mount | SBP-300LMW, SBP-156LMW1 |
| Corner Mount | SBP-300KMW1, SBD-140KMB |
| Tilt Mount | SBV-140TMW |
| Cabinet | SBP-300NBW |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 45.9m(150.49ft) |
| Observe (63PPM/ 19PPF) | 18.3m(60.19ft) |
| Recognize (125PPM/ 38PPF) | 9.2m(30.09ft) |
| Identify (250PPM/ 76PPF) | 4.6m(15.05ft) |
