Hanwha Vision HV-HRX-835 Wisenet 8CH Pentabrid DVR - AHD/HDTVI/HDCVI/CVBS/IP inputs, Up to 4 SATA HDDs(6TB/HDD)
8CH Pentabrid DVR
The HV-HRX-835 includes advanced motion detection and event recording features, enhancing security monitoring capabilities. Remote access is enabled through the Hanwha Vision mobile app, allowing users to view and manage their system from anywhere. The device also supports audio input and output, adding an extra layer of surveillance. With HDMI and VGA outputs, the DVR offers flexible display options. The HRX-835 is designed for reliable 24/7 operation, making it suitable for both small and medium-sized surveillance installations.
Key Features
- 5-in-1 8CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 10CH (Analog Max. 8CH and Network Max. 8CH supported, depending on number of analog channels), up to 8MP
- H.265, H.264, MJPEG codec
- 8fps@8MP, 12fps@5MP recording
- Coaxial control
- Up to 4 SATA HDDs (6TB/HDD)
- HDMI/VGA Dual monitor
- P2P service (QR code connect) for easy mobile app connection
Code/SKU: HV-HRX-835
Quick Specs:
- Power Input: 100~240 VAC±10%, 50/60 Hz
- Power Consumption: Max. 100W (6T HDD 4ea)
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview

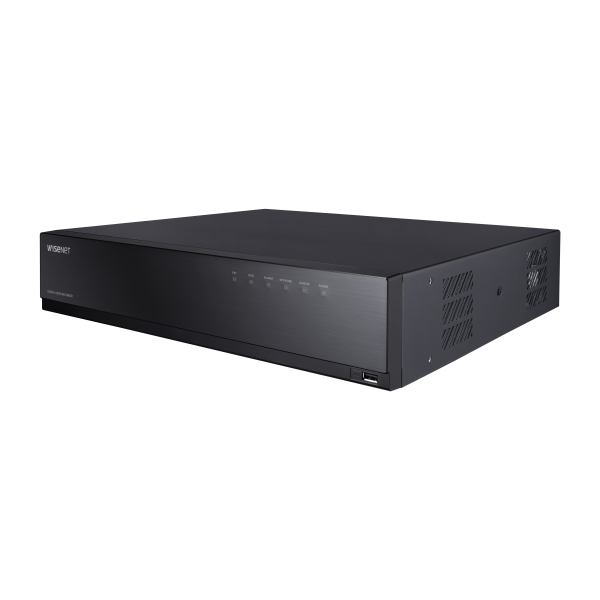

The Hanwha Vision HV-HRX-835 is an 8-channel Pentabrid DVR designed to support various types of cameras, including analog, HD-TVI, HD-CVI, AHD, and IP. This DVR offers a flexible and scalable solution for surveillance systems, ensuring compatibility with different camera formats. With support for up to 5MP resolution, the HRX-835 delivers clear and detailed video footage. It features H.265, H.264, and MJPEG compression formats, optimizing storage efficiency without compromising video quality. The DVR supports up to two SATA hard drives, allowing for extensive storage capacity. Its user-friendly interface provides easy access to live viewing, playback, and management of recorded footage. The HRX-835 includes advanced motion detection and event recording features, enhancing security monitoring capabilities. Remote access is enabled through the Hanwha Vision mobile app, allowing users to view and manage their system from anywhere. The device also supports audio input and output, adding an extra layer of surveillance. With HDMI and VGA outputs, the DVR offers flexible display options. The HRX-835 is designed for reliable 24/7 operation, making it suitable for both small and medium-sized surveillance installations. This DVR is a versatile and powerful choice for those looking to upgrade their security systems.
8 Channels: This DVR can accommodate up to 8 camera inputs, allowing you to set up a comprehensive surveillance system covering multiple areas.
Pentabrid Technology: "Pentabrid" means it supports five different types of video signals: AHD, TVI, CVI, CVBS, and IP. This versatility allows you to use a variety of cameras with different signal types.
High Resolution: The Wisenet series is known for its high-resolution video quality, providing clear and detailed footage for effective monitoring and recording.
Remote Viewing: Supports remote viewing capabilities, enabling users to monitor their security cameras from anywhere with an internet connection using a computer or mobile device.
Storage: Storage options for storing recorded footage. This could include internal hard drive storage and possibly support for external storage devices.
Advanced Features: Depending on the model and firmware version, offers advanced features such as motion detection, event-based recording, and integration with other security systems.
Hanwha Techwin: Hanwha Techwin is a respected name in the security industry, known for producing reliable and high-quality surveillance equipment. Before purchasing or using the Hanwha Vision HV-HRX-835 Wisenet 8CH Pentabrid DVR, it's important to check its specifications and compatibility with your existing surveillance setup to ensure it meets your requirements.
Features
- Multi-Format Recording: Supports multiple video formats including H.265, H.264, and MPEG4.
- High Definition Recording: Capable of recording in high definition up to 8MP.
- Pentabrid Technology: Compatible with various camera types including analog, IP, HD-SDI, and others.
- Remote Access: Provides remote access and control via mobile apps and web browsers.
- Smart Search and Playback: Features smart search and playback for efficient video retrieval.
- Advanced Recording Options: Includes scheduled, motion detection, and continuous recording modes.
- User-Friendly Interface: Easy-to-use graphical user interface for configuration and management.
Specifications
- Model: HRX-835
- Video Input: Up to 8 channels
- Video Output: HDMI and VGA outputs available
- Resolution: Up to 8MP (4K) recording resolution
- Storage: Supports large capacity HDDs (varies based on configuration)
- Compression Format: H.265, H.264, MPEG4
- Network Interface: Gigabit Ethernet for high-speed connectivity
- Audio Input/Output: Audio input and output options available
- Power Supply: 100-240V AC, 50/60Hz
| Mechanical | ||
|---|---|---|
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440 x 88 x 384.8mm(17.32” x 3.46” x 15.15”) | |
| Weight | Approx. 6.0Kg (13.2 lb, 4TB HDD 1ea) | |
| Network | ||
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Transmission speed | Analog Camera (Main Stream) 8MP 8/8fps CH, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, 960H/640H 30/25fps(NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : up to CIF full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. |
|
| Transmission Bandwidth | Max. 64Mbps | |
| Audio | ||
| Input/Output | 8 Lline in (RCA 4 Line, Option : Audio Extension Cable) / 1Line line out | |
| Compression | G.711 (N/W Camera G.711, 726) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Vision Root CA) |
|
| Viewer Software | SSM, Webviewer, SmartViewer, Wisenet Mobile Viewer, Wisenet Viewer | |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
8CH Pentabrid DVR
The HV-HRX-835 includes advanced motion detection and event recording features, enhancing security monitoring capabilities. Remote access is enabled through the Hanwha Vision mobile app, allowing users to view and manage their system from anywhere. The device also supports audio input and output, adding an extra layer of surveillance. With HDMI and VGA outputs, the DVR offers flexible display options. The HRX-835 is designed for reliable 24/7 operation, making it suitable for both small and medium-sized surveillance installations.
Key Features
- 5-in-1 8CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 10CH (Analog Max. 8CH and Network Max. 8CH supported, depending on number of analog channels), up to 8MP
- H.265, H.264, MJPEG codec
- 8fps@8MP, 12fps@5MP recording
- Coaxial control
- Up to 4 SATA HDDs (6TB/HDD)
- HDMI/VGA Dual monitor
- P2P service (QR code connect) for easy mobile app connection
Code/SKU: HV-HRX-835
Quick Specs:
- Power Input: 100~240 VAC±10%, 50/60 Hz
- Power Consumption: Max. 100W (6T HDD 4ea)
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Display | ||
|---|---|---|
| Analog camera | ||
| Inputs | 8CH(1Vp-p 75ohm, BNC) | |
| Signal Type | AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(8MP, 5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL) | |
| Network camera | ||
| Inputs | 2CH (Up to 10CH) | |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI(Wisenet), ONVIF | |
| Live | ||
| Local Display | 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 | |
| Resolution | [Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - 2MP(up to 30fps/CH) | |
| Performance | ||
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Record Rate(Analog) | (Main Stream, NTSC/PAL) 8M 8/8fps, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, Under 960H 30/25fps/CH (Sub Stream) 720p/CH or Higher : 640x368 Full fps, SD : up to SD Full fps * The maximum recording frame rate depends on the frame rate of the input camera. | |
| Recording Bandwidth | Max. 80Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Playback | ||
| Playback Bandwidth | Max. 32Mbps (10CH simultaneously) | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | 10CH(Local Monitor), 10Ch (CMS), 4Ch (Wisenet Mobile), 1Ch(Web) | |
| Fisheye Dewarping | CMS (only N/W Camera) | |
| Storage | ||
| Supported HDD | Up to 6TB | |
| HDD Slot | SATA 4ea(Max 24TB) | |
| Backup | ||
| File backup | Set : Recorder, SEC, AVI Webviewer : AVI | |
| Function | Max. 10 CH play, Date-time/title display | |
| Functions | ||
| PTZ | ||
| Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live(8ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| ARB | Support | |
| Easy configuration | Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) | |
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI | |
| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| BNC | 8CH In / 1CH Out(Spot Output) | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Alarm | In 8EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) | |
| USB | 2EA(Front USB2.0, Rear USB 3.0)) | |
| Serial(Protocols) | RS-485/422 (Samsung-T/Pelco-D/Pelco-p) * for PTZ | |
| Power inlet | 1EA AC | |
| System | ||
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000, SPC-2001) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC, UKCA | |
| Electrical | ||
| Power Input | 100~240 VAC±10%, 50/60 Hz | |
| Power Consumption | Max. 100W (6T HDD 4ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440 x 88 x 384.8mm(17.32” x 3.46” x 15.15”) | |
| Weight | Approx. 6.0Kg (13.2 lb, 4TB HDD 1ea) | |
| Network | ||
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Transmission speed | Analog Camera (Main Stream) 8MP 8/8fps CH, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, 960H/640H 30/25fps(NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : up to CIF full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. | |
| Transmission Bandwidth | Max. 64Mbps | |
| Audio | ||
| Input/Output | 8 Lline in (RCA 4 Line, Option : Audio Extension Cable) / 1Line line out | |
| Compression | G.711 (N/W Camera G.711, 726) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Vision Root CA) | |
| Viewer Software | SSM, Webviewer, SmartViewer, Wisenet Mobile Viewer, Wisenet Viewer | |
