Hanwha Vision HV-HRX-1635 Wisenet 16CH Pentabrid DVR – AHD/HDTVI/HDCVI/CVBS/IP inputs, Up to 8 SATA HDDs (6TB/HDD)

The Hanwha Vision HV-HRX-1635 is a 16-channel Pentabrid DVR designed for versatile and high-quality surveillance solutions. It supports multiple video formats, including HD-Analog, HD-TVI, HD-CVI, AHD, and IP, making it highly adaptable to various camera types. The DVR delivers clear 4K resolution recording, ensuring sharp and detailed video footage. With a user-friendly interface, it provides seamless navigation and easy configuration for efficient operation. The HRX-1635 offers advanced motion detection and event management features, enhancing security monitoring. It includes a built-in storage capacity with options for expandable storage, ensuring continuous recording.

The DVR supports remote access via mobile devices, allowing users to monitor their premises from anywhere. It is equipped with HDMI and VGA outputs for flexible display options. The HRX-1635 also features H.265+ compression technology, reducing bandwidth and storage requirements while maintaining video quality. With its robust design, the DVR is built for reliable performance in various environments. The device supports up to 16 audio inputs, enabling synchronized audio and video recording. Additionally, it is NDAA compliant, ensuring it meets specific security and regulatory standards.

16 Channels: This DVR can accommodate up to 16 cameras, allowing for comprehensive surveillance coverage in medium to large-scale setups.

Pentabrid Technology: The term "Pentabrid" indicates compatibility with multiple video formats, including HD-TVI, AHD, CVI, analog, and IP cameras. This versatility allows users to integrate various types of cameras into their surveillance system, providing flexibility and scalability.

High Resolution: The Wisenet DVR supports high-resolution recording to capture clear and detailed footage, which is crucial for identifying individuals and objects in surveillance footage.

Remote Viewing: This DVR supports remote viewing capabilities, enabling users to monitor their security cameras from anywhere with an internet connection. This feature is typically facilitated through a mobile app or web interface.

Storage: Supports various storage options, including internal hard drives for local storage and network-attached storage (NAS) for additional capacity. Adequate storage is essential for storing video footage for extended periods, especially in environments where retention policies require archiving footage for legal or compliance reasons.

Advanced Analytics: Hanwha Techwin DVRs come with advanced analytics features, such as motion detection, facial recognition, and object tracking. These capabilities enhance the effectiveness of the surveillance system by providing proactive alerts and insights into security events. Hanwha Vision HV-HRX-1635 Wisenet 16CH Pentabrid DVR is a reliable solution for businesses, organizations, and homeowners looking to implement a comprehensive video surveillance system with support for multiple camera technologies and advanced features.

Features

• Channels: Supports up to 16 channels for recording.
• Pentabrid DVR: Compatible with various camera types, including AHD, TVI, CVI, CVBS, and IP cameras.
• 4K Ultra HD: Supports 4K recording and playback for high-resolution surveillance.
• Compression: H.265, H.264, and MJPEG compression technologies to save storage space.
• Remote Access: Accessible via web viewer, SmartViewer, Wisenet Mobile Viewer, and SSM.
• Backup: Supports file backup in SEC, AVI formats.
• Redundancy: ARB (Automatic Recovery Backup) support for data redundancy.
• Coaxial Control: Supports coaxial control for connected analog cameras.
• Smartphone Support: Compatible with iOS and Android devices for live view and playback.
• Event Notifications: Push notifications for motion detection and other events.

Specifications

• Video Input: 16 channels.

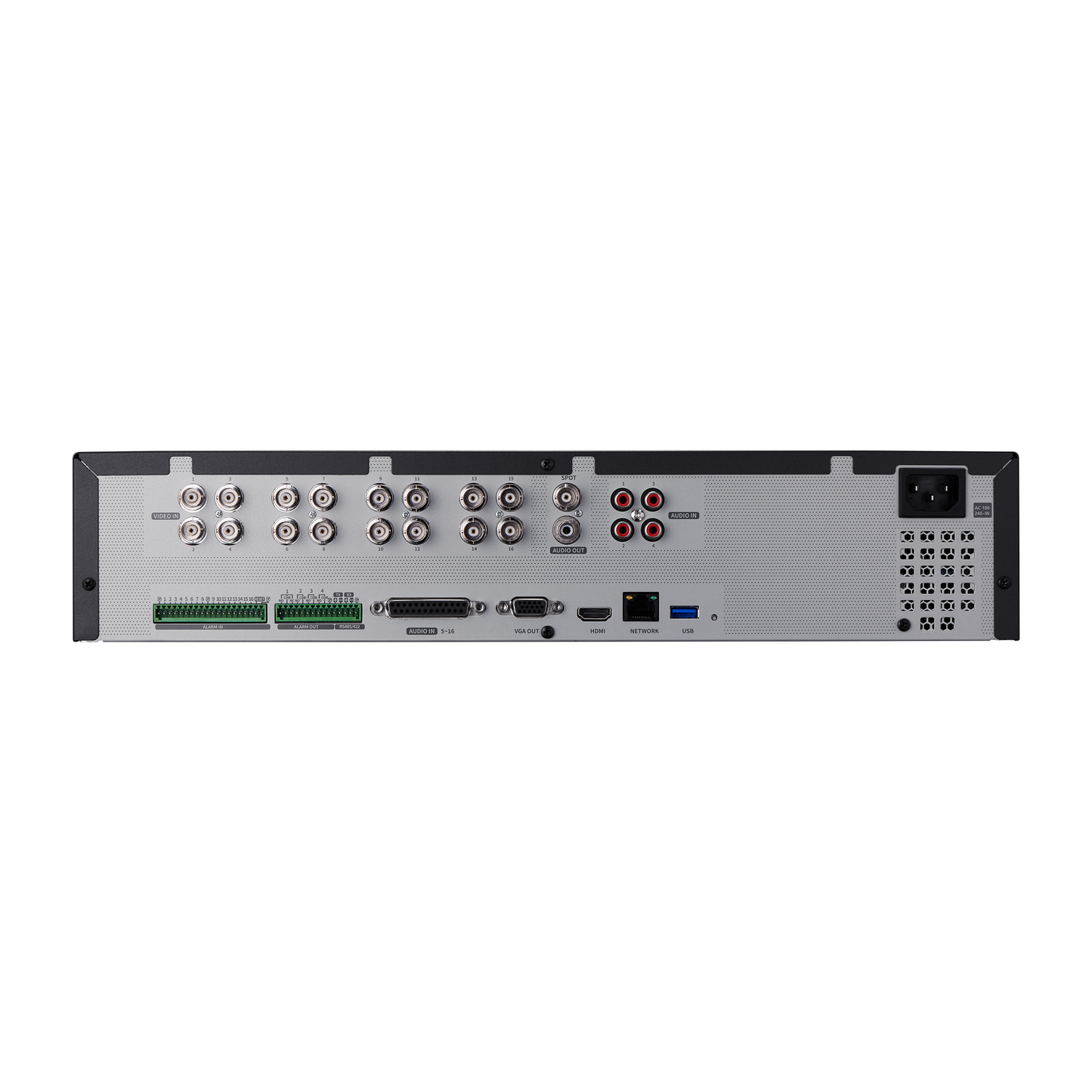

• Video Output: HDMI and VGA outputs available.
• Storage: Supports up to 4 SATA hard drives, with a maximum capacity of 24TB (6TB per HDD).
• Audio: 8 audio inputs and 1 audio output, supporting two-way audio communication.
• Alarm: 8 alarm inputs and 4 relay outputs.
• Network: Gigabit Ethernet port (RJ-45 10/100/1000BASE-T).
• Operating Temperature: 0°C to +40°C.
• Power Supply: 100~240 VAC, 50/60 Hz.
• Power Consumption: Max 100W with 4 hard drives installed.
• Dimensions: 440 x 88 x 384.8 mm.
• Weight: Approximately 6.0 kg with one 4TB HDD installed.
• Certification: UL, CE, FCC, KC, UKCA certified.
