16CH Pentabrid DVR
The HV-HRX-1634 is equipped with various advanced features, including motion detection, privacy masking, and smart search functionalities, enhancing security and monitoring efficiency. It offers seamless integration with Hanwha's comprehensive security ecosystem, enabling easy management and control of multiple devices. The DVR also includes audio input/output channels for integrating audio surveillance alongside video recording. It supports up to 16 channels of synchronous playback, ensuring efficient review of recorded footage.
Key Features
Code/SKU: HV-HRX-1634
Quick Specs:
| Display | ||
|---|---|---|
| Analog camera | ||
| Inputs | 16CH(1Vp-p 75ohm, BNC) | |
| Signal Type | - AHD(8MP, 5MP, 4MP, 1080p, 720p) - HDTVI(8MP, 5MP, 4MP, 1080p, 720p) - HDCVI(8MP, 5MP, 4MP, 1080p, 720p) - NTSC/PAL | |
| Network camera | ||
| Inputs | 2CH (Up to 18CH) | |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI(Wisenet), ONVIF | |
| Live | ||
| Local Display | 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 | |
| Resolution | [Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - 2MP(up to 30fps/CH) | |
| Performance | ||
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Record Rate(Analog) | (Main Stream, NT/PAL) 8M 8/8fps, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, Under 960H 30/25fps/CH (Sub Stream) 720p/CH or Higher : 640x368 Full fps, SD : up to SD Full fps * The maximum recording frame rate depends on the frame rate of the input camera. | |
| Recording Bandwidth | Max. 128Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Playback | ||
| Playback Bandwidth | Max. 32Mbps (18CH simultaneously) | |
| User | Max. 4 users (Set 1, Remote 3) | |
| Simultaneous playback | 18CH(Local Monitor),18Ch (CMS), 4Ch (Wisenet Mobile), 1Ch(Web) | |
| Fisheye Dewarping | CMS (only N/W Camera) | |
| Storage | ||
| Supported HDD | Up to 6TB | |
| HDD Slot | SATA 2ea(Max. 12TB) | |
| Backup | ||
| File backup | Set : Recorder, SEC, AVI Webviewer : AVI | |
| Function | Max. 16 CH play, Date-time/title display | |
| Functions | ||
| PTZ | ||
| Control | Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live(16ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| ARB | Support | |
| Easy configuration | Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) | |
| Coaxial Control | CVBS(Pelco-C)/AHD/CVI/TVI | |
| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| BNC | 16CH In / 1CH Out(Spot Output) | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45(10/100/1000BASE-T) | |
| Alarm | In 16EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) | |
| USB | 3EA(Front 2ea USB2.0, Rear USB 3.0)) | |
| Serial(Protocols) | RS-485 (Samsung-T/Pelco-D/Pelco-p) * for PTZ | |
| Power inlet | 1EA AC ( AC100V) | |
| System | ||
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000, SPC-2001) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC, UKCA | |
| Electrical | ||
| Power Input | DC12V | |
| Power Consumption | Max. 40W (6T HDD 2ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | W370.0x H44.0 xD320(14.57” x 1.73” x12.6”) | |
| Weight | Approx. 2.9Kg (6.4 lb, 4TB HDD 1ea) | |
| Network | ||
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Transmission speed | - Analog Camera(NTSC/PAL) (Main Stream) 8MP 8/8fps CH, 5M 12/12fps CH, 4M 15/12fps CH, 2M 30/25fps CH, 720p 30/25fps/CH, SD 30/25fps/CH (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : up to CIF full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. | |
| Transmission Bandwidth | Max. 100Mbps | |
| Audio | ||
| Input/Output | 4 Line in / 1 Line out | |
| Compression | G.711 (N/W Camera G.711, 726) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Vision Root CA) | |
| Viewer Software | SSM, Webviewer, SmartViewer, Wisenet Mobile Viewer, Wisenet Viewer | |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

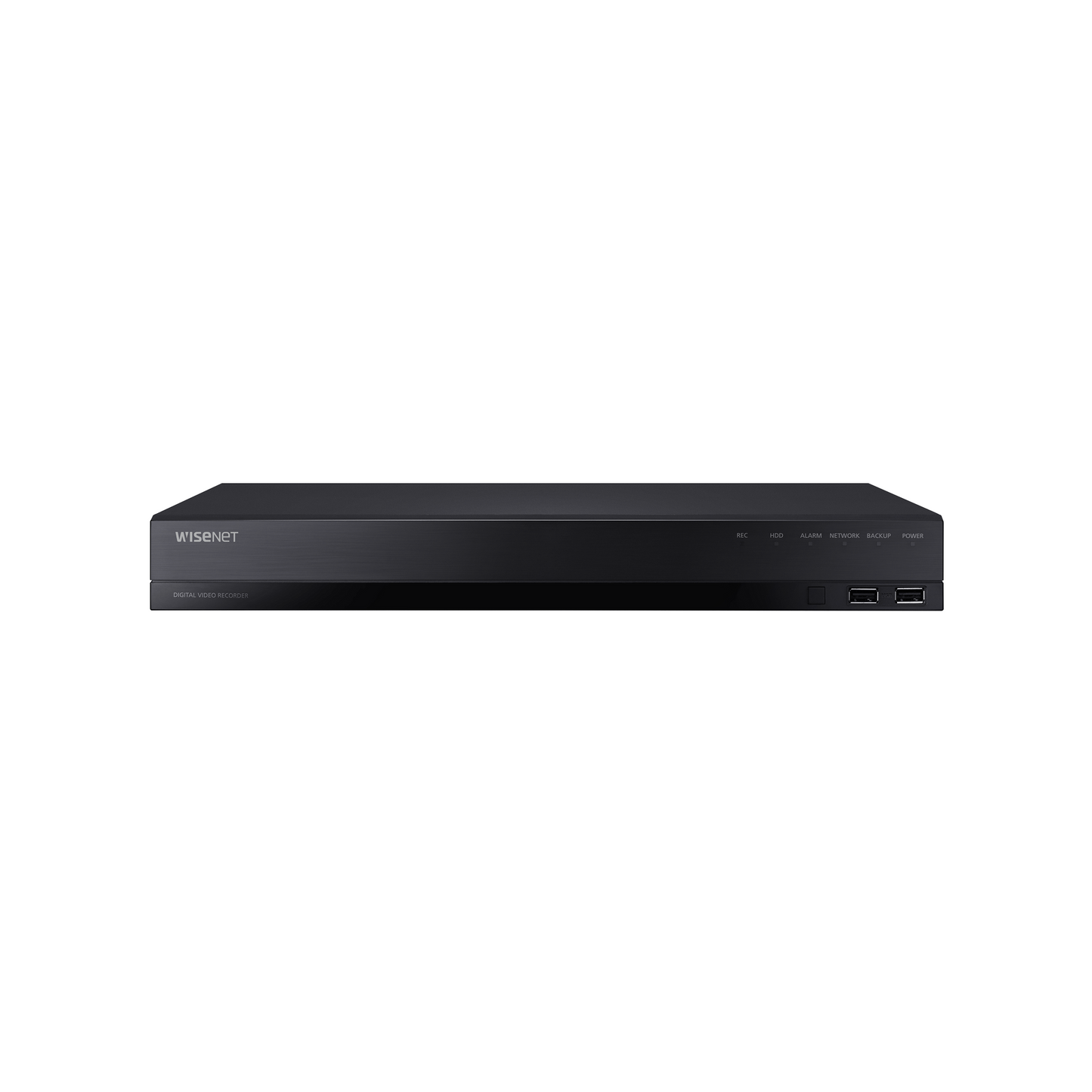

Hanwha Vision HV-HRX-1634 Wisenet 16CH Pentabrid DVR – AHD/HDTVI/HDCVI/CVBS/IP inputs, Up to 2 SATA HDDs (6TB/HDD)
The Hanwha Vision HRX-1634 is a versatile 16-channel Pentabrid DVR that supports various camera types, including HD-TVI, AHD, CVI, CVBS, and IP cameras, making it highly adaptable for different surveillance needs. It delivers high-definition video recording up to 8MP for crystal-clear image quality. With H.265+ compression technology, the HRX-1634 ensures efficient storage management by reducing bandwidth and storage requirements without compromising video quality. The DVR offers flexible storage options with a built-in SATA interface supporting up to two HDDs for extended recording capacity. It supports real-time monitoring and playback via a user-friendly interface, accessible through both local and remote viewing platforms.
The HRX-1634 is equipped with various advanced features, including motion detection, privacy masking, and smart search functionalities, enhancing security and monitoring efficiency. It offers seamless integration with Hanwha's comprehensive security ecosystem, enabling easy management and control of multiple devices. The DVR also includes audio input/output channels for integrating audio surveillance alongside video recording. It supports up to 16 channels of synchronous playback, ensuring efficient review of recorded footage. The device is built with robust cybersecurity measures, safeguarding data from unauthorized access and tampering. Designed for ease of installation and use, the HRX-1634 is ideal for a wide range of applications, from small businesses to larger enterprise environments. Its durable construction and reliable performance make it a dependable choice for long-term surveillance needs.
16 Channels: It supports up to 16 channels, allowing you to connect and monitor multiple cameras simultaneously.
Pentabrid DVR: The term "Pentabrid" indicates that this DVR supports five different video signal formats, including HD-TVI, HD-CVI, AHD, analog, and IP cameras. This versatility allows users to integrate various types of cameras into their surveillance system.
Wisenet Technology: Wisenet is a proprietary technology developed by Hanwha Techwin (formerly Samsung Techwin), known for its high-performance imaging solutions. The Wisenet technology in this DVR likely ensures high-resolution video capture and advanced features for better surveillance.
High Definition Recording: The DVR supports high-definition recording, providing clear and detailed video footage for monitoring and playback.
Remote Monitoring: Supports remote monitoring capabilities, allowing users to access live video feeds and recorded footage from anywhere with an internet connection. This feature is especially useful for users who need to monitor their premises while away from the site.
Storage: The DVR supports various storage options, including internal hard drives for local storage and network-attached storage (NAS) for additional storage capacity.
Motion Detection and Alerts: It includes motion detection functionality, which triggers alerts or notifications when motion is detected within the camera's field of view. This feature helps users stay informed about potential security threats or suspicious activities.
User-Friendly Interface: Features a user-friendly interface for easy setup, configuration, and operation. This ensures that users can quickly navigate through menus, adjust settings, and access features without extensive technical knowledge. The Hanwha Vision HV-HRX-1634 Wisenet 16CH Pentabrid DVR is a versatile and feature-rich surveillance solution suitable for various security applications, from small businesses to larger commercial or industrial premises.
Features
Specifications
| System | ||
|---|---|---|
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000, SPC-2001) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Certification | UL, CE, FCC, KC, UKCA | |
| Electrical | ||
| Power Input | DC12V | |
| Power Consumption | Max. 40W (6T HDD 2ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | W370.0x H44.0 xD320(14.57” x 1.73” x12.6”) | |
| Weight | Approx. 2.9Kg (6.4 lb, 4TB HDD 1ea) | |
