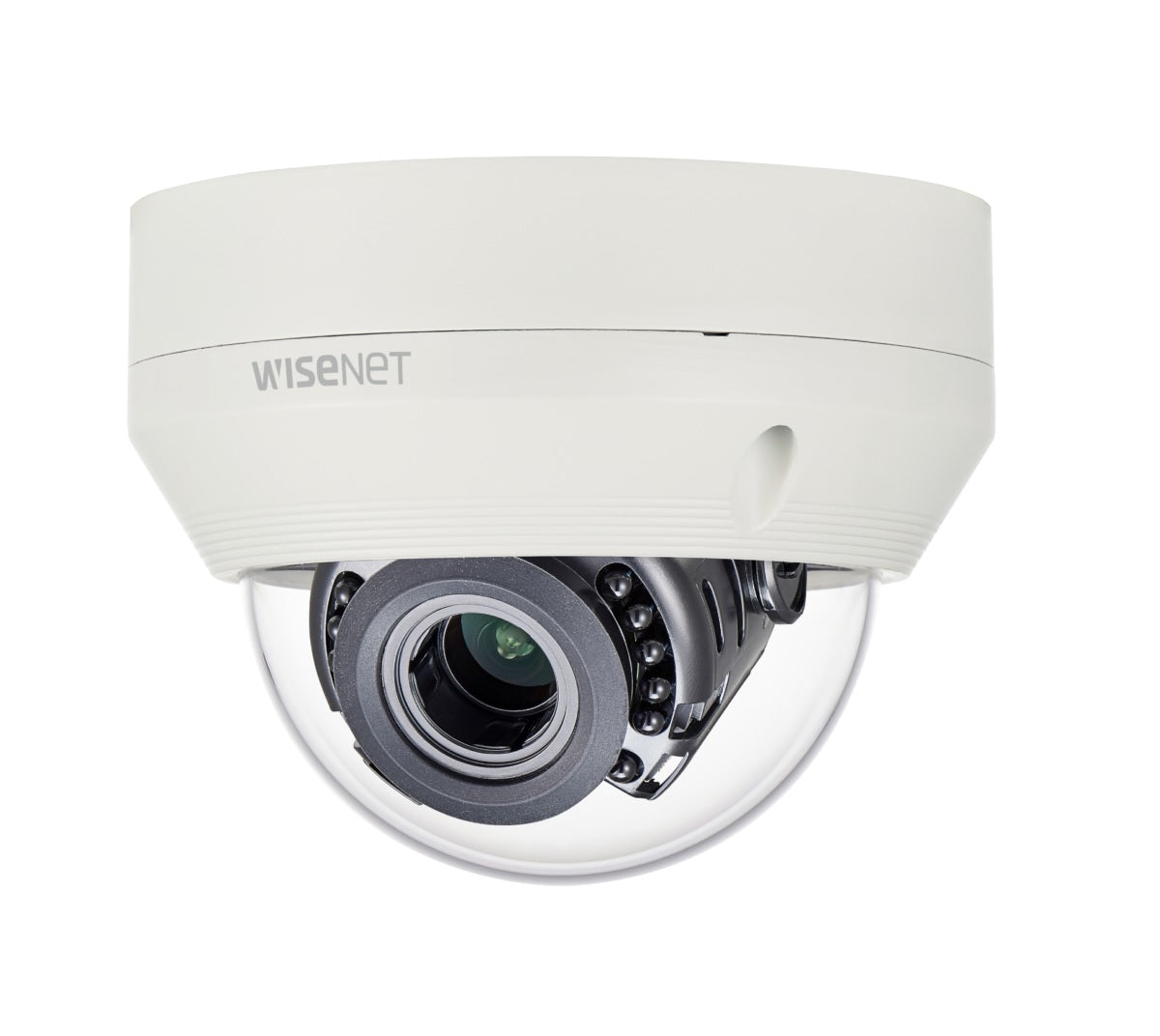

Hanwha Vision HV-HCV-7070RA QHD (4MP) Analog Vandal-Resistant IR Dome Camera
QHD (4MP) Analog Vandal-Resistant IR Dome Camera
The QHD (4MP) Analog Vandal-Resistant IR Dome Camera, model HCV-7070RA, from Hanwha Vision offers high-resolution video surveillance with a 4MP sensor, delivering clear and detailed images. Designed for resilience, this camera features a vandal-resistant housing to withstand tampering and impact, ensuring reliable operation in challenging environments. Its infrared (IR) capability enables effective night vision, allowing it to capture clear footage even in low-light conditions. The camera is equipped with a wide-angle lens, providing a broad field of view to cover more area with fewer units. Its robust construction makes it suitable for both indoor and outdoor installations, offering flexibility for various security needs.
Key Features
- QHD (2560 x 1440, 30fps) resolution
- 0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) varifocal lens
- Day & Night (ICR), DWDR, Motion detection
- Transmission distance Max. 500m
- Easy installation (Plug & play), Dual power
- IP66, IK10 support
Code/SKU: HCV-7070RA
Quick Specs:
- Angular Field of View: H: 93.48° (Wide) ~ 29.44° (Tele), V: 50.47° (Wide) ~ 16.64° (Tele), D: 112.53° (Wide) ~ 33.7° (Tele)
- Min. Object Distance: 0.5m (1.64ft)
- Focus Control: Manual
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision HV-HCV-7070RA QHD (4MP) Analog Vandal-Resistant IR Dome Camera designed for robust security applications. It features a vandal-resistant casing, making it ideal for high-risk environments where durability is crucial. The camera is equipped with infrared (IR) technology, allowing for clear night vision and low-light performance. Its dome design provides a wide field of view, enhancing its surveillance capabilities. With advanced imaging technology, the HCV-7070RA delivers sharp and detailed footage, ensuring reliable security monitoring.
Features
- QHD (2560 x 1440, 30fps) resolution
- 0.16 Lux@F1.6 (Color), 0 Lux (B/W: IR LED on)
- 3.2 ~ 10mm (3.1x) varifocal lens
- Day & Night (ICR), DWDR, Motion detection
- Transmission distance: Max. 500m
- Easy installation (Plug & play), Dual power
- IP66, IK10 support
WiseNet HD+ series is an analog HD solution that provides better performance than existing analog products. WiseNet HD+ can transmit 1080p Full-HD high quality images through existing coaxial cable at a distance up to 1640ft. It is also backwards compatible with any existing analog system.
Technical Specifications:
| Video | |
|---|---|
| Imaging Device | 1/3" 4MP CMOS |
| Resolution | 2560x1440 |
| Max. Framerate | 30fps@4M(N), 25fps@4M(P) |
| Min. Illumination | Color: 0.16Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | BNC(AHD), additional CVBS for installation(2Pin connector type) |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) manual varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 93.48°(Wide)~29.44°(Tele), V: 50.47°(Wide)~16.64°(Tele), D: 112.53°(Wide)~33.7°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~63° / 0°~355° |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | UserBLC, HLC, DWDR |
| Digital Noise Reduction | 2DDNR |
| Motion Detection | 4 zones |
| Privacy Masking | 2 zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) |
| Video Rotation | H-Rev/V-Rev |
| Analytics | Motion detection |
| Alarm I/O | MD Output 1ea |
| IR Viewable Length | 30m(98.43ft) |
| Coaxial Protocol | ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC, 12VDC |
| Power Consumption | Max 5.8W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Product Dimensions / Weight | Ø137.0x106.1mm(Ø5.39”x4.18”), 715g(1.58 lb) |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
QHD (4MP) Analog Vandal-Resistant IR Dome Camera
The QHD (4MP) Analog Vandal-Resistant IR Dome Camera, model HCV-7070RA, from Hanwha Vision offers high-resolution video surveillance with a 4MP sensor, delivering clear and detailed images. Designed for resilience, this camera features a vandal-resistant housing to withstand tampering and impact, ensuring reliable operation in challenging environments. Its infrared (IR) capability enables effective night vision, allowing it to capture clear footage even in low-light conditions. The camera is equipped with a wide-angle lens, providing a broad field of view to cover more area with fewer units. Its robust construction makes it suitable for both indoor and outdoor installations, offering flexibility for various security needs.
Key Features
- QHD (2560 x 1440, 30fps) resolution
- 0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) varifocal lens
- Day & Night (ICR), DWDR, Motion detection
- Transmission distance Max. 500m
- Easy installation (Plug & play), Dual power
- IP66, IK10 support
Code/SKU: HCV-7070RA
Quick Specs:
- Angular Field of View: H: 93.48° (Wide) ~ 29.44° (Tele), V: 50.47° (Wide) ~ 16.64° (Tele), D: 112.53° (Wide) ~ 33.7° (Tele)
- Min. Object Distance: 0.5m (1.64ft)
- Focus Control: Manual
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Imaging Device | 1/3" 4MP CMOS |
| Resolution | 2560x1440 |
| Max. Framerate | 30fps@4M(N), 25fps@4M(P) |
| Min. Illumination | Color: 0.16Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | BNC(AHD), additional CVBS for installation(2Pin connector type) |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) manual varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 93.48°(Wide)~29.44°(Tele), V: 50.47°(Wide)~16.64°(Tele), D: 112.53°(Wide)~33.7°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~63° / 0°~355° |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | UserBLC, HLC, DWDR |
| Digital Noise Reduction | 2DDNR |
| Motion Detection | 4 zones |
| Privacy Masking | 2 zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) |
| Video Rotation | H-Rev/V-Rev |
| Analytics | Motion detection |
| Alarm I/O | MD Output 1ea |
| IR Viewable Length | 30m(98.43ft) |
| Coaxial Protocol | ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC, 12VDC |
| Power Consumption | Max 5.8W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Product Dimensions / Weight | Ø137.0x106.1mm(Ø5.39”x4.18”), 715g(1.58 lb) |
