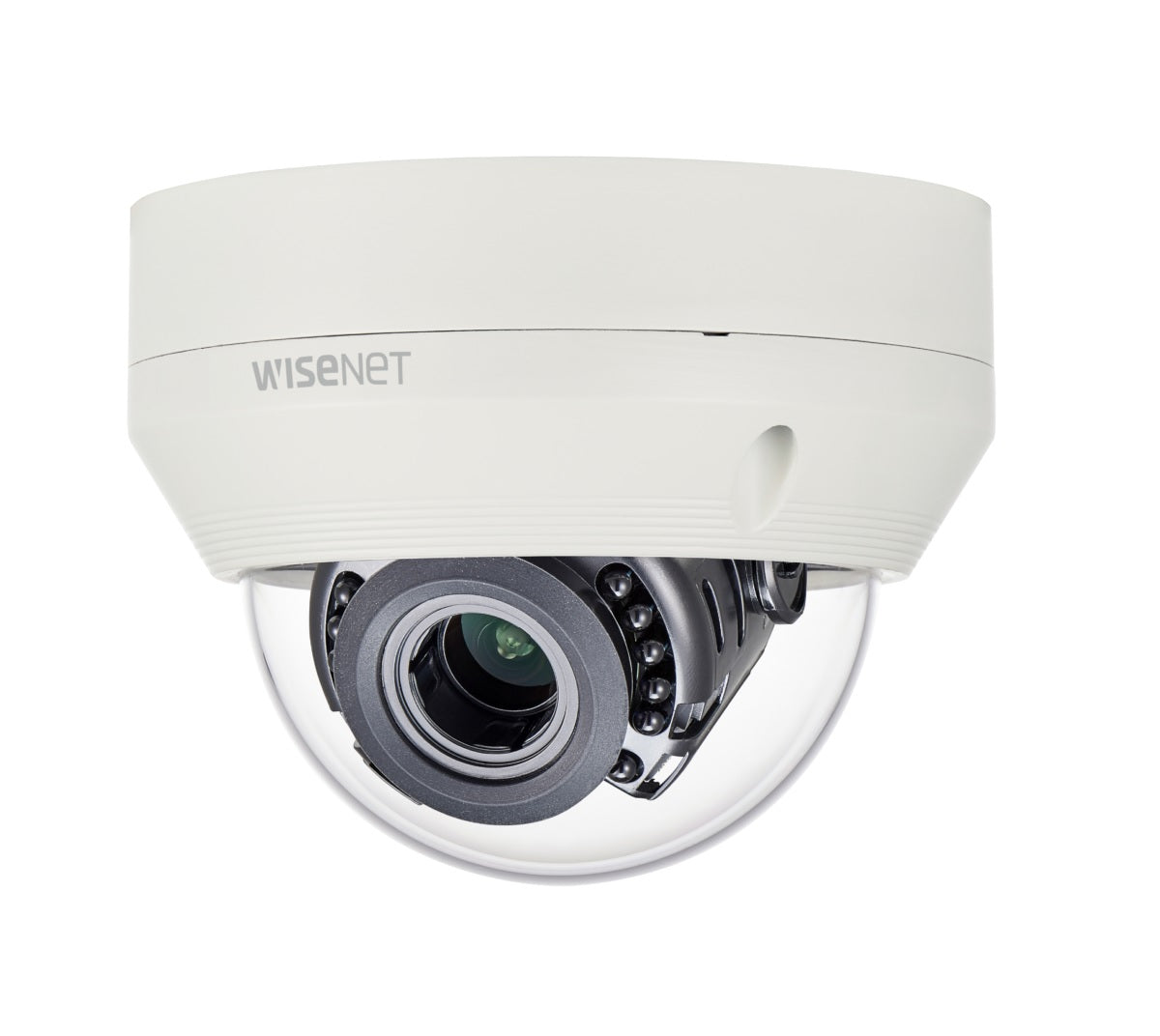

Hanwha Vision HV-HCV-6080R 1080p Analog HD Vandal-Resistant IR Dome Camera
1080p Analog HD Vandal-Resistant IR Dome Camera
The Hanwha Vision 1080p Analog HD Vandal-Resistant IR Dome Camera (HCV-6080R) offers high-definition video quality with a 1080p resolution, providing clear and detailed images. This camera features a vandal-resistant design, making it durable and capable of withstanding physical impacts, which is ideal for challenging environments. It is equipped with infrared (IR) LEDs that enable it to capture clear footage in low-light or complete darkness, ensuring reliable surveillance around the clock. The camera has a wide viewing angle, allowing it to cover large areas with fewer devices. Its compact dome form factor makes it a discreet option for both indoor and outdoor installations.
Key Features
- Full HD resolution
- 0.11Lux@F1.4(Color), 0Lux(B/W : IR LED on)
- 3.2~10mm(3.1x) Motorized V/F lens
- Day & Night(ICR), WDR(120dB)
- SSNR, Motion detection
- IR viewable length : 98 feet, IP66, IK10, Dual power
- Transmission distance Max.500m
- Easy installation (Plug & play), Dual power, RS-485
Code/SKU: HCV-6080R
Quick Specs:
- Focal Length (Zoom Ratio): 3.2~10mm (3.1x) motorized varifocal
- Max. Aperture Ratio: F1.6
- Angular Field of View:
- Horizontal: 110.2° (Wide) ~ 32° (Tele)
- Vertical: 55.4° (Wide) ~ 18° (Tele)
- Diagonal: 128.4° (Wide) ~ 36.6° (Tele)
- Minimum Object Distance: 0.5m (1.64ft)
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision HV-HCV-6080R 1080p Analog HD Vandal-Resistant IR Dome Camera designed for high-performance surveillance. With its advanced analog high-definition technology, it delivers crisp and clear images, ensuring reliable monitoring in various environments. Equipped with infrared LEDs, this camera provides exceptional night vision capabilities, extending surveillance even in low-light conditions. Its vandal-resistant construction enhances durability, making it suitable for outdoor installations in challenging locations. The HV-HCV-6080R is an ideal choice for businesses and organizations seeking dependable security solutions.
Features
- Full HD resolution
- 0.11 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) motorized V/F lens
- Day & Night (ICR), WDR (120dB)
- SSNRⅣ, Motion detection
- IR viewable length 30m, IP66, IK10
- Transmission distance max. 500m
- Easy Installation (Plug & play), Dual power
WiseNet HD+ series is an analog HD solution that provides better performance than existing analog products. WiseNet HD+ can transmit 1080p Full-HD high quality images through existing coaxial cable at a distance up to 1640ft. It is also backwards compatible with any existing analog system.
Technical Specifications:
| Video | |
|---|---|
| Imaging Device | 1/2.8" 2MP CMOS |
| Resolution | 1920x1080 |
| Max. Framerate | 30fps / 25fps(60Hz / 50Hz) |
| Min. Illumination | Color: 0.11Lux(F1.6, 30IRE) BW: 0Lux(IR LED on) |
| Video Out | BNC(AHD / TVI / CVI / CVBS Selectable) |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 110.2°(Wide) ~ 32°(Tele) / V: 55.4°(Wide) ~ 18°(Tele) / D: 128.4°(Wide) ~ 36.6°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅣ |
| Defog | Support |
| Motion Detection | 4ea |
| Privacy Masking | 8ea, rectangular zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1 ~ 1/12,000sec |
| Video Rotation | H-Rev / V-Rev |
| Analytics | Motion detection |
| Alarm I/O | MD output 1ea |
| Alarm Triggers | Analytics |
| Alarm Events | Alarm output |
| IR Viewable Length | 30m(98.43ft) |
| Coaxial Protocol | ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS: Pelco-C(Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC, 12VDC |
| Power Consumption | Max 5.8W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Product Dimensions / Weight | Ø137x106.1mm(5.39x4.18"), 725g(1.59 lb) |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
1080p Analog HD Vandal-Resistant IR Dome Camera
The Hanwha Vision 1080p Analog HD Vandal-Resistant IR Dome Camera (HCV-6080R) offers high-definition video quality with a 1080p resolution, providing clear and detailed images. This camera features a vandal-resistant design, making it durable and capable of withstanding physical impacts, which is ideal for challenging environments. It is equipped with infrared (IR) LEDs that enable it to capture clear footage in low-light or complete darkness, ensuring reliable surveillance around the clock. The camera has a wide viewing angle, allowing it to cover large areas with fewer devices. Its compact dome form factor makes it a discreet option for both indoor and outdoor installations.
Key Features
- Full HD resolution
- 0.11Lux@F1.4(Color), 0Lux(B/W : IR LED on)
- 3.2~10mm(3.1x) Motorized V/F lens
- Day & Night(ICR), WDR(120dB)
- SSNR, Motion detection
- IR viewable length : 98 feet, IP66, IK10, Dual power
- Transmission distance Max.500m
- Easy installation (Plug & play), Dual power, RS-485
Code/SKU: HCV-6080R
Quick Specs:
- Focal Length (Zoom Ratio): 3.2~10mm (3.1x) motorized varifocal
- Max. Aperture Ratio: F1.6
- Angular Field of View:
- Horizontal: 110.2° (Wide) ~ 32° (Tele)
- Vertical: 55.4° (Wide) ~ 18° (Tele)
- Diagonal: 128.4° (Wide) ~ 36.6° (Tele)
- Minimum Object Distance: 0.5m (1.64ft)
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Imaging Device | 1/2.8" 2MP CMOS |
| Resolution | 1920x1080 |
| Max. Framerate | 30fps / 25fps(60Hz / 50Hz) |
| Min. Illumination | Color: 0.11Lux(F1.6, 30IRE) BW: 0Lux(IR LED on) |
| Video Out | BNC(AHD / TVI / CVI / CVBS Selectable) |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 110.2°(Wide) ~ 32°(Tele) / V: 55.4°(Wide) ~ 18°(Tele) / D: 128.4°(Wide) ~ 36.6°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅣ |
| Defog | Support |
| Motion Detection | 4ea |
| Privacy Masking | 8ea, rectangular zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1 ~ 1/12,000sec |
| Video Rotation | H-Rev / V-Rev |
| Analytics | Motion detection |
| Alarm I/O | MD output 1ea |
| Alarm Triggers | Analytics |
| Alarm Events | Alarm output |
| IR Viewable Length | 30m(98.43ft) |
| Coaxial Protocol | ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS: Pelco-C(Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC, 12VDC |
| Power Consumption | Max 5.8W |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Product Dimensions / Weight | Ø137x106.1mm(5.39x4.18"), 725g(1.59 lb) |
