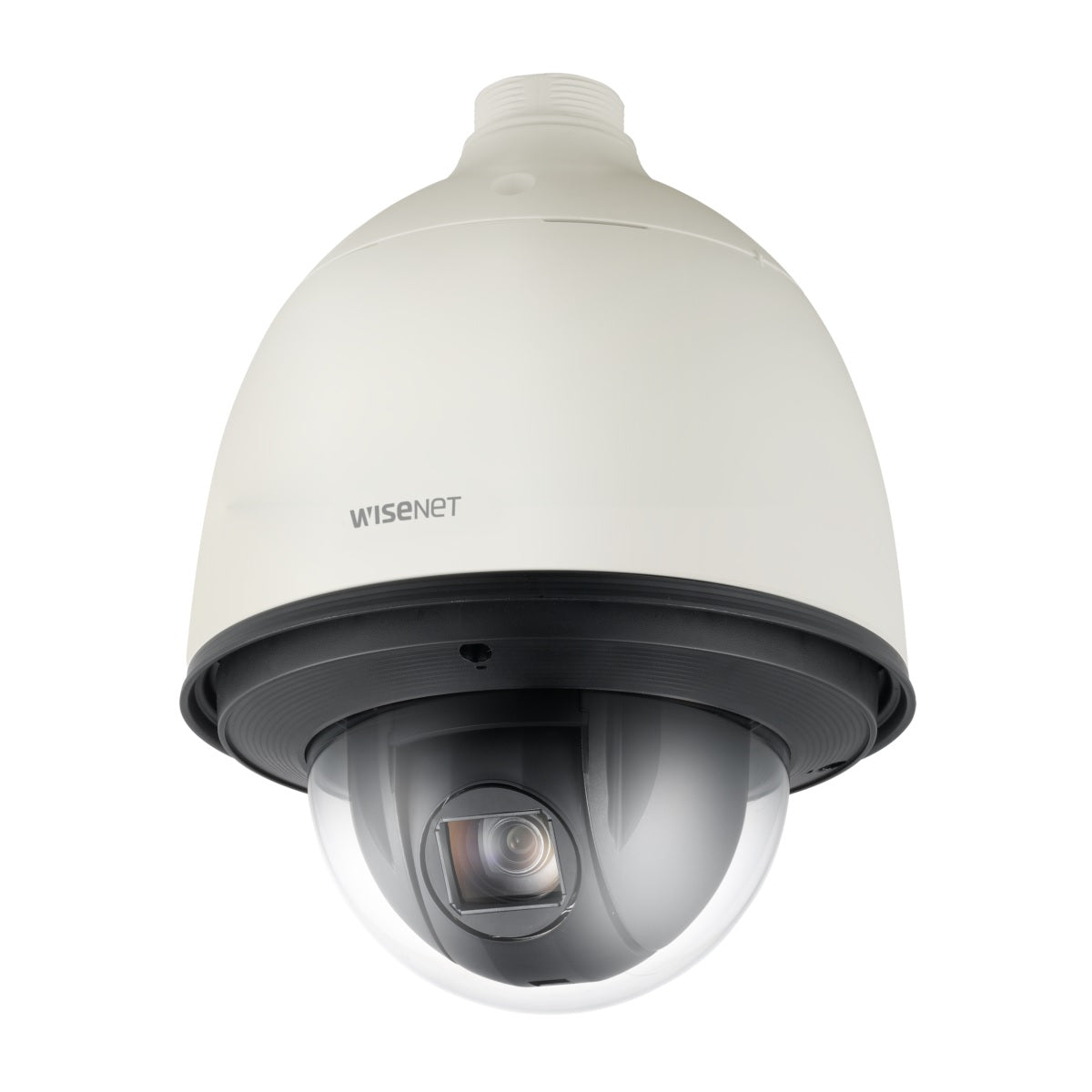

Hanwha Vision HV-HCP-6320HA Full-HD 1080p Analog HD 32x Outdoor PTZ Dome Camera
1080p Analog HD 32x PTZ Dome Camera
The 1080p Analog HD 32x PTZ Dome Camera, model HCP-6320HA from Hanwha Vision America, delivers high-quality surveillance with full HD resolution, ensuring clear and detailed images. It features a powerful 32x optical zoom, allowing users to capture distant objects with precision. This camera is equipped with advanced PTZ (Pan-Tilt-Zoom) capabilities, providing flexible coverage over a wide area. It supports True Day/Night functionality with an infrared cut filter, offering superior image quality in varying lighting conditions.
Key Features
- Full HD (1920 x 1080, 30fps) resolution
- Low light sensitivity: 0.2Lux@F1.6 (Color), 0.01Lux@F1.6 (B/W)
- Powerful 32x zoom (4.44 ~ 142.6mm), Digital 16x
- Day & Night functionality (ICR), Defog, Wide Dynamic Range (WDR - 120dB), SSNRIII
- High-speed preset capability: 700°/sec, Azimuth
- Weatherproof and vandal-resistant: IP66 / IK10 (HCP-6320HA), IK10 (HCP-6320A + SHP-3701H only)
- Control options: RS-485, Coax control
Code/SKU: HCP-6320HA
Quick Specs:
- Pan Range: 360° Endless
- Pan Speed: Preset: 700°/sec, Manual: 0.024°/sec ~ 200°/sec
- Tilt Range: 210° (-15° ~ 195°)
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision HV-HCP-6320HA Full-HD 1080p Analog HD 32x Outdoor PTZ Dome Camera designed for outdoor surveillance. With its 32x optical zoom capability, it offers superior image clarity and detail even at long distances. The PTZ (Pan-Tilt-Zoom) functionality allows for flexible monitoring and tracking of subjects within its range. Its rugged outdoor design ensures durability and reliability in various weather conditions. Overall, the HV-HCP-6320HA is a powerful security solution suitable for monitoring large outdoor areas effectively.
Features
- Full HD (1920 x 1080, 30fps) resolution
- Low light sensitivity: 0.2Lux@F1.6 (Color), 0.01Lux@F1.6 (B/W)
- Powerful 32x zoom (4.44 ~ 142.6mm), Digital 16x
- Day & Night functionality (ICR), Defog, Wide Dynamic Range (WDR - 120dB), SSNRIII
- High-speed preset capability: 700°/sec, Azimuth
- Weatherproof and vandal-resistant: IP66 / IK10 (HCP-6320HA), IK10 (HCP-6320A + SHP-3701H only)
- Control options: RS-485, Coax control
WiseNet HD+ series is an analog HD solution that provides better performance than existing analog products. WiseNet HD+ can transmit 1080p Full-HD high quality images through existing coaxial cable at a distance up to 1640ft. It is also backwards compatible with any existing analog system.
Technical Specifications:
| Video | |
|---|---|
| Imaging Device | 1/2.8" 2.38MP CMOS |
| Resolution | 1920x1080 |
| Min. Illumination | Color: 0.3 Lux (1/30sec, F1.6, 50IRE) , 0.005 Lux(2sec, F1.6, 50IRE) B/W: 0.03 Lux (1/30sec, F1.6, 50IRE), 0.0005 Lux(2sec, F1.6, 50IRE) Color: 0.2 Lux (1/30sec, F1.6, 30IRE), 0.003 Lux(2sec, F1.6, 30IRE) B/W: 0.01 Lux (1/30sec, F1.6, 30IRE), 0.0001 Lux(2sec, F1.6, 30IRE) |
| Video Out | BNC(AHD), CVBS(SD, DIP connector type) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44 ~ 142.6mm(32x) motorized varifocal |
| Optical Zoom | 32x |
| Max. Aperture Ratio | F1.6(Wide) ~ F4.4(Tele) |
| Min. Object Distance | Wide 1.4m(4.59ft), Tele 1.9m(6.23ft) |
| Focus Control | Auto / Manual / One push |
| Lens Type | DC Auto Iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Preset: 700°/sec, Manual: 0.024°/sec ~200°/sec |
| Tilt Range | 210°(-15° ~195° ) |
| Tilt Speed | Preset : 700°/sec, Manual : 0.024°/sec ~200°/sec |
| Preset Accuracy | ±0.2° |
| Operational | |
| Camera Title | Displayed up to 12 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅢ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 1ea, rectangular zone |
| Privacy Masking | 12ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | ESC / Auto / Manual |
| Video Rotation | Digital Flip |
| Analytics | Motion detection, Appear/Disappear, Enter/Exit, Virtual Line |
| Serial Interface | RS-485: Samsung-T/E, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell |
| Alarm I/O | Input 4ea, Output 2ea |
| Alarm Triggers | Analytics |
| Alarm Events | Alarm output |
| Coaxial Protocol | ACP(AHD Coax Protocol), CVBS : Pelco-C(Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -50°C ~ +55°C(-58°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC |
| Power Consumption | Max 24W(Heater Off), 65W(Heater On) |
| Mechanical | |
| Color / Material | Ivory / Plastic |
| Product Dimensions / Weight | Ø223.4x293.6mm(8.79x11.56"), 3300g(7.28 lb) |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
1080p Analog HD 32x PTZ Dome Camera
The 1080p Analog HD 32x PTZ Dome Camera, model HCP-6320HA from Hanwha Vision America, delivers high-quality surveillance with full HD resolution, ensuring clear and detailed images. It features a powerful 32x optical zoom, allowing users to capture distant objects with precision. This camera is equipped with advanced PTZ (Pan-Tilt-Zoom) capabilities, providing flexible coverage over a wide area. It supports True Day/Night functionality with an infrared cut filter, offering superior image quality in varying lighting conditions.
Key Features
- Full HD (1920 x 1080, 30fps) resolution
- Low light sensitivity: 0.2Lux@F1.6 (Color), 0.01Lux@F1.6 (B/W)
- Powerful 32x zoom (4.44 ~ 142.6mm), Digital 16x
- Day & Night functionality (ICR), Defog, Wide Dynamic Range (WDR - 120dB), SSNRIII
- High-speed preset capability: 700°/sec, Azimuth
- Weatherproof and vandal-resistant: IP66 / IK10 (HCP-6320HA), IK10 (HCP-6320A + SHP-3701H only)
- Control options: RS-485, Coax control
Code/SKU: HCP-6320HA
Quick Specs:
- Pan Range: 360° Endless
- Pan Speed: Preset: 700°/sec, Manual: 0.024°/sec ~ 200°/sec
- Tilt Range: 210° (-15° ~ 195°)
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Imaging Device | 1/2.8" 2.38MP CMOS |
| Resolution | 1920x1080 |
| Min. Illumination | Color: 0.3 Lux (1/30sec, F1.6, 50IRE) , 0.005 Lux(2sec, F1.6, 50IRE) B/W: 0.03 Lux (1/30sec, F1.6, 50IRE), 0.0005 Lux(2sec, F1.6, 50IRE) Color: 0.2 Lux (1/30sec, F1.6, 30IRE), 0.003 Lux(2sec, F1.6, 30IRE) B/W: 0.01 Lux (1/30sec, F1.6, 30IRE), 0.0001 Lux(2sec, F1.6, 30IRE) |
| Video Out | BNC(AHD), CVBS(SD, DIP connector type) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44 ~ 142.6mm(32x) motorized varifocal |
| Optical Zoom | 32x |
| Max. Aperture Ratio | F1.6(Wide) ~ F4.4(Tele) |
| Min. Object Distance | Wide 1.4m(4.59ft), Tele 1.9m(6.23ft) |
| Focus Control | Auto / Manual / One push |
| Lens Type | DC Auto Iris |
| Pan / Tilt / Rotate | |
| Pan Range | 360° Endless |
| Pan Speed | Preset: 700°/sec, Manual: 0.024°/sec ~200°/sec |
| Tilt Range | 210°(-15° ~195° ) |
| Tilt Speed | Preset : 700°/sec, Manual : 0.024°/sec ~200°/sec |
| Preset Accuracy | ±0.2° |
| Operational | |
| Camera Title | Displayed up to 12 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅢ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 1ea, rectangular zone |
| Privacy Masking | 12ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | ESC / Auto / Manual |
| Video Rotation | Digital Flip |
| Analytics | Motion detection, Appear/Disappear, Enter/Exit, Virtual Line |
| Serial Interface | RS-485: Samsung-T/E, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell |
| Alarm I/O | Input 4ea, Output 2ea |
| Alarm Triggers | Analytics |
| Alarm Events | Alarm output |
| Coaxial Protocol | ACP(AHD Coax Protocol), CVBS : Pelco-C(Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -50°C ~ +55°C(-58°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC |
| Power Consumption | Max 24W(Heater Off), 65W(Heater On) |
| Mechanical | |
| Color / Material | Ivory / Plastic |
| Product Dimensions / Weight | Ø223.4x293.6mm(8.79x11.56"), 3300g(7.28 lb) |
