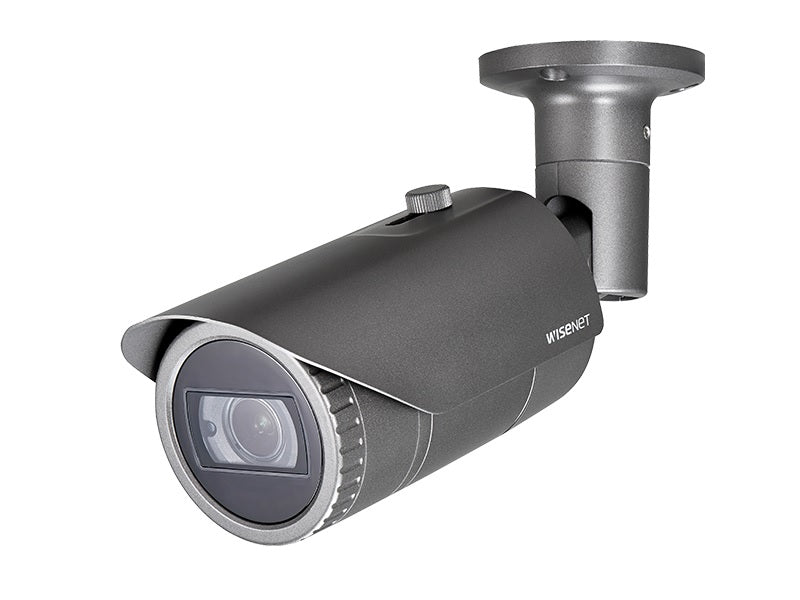

Hanwha Vision HV-HCO-7070RA 4MP 1080p Analogue AHD IR Bullet Camera
QHD (4MP) Analog IR Bullet Camera
The QHD (4MP) Analog IR Bullet Camera, model HCO-7070RA, from Hanwha Vision America delivers high-definition analog video with impressive 4MP resolution, providing detailed and clear images. Equipped with infrared (IR) capabilities, this camera ensures excellent visibility in low-light conditions, with a range that covers both day and night surveillance. Its durable bullet design is ideal for various outdoor environments, offering weather-resistant features to withstand harsh conditions. The camera's IR LEDs enhance its night vision capabilities, enabling it to capture clear images even in total darkness. The HCO-7070RA supports a wide field of view, making it suitable for monitoring large areas effectively.
Key Features
- QHD (2560 x 1440, 30fps) resolution
- 0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) varifocal lens
- Day & Night (ICR), DWDR, Motion detection
- Transmission distance Max. 500m
- Easy installation (Plug & play), Dual power
- IP66, IK10 support
Code/SKU: HCO-7070RA
Quick Specs:
- Imaging Device: 1/3" 4MP CMOS
- Resolution: 2560x1440
- Max. Framerate: 30fps@4M(N), 25fps@4M(P)
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision HV-HCO-7070RA 4MP 1080p Analogue AHD IR Bullet Camera designed for surveillance applications. It delivers crisp 1080p video quality, ensuring clear and detailed footage. With its infrared technology, this camera provides reliable night vision capabilities, allowing for around-the-clock monitoring. Its durable bullet design makes it suitable for both indoor and outdoor use, providing protection against various weather conditions. The HV-HCO-7070RA is a reliable choice for surveillance systems requiring high-quality imaging and robust performance.
Features
- QHD (2560 x 1440, 30fps) resolution
- 0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) varifocal lens
- Day & Night (ICR), DWDR, Motion detection
- Transmission distance Max. 500m
- Easy installation (Plug & play), Dual power
- IP66, IK10 support
WiseNet HD+ series is an analog HD solution that provides better performance than existing analog products. WiseNet HD+ can transmit 1080p Full-HD high quality images through existing coaxial cable at a distance up to 1640ft. It is also backwards compatible with any existing analog system.
Technical Specifications:
| Video | |
|---|---|
| Imaging Device | 1/3" 4MP CMOS |
| Resolution | 2560x1440 |
| Max. Framerate | 30fps@4M(N), 25fps@4M(P) |
| Min. Illumination | Color: 0.16Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | BNC(AHD), additional CVBS for installation(2Pin connector type) |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) manual varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 93.48°(Wide)~29.44°(Tele), V: 50.47°(Wide)~16.64°(Tele), D: 112.53°(Wide)~33.7°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | UserBLC, HLC, DWDR |
| Digital Noise Reduction | 2DDNR |
| Motion Detection | 4 zones |
| Privacy Masking | 2 zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) |
| Video Rotation | H-Rev/V-Rev |
| Analytics | Motion detection |
| Alarm I/O | MD Output 1ea |
| IR Viewable Length | 30m(98.43ft) |
| Coaxial Protocol | ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC, 12VDC |
| Power Consumption | Max 5.8W |
| Mechanical | |
| Color / Material | Dark Grey / Aluminum |
| Product Dimensions / Weight | Ø78.0x259.8mm(Ø3.07”x10.23”), 914g(2.02 lb) |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
QHD (4MP) Analog IR Bullet Camera
The QHD (4MP) Analog IR Bullet Camera, model HCO-7070RA, from Hanwha Vision America delivers high-definition analog video with impressive 4MP resolution, providing detailed and clear images. Equipped with infrared (IR) capabilities, this camera ensures excellent visibility in low-light conditions, with a range that covers both day and night surveillance. Its durable bullet design is ideal for various outdoor environments, offering weather-resistant features to withstand harsh conditions. The camera's IR LEDs enhance its night vision capabilities, enabling it to capture clear images even in total darkness. The HCO-7070RA supports a wide field of view, making it suitable for monitoring large areas effectively.
Key Features
- QHD (2560 x 1440, 30fps) resolution
- 0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) varifocal lens
- Day & Night (ICR), DWDR, Motion detection
- Transmission distance Max. 500m
- Easy installation (Plug & play), Dual power
- IP66, IK10 support
Code/SKU: HCO-7070RA
Quick Specs:
- Imaging Device: 1/3" 4MP CMOS
- Resolution: 2560x1440
- Max. Framerate: 30fps@4M(N), 25fps@4M(P)
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Imaging Device | 1/3" 4MP CMOS |
| Resolution | 2560x1440 |
| Max. Framerate | 30fps@4M(N), 25fps@4M(P) |
| Min. Illumination | Color: 0.16Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | BNC(AHD), additional CVBS for installation(2Pin connector type) |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) manual varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 93.48°(Wide)~29.44°(Tele), V: 50.47°(Wide)~16.64°(Tele), D: 112.53°(Wide)~33.7°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Operational | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | UserBLC, HLC, DWDR |
| Digital Noise Reduction | 2DDNR |
| Motion Detection | 4 zones |
| Privacy Masking | 2 zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P) |
| Video Rotation | H-Rev/V-Rev |
| Analytics | Motion detection |
| Alarm I/O | MD Output 1ea |
| IR Viewable Length | 30m(98.43ft) |
| Coaxial Protocol | ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC, 12VDC |
| Power Consumption | Max 5.8W |
| Mechanical | |
| Color / Material | Dark Grey / Aluminum |
| Product Dimensions / Weight | Ø78.0x259.8mm(Ø3.07”x10.23”), 914g(2.02 lb) |
