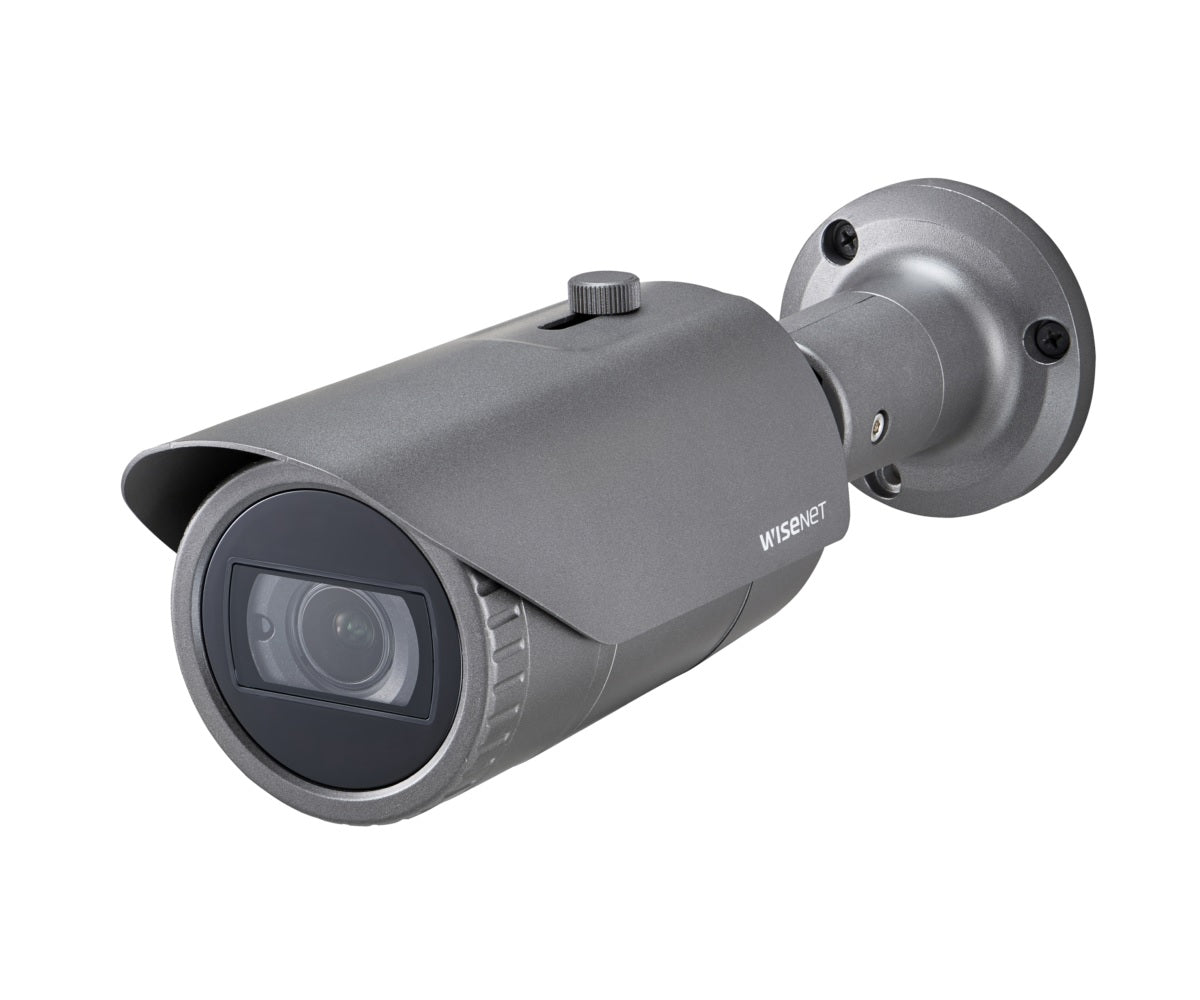

Hanwha Vision HV-HCO-6080R 1080p Analog HD IR Bullet Camera
1080p Analog HD IR Bullet Camera
The Hanwha Techwin HCO-6080R is a robust 1080p Analog HD IR Bullet Camera designed for high-definition surveillance. It delivers crisp and clear 1080p resolution video, ensuring detailed monitoring in various environments. The camera features a 2.8-12mm motorized varifocal lens, providing flexible field-of-view adjustments to suit different monitoring needs. Equipped with powerful IR LEDs, the HCO-6080R offers night vision capabilities up to 130 feet, enabling reliable 24/7 surveillance. Its weatherproof housing is rated IP66, ensuring durability and protection against harsh weather conditions.
Key Features
- Full HD resolution
- 0.11 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) motorized V/F lens
- Day & Night (ICR), WDR (120dB)
- SSNRⅣ, Motion detection
- IR viewable length 30m, IP66, IK10
- Transmission distance max. 500m
- Easy Installation (Plug & play), Dual power
Code/SKU: HCO-6080R
Quick Specs:
- Imaging Device: 1/2.8" 2MP CMOS
- Resolution: 1920x1080
- Max. Framerate: 30fps / 25fps (60Hz / 50Hz)
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision HV-HCO-6080R 1080p Analog HD IR Bullet Camera capable of capturing crisp 1080p video footage. With its infrared capabilities, it ensures clear and detailed images even in low-light or no-light conditions. Designed for outdoor use, its rugged construction makes it resistant to weather and vandalism, providing reliable surveillance in various environments. Equipped with advanced features such as digital noise reduction and motion detection, it offers enhanced security monitoring capabilities. With easy installation and compatibility with analog HD systems, the HV-HCO-6080R is a versatile solution for surveillance needs.
Features
- Full HD resolution
- 0.11 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) motorized V/F lens
- Day & Night (ICR), WDR (120dB)
- SSNRⅣ, Motion detection
- IR viewable length 30m, IP66, IK10
- Transmission distance max. 500m
- Easy Installation (Plug & play), Dual power
WiseNet HD+ series is an analog HD solution that provides better performance than existing analog products. WiseNet HD+ can transmit 1080p Full-HD high quality images through existing coaxial cable at a distance up to 1640ft. It is also backwards compatible with any existing analog system.
Technical Specifications:
| Video | |
|---|---|
| Imaging Device | 1/2.8" 2MP CMOS |
| Resolution | 1920x1080 |
| Max. Framerate | 30fps / 25fps(60Hz / 50Hz) |
| Min. Illumination | Color : 0.11Lux(F1.6, 30IRE) BW : 0Lux(IR LED on) |
| Video Out | BNC(AHD / TVI / CVI / CVBS Selectable) |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6 |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅣ |
| Defog | Support |
| Motion Detection | 4ea |
| Privacy Masking | 8ea, rectangular zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1 ~ 1/12,000sec |
| Video Rotation | H-Rev / V-Rev |
| Analytics | Motion detection |
| Alarm I/O | MD output 1ea |
| Alarm Triggers | Analytics |
| Alarm Events | Alarm output |
| IR Viewable Length | 30m(98.43ft) |
| Coaxial Protocol | ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS : Pelco-C(Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(+22°F ~ +131°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC, 12VDC |
| Power Consumption | Max 5.8W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product Dimensions / Weight | Ø78.0x259.8mm(3.07x10.23"), 948g(2.09 lb) |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
1080p Analog HD IR Bullet Camera
The Hanwha Techwin HCO-6080R is a robust 1080p Analog HD IR Bullet Camera designed for high-definition surveillance. It delivers crisp and clear 1080p resolution video, ensuring detailed monitoring in various environments. The camera features a 2.8-12mm motorized varifocal lens, providing flexible field-of-view adjustments to suit different monitoring needs. Equipped with powerful IR LEDs, the HCO-6080R offers night vision capabilities up to 130 feet, enabling reliable 24/7 surveillance. Its weatherproof housing is rated IP66, ensuring durability and protection against harsh weather conditions.
Key Features
- Full HD resolution
- 0.11 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) motorized V/F lens
- Day & Night (ICR), WDR (120dB)
- SSNRⅣ, Motion detection
- IR viewable length 30m, IP66, IK10
- Transmission distance max. 500m
- Easy Installation (Plug & play), Dual power
Code/SKU: HCO-6080R
Quick Specs:
- Imaging Device: 1/2.8" 2MP CMOS
- Resolution: 1920x1080
- Max. Framerate: 30fps / 25fps (60Hz / 50Hz)
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
|---|---|
| Imaging Device | 1/2.8" 2MP CMOS |
| Resolution | 1920x1080 |
| Max. Framerate | 30fps / 25fps(60Hz / 50Hz) |
| Min. Illumination | Color : 0.11Lux(F1.6, 30IRE) BW : 0Lux(IR LED on) |
| Video Out | BNC(AHD / TVI / CVI / CVBS Selectable) |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6 |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅣ |
| Defog | Support |
| Motion Detection | 4ea |
| Privacy Masking | 8ea, rectangular zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1 ~ 1/12,000sec |
| Video Rotation | H-Rev / V-Rev |
| Analytics | Motion detection |
| Alarm I/O | MD output 1ea |
| Alarm Triggers | Analytics |
| Alarm Events | Alarm output |
| IR Viewable Length | 30m(98.43ft) |
| Coaxial Protocol | ACP(AHD Coax Protocol), TCP(TVI Coax Protocol), CCP(CVI Coax Protocol) CVBS : Pelco-C(Coaxitron) |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(+22°F ~ +131°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Input Voltage | 24VAC, 12VDC |
| Power Consumption | Max 5.8W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product Dimensions / Weight | Ø78.0x259.8mm(3.07x10.23"), 948g(2.09 lb) |
Get Product Help
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
