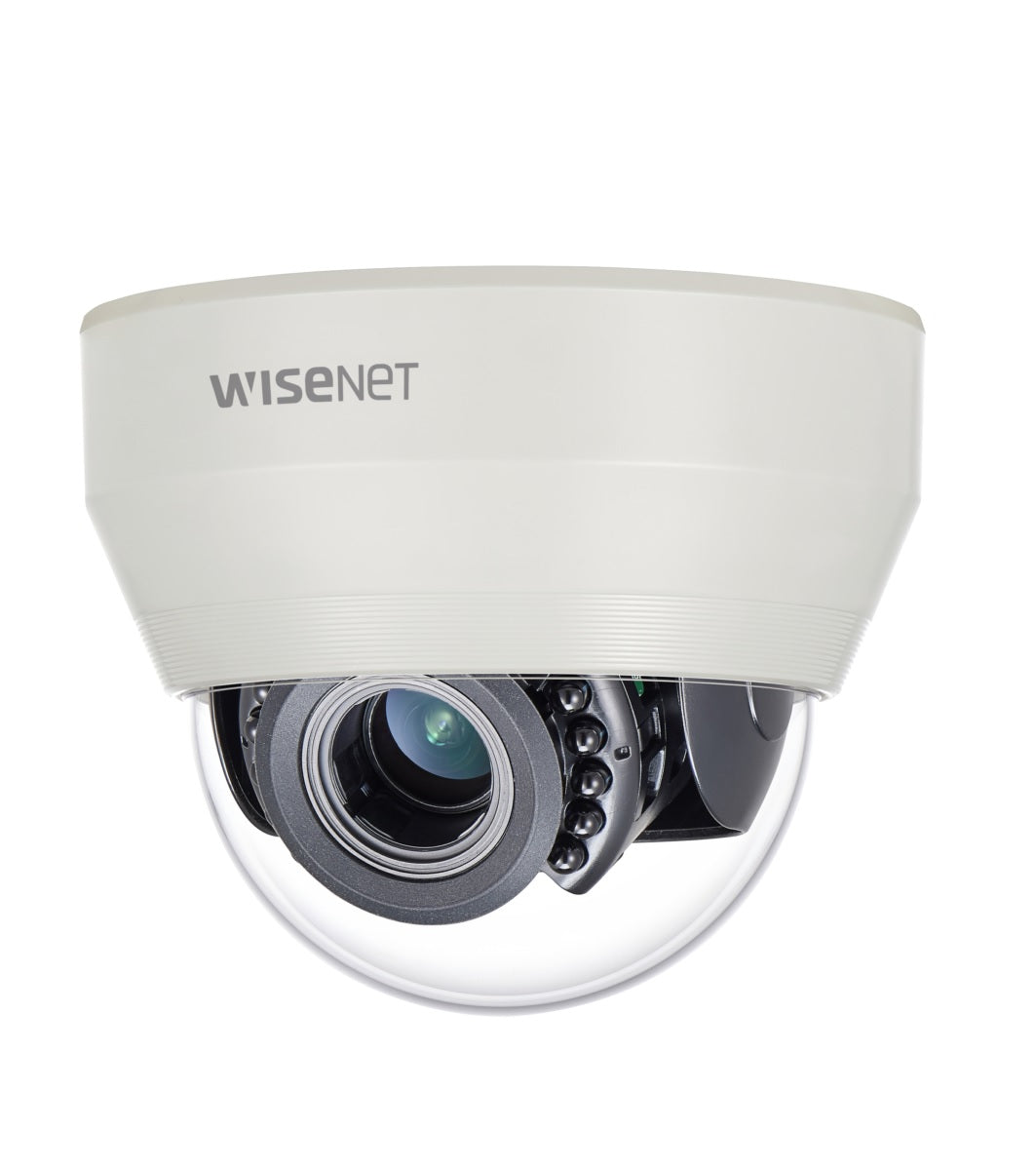

Hanwha Vision HV-HCD-7070RA 4MP Wisenet HD+ Indoor Dome Camera

$260.91 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

4MP Wisenet HD+ Indoor Dome Camera

The HCD-7070RA is built with a compact, vandal-resistant housing, making it a durable choice for indoor installations where tampering might be a concern. The camera supports multiple resolution options, including 4MP, 2MP, and 720p, giving users flexibility based on their specific needs. It also offers privacy masking, which allows users to block out certain areas within the camera's view that should not be monitored. Additionally, the camera features easy installation with its 3-axis gimbal design, ensuring precise and hassle-free setup.

Key Features

  • QHD (2560 x 1440, 30fps) resolution
  • 0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
  • 3.2 ~ 10mm (3.1x) varifocal lens
  • Day & Night (ICR), DWDR, Motion detection
  • Transmission distance Max. 500m
  • Easy installation (Plug & play), Dual power

Code/SKU: HV-HCD-7070RA
Quick Specs:

  • Color / Material: Ivory / Plastic
  • Product Dimensions / Weight: Ø119.8x98.5mm (Ø4.72”x3.88”), 320g (0.71 lb)

Specifications

Video
Imaging Device 1/3" 4MP CMOS
Resolution 2560x1440
Max. Framerate 30fps@4M(N), 25fps@4M(P)
Min. Illumination Color: 0.16Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED on)
Video Out BNC(AHD), additional CVBS for installation(2Pin connector type)
Video Transmission Distance 500m(5C2V Coaxial Cable)
Lens
Focal Length (Zoom Ratio) 3.2~10mm(3.1x) manual varifocal
Max. Aperture Ratio F1.6
Angular Field of View H: 93.48°(Wide)~29.44°(Tele), V: 50.47°(Wide)~16.64°(Tele), D: 112.53°(Wide)~33.7°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Manual
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~350° / 0°~63° / 0°~355°
Operational
Day & Night Auto(ICR)
Backlight Compensation UserBLC, HLC, DWDR
Digital Noise Reduction 2DDNR
Motion Detection 4 zones
Privacy Masking 2 zones
Gain Control Low / Middle / High / Very High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
Video Rotation H-Rev/V-Rev
Analytics Motion detection
Alarm I/O MD Output 1ea
IR Viewable Length 20m(65.62ft)
Coaxial Protocol ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Input Voltage 24VAC, 12VDC
Power Consumption Max 5.8W
Mechanical
Color / Material Ivory / Plastic
Product Dimensions / Weight Ø119.8x98.5mm(Ø4.72”x3.88”), 320g(0.71 lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hanwha Vision HV-HCD-7070RA 4MP Wisenet HD+ Indoor Dome Camera

$260.91 AUD
 per

The Hanwha Vision HCD-7070RA is a high-performance 4MP Wisenet HD+ indoor dome camera designed to deliver exceptional image clarity in a variety of indoor environments. This camera features a 2.8mm fixed lens that provides a wide field of view, making it ideal for monitoring large areas. With its advanced IR technology, the HCD-7070RA ensures clear visibility even in complete darkness up to 20 meters. It supports HD-TVI, AHD, CVI, and CVBS output, allowing compatibility with a wide range of existing analog infrastructures. The camera is equipped with powerful WDR (Wide Dynamic Range) functionality, which balances light and dark areas in the frame to produce clear, detailed images even in challenging lighting conditions. It also boasts motion detection capabilities, enabling the camera to alert users to any suspicious activity within its field of view. The HCD-7070RA is built with a compact, vandal-resistant housing, making it a durable choice for indoor installations where tampering might be a concern. The camera supports multiple resolution options, including 4MP, 2MP, and 720p, giving users flexibility based on their specific needs. It also offers privacy masking, which allows users to block out certain areas within the camera's view that should not be monitored.

Additionally, the camera features easy installation with its 3-axis gimbal design, ensuring precise and hassle-free setup. The HCD-7070RA is NDAA compliant, making it suitable for government and critical infrastructure applications. It provides excellent performance in a cost-effective package, delivering high-resolution images without requiring significant upgrades to existing analog systems. The camera also includes defogging technology to enhance image clarity in foggy conditions. Its sleek design and robust performance make it an ideal choice for a variety of indoor surveillance applications. The HCD-7070RA is backed by Hanwha Vision's commitment to quality and reliability, ensuring long-term operational stability.

Features

  • 4 MP Resolution: Provides high-quality images with 4-megapixel resolution.
  • IR Illumination: Equipped with infrared LEDs for clear images in complete darkness up to 30 meters.
  • Wide Dynamic Range (WDR): Delivers clear images in challenging lighting conditions by balancing light and dark areas of the image.
  • Defocus Detection: Automatically detects and alerts when the image is out of focus.
  • Motion Detection: Detects and alerts on any motion within the camera's field of view.
  • Weather-Resistant: Designed to operate in extreme weather conditions with an IP66-rated housing.
  • IK10 Vandal Resistance: Protects the camera from physical damage and vandalism.



Technical Specifications

  • Resolution: 4 MP (2560 x 1440)
  • IR Distance: Up to 30 meters
  • Lens Type: 3.6mm fixed lens
  • Video Compression: H.264, MJPEG
  • Frame Rate: 20fps at 4MP resolution
  • Operating Temperature: -30°C to +55°C
  • Power Supply: 12V DC, PoE
  • Ingress Protection: IP66
  • Vandal Resistance: IK10
  • Dimensions: Ø105.0 x 93.0 mm
  • Weight: 350g
Additional Details
Operational
Day & Night Auto(ICR)
Backlight Compensation UserBLC, HLC, DWDR
Digital Noise Reduction 2DDNR
Motion Detection 4 zones
Privacy Masking 2 zones
Gain Control Low / Middle / High / Very High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed 1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)
Video Rotation H-Rev/V-Rev
Analytics Motion detection
Alarm I/O MD Output 1ea
IR Viewable Length 20m(65.62ft)
Coaxial Protocol ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)
Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Input Voltage 24VAC, 12VDC
Power Consumption Max 5.8W
