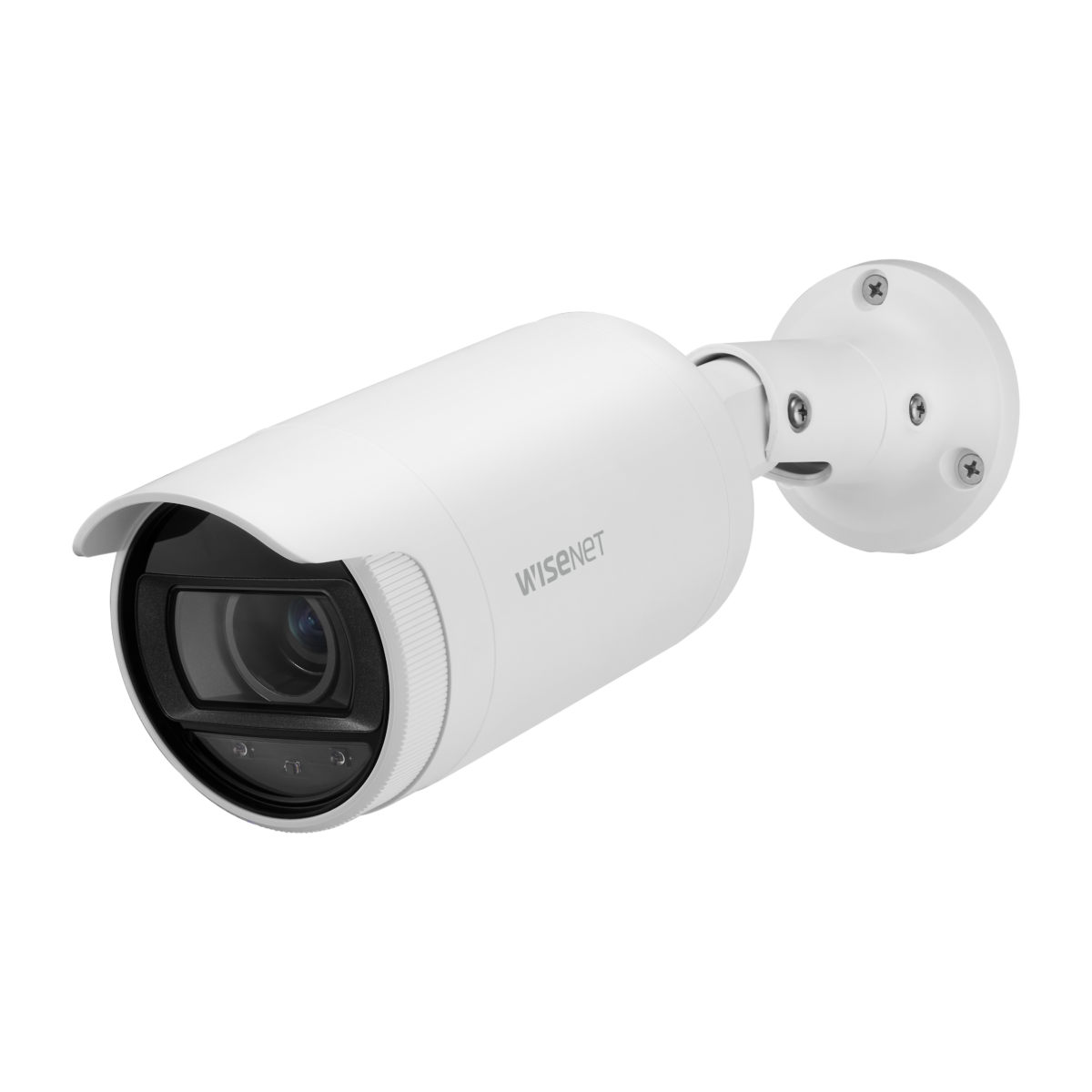

4MP IR Bullet
The Hanwha Vision ANO-L7082R is a 4MP IR bullet camera designed for reliable outdoor surveillance. It features a high-resolution sensor that delivers clear and detailed images even in low-light conditions, thanks to its built-in infrared illumination. The camera's robust housing is IP66-rated, providing protection against dust and water, making it ideal for various weather conditions. Equipped with advanced video analytics, it enhances security by detecting motion, tampering, and other critical events. The ANO-L7082R supports multiple streaming formats and integrates seamlessly with other security systems. Additionally, it offers flexible installation options, ensuring adaptability to different monitoring environments.
Key Features
Code/SKU: ANO-L7082R
Quick Specs:
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264: Max. 30fps at 4M all resolutions, MJPEG: Max. 15fps |
| Min. Illumination | Color: 0.1Lux (F1.6, 1/30sec), B/W: 0Lux (IR LED On) |
| Lens | |
| Focal Length | 3.3~10.3mm (3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6 (Wide) ~ F3.3 (Tele) |
| Angular Field of View | H: 94.8°(Wide) ~ 28.1°(Tele), V: 50.2°(Wide) ~ 15.8°(Tele), D: 112.9°(Wide) ~ 32.2°(Tele) |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti-flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover |
| IR Viewable Length | 30m (98.43ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR, MJPEG: VBR |
| Streaming | Unicast (6 users) / Multicast, Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access log, 802.1X Authentication (EAP-TLS, EAP-LEAP) |
| API | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| General | |
| Webpage Language | English |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 95% RH * Start up should be done at above -20°C (-4°F) |
| Storage Temperature / Humidity | -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH |
| Certification | IP66 |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 8.0W, typical 6.0W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø78.0 x 262.0mm (Ø3.07 x 10.31”), 390g (0.86lb) |
| Ingress Protection | IP66, IP67, IK10 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hanwha Vision HV-ANO-L7082R 4MP H.265 NW IR Bullet Fixed Lens Camera
The 4MP IR Bullet Camera, model ANO-L7082R, from Hanwha Vision offers high-resolution video capture with its 4MP sensor, ensuring clear and detailed images. It features advanced infrared technology, providing effective night vision capabilities up to a significant distance, making it ideal for low-light conditions. The camera is equipped with a durable and weather-resistant housing, designed to withstand various environmental conditions. Its compact and discreet design allows for flexible installation in both indoor and outdoor settings. The ANO-L7082R includes built-in Smart IR technology, which automatically adjusts the infrared intensity to prevent overexposure and maintain image quality. It supports high-definition video streaming, ensuring real-time monitoring with minimal latency. Additionally, the camera offers wide-angle coverage, reducing the number of units needed to cover large areas. It is compatible with various video management systems, allowing for easy integration into existing security setups. The ANO-L7082R also features advanced image processing capabilities, including noise reduction and digital enhancement, to improve clarity and reduce distortion. Its user-friendly interface and remote access options provide convenience for monitoring and managing surveillance footage.
Features
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264: Max. 30fps at 4M all resolutions, MJPEG: Max. 15fps |
| Min. Illumination | Color: 0.1Lux (F1.6, 1/30sec), B/W: 0Lux (IR LED On) |
| Lens | |
| Focal Length | 3.3~10.3mm (3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6 (Wide) ~ F3.3 (Tele) |
| Angular Field of View | H: 94.8°(Wide) ~ 28.1°(Tele), V: 50.2°(Wide) ~ 15.8°(Tele), D: 112.9°(Wide) ~ 32.2°(Tele) |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti-flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover |
| IR Viewable Length | 30m (98.43ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR, MJPEG: VBR |
| Streaming | Unicast (6 users) / Multicast, Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access log, 802.1X Authentication (EAP-TLS, EAP-LEAP) |
| API | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| General | |
| Webpage Language | English |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 95% RH * Start up should be done at above -20°C (-4°F) |
| Storage Temperature / Humidity | -30°C ~ +55°C (-22°F~+131°F) / Less than 95% RH |
| Certification | IP66 |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 8.0W, typical 6.0W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø78.0 x 262.0mm (Ø3.07 x 10.31”), 390g (0.86lb) |
| Ingress Protection | IP66, IP67, IK10 |
