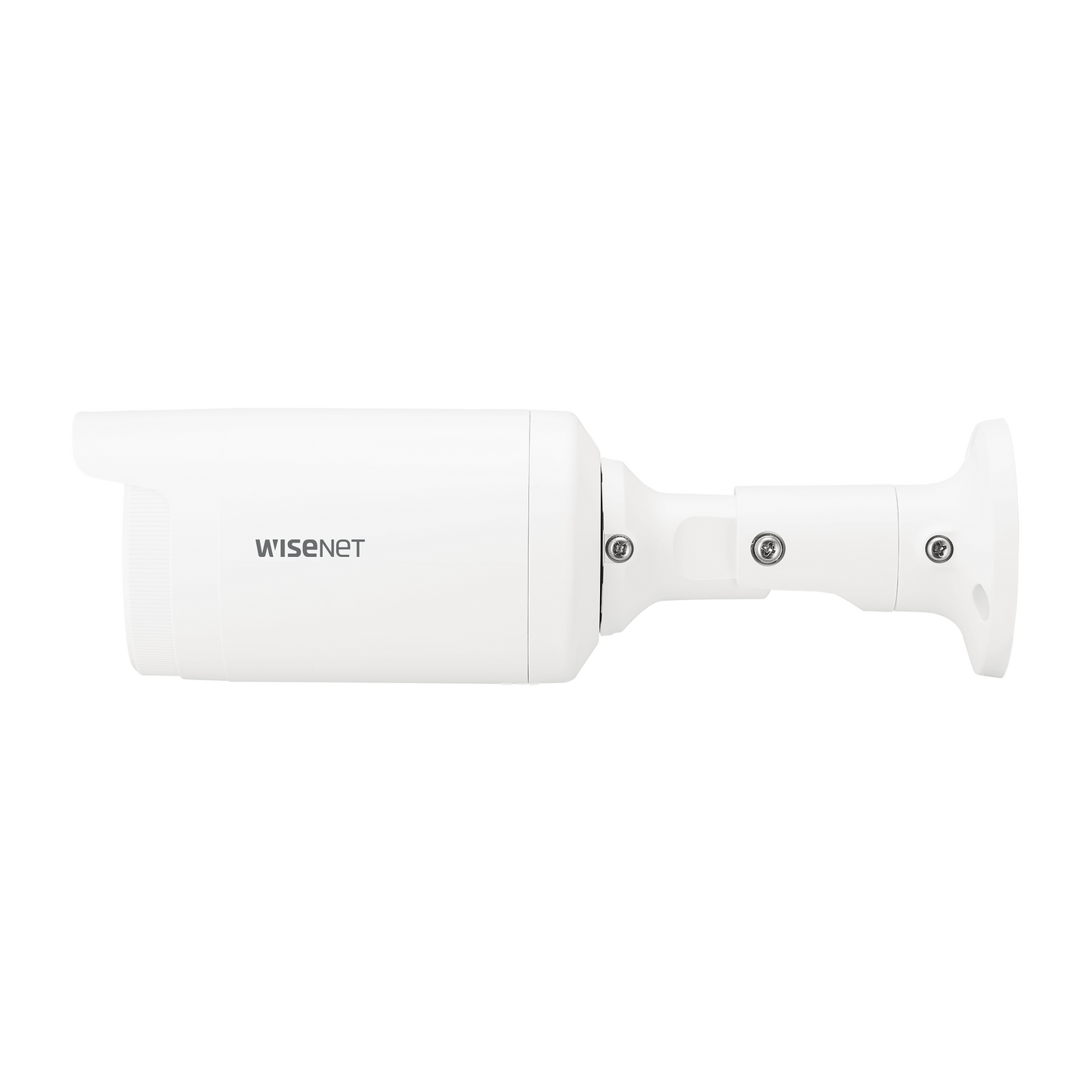

Hanwha Vision HV-ANO-L7022R 4MP H.265 NW IR Bullet Fixed Lens Camera
4MP IR Bullet
The Hanwha Vision ANO-L7022R is a 4MP IR bullet camera designed to deliver high-definition surveillance with exceptional clarity. It features a 2.8mm fixed lens, providing a wide-angle view ideal for monitoring large areas. The camera is equipped with powerful IR LEDs that ensure clear night vision up to 20 meters, making it effective in low-light conditions. With H.265 and H.264 video compression, it efficiently reduces bandwidth and storage requirements without compromising image quality. The ANO-L7022R also supports Wide Dynamic Range (WDR), enhancing visibility in scenes with both bright and dark areas.
Key Features
- 4MP resolution, Up to 30fps(H.265/H.264)
- Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 4mm lens w/ 78.2° HFoV
- IR viewable length: 25m
- Day & Night (ICR), WDR (120dB)
- H.265, H.264, MJPEG, Multiple streaming supported
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Hallway view (90⁰/270⁰), LDC support, WiseStream II
- Micro SD/SDHC/SDXC memory slot (Max. 128GB)
- IP66
Code/SKU: ANO-L7022R
Quick Specs:
- Focal Length (Zoom Ratio): 4mm fixed focal
- Max. Aperture Ratio: F1.6
- Angular Field of View: Horizontal: 78.3°, Vertical: 42.9°, Diagonal: 91.2°
- Min. Object Distance: 1.7m (5.6ft)
- Focus Control: Fixed
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hanwha Vision ANO-L7022R is a 4MP IR bullet camera designed to deliver high-definition surveillance with exceptional clarity. It features a 2.8mm fixed lens, providing a wide-angle view ideal for monitoring large areas. The camera is equipped with powerful IR LEDs that ensure clear night vision up to 20 meters, making it effective in low-light conditions. With H.265 and H.264 video compression, it efficiently reduces bandwidth and storage requirements without compromising image quality. The ANO-L7022R also supports Wide Dynamic Range (WDR), enhancing visibility in scenes with both bright and dark areas. Its IP66-rated housing ensures durability and protection against harsh weather conditions, making it suitable for outdoor installations. The camera also includes motion detection and tampering alarms, providing proactive security measures. Power over Ethernet (PoE) capability simplifies installation by eliminating the need for separate power cables. Additionally, the camera offers multiple streaming options, allowing for flexible integration into various surveillance systems. The ANO-L7022R is a reliable choice for both commercial and residential security applications.
Features
- 4MP resolution, Up to 30fps(H.265/H.264)
- Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 4mm lens w/ 78.2° HFoV
- IR viewable length: 25m
- Day & Night (ICR), WDR (120dB)
- H.265, H.264, MJPEG, Multiple streaming supported
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Hallway view (90⁰/270⁰), LDC support, WiseStream II
- Micro SD/SDHC/SDXC memory slot (Max. 128GB)
- IP66
Technical Specifications:
| Video | |
| Imaging Device | 1/3" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264 : Max. 30fps at 4M all resolutions, MJPEG : Max. 15fps |
| Min. Illumination | Color : 0.13Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 4mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 78.3° / V: 42.9° / D: 91.2° |
| Min. Object Distance | 1.7m (5.6ft) |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input (with NW I/O Box) |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover |
| IR Viewable Length | 25m (82.02ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265 : CBR or VBR, MJPEG : VBR |
| Streaming | Unicast (6 users) / Multicast, Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log, 802.1X Authentication |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| General | |
| Webpage Language | English |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 95% RH |
| Storage Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 95% RH |
| Certification | IP66 |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 7.5W, typical 5.7W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø78.0 x 262.0mm (Ø3.07 x 10.31”), 390g (0.86lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 62.9m (206.33ft) |
| Observe (62.5PPM/ 19PPF) | 25.2m (82.68ft) |
| Recognize (125PPM/ 38PPF) | 12.6m (41.34ft) |
| Identify (250PPM/ 76PPF) | 6.3m (20.67ft) |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
4MP IR Bullet
The Hanwha Vision ANO-L7022R is a 4MP IR bullet camera designed to deliver high-definition surveillance with exceptional clarity. It features a 2.8mm fixed lens, providing a wide-angle view ideal for monitoring large areas. The camera is equipped with powerful IR LEDs that ensure clear night vision up to 20 meters, making it effective in low-light conditions. With H.265 and H.264 video compression, it efficiently reduces bandwidth and storage requirements without compromising image quality. The ANO-L7022R also supports Wide Dynamic Range (WDR), enhancing visibility in scenes with both bright and dark areas.
Key Features
- 4MP resolution, Up to 30fps(H.265/H.264)
- Color : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
- 4mm lens w/ 78.2° HFoV
- IR viewable length: 25m
- Day & Night (ICR), WDR (120dB)
- H.265, H.264, MJPEG, Multiple streaming supported
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Hallway view (90⁰/270⁰), LDC support, WiseStream II
- Micro SD/SDHC/SDXC memory slot (Max. 128GB)
- IP66
Code/SKU: ANO-L7022R
Quick Specs:
- Focal Length (Zoom Ratio): 4mm fixed focal
- Max. Aperture Ratio: F1.6
- Angular Field of View: Horizontal: 78.3°, Vertical: 42.9°, Diagonal: 91.2°
- Min. Object Distance: 1.7m (5.6ft)
- Focus Control: Fixed
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Video | |
| Imaging Device | 1/3" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264 : Max. 30fps at 4M all resolutions, MJPEG : Max. 15fps |
| Min. Illumination | Color : 0.13Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 4mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 78.3° / V: 42.9° / D: 91.2° |
| Min. Object Distance | 1.7m (5.6ft) |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input (with NW I/O Box) |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover |
| IR Viewable Length | 25m (82.02ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265 : CBR or VBR, MJPEG : VBR |
| Streaming | Unicast (6 users) / Multicast, Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log, 802.1X Authentication |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| General | |
| Webpage Language | English |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 95% RH |
| Storage Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 95% RH |
| Certification | IP66 |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 7.5W, typical 5.7W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø78.0 x 262.0mm (Ø3.07 x 10.31”), 390g (0.86lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 62.9m (206.33ft) |
| Observe (62.5PPM/ 19PPF) | 25.2m (82.68ft) |
| Recognize (125PPM/ 38PPF) | 12.6m (41.34ft) |
| Identify (250PPM/ 76PPF) | 6.3m (20.67ft) |
