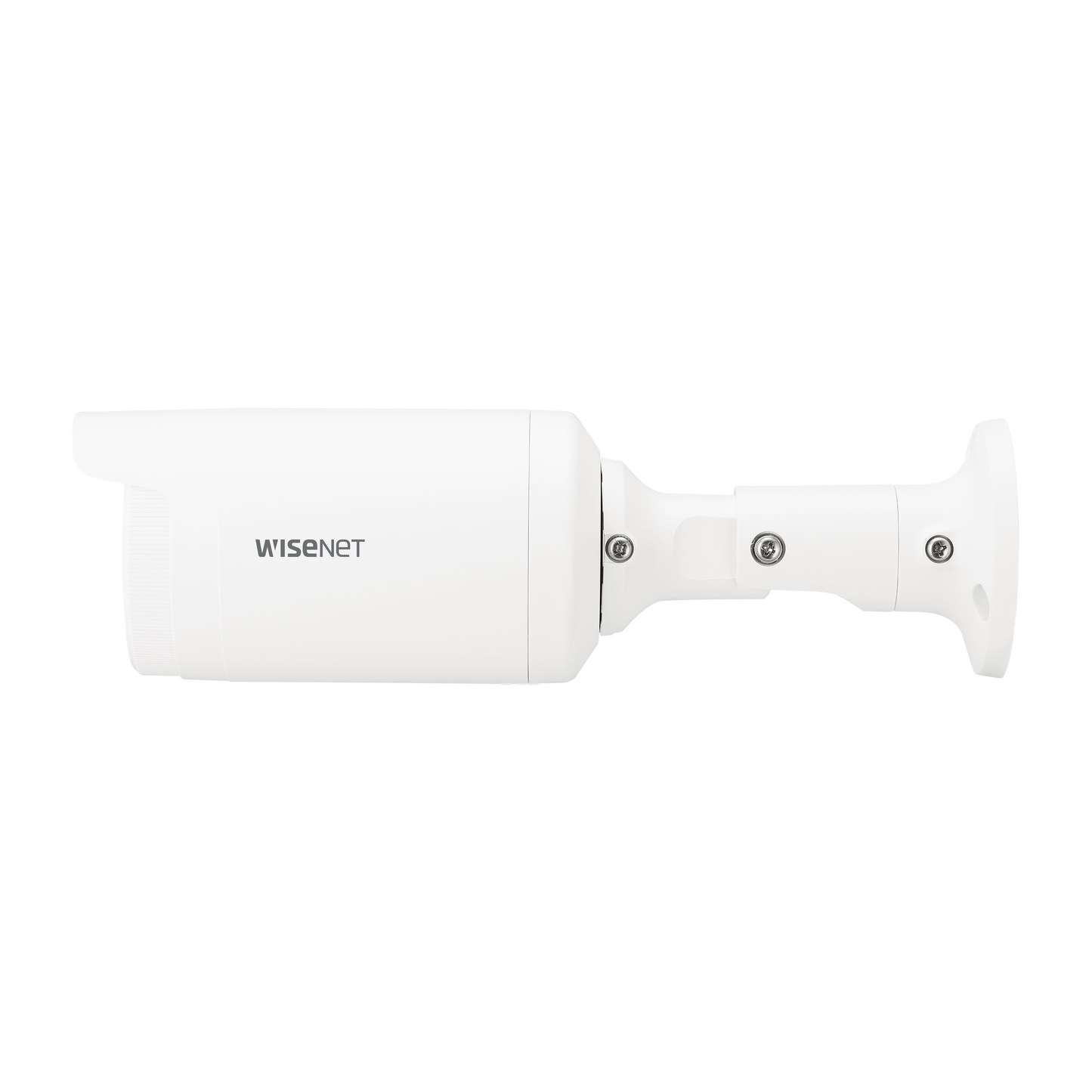

4MP IR Bullet Camera
The Hanwha Vision 4MP IR Bullet Camera (model ANO-L7012R) is designed for high-definition surveillance with its 4-megapixel resolution, providing clear and detailed video footage. Equipped with IR LEDs, it offers excellent night vision capabilities, ensuring reliable performance even in low-light conditions. The camera features a robust bullet design, making it suitable for both indoor and outdoor use. Its advanced image sensor technology enhances clarity and color accuracy, while the motorized varifocal lens allows for flexible focal length adjustments. This camera supports H.265 compression, which optimizes bandwidth and storage efficiency without compromising image quality.
Key Features
Code/SKU: ANO-L7012R
Quick Specs:
| Video | |
| Imaging Device | 1/3" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264: Max. 30fps at 4M all resolutions, MJPEG: Max. 15fps |
| Min. Illumination | Color: 0.13Lux (F1.6, 1/30sec), B/W: 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 3mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 98.3° / V: 54.2° / D: 114.6° |
| Min. Object Distance | 1.1m (3.6ft) |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input (with NW I/O Box) |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover |
| IR Viewable Length | 20m (65.62ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR, MJPEG: VBR |
| Streaming | Unicast (6 users) / Multicast, Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL), Login Authentication Digest, Login Authentication, IP Address Filtering, User access Log, 802.1X Authentication |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| General | |
| Webpage Language | English |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 95% RH |
| Storage Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 95% RH |
| Certification | IP66 |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 7.5W, typical 5.7W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø78.0 x 262.0mm (Ø3.07 x 10.31”), 390g (0.86lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/8PPF) | 44.3m (145.25ft) |
| Observe (63PPM/19PPF) | 17.7m (58.10ft) |
| Recognize (125PPM/38PPF) | 8.9m (29.05ft) |
| Identify (250PPM/76PPF) | 4.4m (14.53ft) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hanwha Vision HV-ANO-L7012R 4MP H.265 NW IR Bullet Fixed Lens Camera
The Hanwha Vision 4MP IR Bullet Camera (model ANO-L7012R) is designed for high-definition surveillance with its 4-megapixel resolution, providing clear and detailed video footage. Equipped with IR LEDs, it offers excellent night vision capabilities, ensuring reliable performance even in low-light conditions. The camera features a robust bullet design, making it suitable for both indoor and outdoor use. Its advanced image sensor technology enhances clarity and color accuracy, while the motorized varifocal lens allows for flexible focal length adjustments. This camera supports H.265 compression, which optimizes bandwidth and storage efficiency without compromising image quality. With its weather-resistant housing, the ANO-L7012R is built to withstand harsh environmental conditions. It also includes intelligent video analytics features, such as motion detection and tampering alerts, for proactive security management. Installation is streamlined with its easy-to-use mounting options and flexible connectivity. The camera integrates seamlessly with various security systems, making it a versatile choice for comprehensive surveillance solutions. Overall, the Hanwha Vision 4MP IR Bullet Camera is a reliable and feature-rich option for enhancing security coverage.
Features
| Video | |
| Imaging Device | 1/3" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264: Max. 30fps at 4M all resolutions, MJPEG: Max. 15fps |
| Min. Illumination | Color: 0.13Lux (F1.6, 1/30sec), B/W: 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 3mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 98.3° / V: 54.2° / D: 114.6° |
| Min. Object Distance | 1.1m (3.6ft) |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input (with NW I/O Box) |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Handover |
| IR Viewable Length | 20m (65.62ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR, MJPEG: VBR |
| Streaming | Unicast (6 users) / Multicast, Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL), Login Authentication Digest, Login Authentication, IP Address Filtering, User access Log, 802.1X Authentication |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| General | |
| Webpage Language | English |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 95% RH |
| Storage Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 95% RH |
| Certification | IP66 |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | Max 7.5W, typical 5.7W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø78.0 x 262.0mm (Ø3.07 x 10.31”), 390g (0.86lb) |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/8PPF) | 44.3m (145.25ft) |
| Observe (63PPM/19PPF) | 17.7m (58.10ft) |
| Recognize (125PPM/38PPF) | 8.9m (29.05ft) |
| Identify (250PPM/76PPF) | 4.4m (14.53ft) |
