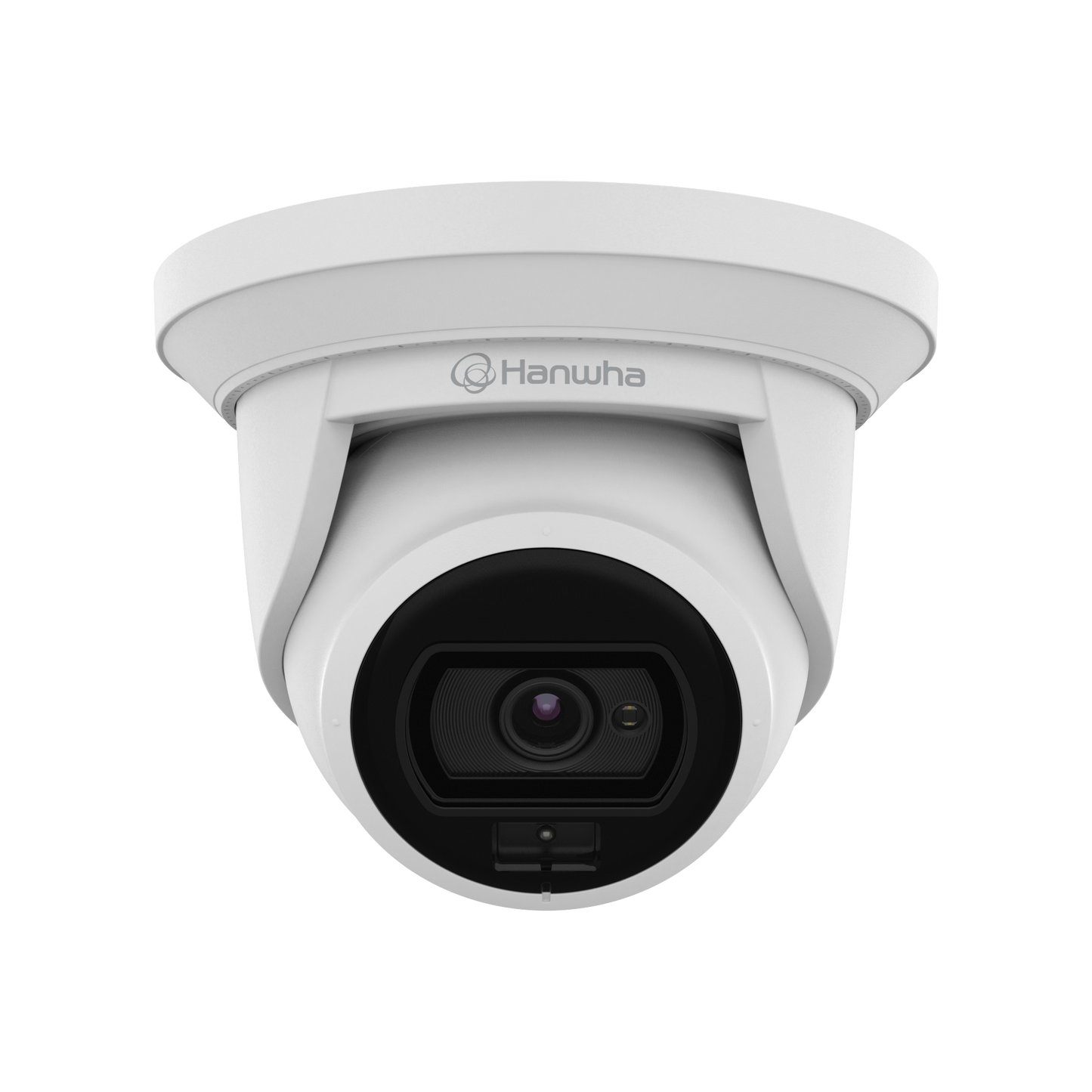

4MP Super-Compact White light Flateye Camera
The Hanwha Vision 4MP Super-Compact White Light Flateye Camera, model ANE-L7012L, is designed for discreet and efficient surveillance in various environments. This compact camera offers 4-megapixel resolution, ensuring clear and detailed image capture. It features white light illumination, which enhances visibility in low-light conditions, making it ideal for round-the-clock monitoring. The Flateye design minimizes light reflection, ensuring optimal image quality even in challenging lighting situations. With its compact form factor, the camera can be easily installed in tight spaces, making it versatile for different surveillance needs.
Key Features
Code/SKU: ANE-L7012L
Quick Specs:
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps (60Hz/50Hz), MJPEG: Max. 15fps (@4MP Max. 2fps) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.05Lux (F1.2, 1/30sec) |
| Video Out | None |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | 3.0mm fixed focal |
| Max. Aperture Ratio | F1.2 |
| Angular Field of View | H: 97° / V: 53° / D: 113° |
| Min. Object Distance | 1.1m (3.6ft) |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~75° / 0°~360° |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | None |
| Day & Night | Auto (Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4 ea, polygonal zones |
| Privacy Masking | 6 ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti-flicker (1/5~1/12,000 sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Motion detection, Tampering, Defocus detection, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Business Intelligence | None |
| Serial Interface | None |
| Alarm I/O | None |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload (image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Handover (PTZ preset), Light alarm |
| Audio | |
| Audio Streaming | None |
| Audio In | None |
| Audio Out | None |
| Light | |
| Light Type | Warm color (3000K) |
| Light Viewable Length | 20m (65.61ft) |
| IR Viewable Length | None |
| IR Illuminator (Optional) | None |
| IR Radiation angle | None |
| IR LED | None |
| IR Wavelength | None |
| IR Operation | None |
| Water Removal | None |
| Auto Tracking | None |
| Focus Change Alarm | None |
| Lens Distortion Correction | None |
| Defective Pixel Correction | None |
| Environmental | |
| Operating Temperature | -30°C~+60°C (-22°F~+140°F) |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Lightning Protection | None |
| Approvals | KC, UL, CE, FCC |
| Materials | Aluminum |
| Electrical | |
| Power Supply | DC 12V (±10%), PoE (IEEE802.3af Class3) |
| Power Consumption | Max. 9.6W |
| Lens Capability | |
| Detection (25PPM/8PPF) | Wide: 70.7m / 231.9ft, Tele: 106.2m / 348.5ft |
| Classification (62PPM/19PPF) | Wide: 44.2m / 145.0ft, Tele: 66.3m / 217.5ft |
| Observe (63PPM/19PPF) | Wide: 17.5m / 57.4ft, Tele: 26.2m / 86.1ft |
| Recognize (125PPM/38PPF) | Wide: 8.8m / 28.9ft, Tele: 13.2m / 43.4ft |
| Identify (250PPM/76PPF) | Wide: 4.4m / 14.5ft, Tele: 6.6m / 21.7ft |
| Accessories | |
| Others | SBP-300HM8, SBP-300HMW |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hanwha Vision HV-ANE-L7012L Super-Compact 4MP H.265 NW IR Flateye Camera
The Hanwha Vision 4MP Super-Compact White Light Flateye Camera, model ANE-L7012L, is designed for discreet and efficient surveillance in various environments. This compact camera offers 4-megapixel resolution, ensuring clear and detailed image capture. It features white light illumination, which enhances visibility in low-light conditions, making it ideal for round-the-clock monitoring. The Flateye design minimizes light reflection, ensuring optimal image quality even in challenging lighting situations. With its compact form factor, the camera can be easily installed in tight spaces, making it versatile for different surveillance needs. The camera is equipped with advanced image processing technology, including wide dynamic range (WDR) to handle scenes with varying light levels. It supports multiple video streams, allowing for efficient bandwidth management. The ANE-L7012L also offers flexible installation options, including wall or ceiling mounting. Its durable construction ensures reliable performance in various environmental conditions. The camera supports remote access, enabling users to monitor their premises from anywhere. Additionally, it integrates seamlessly with Hanwha's comprehensive security solutions for enhanced system functionality. This makes the ANE-L7012L a powerful and adaptable option for modern surveillance applications.
Features
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps (60Hz/50Hz), MJPEG: Max. 15fps (@4MP Max. 2fps) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color: 0.05Lux (F1.2, 1/30sec) |
| Video Out | None |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | 3.0mm fixed focal |
| Max. Aperture Ratio | F1.2 |
| Angular Field of View | H: 97° / V: 53° / D: 113° |
| Min. Object Distance | 1.1m (3.6ft) |
| Focus Control | Fixed |
