The Hanwha Vision 4 MP + 8 Channels Kit offers a robust surveillance solution, equipped with four advanced Flateye Cameras. Each camera delivers impressive 4 MP resolution, guaranteeing crystal-clear video capture even in challenging low-light environments. Complementing the cameras is an Network Video Recorder (NVR) with 8 channels, which provides efficient and intelligent monitoring capabilities. This comprehensive kit ensures high-quality surveillance and seamless integration for enhanced security management.
Hanwha Vision Camera Kit includes:
4 x 4MP Super-Compact IR Flateye Camera
The HV-ANE-L7012R is IP66-rated, making it weather-resistant and suitable for both indoor and outdoor use. With its advanced WDR (Wide Dynamic Range) technology, the camera effectively handles challenging lighting conditions, ensuring balanced exposure in scenes with high contrast. The camera supports PoE (Power over Ethernet), simplifying installation by allowing both power and data to be transmitted over a single cable. It features motion detection and tampering alarms, enhancing security by alerting users to potential threats.
Key Features
Code/SKU: HV-ANE-L7012R
Quick Specs:
1 x Hanwha Vision 8CH 8MP H.265 NVR with PoE Switch
The HV-ARN-810S is compatible with a wide range of Hanwha Vision cameras, ensuring seamless integration and optimal performance. It offers extensive recording capabilities with various recording modes, including continuous, scheduled, and event-based recording. The NVR supports up to 16TB of storage, providing ample space for storing high-resolution footage. With advanced motion detection and video analytics, it enhances the efficiency of monitoring by triggering alerts and recording only when necessary.
Key Features
Code/SKU: HV-ARN-810S
Quick Specs:
4MP Super-Compact IR Flateye Camera
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz), MJPEG: Max. 15fps(@4MP Max. 2fps) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color : 0.13Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On) |
| Video Out | None |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | 3mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 99° / V: 55° / D: 115° |
| Min. Object Distance | 1.1m(3.6ft) |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~75° / 0°~360° |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | None |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering, Defocus detection, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Business Intelligence | None |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Audio Compression | None |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Video Quality Adjustment | H.265/H.264: Target bitrate level control MJPEG: Quality level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| Security |
|
| Security Certificate | None |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F ~ +131°F) / 0~95% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH |
| Certification | IP67, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Max 7.5W, typical 5.7W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø125.0x87.4mm(ø4.92x3.44"), 630g |
| Compatible Conduit hole / Gangbox | None / Single, Double, 4" Octagon |
| Hanging Mount (Dome) | None |
| Skin Cover | None |
| Skin Cover (Dome) | None |
| Weather Cap (Dome) | None |
| Power Module | None |
| Backbox | None |
| Certifications & Standards | |
| Network | None |
| EMC | None |
| Safety | None |
| Environment | None |
| Video | None |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 44.3m(145.25ft) |
| Observe (63PPM/ 19PPF) | 17.7m(58.10ft) |
| Recognize (125PPM/ 38PPF) | 8.9m(29.05ft) |
| Identify (250PPM/ 76PPF) | 4.4m(14.53ft) |
Hanwha Vision 8CH 8MP H.265 NVR with PoE Switch
| Display | |
|---|---|
| Network camera | Max. Inputs: 8CH Resolution: 8MP ~ CIF Protocols: SUNAPI, ONVIF |
| Decoding | |
| Local Display | HDMI |
| Multi Screen Display | [Local Monitor] 1/2V/2H/3V/4/6/8/9/Sequence [Web] 1/2V/2H/3V/4/6/8/9 |
| Resolution | [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps) |
| Operating System | |
| Embedded | Linux |
| Record | |
| Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 60Mbps |
| Resolution | 8MP ~ CIF |
| Mode | Normal, Dual Stream, Schedule, Event, Bookmark |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out |
| Search & Play | |
| Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous Playback | Max. 16CH (Local 4CH, Remote 4CH per user) |
| Playback Control | Fast/Slow Forward/Backward, Move one step Up/Down |
| Storage | |
| Supported HDD | Up to 6TB |
| HDD Slot | SATA 1ea (Max. 6TB) |
| Backup | |
| File Backup | BU/Exe (GUI), JPG/AVI (Network) |
| Function | Multi-channel (Up to 4CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF, SUNAPI |
| Transmission Bandwidth | Max. 60Mbps |
| Audio | |
| Input/Output | 8 CH (network) |
| Compression | G.711, G.726, AAC (16/48KHz) |
| Audio Communication | 2-Way |
| Max Remote Users | |
| Search (3), Live Unicast (10), Multicast (20) | |
| Security | |
| IP address filtering, User access Log, 802.1x, Encryption Device certificate (Hanwha Techwin Root CA), Signed firmware | |
| Web Viewer | |
| Supported OS | Windows 10, macOS 10.13 |
| Supported Browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | |
| WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet mobile, Support CGI (SUNAPI) for integration to 3rd party VMS | |
| Functions | |
| Camera Setup | Register (Auto, Manual) Item: IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup |
| PTZ | Control: Via GUI, Webviewer Preset: 300 Presets |
| Smartphone | Support Model: iOS, Android Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI) Control: Live 4CH (Multi-Profile Support), Playback 4CH |
| Redundancy | |
| Failover: N+1 ARB: Support | |
| Easy Configuration | |
| P2P (QR code) | |
| Interface | |
| Front | Indicator: Power, Record, Network |
| HDMI | 1EA 3840x2160 30Hz |
| Ethernet | PoE RJ-45 (LAN, 10/100) 8ea, RJ-45 1ea (WAN, 1Gbps) |
| USB | 2EA (Front 1 x USB 2.0, Rear 1 x USB 2.0) |
| Power inlet | DC Adaptor |
| System | |
| Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Web |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C (32℉ to 104℉) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 54VDC / 1.67A |
| Power Consumption | Max 84W (1HDD, PoE On) |
| PoE Budget | 65W |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimensions | W300.0 x H47 x D208.7mm (1U) |
| Weight | 1.05Kg |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

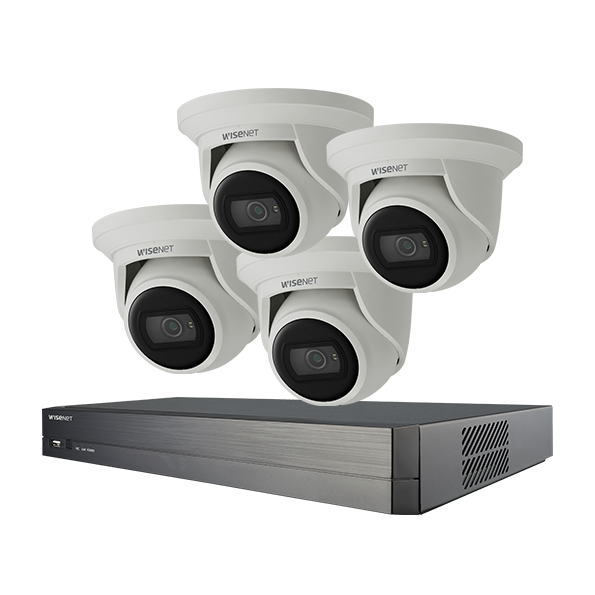

Hanwha Vision CT-ANE-KIT-8CH4CAM A Series Kit (4 x ANE-L7012R + 1 x ARN-810S w/ 4TB HDD)
