The Hanwha Vision 4 MP + 4 Channels Kit offers a robust surveillance solution, equipped with four advanced Flateye Cameras. Each camera delivers impressive 4 MP resolution, guaranteeing crystal-clear video capture even in challenging low-light environments. Complementing the cameras is an Network Video Recorder (NVR) with 4 channels, which provides efficient and intelligent monitoring capabilities. This comprehensive kit ensures high-quality surveillance and seamless integration for enhanced security management.
Hanwha Vision Camera Kit includes:
4 x 4MP Super-Compact IR Flateye Camera
The HV-ANE-L7012R is IP66-rated, making it weather-resistant and suitable for both indoor and outdoor use. With its advanced WDR (Wide Dynamic Range) technology, the camera effectively handles challenging lighting conditions, ensuring balanced exposure in scenes with high contrast. The camera supports PoE (Power over Ethernet), simplifying installation by allowing both power and data to be transmitted over a single cable. It features motion detection and tampering alarms, enhancing security by alerting users to potential threats.
Key Features
Code/SKU: HV-ANE-L7012R
Quick Specs:
1 x Hanwha Vision 4CH 8MP H.265 NVR with PoE Switch
The HV-ARN-410S offers real-time recording at 30fps per channel at 8MP resolution, ensuring smooth and clear footage. It is equipped with a user-friendly interface, allowing for easy management and playback of recorded video. The device supports up to 6TB of internal storage, providing ample space for long-term video retention. It is compatible with Hanwha’s Wisenet mobile app, enabling remote access and monitoring from anywhere.
Key Features
Code/SKU: HV-ARN-410S
Quick Specs:
4MP Super-Compact IR Flateye Camera
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz), MJPEG: Max. 15fps(@4MP Max. 2fps) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color : 0.13Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On) |
| Video Out | None |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | 3mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 99° / V: 55° / D: 115° |
| Min. Object Distance | 1.1m(3.6ft) |
| Focus Control | Fixed |
| Lens Type | None |
| Mount Type | None |
| Optional Lens | None |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~75° / 0°~360° |
| Pan Range | None |
| Pan Speed | None |
| Tilt Range | None |
| Tilt Speed | None |
| Rotate Range | None |
| Sequence | None |
| Preset Accuracy | None |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Direction Indicator | None |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Digital Image Stabilization | None |
| Defog | None |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Digital PTZ | None |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Motion detection, Tampering, Defocus detection, Virtual area (Intrusion/Enter/Exit), Virtual line (Crossing/Direction) |
| Business Intelligence | None |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Audio Compression | None |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Video Quality Adjustment | H.265/H.264: Target bitrate level control MJPEG: Quality level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| Security |
|
| Security Certificate | None |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | None |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+55°C(-22°F ~ +131°F) / 0~95% RH * Start up should be done at above -20°C(-4°F) |
| Storage Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH |
| Certification | IP67, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Max 7.5W, typical 5.7W |
| Mechanical | |
| Color / Material | White / Plastic, Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø125.0x87.4mm(ø4.92x3.44"), 630g |
| Compatible Conduit hole / Gangbox | None / Single, Double, 4" Octagon |
| Hanging Mount (Dome) | None |
| Skin Cover | None |
| Skin Cover (Dome) | None |
| Weather Cap (Dome) | None |
| Power Module | None |
| Backbox | None |
| Certifications & Standards | |
| Network | None |
| EMC | None |
| Safety | None |
| Environment | None |
| Video | None |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 44.3m(145.25ft) |
| Observe (63PPM/ 19PPF) | 17.7m(58.10ft) |
| Recognize (125PPM/ 38PPF) | 8.9m(29.05ft) |
| Identify (250PPM/ 76PPF) | 4.4m(14.53ft) |
Hanwha Vision 4CH 8MP H.265 NVR with PoE Switch
| Category | Subcategory | Details |
|---|---|---|
| Display | Network Camera | Max. 4CH |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Local Display | HDMI | |
| Decoding | Multi Screen Display | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4 |
| Resolution | [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps) | |
| Playback Bandwidth | Max. 32Mbps | |
| Performance | Operating System | Linux |
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 40Mbps | |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event | |
| Record | Resolution | 8MP ~ CIF |
| Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | Date & Time (Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 1ea (Max. 6TB) | |
| Backup Function | Multi channel (Up to 4CH) Play, Date-Time/Title display | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) | |
| DDNS | Hanwha DDNS | |
| Network | Transmission Bandwidth | Max. 40Mbps |
| Audio Input/Output | 4 CH (network) | |
| Compression | G.711, G.726, AAC (16/48KHz) | |
| Audio Communication | 2-Way | |
| Security | IP address filtering | User access Log, 802.1x, Encryption Device certificate (Hanwha Techwin Root CA), Signed firmware |
| Web Viewer | Windows 10, macOS 10.13 | |
| Supported Browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Wisenet Viewer, Wisenet Mobile | |
| Functions | Camera Setup | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon), Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ Control | Via GUI, Webviewer | |
| PTZ Preset | 300 Presets | |
| Smart Phone Support | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy Configuration | P2P (QR code) | |
| Interface | Front Indicator | Power, Record, Network |
| Reset | Support | |
| HDMI | 1EA 3840x2160 30Hz | |
| Ethernet | PoE RJ-45 (LAN, 10/100) 4 ea, RJ-45 1ea (WAN, 10/100) | |
| USB | 2EA (Front 1 x USB 2.0, Rear 1 x USB 2.0) | |
| Power | Power Inlet | DC Adaptor |
| Power Input | 54VDC / 1.20A | |
| Power Consumption | Max 52W (1HDD, PoE On) | |
| Mechanical | PoE Budget | 35W |
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | W300.0 x H47 x D208.7mm (1U) | |
| Weight | 1.03Kg |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

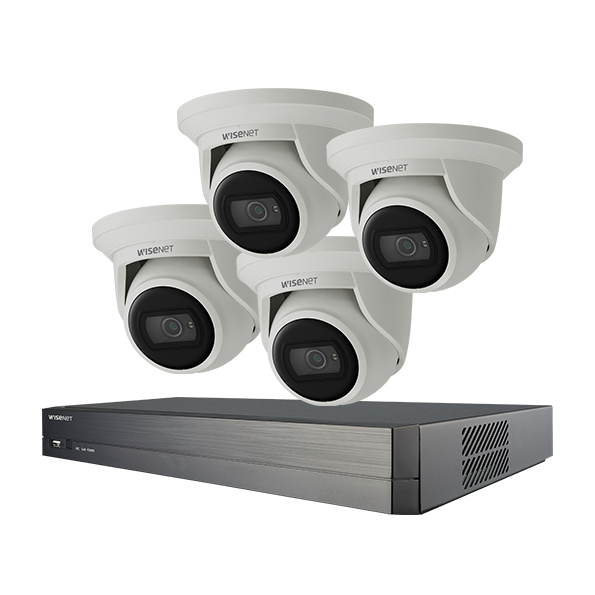

Hanwha Vision CT-ANE-KIT-4CH4CAM A Series Kit (4 x ANE-L7012R + 1 x ARN-410S w/ 2TB HDD)
The Hanwha Vision ANE-L7012R is a 4MP Super-Compact IR Flateye Camera designed for discreet surveillance applications. This camera features a compact form factor, making it ideal for installations where space is limited or a low-profile appearance is desired. Equipped with a 4MP sensor, it delivers high-resolution images, ensuring clear and detailed video capture. The camera includes built-in IR LEDs, providing excellent night vision capabilities up to a certain distance, enabling round-the-clock monitoring. The Flateye design helps to reduce IR reflection and glare, ensuring optimal image quality in low-light conditions. It supports multiple video formats, offering flexibility for integration with various systems. The ANE-L7012R is IP66-rated, making it weather-resistant and suitable for both indoor and outdoor use. With its advanced WDR (Wide Dynamic Range) technology, the camera effectively handles challenging lighting conditions, ensuring balanced exposure in scenes with high contrast.
The camera supports PoE (Power over Ethernet), simplifying installation by allowing both power and data to be transmitted over a single cable. It features motion detection and tampering alarms, enhancing security by alerting users to potential threats. The compact design does not compromise on performance, as the camera also offers various video analytics features for smarter surveillance. It has a fixed lens that provides a wide field of view, suitable for monitoring large areas. The camera's durable construction ensures reliable performance in harsh environments. It is also NDAA-compliant, making it suitable for use in government-regulated projects. Overall, the ANE-L7012R is a versatile and efficient camera for various surveillance needs.
Features
Specifications
| Video | |
|---|---|
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz), MJPEG: Max. 15fps(@4MP Max. 2fps) |
| NETD | None |
| Pixel Size | None |
| Min. Illumination | Color : 0.13Lux (F1.6, 1/30sec) B/W : 0Lux (IR LED On) |
| Video Out | None |
| Video Transmission Distance | None |
| Lens | |
| Focal Length (Zoom Ratio) | 3mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 99° / V: 55° / D: 115° |
| Min. Object Distance | 1.1m(3.6ft) |
| Focus Control | Fixed |
The Hanwha Vision ARN-410S is a 4-channel 8MP H.265 network video recorder (NVR) designed for high-definition surveillance systems. It features integrated Power over Ethernet (PoE) switches, simplifying the installation process by eliminating the need for separate power supplies for connected IP cameras. Supporting H.265 compression, the ARN-410S ensures efficient bandwidth usage and storage optimization while maintaining high video quality.
The NVR offers real-time recording at 30fps per channel at 8MP resolution, ensuring smooth and clear footage. It is equipped with a user-friendly interface, allowing for easy management and playback of recorded video. The device supports up to 6TB of internal storage, providing ample space for long-term video retention. It is compatible with Hanwha’s Wisenet mobile app, enabling remote access and monitoring from anywhere. The NVR also supports multiple network protocols and integrations, making it a versatile choice for various security applications. Its robust design and reliable performance make the ARN-410S ideal for small to medium-sized businesses looking for a scalable and efficient video surveillance solution.
Features
| Display | |
|---|---|
| Network Camera | Max. 4CH |
| Resolution | 8MP ~ CIF |
| Protocols | SUNAPI, ONVIF |
| Local Display | HDMI |
| Decoding | |
| Multi Screen Display | [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ Sequence [Web] 1/ 2V/ 2H/ 3V/ 4 |
| Resolution | [Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps) |
| Performance | |
| Playback Bandwidth | Max. 32Mbps |
| Operating System | Linux |
| Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 40Mbps |
| Event Trigger | |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event |
Elevate your security with the Hanwha Vision Camera System Kit. Enjoy unparalleled image clarity, cutting-edge analytics, and dependable performance. This advanced system is designed to provide comprehensive coverage and enhanced security for any environment.
