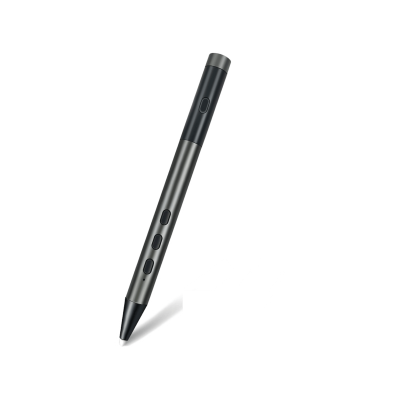

Dahua Whiteboard Smart Pen DHI-PKP-IP0A
Smart Interactive Whiteboard Pencil
The Dahua Smart Interactive Whiteboard Pencil (DHI-PKP-IP0A) is designed for seamless interaction with Dahua’s interactive whiteboards, offering precise and responsive writing capabilities. This pencil features advanced pressure sensitivity, ensuring smooth and accurate input, whether for detailed annotations or quick notes.
Key Features
- Intelligent writing.
- 2.4 GHz wireless technology, with a remote control distance of 15 m in open space.
- Charging notification with red indicator.
- Saves on energy by automatically switching to power saving mode when the device is not in use.
Code/SKU: DHI-PKP-IP0A
Quick Specs:
- Over-the-air Transmission Rate: 1 Mbps
- Operating Temperature: –30 °C to +55 °C (–4 °F to +140 °F)
- Communication Distance: Effective distance: 15 m
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Dahua Smart Interactive Whiteboard Pencil (DHI-PKP-IP0A) is designed for seamless interaction with Dahua’s interactive whiteboards, offering precise and responsive writing capabilities. This pencil features advanced pressure sensitivity, ensuring smooth and accurate input, whether for detailed annotations or quick notes. With its ergonomic design, the pencil provides a comfortable grip for extended use, making it ideal for both educational and professional environments. The pencil supports multi-touch functionality, allowing for simultaneous use with other interactive tools. It also offers a long battery life, ensuring uninterrupted usage during meetings or classes. The pencil’s lightweight design makes it easy to carry and store, while its durable construction ensures longevity.
Compatible with various interactive whiteboard models, this pencil enhances the overall user experience by providing a natural writing feel. The pencil is easy to pair with the whiteboard via wireless connectivity, ensuring a hassle-free setup. Additionally, it is equipped with customizable buttons for quick access to frequently used functions, making it a versatile tool for any interactive display.
Features
- Intelligent writing.
- 2.4 GHz wireless technology, with a remote control distance of 15 m in open space.
- Charging notification with red indicator.
- Saves on energy by automatically switching to power saving mode when the device is not in use.
Technical Specifications:
| Touch Pencil | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pencil Tip | Infrared and capacitive compatible, 2.8 mm nano tip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Data Transmission Mode | 2.4 GHz RF wireless technology | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | Micro USB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power supply | Built-in 150 mAh lithium battery | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Current | About 10 mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency Range | 2402 –2480 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Over-the-air Transmission Rate | 1 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –30 °C to +55 °C (–4 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Distance | Effective distance: 15 m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Receiver | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Receiver Sensitivity | 5–40 dBm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Supported Operating Systems | XP, Windows 7, Windows 8, Windows 10 and Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compatible Port | USB 1.1,USB 2.0 and USB 3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Voltage | USB power supply (4.5–5.5 V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Smart Interactive Whiteboard Pencil
The Dahua Smart Interactive Whiteboard Pencil (DHI-PKP-IP0A) is designed for seamless interaction with Dahua’s interactive whiteboards, offering precise and responsive writing capabilities. This pencil features advanced pressure sensitivity, ensuring smooth and accurate input, whether for detailed annotations or quick notes.
Key Features
- Intelligent writing.
- 2.4 GHz wireless technology, with a remote control distance of 15 m in open space.
- Charging notification with red indicator.
- Saves on energy by automatically switching to power saving mode when the device is not in use.
Code/SKU: DHI-PKP-IP0A
Quick Specs:
- Over-the-air Transmission Rate: 1 Mbps
- Operating Temperature: –30 °C to +55 °C (–4 °F to +140 °F)
- Communication Distance: Effective distance: 15 m
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Touch Pencil | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Pencil Tip | Infrared and capacitive compatible, 2.8 mm nano tip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Data Transmission Mode | 2.4 GHz RF wireless technology | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Port | Micro USB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power supply | Built-in 150 mAh lithium battery | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Current | About 10 mA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency Range | 2402 –2480 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Over-the-air Transmission Rate | 1 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –30 °C to +55 °C (–4 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Distance | Effective distance: 15 m | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Receiver | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Receiver Sensitivity | 5–40 dBm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Supported Operating Systems | XP, Windows 7, Windows 8, Windows 10 and Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Compatible Port | USB 1.1,USB 2.0 and USB 3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Voltage | USB power supply (4.5–5.5 V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
