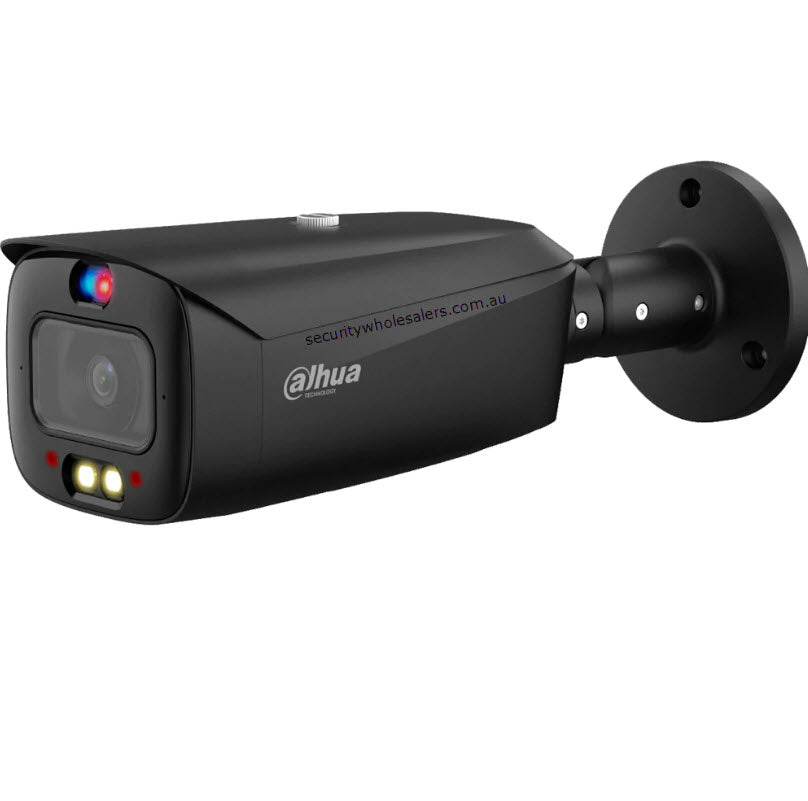

Dahua TIOC DH-IPC-HFW3849T1-AS-PV-ANZ-S2-BLK 8MP AI Active Deterrence IP Bullet Fixed 2.8mm BLACK

Model: DH-IPC-HFW3849T1-AS-PV-ANZ-S2-BLK

Who This Is For

For property owners and installers who need a camera that does more than record, the Dahua TiOC DH-IPC-HFW3849T1-AS-PV-ANZ-S2-BLK delivers 8MP full-colour imaging alongside active deterrence built directly into the housing. This is a bullet-format TiOC 2.0 camera engineered for outdoor positions where early intervention matters - driveways, side gates, car parks, loading areas, and perimeter fences where a visible camera alone is no longer enough. The fixed 2.8mm lens gives a wide field of view suited to shorter-range coverage of entries and outdoor zones. When the AI engine detects a human or vehicle, it can trigger the onboard red and blue strobe lights and audible siren before an incident escalates. The black housing blends cleanly into modern residential and commercial facades. It is the ANZ-specific variant, built for the Australian and New Zealand market, and suits installers who want a single device that covers detection, colour imaging, and active response without separate deterrence hardware.

What This Camera Actually Does

Who Buys This Model

• Residential installers: Fitting this to driveways, side-access gates, and rear yards where clients have experienced or fear trespass, and want a camera that actively responds rather than passively records.
• Small business owners: Covering car parks, outdoor storage areas, and after-hours entry points where a deterrence trigger on human or vehicle detection adds a layer of protection beyond standard CCTV.
• Construction site managers: Deploying cameras at site perimeters and equipment compounds where after-hours theft is a known risk and visible active deterrence is preferred over silent recording.
• Property managers: Specifying cameras for common areas in apartment complexes and mixed-use buildings where full-colour night identification and two-way audio communication both carry practical value.
• Security integrators: Building WizSense-compatible systems on Dahua NVRs and DSS platforms where SMD 4.0 AI filtering at the camera edge reduces server load and improves alarm accuracy across the wider installation.

Honest Assessment

The DH-IPC-HFW3849T1-AS-PV-ANZ-S2-BLK does three things in one housing that previously required separate devices: 8MP full-colour imaging, AI-driven human and vehicle detection, and on-site active deterrence via strobe and siren. The fixed 2.8mm lens is the right choice for wide entry coverage at short to medium range - car parks, driveways, and building entries. The black finish suits modern facades where a white camera would stand out. Two-way audio adds genuine communication utility. Where this camera is less suited: if your installation requires long-range identification at distances beyond 30-40 metres, a longer focal length or a varifocal bullet would be more appropriate. The wide 2.8mm lens trades off telephoto reach for scene width, so it is not the right tool for narrow approaches or number plate capture at distance. For buyers comparing TiOC options, this model is available through Security Australia and sits in the mid-tier of the WizSense active deterrence lineup.

Before You Buy

Quick Fit Check

• Good match if: You are covering a driveway, car park entry, or building perimeter where wide-angle 8MP full-colour coverage and automatic AI-triggered strobe and siren deterrence are the primary requirements.
• Good match if: You are building on a Dahua WizSense NVR and want SMD 4.0 AI filtering at the camera edge to reduce false notifications across the system without additional analytics licensing.
• You may need a different model if: Your application requires long-range identification or number plate capture at distances beyond 20-25 metres - a varifocal bullet or motorised zoom camera from the same range would be better suited to that task.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need full-colour night vision, AI-triggered active deterrence (strobe and siren), and two-way audio in a single outdoor bullet housing - particularly where a wide 2.8mm view of a driveway, entry, or car park is the primary coverage goal.
• You may need a different model if: Your site requires long-range identification or number plate capture at distances beyond 20-25 metres - a varifocal or motorised zoom bullet camera in the same TiOC or WizSense range would give you the focal flexibility to reach those targets.
• Pairs well with: A Dahua WizSense NVR with SMD event support, which allows AI filtering and deterrence actions to be managed centrally across multiple cameras without per-channel analytics licensing.

Common Questions

1. Does the strobe and siren trigger automatically, or does someone have to activate it manually?

   It can trigger automatically. The camera's AI engine classifies detected motion as human or vehicle, and when configured correctly, that classification event is linked to the onboard strobe and siren output. This means no operator or monitoring centre is required for the deterrence to fire. However, the linkage between the SMD detection event and the deterrence action must be set up in the camera's event configuration or through the connected NVR - it is not active by default from the factory.

2. Will this camera work with a non-Dahua NVR?

   Yes, with limitations. The camera supports standard ONVIF and RTSP protocols, so basic live view and recording will work with most IP-compatible NVRs. However, SMD 4.0 AI filtering, the smart event triggers, and integrated deterrence management are proprietary Dahua WizSense functions. To get the full benefit of the AI classification and automated strobe/siren response, a Dahua WizSense-compatible NVR is strongly recommended.

3. Does this camera produce colour footage at night or does it switch to black and white like a standard IR camera?

   It produces full-colour footage at night. TiOC 2.0 uses warm supplemental white light rather than infrared, so the sensor never switches to greyscale. This means clothing colours, hair colour, vehicle colour, and licence plate backgrounds are all captured in full colour regardless of ambient light levels. The trade-off is that the warm illumination is visible to anyone in the scene - it is not covert night vision.

4. What is the difference between this S2 variant and the previous generation?

   The S2 suffix indicates this is the second-generation revision of the HFW3849T1 TiOC series. The S2 generation introduces SMD 4.0, which is Dahua's updated Smart Motion Detection engine with improved human and vehicle classification accuracy and reduced false positive rates compared to SMD 3.0 used in earlier S1 models. The ANZ suffix additionally confirms this unit is configured and certified for the Australian and New Zealand market specifically.

5. How does TiOC reduce false alarm rates compared to standard motion detection?

   Standard pixel-based motion detection fires on any change in the scene - wind-blown foliage, insects passing the lens, headlights sweeping across a wall, or rain. SMD 4.0 on this TiOC camera applies an AI classification layer that confirms whether the triggering object is a human or a vehicle before raising an alert or activating the deterrence output. In practice, this means the strobe and siren respond to genuine intrusion targets rather than environmental noise. For monitoring applications, it also means push notifications reach operators only when something actionable has been detected, which stocked by Security Australia makes the system far more manageable at scale across multi-camera installations.

6. Does the 2.8mm lens work for number plate capture?

   Not reliably at typical driveway distances. The 2.8mm focal length is a wide-angle lens designed to cover broad scenes rather than magnify distant detail. For a vehicle approaching at 5-8 metres it may capture enough plate detail, but at 10 metres or beyond the pixel density on the plate drops significantly. If number plate identification is a primary requirement, a longer focal length - 6mm or more - or a dedicated ANPR camera would produce far more consistent results.

7. What PoE standard does this camera require?

   The camera operates on standard IEEE 802.3af PoE. This is the widely supported 15.4W standard delivered by most PoE switches and NVR PoE ports, so no PoE+ switch is required. A single Cat5e or Cat6 cable from the camera back to the switch or NVR PoE port carries both power and data, which simplifies the install considerably at locations where running a separate power cable would be difficult.
