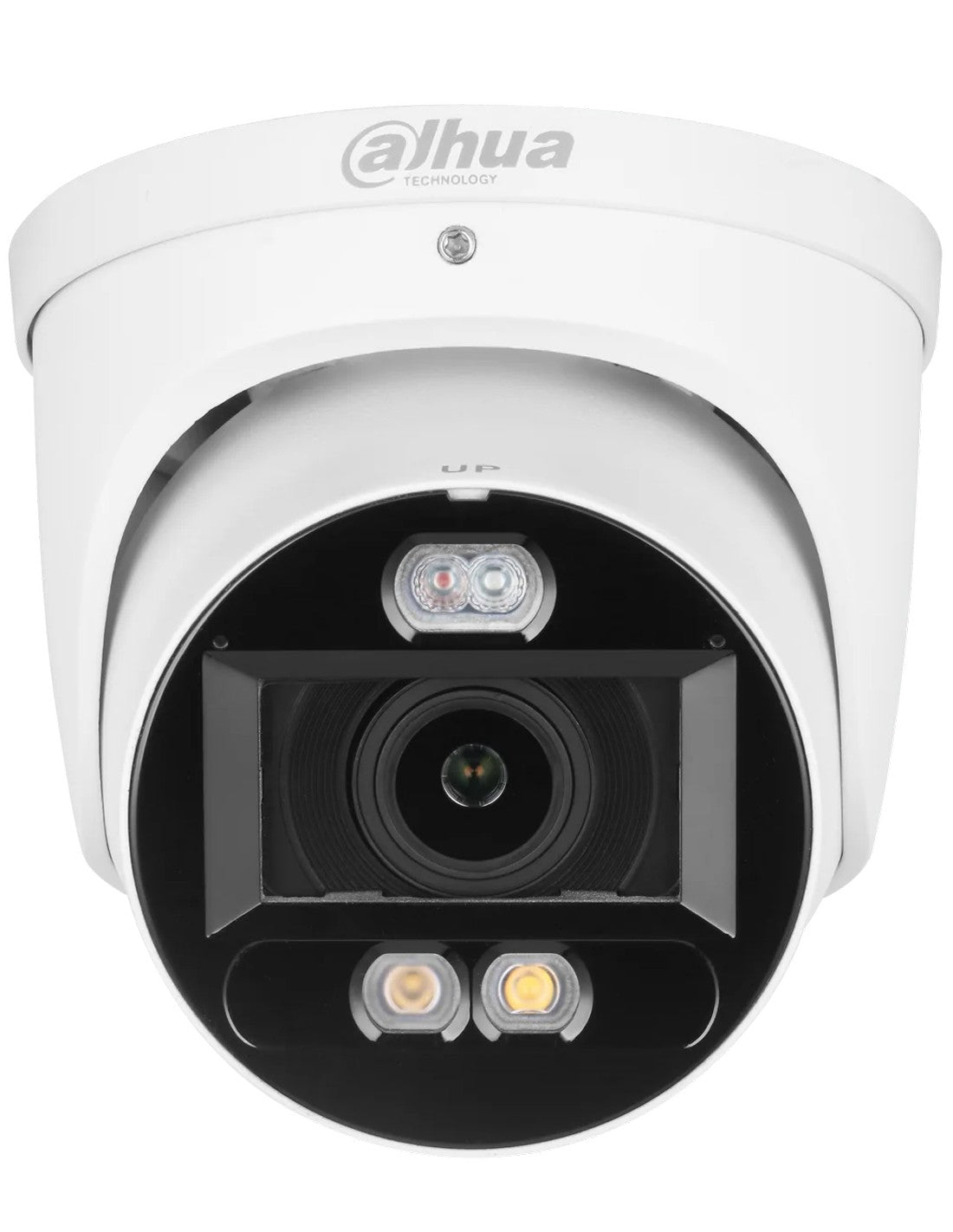

Dahua TIOC DH-IPC-HDW3649H-AS-PV-ANZ 6MP Motorised Zoom Blue / Red Light IP Turret Camera

Model: DH-IPC-HDW3649H-ZAS-PV-ANZ

Who This Is For

Security integrators specifying active deterrence for residential and small commercial sites will find a purpose-built tool in the Dahua TiOC DH-IPC-HDW3649H-ZAS-PV-ANZ. This 6MP turret combines a motorised zoom lens with smart dual illumination, a built-in siren, and red and blue strobe lights - giving installers a camera that actively intervenes when a perimeter event is detected, not just records it. The motorised zoom means the field of view can be dialled in after mounting, which removes the guesswork from placement on driveways, front entries, and side access paths. AI-based SMD 4.0 filters people and vehicles from animals and environmental triggers, so the active deterrence response fires when it should. For sites where a visible response to an intrusion attempt is part of the brief, this model covers detection, full-colour capture, audio challenge, and light alarm from a single turret housing.

What This Camera Actually Does

Who Buys This Model

• Residential Installers: Specifying active deterrence on home driveways and front entries where a visual warning response to after-hours intrusion is part of the client brief.
• Small Business Owners: Covering rear access, loading areas, or after-hours entry points where a camera that challenges an intruder in real time is preferred over passive recording alone.
• Property Managers: Installing on strata or rental sites where a motorised zoom allows coverage to be fine-tuned post-installation without revisiting the roof or eave mounting point.
• Integrators with AI NVR Systems: Who want SMD 4.0 Quick Pick search and AI-linked event recording across a WizSense-compatible Dahua NVR setup, reducing post-incident review time.

Honest Assessment

The DH-IPC-HDW3649H-ZAS-PV-ANZ does a specific job well: it combines active deterrence with smart event-triggered full-colour imaging and a motorised zoom in a compact turret housing. The SMD 4.0 classification means the strobe and siren respond to people and vehicles rather than every motion event, which is important for sites where nuisance alarms would cause end users to disable the deterrence function. IR and warm light both reach 30 m, and 6MP resolution gives usable detail at that range. The motorised zoom is a genuine installation advantage on sites where fixed-lens placement would require multiple repositioning attempts.

This camera will not suit applications requiring optical zoom tracking of moving targets across a wide area - a PTZ is the appropriate product type for that. The 30 m illumination range also means it is not the right choice for long open approaches beyond that distance. Available through Security Australia, this model is suited to perimeter and access point applications rather than wide-area surveillance.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera to cover a residential driveway or small business access point with active deterrence - the red and blue strobe, siren, and full-colour event capture handle detection and response from one device.
• Good match if: The exact field of view cannot be confirmed at quote stage - the motorised zoom allows the coverage angle to be adjusted remotely after mounting, avoiding a return visit to reposition a fixed-lens unit.
• You may need a different model if: The site requires continuous pan and tilt tracking of moving targets across a large open area - a motorised PTZ camera is the appropriate product type for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need active deterrence with red and blue strobe lights, a siren, full-colour event imaging, and a motorised zoom in one IP67-rated turret housing - this combination is not available in a standard fixed-lens turret.
• You may need a different model if: The site requires continuous pan and tilt movement to track targets across a large open space - a motorised PTZ camera with auto-tracking is the right product type for that scenario.
• Pairs well with: A WizSense-compatible Dahua AI NVR for SMD 4.0 Quick Pick event search, or a PoE switch for multi-camera installations where each camera runs on a single Cat6 cable.

Common Questions

1. Does the red and blue strobe light trigger automatically or does someone have to activate it manually?

   Automatically. When the camera's AI classifies an intrusion or tripwire event as a human or vehicle, the strobe and siren activate without any operator input. The deterrence response fires at the moment of detection. Manual arming and disarming via alarm input or the mobile app is also supported through the one-tap disarming function, so the end user can suspend the active response for scheduled access periods.

2. What exactly triggers the warm white light to switch on - does it stay on all night?

   No, it does not stay on all night. The camera uses Dahua's Smart Dual Light system, where IR handles ambient monitoring continuously. The warm white LED activates only when the AI detects a person or vehicle entering the monitored zone. Once the target leaves, the warm light turns off and IR resumes. This event-linked behaviour reduces light pollution and means full-colour footage is captured specifically during classified events rather than running permanently.

3. How does the motorised zoom work - do I need to be on a ladder to adjust the focal length after installation?

   No. The motorised zoom is adjusted remotely through the NVR interface, web browser UI, or compatible app after the camera is mounted and powered. There is no physical lens ring to turn on the housing. This means the coverage angle and focus can be fine-tuned from ground level during commissioning, and adjusted again later without touching the camera.

4. Will this camera work in complete darkness without any external lighting?

   Yes. The minimum illumination rating is 0 lux with the IR illuminator active, meaning the camera produces a usable image in complete darkness using its built-in IR LED, which reaches 30 m. Colour imaging in darkness requires the warm white LED to activate, which occurs automatically on an AI-classified detection event. Without a detection trigger at night, the camera operates in black and white IR mode.

5. Does this camera filter out false alarms from animals or passing headlights?

   Yes. SMD 4.0 classifies motion targets as human or vehicle before generating an active deterrence event. Animals, environmental motion, and lighting changes do not pass the classification threshold and will not trigger the strobe or siren. This is a meaningful distinction from basic motion detection, which would generate alerts - and active deterrence responses - for any movement in the frame. The SMD classification runs on the camera itself, so it does not require an AI NVR to function, though pairing with a compatible AI NVR adds Quick Pick search capability.

6. Does the TiOC active deterrence on this model require a specific NVR, or does it work standalone?

   It works as a standalone unit. The AI classification, strobe, siren, and dual-light switching all operate from the camera itself without requiring a connected NVR. Detection zones and event rules are configured directly in the camera's web interface. Connecting to a compatible WizSense AI NVR, available through Security Australia, adds SMD Quick Pick event search and centralised management across multiple cameras, but the deterrence function is not dependent on that pairing.

7. Can I use a custom voice warning instead of the pre-recorded messages?

   Yes. The camera supports custom voice import in addition to multiple pre-recorded voice prompts. A custom audio file can be uploaded through the web interface and assigned to a detection event, allowing site-specific messaging such as a property name or specific warning instruction. The built-in speaker and dual microphones also support live two-way talk for real-time voice challenges when an operator is monitoring remotely.
