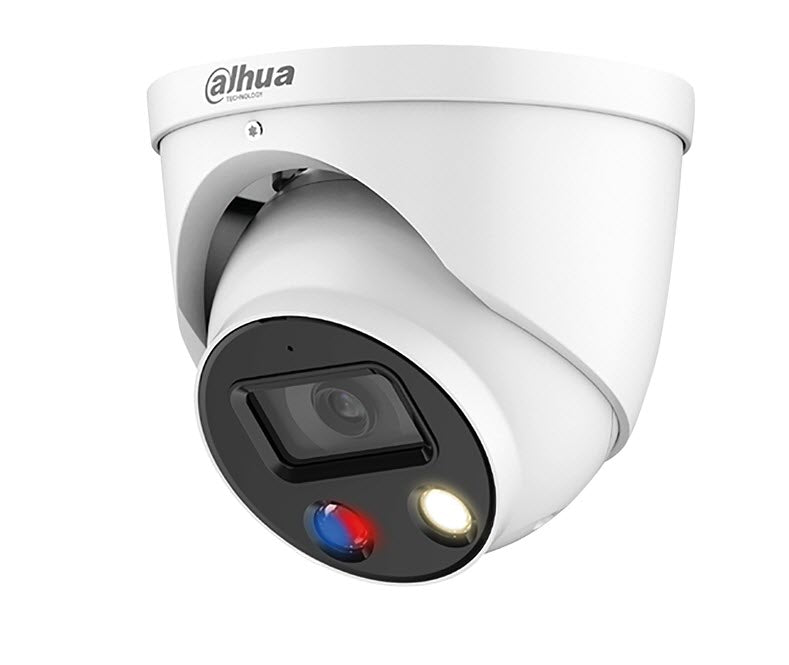

Dahua TIOC 1.0 DH-IPC-HDW3549HP-AS-PV 5MP AI Active Deterrence Full color Starlight IP Turret Fixed 2.8mm, Built-in Mic & Speaker NO INFRARED

Model: DH-IPC-HDW3549H-AS-PV

Who This Is For

When visible deterrence at the point of detection is the priority, passive recording alone falls short. The Dahua TiOC DH-IPC-HDW3549H-AS-PV is aimed at installers and property owners who want a camera that does more than observe - it actively intervenes when a perimeter event occurs. The 2.8mm fixed lens delivers a 103-degree horizontal field of view, making it well matched to eave or soffit mounting on residential properties, small commercial sites, and light industrial yards where a wide scene view is needed. The built-in warm-light illuminator produces full-colour footage at night without infrared, so intruder clothing, vehicle colour, and other identifying detail are captured in colour rather than greyscale. Add the built-in siren, red and blue strobe, and the two-way audio capability via the onboard mic and speaker, and this is a camera positioned for sites where the goal is to stop an incident rather than simply document it afterwards.

What This Camera Actually Does

Who Buys This Model

• Residential installers: Fitting cameras to eaves and soffits on homes where the owner wants colour night footage and an audible deterrent response, not just passive recording.
• Small business owners: Retail car parks, café courtyards, and small warehouses where after-hours intrusions are a pattern and a visible strobe-and-siren response is intended to interrupt behaviour in progress.
• Light industrial sites: Yards, equipment storage areas, and perimeter fence lines where vehicle and human classification via SMD Plus is needed to avoid constant false alarms from passing traffic or wind movement.
• Remote or unmanned properties: Sites without permanent staff where the two-way audio and active alarm linkage allow a remote operator or the property owner to respond verbally through the camera in real time.

Honest Assessment

The DH-IPC-HDW3549H-AS-PV does its best work in outdoor perimeter positions where after-hours deterrence is the primary goal. The F1.0 aperture combined with warm-light illumination genuinely captures useful colour detail at night within the 30-metre illumination range - clothing colour, vehicle type, and face characteristics are visible in ways that standard IR cameras at equivalent price points cannot match. The SMD Plus classification layer meaningfully reduces false alarm fatigue on sites with foliage, passing vehicles, or variable lighting. The 2.8mm lens at 103 degrees horizontal suits corners and gate approaches where a wide view matters more than long-range reach. Where this camera will not deliver: it is not the right tool for long-approach coverage beyond 30 metres, for covert installations where the strobes and housing would be a problem, or for sites requiring optical zoom or pan-tilt-zoom tracking. For those requirements, a different camera type available through Security Australia would be more appropriate.

Before You Buy

Quick Fit Check

• Good match if: You are mounting at an eave, soffit, or corner position covering an approach within 30 metres and you need full-colour night footage with an active strobe-and-siren deterrent response on human or vehicle detection.
• Good match if: The site has a history of nuisance false alarms from standard motion detection - SMD Plus human and vehicle classification filters environmental triggers and only arms the deterrence response for relevant targets.
• You may need a different model if: You need to cover a long driveway or open yard beyond 30 metres at night, or you need motorised zoom and auto-tracking - a bullet camera with extended IR range or a PTZ camera would be more appropriate for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need full-colour night footage with an active on-camera deterrent - strobe, siren, and voice - triggered by AI-classified human or vehicle detections, within a 30-metre illumination range.
• You may need a different model if: Your coverage requirement extends well beyond 30 metres at night, or you need covert recording without visible illumination - an IR bullet camera with long-range night vision would serve those scenarios better.
• Pairs well with: A Dahua WizSense NVR with SMD Plus support to maximise the AI classification features, centralise alarm management, and enable two-way audio monitoring from the NVR interface.

Common Questions

1. Does this camera produce colour footage at night or does it switch to black and white?

   Colour only - there is no infrared mode on this camera. The DH-IPC-HDW3549H-AS-PV uses a warm-light illuminator with an F1.0 aperture lens and a minimum illumination of 0.003 Lux to produce full-colour images in darkness. The visible warm-light glow is always present when the illuminator activates at night. If covert or greyscale night capture is required, this is not the right model.

2. Will the siren and strobe activate automatically, or does it require manual triggering?

   Automatic activation is possible, but only after alarm rules are configured. Once an intrusion zone or tripwire rule is set up and the camera is armed, detecting a classified human or vehicle within that zone triggers the strobe and siren without manual intervention. The deterrence response does not activate on general motion - it requires a confirmed SMD Plus classification event against a drawn rule.

3. What exactly does TiOC mean for this camera, and how does the strobe trigger condition work?

   TiOC stands for Three in One Camera, combining full-colour imaging, active deterrence, and AI detection in a single device. The deterrence trigger on this TiOC 1.0 model is rule-based: the AI classifies a detection as a human or vehicle, checks whether it matches an active intrusion or tripwire rule, and if so fires the red and blue strobes and siren simultaneously. The classification step is key - this is what separates TiOC from basic motion-triggered alarm cameras. Environmental motion that does not classify as a human or vehicle does not activate the deterrence output, which is why false alarm rates are substantially lower than standard motion detection approaches.

4. At what distance can this camera reliably identify a person with the 2.8mm lens?

   The confirmed DORI identification distance at 2.8mm is 6.7 metres. For face-level recognition, the figure is 13.5 metres, and observation-level detail is achieved at 27 metres. Detection of a human target - sufficient to trigger an SMD alarm - is rated to 67.4 metres. These are standardised DORI measurements; real-world results vary with lighting, angle, and target size, but the warm-light illuminator reaching 30 metres aligns well with the practical recognition and observation distances for the 2.8mm lens.

5. Does this camera work without an NVR - can it record to SD card only?

   Yes. The camera supports a Micro SD card up to 256 GB and can record independently without a connected NVR. Smart H.265+ compression reduces the per-hour storage footprint at 5MP, extending the usable retention period on-card. Active deterrence rules and arming schedules can be configured via the camera's web interface directly. For event playback, you would access the camera's card via its interface or physically remove the card.

6. Is two-way audio supported, and what hardware is needed to use it?

   Yes. Both a built-in microphone and a built-in speaker are confirmed on this model, enabling full two-way audio. To use live two-way audio, you need either a compatible Dahua NVR with two-way audio support, the Dahua DMSS mobile app, or access via the camera's web interface on a device with a microphone. The camera also has a dedicated audio-in and audio-out port for connecting an external microphone or amplified speaker if a louder output is needed. This camera is stocked by Security Australia and supported with configuration advice at point of sale.

7. What PoE standard does this camera require?

   Standard IEEE 802.3af PoE is sufficient. The camera accepts 12V DC or PoE, so a single Cat5e or Cat6 cable from a PoE switch or PoE NVR port carries both power and data. No PoE+ (802.3at) is required. If you are powering multiple TiOC units from an NVR's onboard PoE budget, check the total wattage allocation on your NVR model - the warm-light illuminator and active deterrence components add to the per-port draw compared to a standard IP camera.
