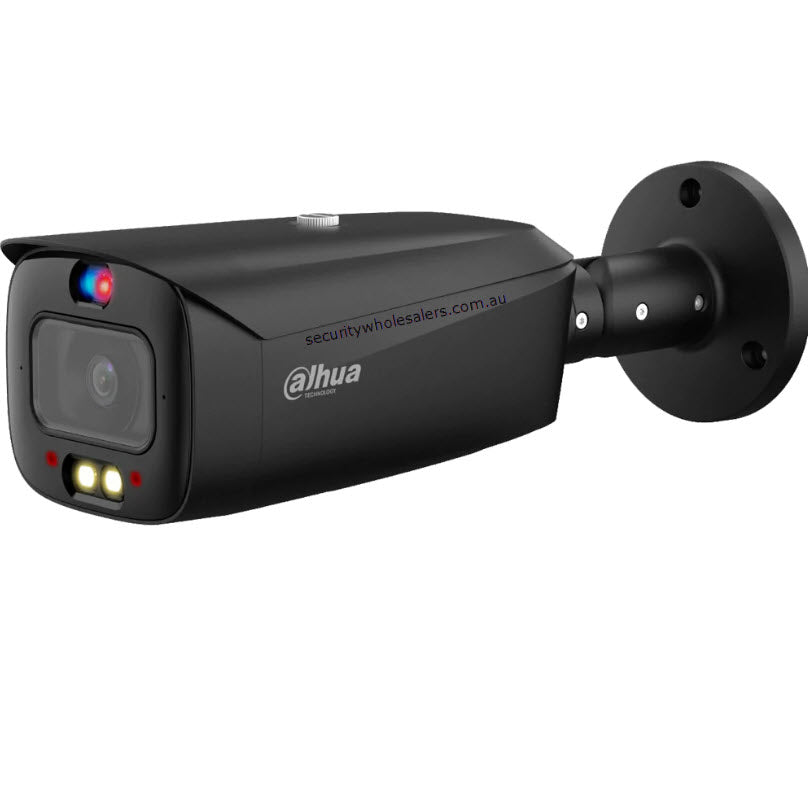

Dahua TIOC Advanced 2.0 DH-IPC-HFW3849T1-AS-PV-ANZ 8MP AI Active Deterrence Full color Starlight IP Bullet Fixed 2.8mm

Model: DH-IPC-HFW3849T1-AS-PV-ANZ

Who This Is For

When perimeter deterrence - not just recording - is the priority, the Dahua IPC-HFW3849T1-AS-PV-ANZ delivers a genuinely active response to intrusion events. This is an 8MP TiOC Advanced 2.0 bullet camera built for installers specifying outdoor perimeter coverage at residential properties, small commercial sites, warehouses, and construction compounds where passive recording is no longer enough. The camera responds to confirmed human or vehicle detections with a red and blue strobe and a built-in siren, intervening in real time rather than simply logging footage. The 2.8mm fixed lens gives a wide 106-degree horizontal field of view suited to gate entries, driveways, and open yard areas. Full-colour night vision up to 30 metres activates automatically when a target is detected, shifting from IR to warm-light illumination mid-event to capture identifiable colour detail. PoE simplifies installation with a single Cat5e or Cat6 run per camera.

What This Camera Actually Does

Who Buys This Model

• Residential security integrators: Specifying active deterrence for homes where the client wants an audible and visual response to after-hours intrusions, not just recorded footage reviewed the following morning.
• Small commercial operators: Retail backyards, car yards, and trade premises that experience regular after-hours trespass and want a cost-effective intervention that doesn't rely on monitoring centre response times.
• Construction site managers: Temporary installations covering compound entries and equipment laydown areas where equipment theft and vandalism occur overnight and a visible deterrent reduces incident frequency.
• Property managers: Multi-tenancy sites requiring perimeter coverage of common area gates, car parks, and bin enclosures where reliable human/vehicle classification reduces nuisance alarm calls to residents.

Honest Assessment

The IPC-HFW3849T1-AS-PV-ANZ does active deterrence well at its price point. The combination of SMD 4.0 human/vehicle classification, automatic warm-light activation on detection, and an integrated strobe-and-siren response gives sites a genuine intervention capability without separate PIR detectors or external sirens. 8MP resolution delivers usable identification distances for typical driveway and gate applications at the 2.8mm focal length, and the IP67 housing handles Australian outdoor conditions reliably.

Where this camera won't suit: the fixed 2.8mm lens covers a wide angle but offers no optical zoom - sites needing long-distance coverage of a single lane or extended approach will need a longer focal length or a different camera type. The 30-metre illumination range is adequate for most residential and small commercial perimeters but not for large open yards or car parks where a longer-range bullet or PTZ would serve better. Check with Security Australia if you are unsure whether the 2.8mm or 3.6mm lens option suits your specific layout.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera that detects confirmed humans or vehicles, triggers a siren and strobe, switches to full-colour night vision automatically, and records 4K footage - all without additional external devices or separate PIR detectors.
• Good match if: Your install point is an eave, soffit, or wall position covering a gate, driveway, or yard entry within 30 metres where a wide 106-degree horizontal angle captures the full approach and two-way audio lets operators challenge intruders remotely.
• You may need a different model if: Your site requires coverage of a long single approach beyond 30 metres, or a wide open area such as a large car park or industrial yard - a longer focal length bullet camera or a PTZ with motorised zoom would provide more appropriate coverage for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need active intervention capability - a confirmed strobe and siren response to human or vehicle detections - built into a single weatherproof bullet camera with full-colour night vision and two-way audio, without adding separate external deterrence devices.
• You may need a different model if: Your priority is long-range optical coverage of a single approach lane or a large open area beyond 30 metres - a longer focal length fixed bullet or a PTZ with motorised zoom would give you the reach and flexibility this fixed 2.8mm lens cannot provide.
• Pairs well with: A Dahua AI NVR with SMD support and Quick Pick functionality - this unlocks fast human/vehicle search across SMD event recordings and enables centralised management of deterrence rules across multiple cameras.

Common Questions

1. Does this camera actually trigger the siren on its own, or does it need an NVR to do that?

   Yes, the siren and strobe trigger on-camera without NVR involvement. The IPC-HFW3849T1-AS-PV-ANZ processes SMD 4.0 detections locally - when a human or vehicle is confirmed within a configured zone, the camera fires the red and blue strobe and activates the built-in siren independently. An NVR adds management, recording, and Quick Pick search but is not required for the deterrence response itself to function.

2. Will this camera work with a standard PoE switch, or does it need PoE+?

   Standard PoE is sufficient. This camera supports IEEE 802.3af PoE, so any standard PoE switch or PoE NVR port delivers both power and data over a single Cat5e or Cat6 cable without needing the higher-wattage PoE+ (802.3at) standard. This keeps installation straightforward on existing PoE infrastructure.

3. How does the TiOC warm-light system know when to switch from IR to colour mode?

   It switches automatically on detection, not on a timer. During normal night operation, the IR LEDs run passively and the image is black and white. When SMD 4.0 confirms a human or vehicle target entering the scene, the warm-light LEDs (separate from the IR LEDs) activate and the camera shifts to full-colour output. When the target exits the detection zone, warm light turns off and IR resumes. This means colour footage is captured for the duration of any confirmed intrusion event without leaving the warm lights on continuously through the night.

4. What is the TiOC strobe trigger condition - does any motion fire it, or only confirmed humans and vehicles?

   Only confirmed humans and vehicles trigger the strobe and siren. SMD 4.0 classifies motion before acting on it. Animals, wind-moved objects, and other non-target movement are filtered at the camera level and do not generate a deterrence response. This is a meaningful practical difference from basic motion-triggered strobes, which generate high rates of nuisance activations on outdoor sites with vegetation, insects, or passing animals. Perimeter rules (intrusion zones, tripwire lines) are configured per camera and define the specific areas that trigger the deterrence response.

5. Does the two-way audio work through a mobile app?

   Yes. The built-in dual microphones and speaker support two-way talk via the Dahua mobile app (DMSS), allowing a user to listen and speak through the camera remotely on a smartphone. The camera also has a physical 1-channel audio input and 1-channel audio output for wired integration with external intercoms or amplified speakers if needed.

6. Can I disarm the siren during business hours without changing NVR settings every day?

   Yes. The one-tap arming and disarming function allows event linkages - including the siren and strobe - to be toggled on or off through the Dahua DMSS mobile app with a single action. Alternatively, a physical alarm input connection supports wired one-click disarming, which is useful for integrating with an access control panel or a key-switch at the entry point. This is one of the reasons the IPC-HFW3849T1-AS-PV-ANZ is popular through Security Australia for small commercial sites where staff hours vary and deterrence needs to be managed day to day without touching recorder settings.

7. What are the practical identification distances with this camera's 2.8mm lens?

   At the 2.8mm focal length, DORI identification distance is 9.1 metres and recognition distance is 18.2 metres. For a driveway or gate entry where a person walks directly toward the camera, 9.1 metres of identification distance is workable for facial detail in recorded footage. Observe distance is 36.4 metres and detect distance is 91 metres. If your mounting position requires recognition or identification at greater distances, the 3.6mm lens variant extends recognition to 21.5 metres and identification to 10.8 metres, though with a narrower 85-degree horizontal field of view.
