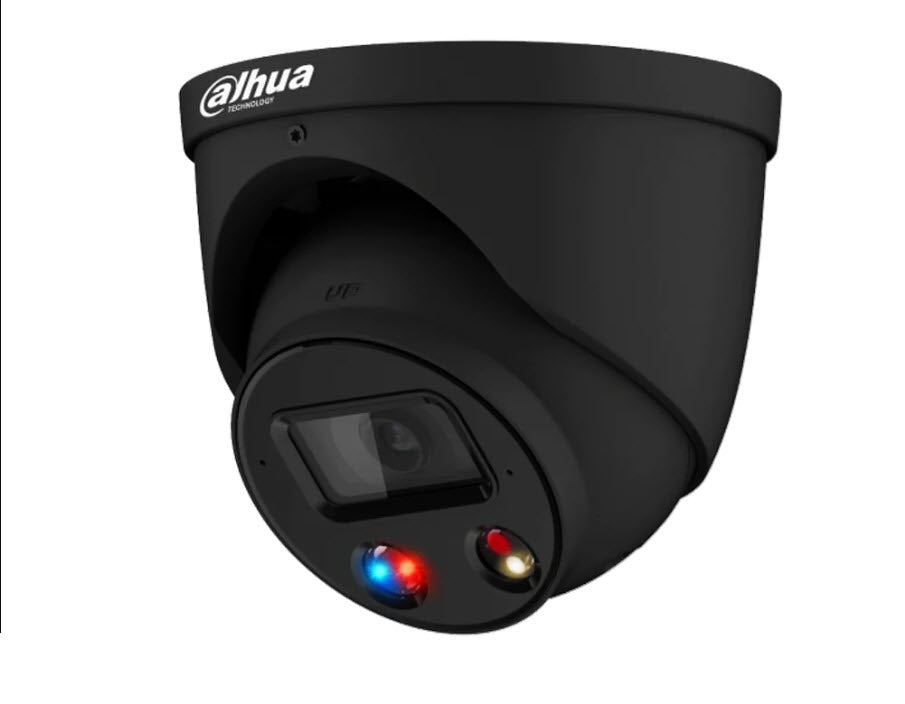

Dahua TIOC Advanced 2.0 DH-IPC-HDW3849H-AS-PV-S3-BLK 8MP AI Active Deterrence Full color IP Turret Camera BLACK

Model: DH-IPC-HDW3849HP-AS-PV-0280B-S3-BLK

Who This Is For

When active deterrence - not just recording - is the priority, the Dahua TiOC Advanced 2.0 DH-IPC-HDW3849H-AS-PV-S3 in black is the camera installers reach for on residential perimeters, small commercial properties, and childcare facility exteriors where a visible response to intrusion is required. This is not a passive recorder. When the onboard AI detects a human or vehicle crossing a defined tripwire or entering a virtual zone, the camera triggers a built-in siren and red-and-blue strobe lights immediately - before an operator needs to intervene. The 8MP 4K sensor delivers enough resolution to capture usable detail at entry points and driveways, while the smart dual illuminator system switches from IR-only mode to full-colour warm light the moment a target is confirmed, producing colour footage precisely when it matters. The black housing suits installations where a discreet profile against dark eaves, soffits, or rendered walls is preferred over a standard white finish.

What This Camera Actually Does

Who Buys This Model

• Residential installers specifying perimeter protection: Homeowners with driveways, side gates, or rear yard access points who want an automatic deterrence response when a person or vehicle is detected at night, not just a recording after the fact.
• Small commercial and retail operators: Shopfronts, warehouses, and small industrial sites where after-hours intrusion is a known risk and a visible and audible alarm at the camera itself adds a layer of on-site response before security staff or police arrive.
• Childcare and education facility managers: Sites requiring deterrence coverage of external perimeters, car parks, and play area boundaries during out-of-hours periods, with full-colour event footage available for incident review.
• Installers specifying black-finish cameras: Projects where standard white turret housings contrast poorly against dark soffits, charcoal rendered walls, or timber-clad eaves, and a black camera profile is specified for aesthetic integration.
• Property managers upgrading from standard motion detection: Sites with a history of nuisance alerts from wind, animals, or lighting changes who need AI-based human and vehicle classification to reduce false alarm fatigue in a monitoring app or NVR.

Honest Assessment

The DH-IPC-HDW3849H-AS-PV-S3 does active deterrence well within a compact turret form factor. The combination of AI-triggered siren, red-and-blue strobe, full-colour event capture, and two-way audio in a single PoE device is genuinely useful for residential and small commercial perimeter work - it removes the need for a separate alarm output device at each camera position. The SMD 3.0 classification is a meaningful improvement over older motion-based alert systems in terms of alert accuracy. IP67 weather resistance and a wide voltage tolerance make it suitable for external Australian conditions. Where this camera will not serve well: the 30m illumination range and fixed focal lens mean it is not suited to long outdoor approaches, loading dock corridors, or wide-area open sites where a bullet camera with extended IR or a varifocal lens would cover the geometry more effectively. For large-scale deterrence deployments across multiple zones, consult the range available through Security Australia to assess whether a managed alarm output solution better fits the project scope.

Before You Buy

Quick Fit Check

• Good match if: You are covering a residential driveway, rear gate, or shopfront entry where an AI-triggered siren and strobe response to confirmed human or vehicle detection is required at the camera itself, without routing to a separate alarm panel.
• Good match if: The installation surface is dark-coloured - charcoal, black, or timber - and a black camera housing is needed to avoid a visually prominent white camera profile against the fascia or soffit.
• You may need a different model if: The target area extends beyond 30m, requires optical zoom to capture usable facial or plate detail at distance, or the site geometry calls for a varifocal or motorised zoom lens - in which case a bullet or varifocal turret camera type would be more appropriate for your application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need AI-classified active deterrence - siren, strobe, and full-colour event footage - triggered at the camera level, in a compact turret form factor that suits eave and soffit mounting with a black finish.
• You may need a different model if: The installation requires coverage beyond 30m, a varifocal or motorised zoom lens to concentrate detail across a longer approach, or a bullet-style housing better suited to wall-bracket mounting on industrial or exposed outdoor structures.
• Pairs well with: A Dahua-compatible NVR with SMD filtering enabled, which passes only human and vehicle-classified events from this camera to reduce storage use and alert volume across a multi-camera system.

Common Questions

1. Does the siren and strobe activate automatically, or does someone need to trigger it manually?

   Automatically - no manual trigger is required. When a confirmed human or vehicle crosses a configured tripwire or enters a defined intrusion zone, the onboard AI raises the siren and activates the red-and-blue strobe lights immediately at the camera. The response occurs at device level without relying on NVR action, cloud processing, or operator input. Detection rules must be configured after installation for the function to be active.

2. What exactly triggers the warm light to switch on - is it any movement, or only when a person or vehicle is confirmed?

   Only a confirmed human or vehicle target triggers the warm light. The Smart Dual Illuminator logic uses the AI classification layer, not standard pixel-based motion detection. The camera runs on IR-only at night by default. When the AI classifies a moving object as a human or vehicle within the monitored zone, the warm white LED activates and full-colour footage is captured for the duration of that event. When the target leaves the frame, the warm light extinguishes and IR resumes. Leaves, rain, small animals, and ambient light changes do not trigger the warm light switch.

3. Will this camera work with a standard PoE switch, or does it need PoE+?

   Standard PoE is sufficient. This camera supports IEEE 802.3af PoE, which is the standard 15.4W PoE specification delivered by most PoE switches and PoE NVRs. PoE+ (802.3at, 30W) is not required. A single Cat5e or Cat6 cable carries both power and data. The camera also accepts 12V DC as an alternative power input if required by the install layout.

4. Does this camera support two-way audio, and what hardware does it have built in?

   Yes, it supports full two-way audio. The camera has dual built-in microphones and a built-in speaker, with a 1-channel audio input and 1-channel audio output. Two-way talk is supported through the Dahua DMSS mobile app, compatible Dahua NVRs, and supported VMS platforms. No external microphone or speaker needs to be added to the install. This makes it usable for live verbal challenges to persons on site directly from a mobile device.

5. What does the TiOC deterrence trigger behaviour look like - does every detection fire the strobe, and can the sensitivity be adjusted?

   No - the strobe and siren are linked specifically to the AI-based tripwire and intrusion zone rules, not to all motion events. The camera must have detection zones drawn and the alarm linkage to the strobe and siren explicitly configured in the device interface or VMS. Once configured, the trigger fires only when the AI classifies a human or vehicle as breaching the defined zone boundary. Sensitivity and zone geometry are adjustable during configuration - the detection boundary, target size filter, and time schedule for when the deterrence response is active can all be set per zone. This means the deterrence can be limited to after-hours periods only, with the siren and strobe disabled during business hours while motion recording continues.

6. What are the DORI distances for this camera, and what does that mean for identifying a face or reading a number plate?

   At 2.8mm, the Detect distance is 91m and the Identify distance is 9.1m. DORI is a standardised measure of what detail level is achievable at a given distance with 8MP at the listed focal length. Detection at 91m means the camera can confirm a person or object is present. Identify at 9.1m means facial features or fine detail such as clothing markings are distinguishable at up to approximately 9 metres. For number plate reading, identification-level detail is required, so the camera needs to be positioned so that vehicles pass within roughly 9m of the lens for useful plate legibility. At 3.6mm the Identify distance extends to 10.8m due to the narrower field of view concentrating pixel density. This is a fixed-focal camera - it cannot zoom to extend these distances after installation. For applications where identification at longer ranges is required, a varifocal or motorised zoom camera type would be more appropriate.

7. Can the arming schedule be managed remotely, and how does the one-tap disarming work in practice?

   Yes. Through the Dahua DMSS mobile app, the event linkages - including the siren and strobe response - can be enabled or disabled remotely with a single tap. This is the one-tap arming and disarming function. The physical alarm input on the camera also supports a momentary button for on-site arming and disarming without needing app access. In practice this means a business owner can disarm the deterrence response before staff arrive in the morning and re-arm it after closing, either through the app or by pressing a button wired to the alarm input at the door. Time-scheduled arming through the camera configuration can also automate this without manual intervention. The function available through Security Australia's Dahua range is particularly useful for sites with irregular access patterns where a fixed schedule is not practical.
