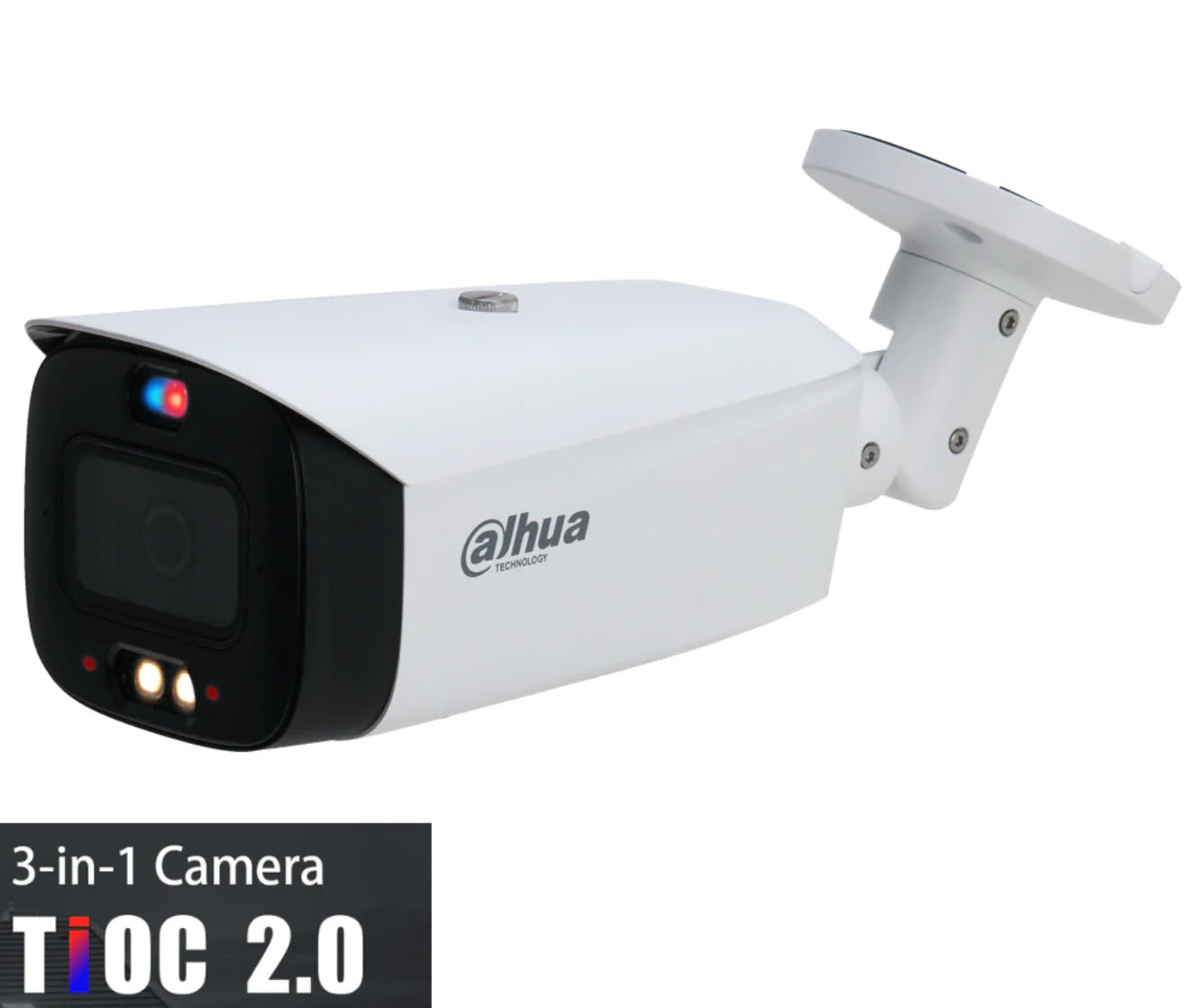

Dahua TIOC 2.0 Advanced DH-IPC-HFW3549T1-ZAS-PV 5MP AI Active Deterrence Motorised Bullet Camera

$455.00 AUD
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

5MP Smart Dual Light Active Deterrence Vari-focal Bullet WizSense Network Camera

The 5MP Smart Dual Light Active Deterrence Vari-focal Bullet WizSense Network Camera (DH-IPC-HFW3549T1-ZAS-PV) from Dahua Security offers advanced features designed for enhanced security and surveillance. With its 5-megapixel resolution, it delivers high-definition video quality, ensuring clear and detailed imagery. The camera features smart dual light technology, which includes both white light and infrared illumination, providing exceptional performance in both day and night conditions.

Key Features

  • 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 5 MP (2960×1668) @20 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
  • 12 VDC/PoE power supply. · IP67 protection.
  • Sound and light alarm (red and blue lights).
  • SMD 4.0.
  • Supports AI SSA and one-tap arming and disarming.
  • SMD area can be set in warm light areas that support triggering alarms.

Code/SKU: DH-IPC-HFW3549T1-ZAS-PV
Quick Specs: Lens Type: Motorized vari-focal, Lens Mount: φ16, Focal Length: 2.7 mm–13.5 mm, Max. Aperture: F1.0

Specifications



Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2960 (H) × 1668 (V)

ROM

256 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 50 m (164.64 ft) (IR)
Up to 40 m (131.23 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (IR LED)
2 (warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ16

Focal Length

2.7 mm–13.5 mm

Max. Aperture

F1.0

Field of View

H: 113°–36°
V: 57°–20°
D: 137°–40°

Iris Control

Fixed

Close Focus Distance

1.5 m (4.92 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

65.2 m (213.91 ft)

26.1 m

(85.63 ft)

13.0 m

(42.65 ft)

6.5 m

(21.33 ft)

T

186.6 m (612.20 ft)

74.6 m

(244.75 ft)

37.3 m

(122.38 ft)

18.7 m

(61.35 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD 4.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2880 × 1620/2960 × 1668@(1–20 fps)/2688 × 1520 @(1–30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution

5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M 2304 ×1296/2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p(1280×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 ×288/352 × 240)

Bit Rate Control

CBR/VBR/ABR

Video Bit Rate

H.264:3 kbps–16384 kbps
H.265:3 kbps–16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes, built-in dual Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection;external alarm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S; Profile G; Profile T); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE 9/11
Chrome
Firefox

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Video encryption; firmware encryption; configuration

encryption; Digest; WSSE; account lockout; security logs;

IP/MAC filtering; generation and importing of X.509

certification; syslog; HTTPS; 802.1x; trusted boot; trusted

execution; trusted upgrade

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetc Compatbility Directve
2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2.8 W (12 VDC); 3.6 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 7.9 W (12 VDC); 9.2 W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal+plastic

Product Dimensions

288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72"× 3.33")(L × W × H)

Net Weight

1.05 kg (2.31 lb)

Gross Weight

1.35 kg (2.98 lb)

Documentation

IPC-HFW3549T1-ZAS-PV_datasheet_20220512.pdf
IPC-HFW3549T1-ZAS-PV_datasheet_20220512_58ffbd9e-632e-4c0c-99a4-c7ae8272dbaa.pdf
Dahua-Bullet-Network-Camera_QSG_V1.0.1_b6f1a22b-b66d-4984-9fe2-388b7dbd916e.pdf

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Dahua TIOC 2.0 Advanced DH-IPC-HFW3549T1-ZAS-PV 5MP AI Active Deterrence Motorised Bullet Camera

$455.00 AUD

The 5MP Smart Dual Light Active Deterrence Vari-focal Bullet WizSense Network Camera (DH-IPC-HFW3549T1-ZAS-PV) from Dahua Security offers advanced features designed for enhanced security and surveillance. With its 5-megapixel resolution, it delivers high-definition video quality, ensuring clear and detailed imagery. The camera features smart dual light technology, which includes both white light and infrared illumination, providing exceptional performance in both day and night conditions. Its active deterrence function helps to prevent potential threats with built-in LED lights and an audio alarm. The vari-focal lens allows for flexible zoom and focus adjustments, accommodating various monitoring needs. WizSense technology enhances the camera's ability to distinguish between different objects and reduce false alarms. It supports H.265+ video compression, which minimizes bandwidth and storage requirements while maintaining high image quality.

The camera's robust construction is designed to withstand harsh weather conditions, making it suitable for outdoor use. Its integration with Dahua's video management systems provides seamless connectivity and easy management. Additionally, the camera offers multiple viewing options, including remote access through mobile devices and computers. The DH-IPC-HFW3549T1-ZAS-PV is ideal for a wide range of applications, from residential to commercial environments. With its combination of advanced features and reliable performance, this camera ensures comprehensive security coverage.

Features

  • 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 5 MP (2960×1668) @20 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
  • ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
  • 12 VDC/PoE power supply. · IP67 protection.
  • Sound and light alarm (red and blue lights).
  • SMD 4.0.
  • Supports AI SSA and one-tap arming and disarming.
  • SMD area can be set in warm light areas that support triggering alarms.



Functions

Siren and Light Active Deterrence:
The Dahua siren and light active deterrence network camera features integrated light and voice alarms to provide effective deterrence and intervention when perimeter events occur. It offers a range of built-in voice options and supports custom voice uploads.

SMD 4.0:
Dahua's Smart Motion Detection (SMD) 4.0 technology utilizes advanced algorithms to distinguish and classify targets triggering motion detection alarms. It filters out non-target objects, such as animals of varying sizes, to prevent false alarms.

Smart Dual Light:
With Dahua's Smart Dual Light technology, the camera uses intelligent algorithms to detect targets. At night, the IR illuminator is active, while the white light turns on when a target is detected, capturing full-color video and key event details. Once the target leaves the monitoring area, the white light turns off and the IR illuminator resumes, effectively reducing light pollution.

One-Tap Disarming:
The Dahua One-Tap Disarming function simplifies event linkage control. Users can easily activate or deactivate event linkage via the mobile app, catering to various operational needs.

Cyber Security:
Dahua network cameras are equipped with robust security measures, including authentication, access control, trusted protection, encrypted transmission, and encrypted storage. These features enhance the camera's resilience against cyber threats and malicious attacks.

Protection (IP67, Wide Voltage):
IP67: The camera has undergone rigorous testing for dust and water resistance. It is dust-proof and can operate normally after submersion in 1 meter of water for up to 30 minutes.
Wide Voltage: The camera supports an input voltage tolerance of ±30% (for certain power supplies), making it suitable for outdoor environments with unstable voltage conditions.

Technical Specifications:
