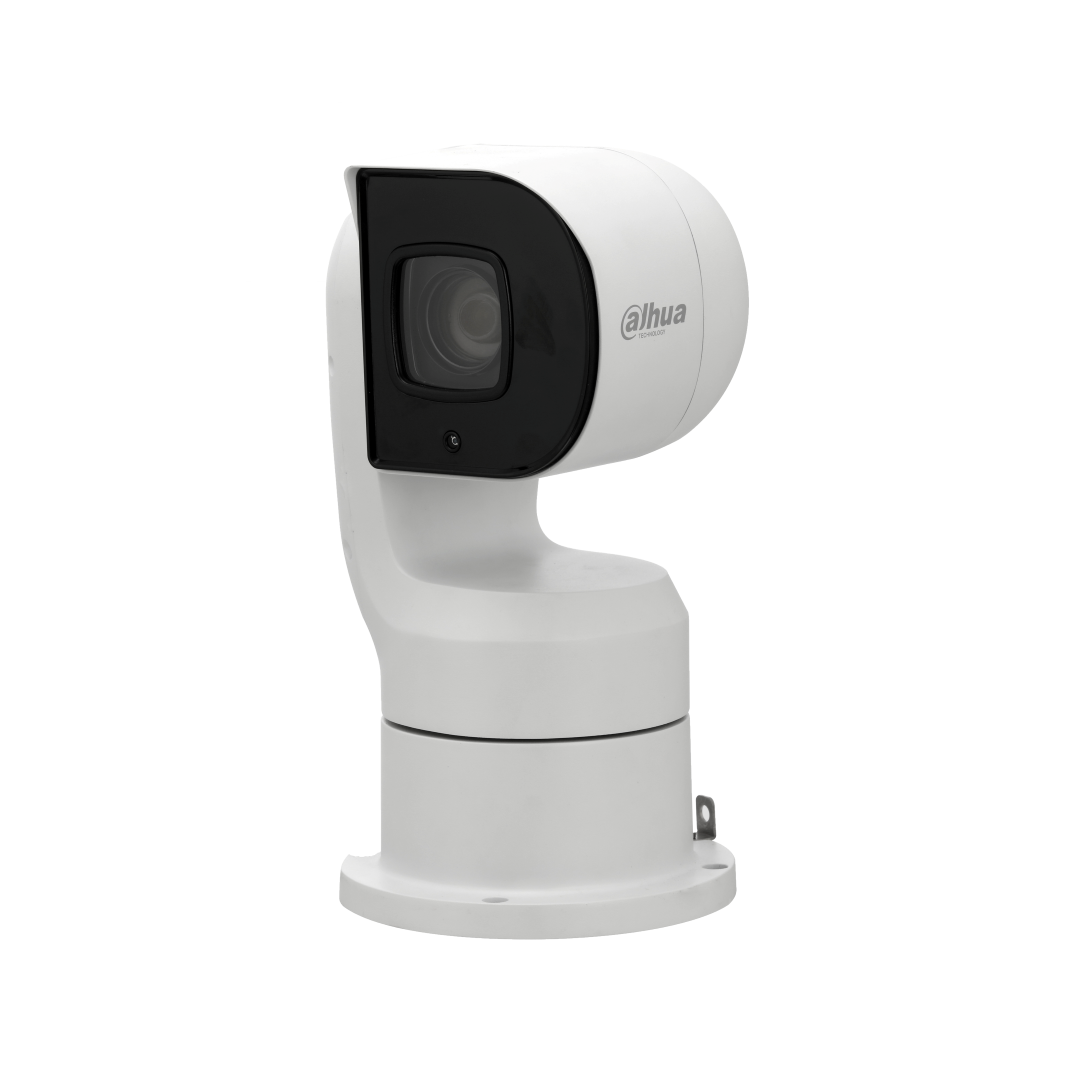

Dahua PTZ1A225U-IRA-N 4.8-120mm Motorized 25X PTZ / DH-PTZ1A225-HNR-GB

Model: DH-PTZ1A225U-IRA-N

Who This Is For

When covering large open areas from a single camera position is the priority - car parks, perimeter fences, transport depots, public open spaces, or critical infrastructure sites - the Dahua PTZ1A225U-IRA-N is built for that task. This is a 2MP network PTZ with 25x optical zoom, 150m IR night vision, auto-tracking, and a 4.8-120mm motorised lens that lets operators zoom in on activity hundreds of metres away without losing detail. It is suited to installers and specifiers who need a single camera to cover what would otherwise require 6 or more fixed units. The IP67 weatherproofing, IK10 vandal resistance, built-in heater rated to -40°C, and 8kV lightning protection make it a genuine outdoor heavy-duty unit rather than a lightly rated dome with a zoom lens. It suits councils, industrial facilities, logistics operators, and commercial security integrators running Dahua or ONVIF-compatible NVR platforms.

What This Camera Actually Does

Who Buys This Model

• Security Integrators on Industrial Sites: Installers specifying perimeter coverage for refineries, ports, mining compounds, or power stations where a single pan/tilt/zoom unit with 150m IR replaces multiple fixed cameras across a long fence line.
• Local Councils and Public Space Operators: Operators managing parks, transport hubs, or public carparks who need operator-controlled zoom and auto-tracking to respond to incidents across a wide open area from a central monitoring position.
• Logistics and Transport Depot Managers: Facilities with large yard areas and long vehicle approaches where the 25x zoom lets a single camera read activity at the far end of a site and auto-track movement without requiring camera repositioning.
• Remote and Harsh-Environment Sites: Installations in alpine, coastal, or outback environments where the built-in heater, IP67 rating, and 8kV lightning protection are non-negotiable requirements rather than optional extras.
• ONVIF-Platform Integrators: Installers adding a PTZ layer to an existing multi-brand NVR system who need confirmed ONVIF compliance to ensure PTZ control functions - not just video streaming - work correctly with their platform.

Honest Assessment

The PTZ1A225U-IRA-N does several things well: the combination of Starlight low-light sensitivity, 150m IR range, and 25x optical zoom with PFA focusing gives genuine all-weather, all-hours coverage of large areas. The auto-tracking and IVS analytics (tripwire, face detection) add meaningful operational value beyond a manually operated PTZ. The environmental specification - IP67, IK10, -40°C to 70°C, 8kV lightning - is suited to Australian outdoor conditions that quickly degrade lesser-rated units. What this camera will not do: it produces 2MP (1080p) video, so if forensic-quality identification at maximum zoom distance is critical, a higher-resolution PTZ will deliver sharper crops. It is also a single-sensor unit - if continuous wide-area overview coverage running simultaneously with a zoomed view is required, a multi-sensor panoramic system available through Security Australia would be a stronger fit for that specific scenario. PoE+ (not standard PoE) is required, so switch and cabling selection needs to account for the higher power draw.

Before You Buy

Quick Fit Check

• Good match if: You need a single outdoor PTZ to cover a large open area - perimeter fence line, car park, transport yard - with 150m IR night vision and auto-tracking triggered by IVS rules, from a PoE+-capable NVR or switch.
• Good match if: The installation site has extreme temperature, impact, or lightning exposure requirements: the built-in heater, IK10 housing, IP67 ingress rating, and 8kV surge protection cover conditions that eliminate most standard PTZ options.
• You may need a different model if: You need simultaneous wide-area overview and zoomed detail coverage - a multi-sensor panoramic camera provides continuous full-scene coverage that a single-sensor PTZ cannot deliver while also zoomed in on a target.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single PTZ unit with confirmed extreme-environment credentials (IK10, IP67, -40°C heater, 8kV lightning) plus 25x optical zoom, 150m IR, and auto-tracking in one outdoor housing.
• You may need a different model if: Your application demands simultaneous full-scene overview and close-up detail without operator switching - a multi-sensor panoramic camera delivers both streams at once, which a single-sensor PTZ cannot do while zoomed in on a target.
• Pairs well with: A PoE+-capable NVR with PTZ control support and sufficient storage for 1080p/50fps streams, or an existing ONVIF-compatible VMS platform for preset management and auto-tracking integration.

Common Questions

1. Will this camera work with a standard PoE switch or NVR PoE port?

   No. The PTZ1A225U-IRA-N requires IEEE 802.3at PoE+, which delivers up to 30W per port. Standard IEEE 802.3af PoE ports are rated at 15.4W and will not provide enough power to run this unit. Before installation, confirm that every PoE port supplying this camera is rated at 802.3at. Most mid-to-high-end Dahua NVRs with PoE support 802.3at, but it must be checked against your specific model's specification sheet before ordering.

2. Does this camera work with non-Dahua NVRs and VMS platforms?

   Yes, with an important qualification. The camera supports ONVIF, so video streaming and basic PTZ directional control will work with any ONVIF-compliant platform. However, advanced functions such as auto-tracking triggers, IVS rule configuration, preset tour scheduling, and PFA focus control are typically only accessible through Dahua's own NVR firmware or DSS/DMSS software. If full feature access is a requirement, a Dahua-native platform is the reliable path.

3. How does the auto-tracking actually work - does it require an operator?

   No, once configured it operates without an operator. Auto-tracking can be triggered in 2 ways: manually by an operator selecting a target on-screen, or automatically when a predefined IVS rule fires - for example, a tripwire crossing or intrusion detection event. Once triggered, the camera autonomously pans, tilts, and zooms to keep the target in frame. When the target leaves the scene or stops moving beyond the configured threshold, the camera returns to its home position or resumes a patrol tour.

4. What is the pan/tilt range and are there mechanical stops?

   The camera supports 360° endless pan - there are no mechanical stops, so patrol tours can rotate continuously in one direction. Tilt range is 90°. Endless pan is a meaningful distinction from PTZ units with limited pan ranges (typically 355°) because it eliminates the gap in coverage caused by a physical stop, and allows continuous rotation patterns on outdoor perimeter applications without reversing direction.

5. How much storage does this camera require running at full frame rate?

   At 1080p/50fps with Smart H.265+ compression, actual bitrate varies significantly by scene complexity - but Smart H.265+ is confirmed to reduce storage requirements by up to 70% compared to standard H.265. For NVR storage sizing, use the camera's web interface bitrate calculator with your specific scene and quality settings rather than a fixed figure, as a moving outdoor scene at night with active IR will consume substantially more than a static low-activity scene. Security Australia's product listings include compatible NVR options with appropriate storage guidance.

6. What does PFA technology actually change about how the zoom performs?

   PFA (Predictive Focusing Algorithm) specifically addresses the delay and blur that occurs on conventional PTZ cameras when zooming - where the image goes soft as focal distance changes and the autofocus hunts for the new plane. PFA introduces predictive subject-distance calculations so the focusing system anticipates where focus needs to land during a zoom movement rather than reacting after the fact. In practice this means faster refocus times during zoom operations and cleaner tracking imagery when following a moving target at varying distances, which is particularly relevant for auto-tracking use cases on this camera.

7. Will this camera perform in Australian coastal or high-humidity environments?

   Yes. The IP67 rating means the housing is sealed against dust ingress and tested for water immersion, not just rain resistance - which exceeds the IP65 or IP66 ratings common on lighter outdoor cameras. The operating humidity ceiling is 95%. The IK10 impact rating adds protection against physical interference. For coastal sites specifically, the sealing quality of IP67 is the key factor in long-term housing integrity against salt-laden air, and the confirmed operating temperature range of -40°C to 70°C covers the full range of Australian climatic conditions.

8. Does the 2MP resolution limit identification capability at maximum 25x zoom?

   This is a genuine consideration. At full 25x zoom (2.6° field of view), the camera is resolving a very narrow slice of the scene with a 1920x1080 sensor. At longer distances - beyond 80-100m - identification-grade image quality (face recognition, number plate reading) depends heavily on subject size within frame, lighting conditions, and whether the subject is stationary or moving. The 2MP sensor is capable of useful identification at moderate distances, but if forensic-quality identification at the extreme end of the zoom range is a firm requirement, a higher-resolution PTZ platform will deliver more pixel density on target at maximum zoom.

Downloads & Resources

No downloads available for this product.
