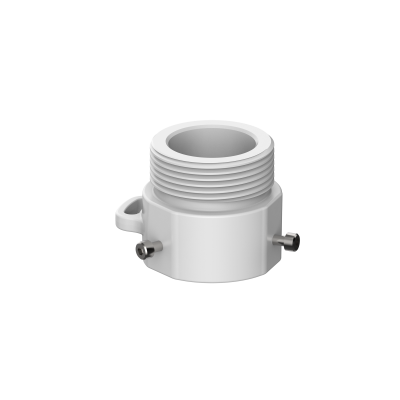

Dahua PFA7711 Mount Adapter – Aluminium Adapter Block for SD3D Series
- Sku: PFA7711
- Vendor: SecurityAustralia
The PFA7711 delivers a precise mounting solution for installers fitting Dahua SD3D series PTZ cameras to standard G1 1/2" pipe threads. Machined from aluminium, the adapter block is rated from -40°C to +60°C, making it suitable for demanding Australian outdoor environments. A straightforward accessory that ensures a secure, compatible fit without improvised hardware.
Why This Model
- SD3D series compatibility: Purpose-built to match the SD3D camera lineup, eliminating guesswork and ensuring a factory-correct fit during installation.
- Aluminium construction: The die-cast aluminium body resists corrosion and handles temperature extremes from -40°C to +60°C, holding up in harsh outdoor conditions.
- Standard G1 1/2" pipe thread: Designed around a widely used pipe thread standard, making it straightforward to integrate with common conduit and pole mounting setups on site.
Downloads & Resources
Product Spec Sheet (PDF)Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
Model: PFA7711
Who This Is For
When mounting an SD3D series PTZ camera and the existing conduit or pendant pipe uses a G1 1/2" threaded connection, the PFA7711 is the purpose-matched adapter block that bridges that pipe thread to the camera base. Installers fitting Dahua SD3D PTZ cameras to pole mounts, pendant arms, or structural conduit terminations will find this the correct mechanical interface rather than fabricating a workaround. Cast from aluminium and finished in white, it suits both indoor ceiling and covered outdoor applications where the SD3D series is being deployed. At 53mm in diameter and just 47.8mm tall, it adds minimal height to the overall camera stack. The operating temperature range of -40°C to +60°C means it holds up in harsh Australian outdoor conditions without material fatigue across seasons.
Download Product Datasheet (PDF)
What This Adapter Actually Does
G1 1/2" Pipe Thread Interface
The PFA7711 is machined to accept a G1 1/2" threaded pipe connection. This matches standard conduit and pendant arm terminations used in professional CCTV installations, making it a direct mechanical fit without thread adapters or improvised hardware.
Aluminium Construction
The casing is aluminium, giving the adapter a high strength-to-weight ratio at just 0.14 kg. It supports the SD3D camera body without flex or movement at the joint, which matters for PTZ accuracy and long-term pan/tilt alignment.
Wide Temperature Tolerance
Rated from -40°C to +60°C, the PFA7711 handles Australian climatic extremes - from cold highland winters to exposed rooftop summer heat - without dimensional change that could loosen the mount over time.
Compact Profile
At 53mm diameter and 47.8mm tall, this adapter adds very little height to the camera installation. That keeps the finished assembly tight against the ceiling or bracket and reduces the visual bulk of the mounted PTZ unit.
Who Buys This Model
- Security installers completing SD3D PTZ deployments: When the installation uses G1 1/2" pendant arms or conduit drops, the PFA7711 is the correct Dahua-specified adapter to complete the mount correctly.
- Project managers closing out camera installations: Sourcing the OEM adapter block rather than a field-fabricated solution keeps the installation compliant with Dahua's camera accessories selection and avoids warranty concerns.
- Maintenance teams replacing damaged mount hardware: If an existing PFA7711 is corroded, cracked, or has stripped threads, this is the direct like-for-like replacement for the adapter block without disturbing the pipe or camera.
- Electrical contractors roughing in conduit ahead of camera fitoff: Specifying G1 1/2" conduit terminations during the rough-in stage means the PFA7711 drops straight in at camera fitoff without rework.
Honest Assessment
The PFA7711 does one thing well: it provides a correctly specified, aluminium-bodied adapter block that mates a G1 1/2" threaded pipe or conduit to the Dahua SD3D series PTZ camera. The aluminium construction and -40°C to +60°C temperature rating mean it is not a compromised field workaround - it is a purpose-engineered component rated for outdoor use. The compact 53mm x 47.8mm footprint keeps the finished mount clean and professional. What this adapter will not do is serve any camera model outside the SD3D series - Dahua's camera accessories selection guide should be consulted to confirm compatibility before ordering. It is also not an all-in-one mounting solution; a suitable wall mount, ceiling mount, or pole bracket is required separately. The PFA7711 is available through Security Australia as a stocked accessory for SD3D PTZ installations.
Before You Buy
Compatibility Note: The PFA7711 is specified for the SD3D series only. Before ordering, cross-reference your PTZ camera model against Dahua's Camera Accessories Selection document (linked below) to confirm this is the correct adapter block for your specific SD3D variant. Using an incorrect adapter block on a PTZ camera can cause misalignment of the pan/tilt mechanism over the mount centreline.
Thread Confirmation: The PFA7711 uses a G1 1/2" pipe thread (British Standard Parallel Pipe - BSPP). Confirm your pendant arm or conduit termination uses this same thread standard before installation. G1 1/2" and NPT 1 1/2" are not interchangeable and will not seat correctly if mismatched.
Quick Fit Check
- Good match if: You are mounting a Dahua SD3D series PTZ camera onto a pendant arm or conduit drop with a G1 1/2" threaded termination and need the OEM aluminium adapter block to complete the installation.
- Good match if: You are working in an outdoor environment with significant temperature variation - the PFA7711's -40°C to +60°C operating range covers exposed rooftop and cold-climate installations where plastic adapter blocks would degrade.
- You may need a different model if: Your PTZ camera is from a different Dahua series or a different brand - a different mount adapter matched to that specific camera model will be the correct solution.
Key Features & Technical Specifications
Real-World Scenarios
How It Compares
- Choose this if: Your SD3D PTZ installation uses a G1 1/2" threaded pipe or pendant arm and you need the Dahua-specified aluminium adapter block to complete the mount correctly.
- You may need a different model if: Your camera is from a different Dahua series or requires a different pipe thread size - a different mount adapter specified to that camera model will be the appropriate solution.
- Pairs well with: Dahua SD3D series PTZ cameras, compatible Dahua wall mount brackets, pole mount brackets, and pendant arms with G1 1/2" threaded terminations.
Common Questions
-
Will the PFA7711 fit my Dahua PTZ camera?
Only if your PTZ is from the SD3D series. The PFA7711 is specified as an optional adapter block for the SD3D series. Dahua publishes a Camera Accessories Selection document that lists which adapter blocks apply to which camera models - this is the definitive reference before ordering. Using an adapter block not specified for your camera model risks incorrect seating at the mount interface. -
What pipe thread size does the PFA7711 use?
G1 1/2". This is a British Standard Parallel Pipe (BSPP) thread, which is commonly used on pendant arms and conduit fittings in professional CCTV installations. It is not the same as NPT 1 1/2" (American National Pipe Taper), so confirm your fitting standard before installation. The two thread forms will not engage correctly if mismatched. -
Is the PFA7711 suitable for outdoor use?
Yes, based on its operating temperature rating. The aluminium casing and -40°C to +60°C operating range make it suited to outdoor mounting positions including exposed rooftops, industrial yards, and cold-climate sites. The confirmed specifications do not include an IP ingress rating for the adapter block itself - in exposed outdoor positions, ensure the overall camera housing provides the required weather protection. -
Does this adapter come with a full mounting kit?
No. The PFA7711 is an adapter block only. It does not include a wall mount bracket, pole mount, pendant arm, or ceiling bracket. It is a single component that connects a G1 1/2" threaded pipe or arm to the SD3D camera base. A compatible Dahua mounting bracket appropriate for your structure type is required separately. The Camera Accessories Selection document from Dahua lists the compatible bracket options for SD3D series installations. -
How heavy is the PFA7711 and will it add significant weight to the installation?
At 0.14 kg, it adds negligible weight to the camera assembly. The aluminium construction delivers the required structural rigidity to support the SD3D PTZ camera through its pan and tilt movements without requiring a heavy or oversized adapter block. The 53mm diameter and 47.8mm height also keep the overall mount profile compact. Contact Security Australia if you need further details on load ratings or structural compatibility with specific bracket types. -
Do I need this adapter for every SD3D PTZ installation?
No - it is listed as an optional accessory. The PFA7711 is required specifically when your mounting arrangement uses a G1 1/2" threaded pipe interface. Installations using standard wall mount brackets or other bracket types that connect directly to the camera base without a pipe thread termination will not require this adapter block.
