Dahua PFA152-E Pole Mount Bracket

Model: PFA152-E

Who This Is For

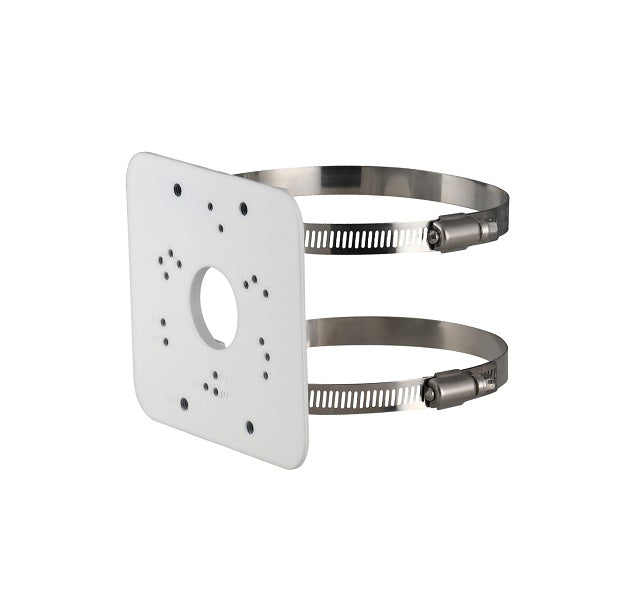

Property managers specifying camera installations on light poles, signage columns, or flagpoles will find the Dahua PFA152-E fills the gap between a standard wall bracket and a purpose-built pole solution. The PFA152-E is a pole mount bracket designed to attach compact cameras to round poles ranging from 80 mm to 150 mm in diameter - covering most standard street poles, carpark pillars, and freestanding bollard-style posts. It suits installers who need a clean, low-profile mount without fabricating a custom solution on site. The aluminium alloy bracket body keeps weight down at 260 g, while the SUS 304 stainless steel hoop resists corrosion in exposed outdoor environments. With a 3.0 kg load rating, it handles the majority of compact dome, turret, and bullet cameras commonly deployed in car parks, driveways, and perimeter applications.

Download Product Datasheet (PDF)

What This Bracket Actually Does

Who Buys This Model

• CCTV Installers: Deploying cameras on carpark lighting poles or driveway entry posts where there is no wall or soffit available and pole diameter falls in the 80-150 mm range.
• Facilities Managers: Expanding existing camera networks by adding coverage to freestanding poles on perimeter fencing lines or in open yard areas without the need to run new conduit to a wall.
• Electrical Contractors: Fitting cameras to street lighting poles as part of council or commercial precinct surveillance upgrades, where the pole diameter varies across the site and a single adjustable bracket simplifies the job.
• Security System Integrators: Specifying Dahua camera systems and sourcing a matched Dahua bracket to maintain a consistent, warranty-aligned installation without sourcing third-party mounting hardware.

Honest Assessment

The PFA152-E does what a pole mount bracket needs to do without overcomplicating the install. The adjustable SUS 304 hoop handles a genuinely useful 80-150 mm pole diameter range, the aluminium body keeps the assembly light, and the 3.0 kg load rating covers the vast majority of compact surveillance cameras. The white finish is consistent with standard Dahua camera housings, which makes for a tidy-looking finished installation. Available through Security Australia, it suits straightforward pole deployments where a no-fuss, manufacturer-matched bracket is preferable to fabricating something on site. Where it will not serve you is on heavy cameras - PTZ units and multi-sensor panoramic cameras routinely exceed 3.0 kg and need a heavy-duty pole mount rated accordingly. It also is not suited to square or rectangular structural columns, which require a flat-back wall bracket rather than a hoop-style clamp.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a compact dome, turret, or mini-bullet camera (under 3.0 kg) to a round pole between 80 mm and 150 mm in diameter - this is exactly the scenario the PFA152-E is designed for.
• Good match if: You need a corrosion-resistant mounting solution for an exposed outdoor pole location and want the security of a SUS 304 stainless steel hoop rather than a standard mild steel clamp.
• You may need a different model if: Your camera weighs more than 3.0 kg or is a PTZ unit - a heavy-duty pole mount bracket with a higher load rating would be the more appropriate product type for those applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your camera weighs under 3.0 kg and the pole diameter is confirmed to fall between 80 mm and 150 mm - the PFA152-E handles that combination cleanly with no modification required.
• You may need a different model if: You are mounting a PTZ or multi-sensor camera that exceeds the 3.0 kg load limit - a heavy-duty pole mount bracket with a higher rated capacity is the appropriate product type for those camera weights.
• Pairs well with: Compact dome, turret, or mini-bullet cameras in the Dahua range, used in conjunction with a compatible surface or junction box where a tidy cable entry point is needed at the base of the mount.

Common Questions

1. Will this bracket fit the pole on my site?

   It depends on your pole diameter. The PFA152-E hoop adjusts to fit round poles between 80 mm and 150 mm in diameter. If your pole falls outside that range - narrower than 80 mm or wider than 150 mm - this bracket will not seat correctly and you will need a different mount rated for your pole size. Measure before ordering.

2. What is the maximum camera weight the PFA152-E can support?

   The rated load bearing capacity is 3.0 kg. Most compact dome, turret, and mini-bullet cameras fall well within this limit. Before specifying, check the net weight of the camera body you intend to mount - if you are adding a junction box or surface mount adapter between the bracket and the camera, factor that hardware weight into the total as well.

3. Is the PFA152-E suitable for outdoor use?

   Yes. The hoop is SUS 304 stainless steel, which provides corrosion resistance in standard outdoor conditions including rain and humidity. The aluminium alloy bracket body also resists corrosion. For installations in direct marine environments with heavy ongoing salt spray, assess whether a higher-specification stainless pole mount would be more appropriate for the long-term service life required on your site.

4. Does this bracket work with non-Dahua cameras?

   It can, provided the camera mounting interface is compatible and the camera weight does not exceed 3.0 kg. The PFA152-E is a general pole mounting plate rather than a proprietary Dahua-only fitting. The bracket mounts to the pole via the stainless steel hoop; how the camera attaches to the bracket plate depends on the camera's own base mounting pattern. Confirm the mounting hole pattern of your camera against the bracket dimensions before purchasing.

5. Will this bracket suit a PTZ camera?

   No, not for most PTZ units. PTZ cameras are typically heavier than 3.0 kg once the motor housing and optics are included, and they require a pole mount bracket specifically rated for higher loads and the torque forces generated by pan-tilt movement. If you are deploying a PTZ on a pole, look for a heavy-duty pole mount bracket with a load rating that matches the PTZ camera's specifications. Security Australia stocks a range of mounting hardware suited to different camera types and weights.

6. What colour is the PFA152-E and will it match my camera?

   The bracket is white. This matches the standard housing colour of the majority of Dahua compact cameras. If your camera is a dark grey or black model, the white bracket will be a visible contrast against the camera body, which may be a consideration in aesthetics-sensitive installations such as retail or hospitality environments.

Downloads & Resources

• Product Spec Sheet (PDF)
