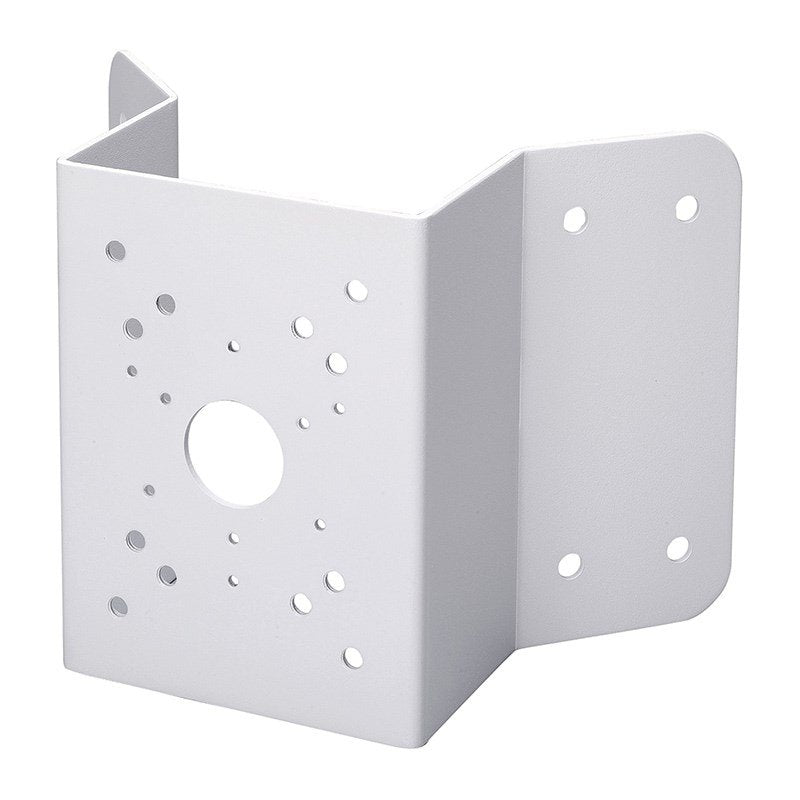

Dahua DH-PFA151 Corner Mount Bracket

Model: PFA151

Who This Is For

Property managers and installers specifying camera positions on building corners will find the Dahua PFA151 Corner Mount Bracket a practical solution for one of the most common installation challenges - getting a camera onto a 90-degree wall junction without improvised hardware. Corners are high-value camera positions that cover two approaches simultaneously, and the PFA151 is purpose-built for that placement. Constructed from SECC steel and rated across a -40°C to +60°C operating temperature range, it suits both indoor and outdoor installs across Australian conditions. With a 10 kg load-bearing rating, it accommodates a wide range of Dahua dome, turret, and bullet-style cameras. The white finish keeps the install clean and unobtrusive, while the bracket dimensions of 243 x 170 x 138 mm provide the standoff geometry needed to position a camera cleanly over a wall corner without awkward angles.

Download Product Datasheet (PDF)

What This Bracket Actually Does

Who Buys This Model

• Residential installers: Fitting Dahua turret or dome cameras to the front corners of homes where a single camera position needs to cover both the driveway approach and a side path simultaneously.
• Commercial fitout contractors: Mounting cameras at shopfront corners or building perimeter corners where two car park rows or footpath approaches intersect and a single camera position reduces total camera count.
• Industrial site security teams: Positioning cameras at warehouse or factory building corners, where the -40°C to +60°C operating range ensures the bracket holds alignment year-round in exposed conditions.
• Strata and body corporate managers: Specifying a consistent, low-profile mounting solution across common-area corners in apartment complexes where aesthetics and structural integrity both matter to owners corporations.

Honest Assessment

The PFA151 solves a specific problem well: getting a Dahua camera onto a 90-degree building corner without fabricating a custom mount or stacking adapters. The SECC steel construction, 10 kg load rating, and wide operating temperature range give it genuine longevity in outdoor use. The white finish suits the majority of Australian residential and light commercial fascia without requiring a paint match. Available through Security Australia, it is a straightforward procurement item for installers who are already specifying Dahua cameras and want a bracket that is rated and tested for the same conditions. Where it will not help is if your corner is not a standard 90-degree junction - irregular angles, round columns, or masonry pillars with deep reveals will need a different mounting approach. It is also not a pole mount or parapet bracket, so flat roofline or freestanding post positions require a different product type.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a Dahua dome or turret camera to a standard 90-degree external or internal building corner and need a rated, purpose-built bracket that does not require any fabrication or improvised hardware.
• Good match if: The install is in an exposed outdoor location where the bracket needs to handle Australian temperature extremes - the -40°C to +60°C operating rating and SECC steel construction make it suitable for year-round outdoor use.
• You may need a different model if: Your mounting surface is not a standard 90-degree corner - irregular angles, round columns, free-standing poles, or flat parapet walls each call for a different bracket type, which you can find in the camera accessories range on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your camera position is specifically at a 90-degree wall corner and you want a Dahua-matched, rated bracket with SECC steel construction and a 10 kg load rating rather than a generic third-party mount.
• You may need a different model if: Your mounting surface is a flat wall, ceiling, pole, or parapet - each of those positions has a dedicated bracket type in the Dahua accessories range on securityaustralia.com.au that will fit cleaner and hold more securely than adapting a corner bracket.
• Pairs well with: Dahua outdoor dome, turret, or eyeball cameras - the bracket's mounting dimensions and cable entry geometry are designed around Dahua's own compact outdoor camera housings.

Common Questions

1. Will the PFA151 work with any Dahua camera or only specific models?

   Not all Dahua cameras - compatibility depends on the camera's mounting footprint. The PFA151 is designed for a range of Dahua dome, turret, and compact outdoor cameras, but you need to check your specific camera model against Dahua's Camera Accessories Selection guide. The bracket mount interface, bolt pattern, and cable routing are matched to Dahua's own housing designs, so third-party cameras may not align correctly without additional adapter hardware.

2. Is the PFA151 rated for outdoor use in Australian conditions?

   Yes. The PFA151 carries a confirmed operating temperature range of -40°C to +60°C and operates up to 90% relative humidity, covering the full range of Australian outdoor conditions from alpine cold to summer heat on exposed north- and west-facing walls. The SECC steel casing resists corrosion in coastal and high-humidity environments, though proximity to direct salt spray should always factor into bracket selection.

3. What is the maximum camera weight the PFA151 can support?

   The confirmed load-bearing rating is 10 kg. Most Dahua compact dome and turret cameras weigh between 300 g and 800 g, so the bracket carries significant headroom above actual camera weight. That margin matters under wind load and vibration on exposed corners, where cyclical stress on mounting hardware over time is more of a concern than static weight alone.

4. Does this bracket work on internal building corners, not just external ones?

   Yes. The PFA151 mounts to any standard 90-degree corner - internal or external. For indoor installs such as corridor intersections, stairwell corners, or retail floor junctions, the same geometry applies. Indoor use removes the weather and temperature concerns, but the bracket dimensions (243 x 170 x 138 mm) are worth measuring against ceiling height clearance in tighter indoor spaces before ordering.

5. Does the PFA151 include all fixing hardware, or do I need to source anchors separately?

   Dahua includes necessary hardware with the bracket, but the appropriate wall anchor type will depend on your substrate. The bracket's net weight of 1.7 kg plus camera load means fixings into hollow masonry or lightweight cladding need to be independently rated - standard plastic plugs into render over light gauge steel framing are not adequate. Select anchors to suit the wall structure, not just the bracket's rated load. If you are unsure, the team at Security Australia can advise on compatible installation hardware.

6. Will this bracket allow cable concealment behind the wall?

   Partial concealment is possible. The PFA151's design routes the camera cable through the bracket body and into the wall at the corner junction point, which reduces visible cable run compared to a surface-mounted bracket on a flat wall. Full in-wall cable concealment depends on whether your wall construction allows a chase or conduit to run to the corner junction - this is a site-specific consideration rather than a bracket limitation.

Downloads & Resources

• Product Spec Sheet (PDF)
