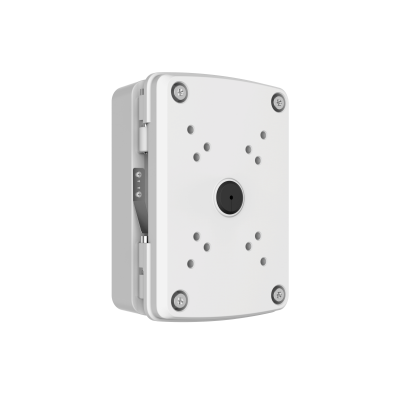

Dahua PFA126 Junction Box

Model: PFA126

Who This Is For

For installers who need a clean, weatherproof wiring solution behind PTZ and larger Dahua cameras mounted on walls, poles, or ceilings. The Dahua PFA126 Junction Box is an aluminium alloy enclosure designed to sit between the camera base and the mounting surface, housing cables, connectors, and terminations out of sight and out of the weather. At IP66 rated, it handles direct water jets and dust ingress, which makes it a practical addition to outdoor installations where exposed cabling is a liability. The anti-dropping structure adds a layer of safety during installation and ongoing use - useful on elevated mounts where a dropped fitting causes real problems. At 228.4 mm x 160.4 mm x 84.7 mm, the PFA126 offers enough internal volume for connectors and cable loops without adding unnecessary bulk to the finished install. Suited to professional installers, systems integrators, and security contractors specifying tidy outdoor camera deployments.

Download Product Datasheet (PDF)

What This Actually Does

Who Buys This Model

• Security Installers on Commercial Sites: Contractors mounting Dahua PTZ cameras on external walls or poles where exposed conduit entries and cable tails are not acceptable to the client or do not meet tidy installation standards.
• Systems Integrators Specifying Complete Dahua Builds: Integrators who include the PFA126 as part of a full Dahua accessory specification to ensure camera mounting, cable containment, and weatherproofing are addressed with matched components.
• Maintenance Teams Retrofitting Existing Cameras: Facilities teams or service technicians adding proper weatherproof cable housing to an existing camera mount that previously had bare or inadequately protected wiring entries.
• Installers Working in Harsh Environments: Those deploying cameras at industrial sites, coastal properties, or in regions with extreme temperature ranges where standard plastic junction solutions degrade prematurely and the aluminium alloy construction is the appropriate material choice.

Honest Assessment

The PFA126 does its job without compromise: aluminium alloy construction, genuine IP66 rating, and an 8.0 kg load-bearing capacity make it a durable long-term addition to any outdoor Dahua camera mount. The anti-dropping feature is a practical safety benefit that cheaper junction boxes don't provide, and the operating temperature range of -40°C to +60°C makes it suitable for installations that would crack or warp a standard plastic enclosure. The internal dimensions are adequate for most Cat5e/Cat6 and power cable terminations without forcing sharp bends on connectors. Where the PFA126 has limits: it is a Dahua-specific accessory and compatibility should be confirmed against your specific camera model via Dahua's Accessory Selection guide before purchase. It is not a universal junction box, and forcing it onto non-specified camera bases risks both fit and warranty. Available through Security Australia as part of the broader Dahua accessories range.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a compatible Dahua PTZ or larger network camera outdoors and need a weatherproof, neat cable enclosure that meets IP66 and handles the full camera weight up to 8.0 kg.
• Good match if: The installation is in a high-heat, high-cold, or coastal environment where plastic junction enclosures are unsuitable and aluminium alloy construction with a -40°C to +60°C rating is the appropriate specification.
• You may need a different model if: Your camera is not listed as compatible with the PFA126 in Dahua's Accessory Selection guide - Dahua produces a range of junction box sizes and profiles, and a different junction box model will be the correct fit for cameras outside this unit's compatibility list.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need an IP66-rated, aluminium alloy junction box that is confirmed compatible with your Dahua camera model and you want a load-bearing, anti-drop enclosure rated down to -40°C for demanding outdoor conditions.
• You may need a different model if: Your camera is a smaller body type or a different Dahua product family - Dahua produces multiple junction box sizes and profiles, and the correct matching junction box for your specific camera will be a different model within the same accessories range.
• Pairs well with: Dahua PTZ cameras and larger fixed cameras that are specified as compatible, along with matching Dahua pole mount brackets or wall mount brackets that provide the base structure the PFA126 attaches to.

Common Questions

1. Is the PFA126 compatible with all Dahua PTZ cameras?

   No. The PFA126 is not universally compatible with every Dahua PTZ camera model. Dahua publishes a Camera Accessories Selection guide that lists which junction box is the correct fit for each specific camera SKU. Checking your camera model against that guide before purchase is essential - using an incorrectly matched junction box risks an imperfect seal at the camera-to-box interface, which undermines the IP66 rating at that join.

2. What does the IP66 rating mean in practical terms for an outdoor install?

   IP66 means the enclosure is fully dust-tight and protected against powerful water jets from any direction. In practice, this covers rain, building washdowns, and pressure cleaning around the camera mount area. It does not mean the enclosure is submersible - if the mounting location is subject to standing water or flooding, a higher IP rating (IP67 or IP68) would be required, and a different product type would be appropriate.

3. Will the PFA126 hold a heavy Dahua PTZ camera safely?

   Yes, up to 8.0 kg. The confirmed load-bearing capacity of 8.0 kg covers most Dahua PTZ camera housings. If your camera and any additional mounting hardware exceeds this figure, the PFA126 is not the appropriate load-bearing component and a heavier-rated bracket or mount should be specified as the primary structural support.

4. Can this junction box be used indoors as well as outdoors?

   Yes. The IP66 rating and aluminium alloy construction are specified for outdoor use, but there is no restriction on indoor installation. For indoor-only environments where weather protection is not a requirement, the PFA126 remains a functional choice - though a lower-cost junction box may be adequate if the confirmed compatibility with your camera model is the primary reason for selecting a Dahua-branded accessory.

5. Does the anti-dropping structure mean it holds itself to the wall without bolts?

   No. The anti-dropping feature is a retention mechanism that holds the junction box in position during installation before the final fixing bolts are fully tightened - it is a safety feature for the installer, not a substitute for proper mechanical fastening. The box must still be secured to the mounting surface with the provided fixings for a complete, rated installation.

6. What cable types and sizes fit inside the PFA126?

   The confirmed internal dimensions are 228.4 mm x 160.4 mm x 84.7 mm, which provides sufficient volume for standard Cat5e or Cat6 RJ45 connectors, power cable terminations, and a service loop without forcing tight bends. Exact cable entry point sizes are not confirmed in the published specification - check the datasheet PDF for conduit knockout dimensions if you are pre-planning conduit entry sizing. The datasheet is linked below in Downloads and Resources, as supplied by Security Australia.

Downloads & Resources

• Product Spec Sheet (PDF)
