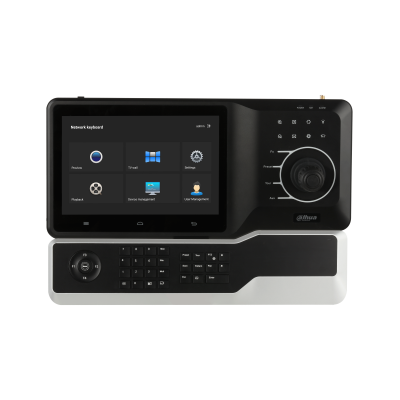

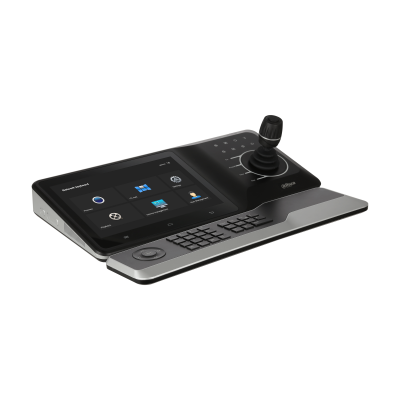

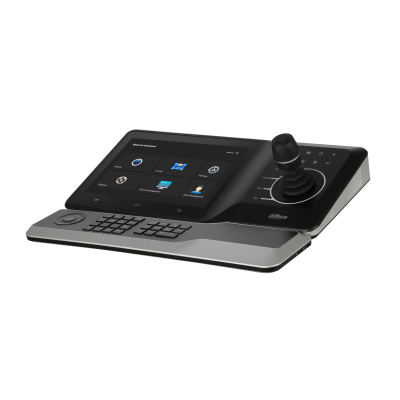

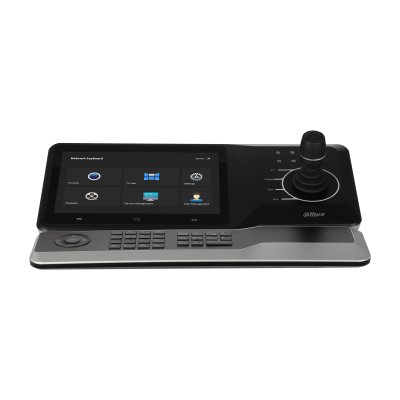

Dahua NKB5200, HD Network PTZ Controller Keyboard

Model: DHI-NKB5200

Who This Is For

For security integrators and monitoring centre operators who need hands-on physical control of PTZ cameras across a network, the Dahua NKB5200 HD Network PTZ Controller Keyboard is built for exactly that environment. Where mouse-driven software control is too slow or imprecise for live tracking scenarios, this keyboard puts a 3-axis joystick and direct shortcut keys into the operator's hands. It suits control rooms managing multiple PTZ cameras across an NVR, DVR, or IP network - think shopping centre security desks, transport hubs, large commercial sites, and correctional facilities where an operator needs to pan, tilt, zoom, and call presets without navigating software menus. It connects directly over a network, making it suitable for both on-site control rooms and remote monitoring stations. If your installation includes a PTZ camera and a dedicated monitoring position, the NKB5200 is the purpose-built interface that replaces software-only control with a responsive, tactile operator workstation.

What This Camera Actually Does

Who Buys This Model

• Control Room Operators: Monitoring centres managing multiple PTZ cameras across a Dahua NVR network who need physical joystick control for live incident tracking rather than software-only interfaces.
• Shopping Centre Security Teams: In-house security desks where an on-duty guard needs to pan, tilt, and zoom PTZ cameras in real time to follow activity across a large floor area or car park.
• Transport and Infrastructure Operators: Sites such as bus depots, ports, or logistics hubs where PTZ cameras cover wide-area approaches and dedicated keyboard control allows faster response to vehicle or personnel movement.
• Security System Integrators: Installers completing a Dahua PTZ deployment who need to supply a professional operator interface alongside cameras and recorders, replacing temporary software control with a permanent workstation peripheral.

Honest Assessment

The NKB5200 does what a PTZ keyboard is supposed to do well: it puts tactile, low-latency joystick control into an operator's hands over a standard IP network, removing the friction of mouse-driven PTZ management during live events. The 3-axis joystick, dedicated function keys, and on-board LCD make it a practical addition to any control room running Dahua PTZ cameras and recorders. It is particularly useful in environments where response time matters and operators are managing multiple camera positions simultaneously. What it will not do is extend compatibility to non-Dahua systems - this keyboard is designed to work within the Dahua ecosystem and is not a universal PTZ controller for third-party brands or older serial-only cameras without an appropriate network converter. It is also not a standalone display device - it requires an existing monitor and NVR setup to be useful. The NKB5200 is available through Security Australia as part of a complete Dahua PTZ control room configuration.

Before You Buy

Quick Fit Check

• Good match if: You are running a Dahua PTZ camera system with a dedicated monitoring position and need an operator to physically control pan, tilt, zoom, and presets in real time without navigating on-screen software menus.
• Good match if: Your control room manages multiple Dahua NVRs and PTZ cameras across a network and a single keyboard operator needs to switch between devices and channels quickly using direct address input and shortcut keys.
• You may need a different model if: Your site runs non-Dahua PTZ cameras or mixed-brand systems - a universal PTZ keyboard with broader protocol support would be a more suitable product type for cross-brand control room environments.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site runs Dahua PTZ cameras or NVRs and you need a dedicated physical operator interface with a 3-axis joystick, function keys, and LCD confirmation - replacing or supplementing software-only control at a monitoring desk.
• You may need a different model if: Your installation includes non-Dahua PTZ cameras or a mixed-brand recorder environment - a universal PTZ keyboard product type with broader multi-protocol support would be more appropriate for cross-brand control rooms.
• Pairs well with: Dahua network PTZ cameras and Dahua NVRs connected on the same IP network, forming a complete operator workstation when combined with a video wall display or monitor setup.

Common Questions

1. Will the NKB5200 work with any PTZ camera brand, or is it Dahua-only?

   It is designed for use within the Dahua ecosystem. The NKB5200 uses Dahua's network protocol to discover and control Dahua NVRs, DVRs, and network PTZ cameras. It is not a universal keyboard and will not natively control PTZ cameras from other manufacturers. If your site runs a mixed-brand system, a different keyboard product type with multi-protocol support would be required.

2. Does this keyboard connect over a network or does it need a direct serial cable to each camera?

   It connects over an IP network. The NKB5200 uses an Ethernet connection to communicate with Dahua NVRs and PTZ cameras on the same network, so no direct serial cable runs to individual cameras are required. This makes it practical for modern IP-based installations where cameras and recorders are spread across a building or site.

3. How does the NKB5200's joystick handle PTZ control compared to using software on a PC?

   Physical joystick control is significantly more responsive and precise for live tracking than mouse-driven software. The NKB5200's 3-axis joystick allows simultaneous pan, tilt, and zoom adjustment with variable speed based on joystick deflection, whereas software interfaces require the operator to click and drag or use on-screen arrows - slower during a real incident. Dedicated keys for iris, focus, and presets also remove the need to navigate menus mid-operation.

4. Can 1 NKB5200 keyboard control multiple NVRs and PTZ cameras across a site?

   Yes. A single NKB5200 can address multiple Dahua NVRs and PTZ cameras across the same IP network by switching the target device using the keyboard's address input. The LCD display confirms which device and channel are currently selected, so operators working across multiple buildings or zones from one desk can switch between them without additional hardware.

5. Does the NKB5200 require PoE, or does it need its own power supply?

   It requires a 12V DC power supply - it does not receive power over the network connection. A separate power adapter must be available at the operator's desk alongside the Ethernet cable. Plan for both a network port and a power outlet at the keyboard location when designing the control room desk layout.

6. How does the NKB5200 handle PTZ preset management during a live operation?

   Preset calling is handled via dedicated shortcut keys on the keyboard, allowing operators to instantly move a PTZ camera to a pre-programmed position - such as a building entrance, gate, or specific zone - without navigating on-screen menus. Presets are configured and stored in the Dahua NVR or PTZ camera itself; the keyboard simply sends the call command over the network. This is particularly useful in control rooms where operators need to cover known positions quickly in response to alarms or incidents. The stocked by Security Australia range includes compatible Dahua PTZ cameras with multi-preset support to pair with this keyboard.

7. Will this keyboard work for controlling PTZ cameras connected to a Dahua NVR, or does it need to address the cameras directly?

   It works both ways. The NKB5200 can connect to a Dahua NVR and control PTZ cameras through the recorder, or it can address network PTZ cameras directly on the same IP network. In most control room installations, connecting through the NVR is the standard approach as it allows the keyboard to also access recording functions, channel switching, and playback controls alongside PTZ movement.
