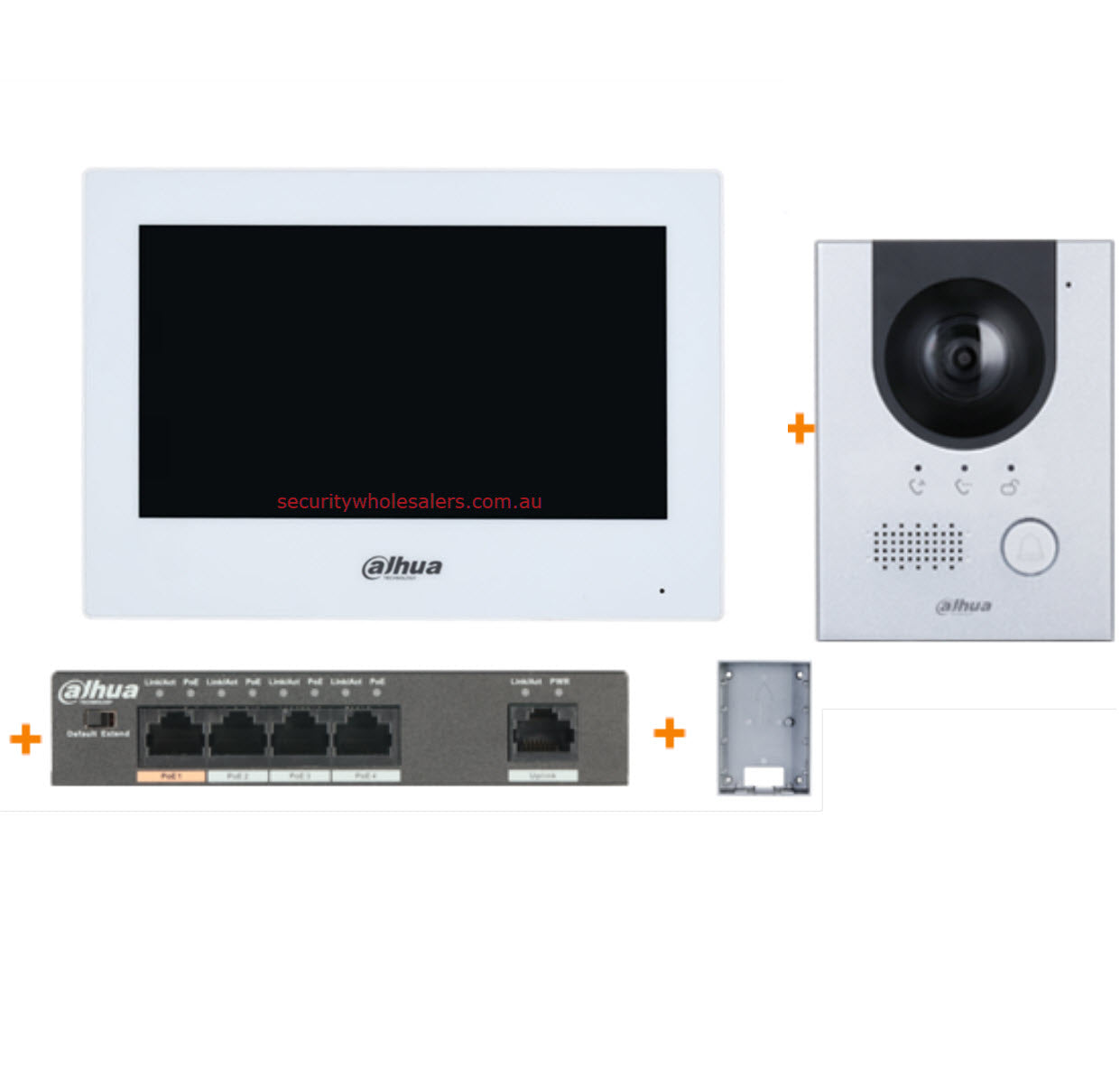

Dahua KTP01L-AUS 7inch Touch Screen IP Video Intercom Kit

$480.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

IP Villa Outdoor Station & Indoor Monitor

The Dahua KTP01L-AUS is a comprehensive IP Villa Outdoor Station and Indoor Monitor system designed to enhance security and communication for residential environments. The outdoor station features a 2 MP wide-angle camera with night vision, ensuring clear video footage even in low-light conditions.

Dahua Intercom Kit includes:

IP Indoor Monitor

The Dahua IP Indoor Monitor VTH2621G(W)-P is a sleek and modern device designed for high-quality video intercom communication. It features a 7-inch capacitive touchscreen with a resolution of 1024×600, offering clear and vibrant visuals. The monitor supports two-way audio communication with noise suppression and echo cancellation, ensuring crystal-clear conversations. It can be connected to a network via PoE, simplifying installation by combining power and data through a single cable.

Key Features

  • 7" TFT capacitive touch screen, 1024 × 600.
  • 6-channel alarm input and 1-channel alarm output.
  • Standard PoE.
  • Door station and IPC monitor.
  • H.265 and H.264 video decoding.
  • High performance & cost-effective.

Code/SKU: DHI-VTH2621G-P
Quick Specs:

  • Network Protocol: RTSP; RTP; SIP; DNS; SSH
  • ROM: 128 MB
  • RAM: 128 MB
  • CPU: Dual core 1.2 GHz



6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports

The DH-PFS3006-4ET-60 is a versatile 6-port unmanaged desktop switch designed for small to medium-sized network environments. It features four PoE (Power over Ethernet) ports, which provide power and data connectivity to compatible devices such as IP cameras, VoIP phones, and wireless access points. With a 10/100Mbps speed, it ensures reliable data transmission for everyday networking needs.

* The parameters and datasheets below can only be applied to V2.0 (version 2.0)

Key Features

  • Layer two commercial switch
  • Supports IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3x standards
  • MDI/MDIX self-adaptation
  • RJ-45 port supports 10/100 Mbps self-adaptation and conforms to 802.3at and 802.3af power supply standards
  • Port 1 supports Hi-PoE 60W power supply
  • 250 m PoE power supply
  • Wall mounting and mechanical anti-theft
  • 53V DC power supply
  • Supports PoE watchdog

Code/SKU: DH-PFS3006-4ET-60
Quick Specs:

  • Power Supply: 53V DC
  • Operating Temperature: –10°C to +55°C (+14°F to +131°F)
  • Operating Humidity: 5%–95%
  • Storage Temperature: –20°C to +70°C (–4°F to +158°F)
  • Storage Humidity: 5%–95%



2-wire IP Villa Door Station

The 2-wire IP Villa Door Station VTO2202F-P-S2 from Dahua is a versatile and secure solution for residential access control. It features a 2 MP wide-angle camera that provides clear video for identifying visitors, even in low-light conditions, thanks to its infrared night vision. The door station supports two-way audio communication with noise suppression and echo cancellation, ensuring clear conversations.

Key Features

  • Anodized aluminum front panel.
  • CMOS low illumination 2MP HD colorful 160° fisheye camera.
  • Video intercom function.
  • Access control function that supports two locks.
  • Mobile phone app, talk to the visitor or unlock the door remotely on your phone.
  • Compatible with 2-wire interface & RJ45 interface.
  • IK07 & IP65 rated.
  • Supports H.265.
  • Supports surface and flush mount.
  • PoE (Power over Ethernet) enabled.

Code/SKU: VTO2202F-P-S2
Quick Specs:

  • Camera: 1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera
  • Field of View: Horizontal: 168.6°; Vertical: 87.1°; Diagonal: 176.7°
  • Focal Length: 1.9 mm
  • WDR: 120 dB
  • Noise Reduction: 3D NR
  • Video Compression: H.265



VTM05R Rain Cover

The VTM05R Rain Cover by Dahua Security is designed to protect outdoor cameras from harsh weather conditions, ensuring reliable performance in rainy environments. It is constructed with high-quality, weather-resistant materials to shield your camera from water damage and dust.

Key Features

  • Surface-mounted rain cover for VTO2202F

Code/SKU: VTM05R
Quick Specs:

  • Protection Grade: IP65 (silicone sealant is needed)
  • Net Weight: 309 g
  • Gross Weight: 501 g

Specifications

DHI-VTH2621G-P

System

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Interoperability

ONVIF; SDK

Network Protocol

RTSP; RTP; SIP; DNS; SSH

ROM

128 MB

RAM

128 MB

CPU

Dual core 1.2 GHz

Basic

Screen Type

Capacitive touchscreen

Display

7" TFT

Screen Resolution

1024 × 600

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

2-way Audio

Audio Enhancement

Echo suppression

Audio Bit Rate

16 kHz; 16 bit

Function

Communication Mode

Full digital

Information Release

Receive and view text information released by the management center

Leave Videos

Yes (SD card inserted in VTO is needed)

DND Mode

Do not disturb period can be set; Do not disturb mode

Number of Extensions

Villa: 9
Apartment: 4

Performance

Casing

PC + ABS

Port

Alarm Input

6

Alarm Output

1

Door Bell

Yes (use any alarm input port)

Network

One 10/100 Mbps Ethernet

Storage

Micro SD Card, Max 64 GB (reserved for software)

General



Appearance Color

Black/White

Power Supply

12 VDC 1A;
Standard PoE (36–57 V, 0.35 A)

Installation

Surface Mount

Certifications

CE; FCC

Dimensions

189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00")

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–95% RH (non-condensing)

Operating Altitude

Beneath 3,000 m (9,842.52 ft)

Power Consumption

Standby ≤ 2 W; working ≤ 6 W

Net Weight

0.34 kg (0.74 lb)

Gross Weight

0.58 kg (1.27 lb)



DH-PFS3006-4ET-60


Hardware
Ethernet Port 4
Optical Port 0
Ethernet Port Rate 100 Mbps
Number of Business Card Slots Port 1–4: 4 × RJ-45 10/100 M (PoE)
5–6: 2 × RJ-45 10/100 M (uplink)
Power Supply 53V DC
Operating Temperature –10°C to +55°C (+14°F to +131°F)
Operating Humidity 5%–95%
Storage Temperature –20°C to +70°C (–4°F to +158°F)
Storage Humidity 5%–95%
Power Consumption Idling: 1.5W
Full load: 60W
Performance
Switching Capacity 1.80 Gbps
Packet Forwarding Rate 0.89 Mpps
Packet Buffer Size 1 Mbit
MAC Table Size 2K
Communication Standard IEEE802.3, IEEE802.3u, IEEE802.3x
PoE
PoE Standard IEEE802.3af/IEEE802.3at/Hi-PoE
PoE Power 60W
PoE Power Consumption 60W
Management Yes
PoE Pin Assignment PoE/Hi-PoE: 1, 2, 4, 5 (V+)
3, 6, 7, 8 (V-)
Far Distance Mode 250 m @10 Mbps
General
ESD Air discharge: 8kV
Contact discharge: 6kV
Thunderproof Common mode: 2kV
Differential mode: 1kV
Net Weight 0.3 kg (0.66 lb)
Gross Weight 0.9 kg (1.98 lb)
Product Dimensions 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")



VTO2202F-P-S2

System

Main Processor

Embedded processor

Operating System

Embedded Linux Operation System

Button Type

Mechanical

Interoperability

ONVIF; CGI

Network Protocol

SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP

Basic

Camera

1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera

Field of View

Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°

Focal Length

1.9 mm

WDR

120 dB

Noise Reduction

3D NR

Video Compression

H.265

Video Resolution

50Hz:

Main Stream (720P@25 fps), sub stream (1080P@25 fps)

60Hz:

Main Stream (720P@30 fps), sub stream (1080P@30 fps)

Video Frame Rate

25 fps

Video Bit Rate

256 Kbps to 4 Mbps

Light Compensation

Auto IR

Day/Night

Auto (ICR)

Audio Compression

G.711a; G.711u; PCM

Audio Input

1 channel

Audio Output

Built-in speaker

Audio Mode

2-way voice communication

Audio Enhancement

Echo suppression, digital noise reduction

Audio Bit Rate

16 KHz, 16 Bit

Status Indicator Light

3

Port



RS-485 Port

1

Alarm Output

1

Power Output

1-ch 12 VDC 100mA

Exit Button

1

Door Status Detection

1

Lock Control

1

Network Port

One RJ45 10M, 100M network port

Storage

Micro SD card (up to 64GB)

General

Appearance color

Silver

Power Supply

Dahua 2-wire switch (max. power supply distance 50 m)
DC 48V 1A
Standard PoE

Power Adapter

Optional

Installation

Flush, surface mount

Certifications

CE; FCC; UL

Accessory

Flush/surface mount

Product Dimensions

130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")

Protection

IK07; IP65

Operating Temperature

–30°C to +60°C (–22°F to 140°F)

Operating Humidity

10%–90% (RH, non-condensing)

Operating Altitude

0 m–3000 m

Power Consumption

≤ 12W

Net Weight

0.35 kg (0.77 lb)

Gross Weight

0.4 kg (0.88 lb)



VTM05R

Performance

Casing

Aluminum alloy

General

Color

Silver

Installation

Surface mount

Dimensions

141.1 mm × 101.6 mm × 48.5 mm

(5.56" × 4" × 1.91")

Protection Grade

IP65 (silicone sealant is needed)

Net Weight

309 g

Gross Weight

501 g
