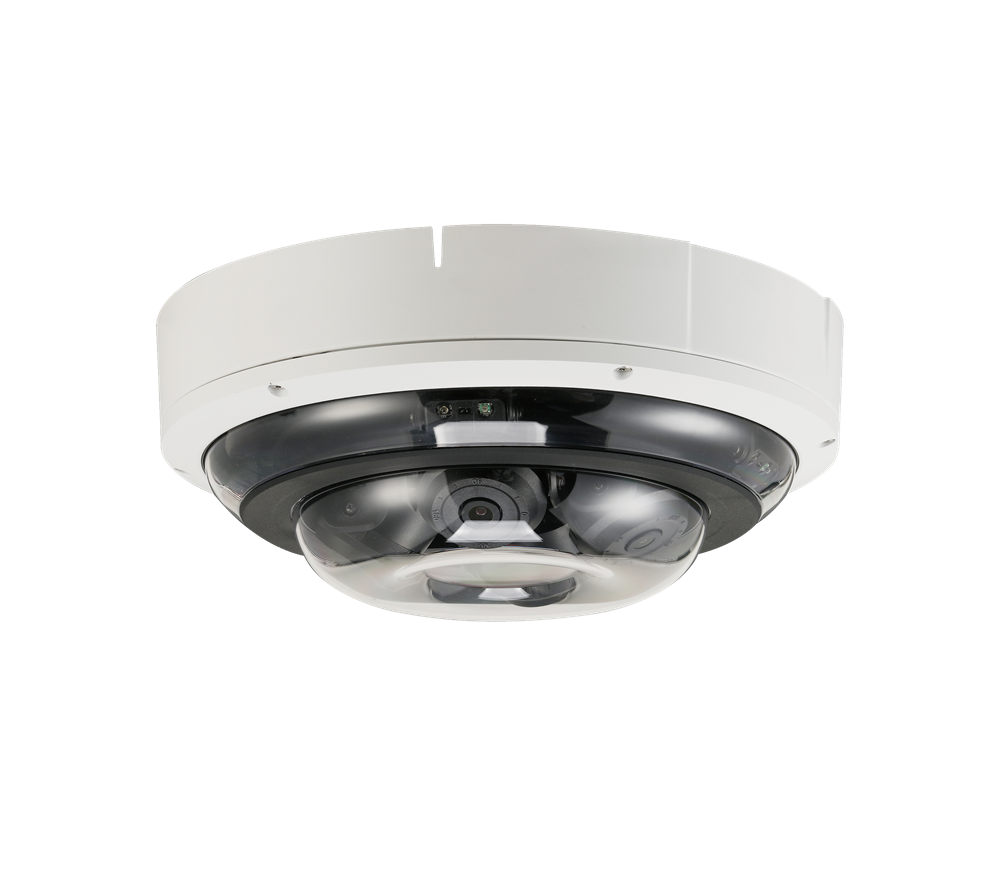

Dahua IPC-PDBW5831-B360-E4 4x2MP IR Dome Network Camera ICR,WDR, IR 30m,IP67,IK10,POE+

Model: DH-IPC-PDBW5831P-B360-E4

Who This Is For

When reducing camera count without creating blind spots is the priority, the Dahua IPC-PDBW5831P-B360-E4 is built specifically for that challenge. This 4-directional panoramic dome houses 4 independent 2MP sensors, each fitted with a 2.7-12mm motorised zoom lens, allowing a single ceiling-mounted unit to cover four discrete directions simultaneously. It suits security integrators and facilities managers specifying coverage for large open areas - convention centres, transport terminals, open-plan warehouses, university atriums, or retail floor spaces - where deploying multiple individual cameras would mean more cabling, more PoE ports, and more NVR channels. Each of the 4 sensors operates independently with its own IR illumination reaching up to 30m and its own motorised focal adjustment, so installers can dial in the exact field of view per direction after mounting without physically repositioning the camera. IP67 and IK10 ratings make it viable for covered outdoor installations as well.

What This Camera Actually Does

Who Buys This Model

• Security integrators managing NVR channel budgets: Sites where the channel count is capped - a 16-channel NVR covering a large facility - use this model to get 4 independent video streams from a single camera position, preserving remaining channels for perimeter coverage.
• Facilities managers at transport hubs and terminals: Bus interchanges, ferry terminals, and rail station concourses need full-floor coverage without ceiling grid congestion. A single pendant or surface mount covers all four approach corridors simultaneously.
• Retail loss prevention teams in large open-plan stores: A single unit positioned centrally on a warehouse floor or big-box retail space covers all four aisle directions, with motorised zoom allowing tighter framing on checkout lanes or stock areas remotely.
• Installers working on industrial and covered outdoor sites: Loading dock aprons, covered carparks, and warehouse receiving areas benefit from IK10 impact resistance and IP67 weatherproofing combined with 30m IR across each of the 4 sensor directions.
• University and campus security teams: Open atriums, student common areas, and food courts with high foot traffic and mixed lighting conditions suit the 140dB WDR and directional IVS tripwire rules that can be configured independently per sensor.

Honest Assessment

The IPC-PDBW5831P-B360-E4 does one thing that standard dome cameras cannot: it delivers 4 independent video streams from a single ceiling mount point, each with its own motorised zoom lens that can be adjusted post-installation. The 140dB WDR genuinely handles high-contrast environments, the Starlight sensor sensitivity is well suited to low-ambient indoor and covered outdoor locations, and the IP67/IK10 build extends the deployment envelope beyond the typical indoor panoramic. PoE+ simplifies the cable run to a single Cat cable per unit. What this camera will not do is provide active PTZ tracking - the lenses are motorised for setup adjustment, not continuous pan/tilt follow. Sites needing active subject tracking require a dedicated PTZ unit. The 30m IR per sensor is also a limitation in very large open spaces where longer IR throw is needed. Available through Security Australia, this model suits coverage-planning scenarios where reducing camera positions matters more than active optical tracking.

Before You Buy

Quick Fit Check

• Good match if: You need to cover 4 directions from a single ceiling mount point - such as a central atrium, intersection corridor, or warehouse floor - and want to reduce cabling, switch ports, and NVR channels compared to deploying 4 individual cameras.
• Good match if: The installation site has high-contrast lighting or mixed ambient conditions (e.g. a lobby with glass windows, a covered loading bay) where the 140dB WDR and Starlight low-light sensitivity across all 4 sensors justify the camera type.
• You may need a different model if: Active subject tracking is required - this camera's motorised lenses are for post-installation zoom setup, not live pan/tilt/zoom tracking. A dedicated PTZ camera with auto-tracking would be more appropriate for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 4 independent directional video streams from one mounting point, with per-sensor motorised zoom that can be adjusted remotely after installation - and your NVR can accommodate 4 channels from a single IP device.
• You may need a different model if: Active real-time tracking of moving subjects is required - a dedicated PTZ camera with auto-tracking capability is the appropriate product type for follow-movement applications.
• Pairs well with: A PoE+ managed switch with sufficient per-port power budget, and a multi-channel NVR or VMS platform that supports independent stream display and recording from panoramic multi-sensor cameras.

Common Questions

1. Does this camera require PoE+ or will standard PoE work?

   This camera requires PoE+ (IEEE 802.3at) - standard PoE (802.3af) is not sufficient. Powering 4 sensors, 4 motorised lenses, and 8 IR LEDs simultaneously draws beyond the 15.4W cap of 802.3af. Confirm your switch or injector delivers at least 30W per port before ordering. Dahua's own PoE+ NVRs and managed PoE+ switches are compatible; check your third-party switch's per-port budget in its datasheet, not just the total switch budget.

2. How many NVR channels does this camera use?

   It uses 4 channels - one per sensor. Physically it is one camera and one IP address, but it outputs 4 independent video streams that each occupy a recording channel on your NVR or VMS. Verify your NVR platform supports multi-stream input from a single device before installation. Dahua's DSS and PSS platforms support this natively.

3. Can the zoom be adjusted after the camera is mounted?

   Yes. Each of the 4 lenses is motorised with remote focus control, adjustable via the camera's web interface or compatible VMS after installation. The focal range is 2.7-12mm per sensor (4x optical zoom), shifting the horizontal field of view between 105° and 44°. This means coverage angles can be refined to match the actual site layout without a return visit or ladder access.

4. What are the DORI recognition and identification distances for this camera?

   At wide (2.7mm): recognition distance is 9m and identification distance is 4.5m. At tele (12mm): recognition extends to 20m and identification to 10m. Detection range reaches 99m at tele. These figures are per-sensor - each of the 4 sensors can be individually zoomed, meaning you can assign one sensor to a close-range identification zone and another to a longer-range detection zone simultaneously from the same unit.

5. Will this camera work for covered outdoor installations?

   Yes, with the IP67 and IK10 ratings confirmed. IP67 covers full dust exclusion and water immersion up to 1m for 30 minutes, and IK10 withstands significant impact force. The operating range of -30°C to +60°C and 4KV lightning protection extend it to harsh outdoor environments. It is not rated for fully exposed unshielded outdoor positions where direct driving rain or direct sunlight on the dome would be sustained - a covered or eave-mounted position is the appropriate install for this housing type.

6. Does this camera support independent analytics on each of the 4 sensor directions?

   Yes. The built-in IVS analytics - including tripwire, line crossing, and abandoned or missing object detection - can be configured per sensor direction. This means, for example, a north-facing sensor can have a line crossing alert set on a corridor entry while the east-facing sensor monitors a storeroom door for abandoned object events, all from one camera. Check your VMS platform's support for per-channel IVS rule management when planning the configuration. Security Australia can advise on compatible Dahua NVR and VMS platforms that support this feature set natively.

7. Does the motorised zoom on this camera operate like a PTZ - can it track moving objects?

   No. The motorised lenses on the IPC-PDBW5831P-B360-E4 are for installation setup and remote field-of-view adjustment - they are not continuous pan/tilt/zoom tracking mechanisms. Once set to a zoom position, each sensor records a fixed field of view in that direction. There is no auto-tracking, no patrol sweep, and no joystick-driven live movement. For active subject tracking, a dedicated PTZ camera with auto-tracking functionality is the appropriate product type.
