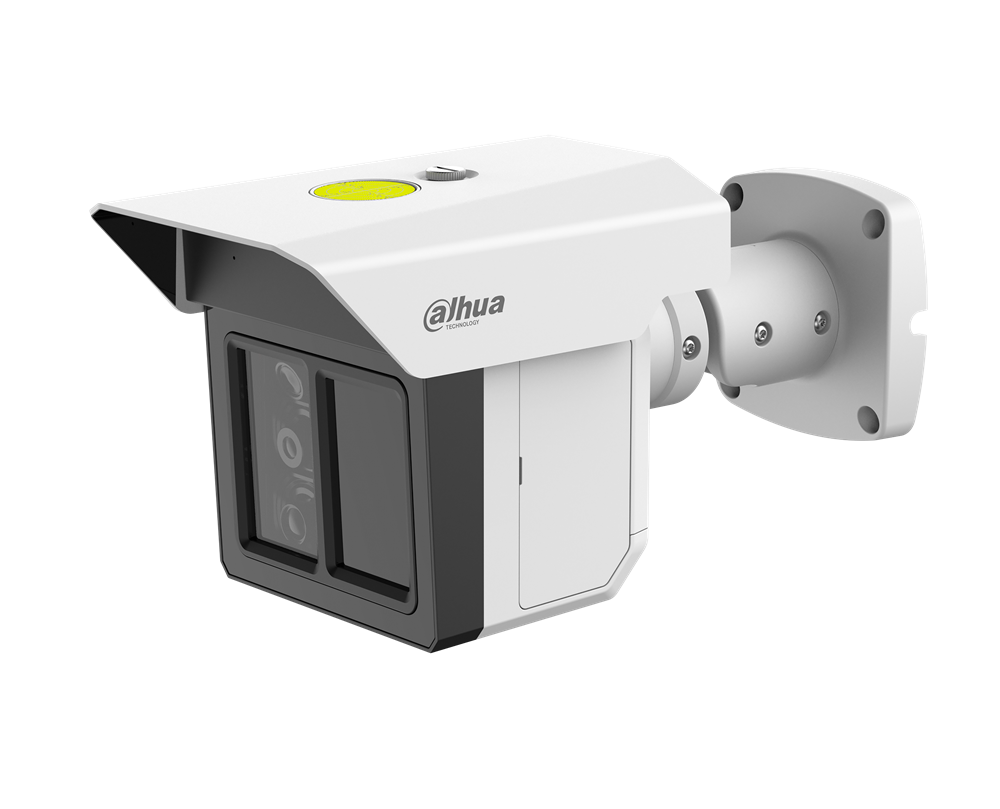

Dahua IPC-MFW5241T2-E3-ASE Wizmind Triple-Sight Long Range Perimeter Protection Camera

Model: IPC-MFW5241T2-E3-ASE

Who This Is For

When covering a long perimeter with a single camera position is the priority, the Dahua Wizmind Triple-Sight Long Range Perimeter Protection Camera IPC-MFW5241T2-E3-ASE is built specifically for that challenge. It combines three independent imaging channels into one housing - delivering simultaneous wide-area situational awareness and long-range subject detail from a single mounting point. Security integrators specifying large industrial boundaries, rural property lines, logistics yards, and commercial perimeters will find this model addresses the gap that single-lens cameras and standard PTZs cannot fill: continuous full-scene coverage alongside long-range classification without operator intervention. The WizMind AI engine classifies human and vehicle targets at the scene, reducing nuisance alerts and enabling faster response. This is a planning-first camera suited to projects where camera count, cabling runs, and coverage geometry are being carefully mapped before installation.

What This Camera Actually Does

Who Buys This Model

• Security integrators on large industrial sites: Specifying perimeter cameras for manufacturing plants, warehouses, and logistics facilities where a single long cable run needs to deliver both wide-area coverage and AI-classified intrusion detection at the boundary line.
• Rural and agricultural property operators: Needing to monitor wide open boundaries, gate access points, and long access roads from a minimal number of poles or mounting structures, where running cable to multiple positions is cost-prohibitive.
• Infrastructure and utilities project specifiers: Covering substations, water treatment facilities, or communications sites where unattended perimeters require automated human and vehicle detection without relying on 24/7 operator monitoring.
• Commercial property and logistics yard managers: Monitoring loading docks, hardstand areas, and vehicle marshalling zones where simultaneous wide-area oversight and long-range lane detail are needed from a single camera position on an existing pole or wall bracket.

Honest Assessment

The IPC-MFW5241T2-E3-ASE does something specific well: it consolidates multiple coverage requirements into a single mounting point using three simultaneous imaging channels and onboard WizMind AI classification. For long perimeters where nuisance alerts are a real operational cost and camera positions are limited by cable access, this model addresses the problem directly. The human and vehicle classification engine at the edge reduces the load on monitoring staff compared to standard motion detection setups. Where this model is not the right fit: if your requirement is active pan, tilt, and zoom tracking of a moving subject across a large open area, a dedicated PTZ with auto-tracking will serve that function better. If budget is the primary constraint and the site has conventional camera positions available, a set of fixed turret cameras at a lower individual cost may cover the zone more economically. Available through Security Australia, this camera is suited to projects where coverage consolidation and perimeter AI are the primary design goals rather than operator-driven camera control.

Before You Buy

Quick Fit Check

• Good match if: You need to monitor a long open boundary - such as a paddock fence line, industrial yard perimeter, or large car park edge - from a single camera mounting point.
• Good match if: Reducing false alarms on a remote or unmanned site is a priority and you need AI classification to distinguish people and vehicles from other movement triggers.
• You may need a different model if: Your site requires close-range, detail-focused coverage such as entry points or doorways, where a single-sensor fixed or varifocal dome camera would be a better fit.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need simultaneous wide-scene and long-range detail from a single mounting point, with onboard AI that classifies humans and vehicles to cut nuisance alerts on an unmanned perimeter.
• You may need a different model if: Your requirement is active subject tracking across a wide open area - a PTZ camera with auto-tracking provides operator-directed or automated pan and tilt that this fixed multi-sensor housing cannot replicate.
• Pairs well with: A WizMind-compatible NVR that supports multi-sensor camera inputs and AI event management, ensuring the perimeter protection alerts generated by this camera are properly captured, stored, and actioned through the recorder's event handling interface.

Common Questions

1. Does this camera work as a single unit on an NVR, or does it take up multiple channels?

   It takes up multiple NVR channels. Because the IPC-MFW5241T2-E3-ASE operates 3 independent imaging channels simultaneously, each channel streams its own video feed. A compatible NVR that supports multi-sensor cameras will represent this as multiple channel inputs from one device. Confirm your recorder supports multi-sensor camera handling before specifying this model - a standard single-channel-per-camera NVR will not manage all 3 streams correctly.

2. Will this camera reduce false alarms compared to standard motion detection cameras on a long perimeter?

   Yes, significantly. The WizMind AI engine classifies detected objects as human or vehicle before generating a perimeter alert. Standard motion detection triggers on any pixel change - wind, rain, shadows, and animals all generate events. WizMind's classification layer filters those out at the camera level, meaning the alerts that reach your monitoring system or phone are events where a human or vehicle has actually entered the detection zone.

3. What does "Triple-Sight" mean in practice - are all 3 channels recording simultaneously?

   Yes. All 3 channels capture and record at the same time. Triple-Sight refers to the 3 independent imaging sensors within the one housing, each covering its own field of view. There is no switching or sharing between channels - wide, mid, and long-range views are all recording in parallel throughout the day and night, which means no coverage gap occurs when one zone is being reviewed.

4. Does this camera require a special power supply, or does standard PoE work?

   Multi-sensor cameras of this type typically require PoE+ (IEEE 802.3at) rather than standard PoE (IEEE 802.3af) due to the higher power draw of multiple sensors and IR illuminators operating simultaneously. Confirm the power budget requirement against your switch or injector specifications before installation - using an undersized PoE supply can cause the camera to operate in a reduced mode or fail to maintain IR output at full range.

5. Is the WizMind AI processed on the camera itself, or does it require a cloud connection?

   The WizMind perimeter protection AI runs on the camera's onboard processor. Human and vehicle classification happens at the edge without requiring an internet connection or cloud processing. This means the camera continues to generate accurate AI-based alerts even on isolated sites with no internet access, and there is no ongoing cloud subscription required for the core perimeter detection functionality.

6. Will this camera work with a non-Dahua NVR?

   Basic RTSP streaming will work with most ONVIF-compatible recorders, but the WizMind AI features - including perimeter protection alerts, human and vehicle event filtering, and smart search - require a Dahua NVR that supports the WizMind protocol. On a third-party recorder, you will receive video streams but lose the AI event management that is the primary reason for choosing this model. For full functionality, pair it with a compatible Dahua WizMind NVR. The range is stocked by Security Australia alongside compatible recording hardware.

7. Can the 3 channels be pointed in different directions, or are they fixed in one orientation?

   The 3 channels are housed within a fixed unit, meaning the overall camera body points in one direction set at installation. The individual lens angles within the housing cover different fields - typically a wide overview, a mid-range zone, and a long-range channel - but these are not independently adjustable like a PTZ. The mounting azimuth and tilt of the entire housing determine what each channel covers. Plan your scene geometry carefully before drilling to ensure all 3 channels are aligned to their intended zones.
