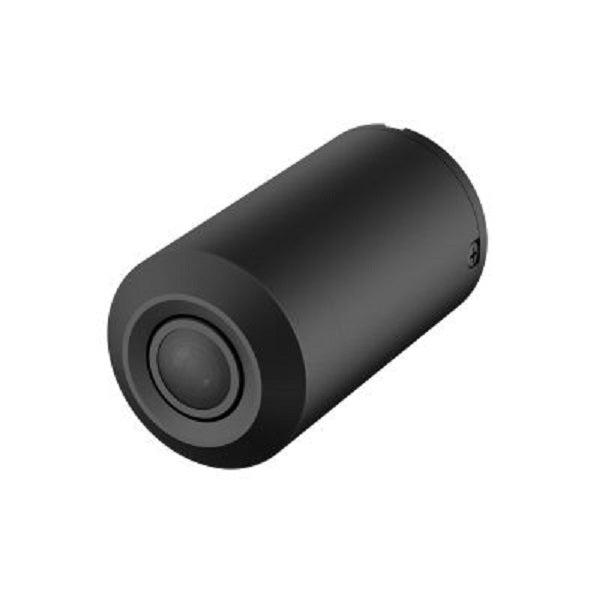

Dahua IPC-HUM8431-L3 4MP Covert Pinhole Network Camera-Lens Unit

Model: IPC-HUM8431-L3

Who This Is For

When keeping the camera completely out of sight is the primary installation requirement, this lens unit is where the build starts. The Dahua IPC-HUM8431-L3 is the pinhole lens component of a two-part covert camera system, designed for investigators, loss prevention teams, interview rooms, and sensitive commercial environments where a visible camera would change behaviour or compromise an operation. The 2.8 mm fixed lens sits behind a small pinhole aperture and connects via an 8-metre cable to the separate DH-IPC-HUM8431N-E1 processing unit, which handles recording, network output, and power. This separation lets the lens be mounted flush inside a wall panel, ceiling tile, or everyday object while all electronics stay hidden elsewhere. With a 109-degree horizontal field of view and 4 MP resolution, it captures usable detail across a full room without the installation profile of any conventional camera.

What This Camera Actually Does

Who Buys This Model

• Loss Prevention Investigators: Retail environments where a visible camera would prompt staff or customers to alter behaviour - the pinhole lens can be mounted inside a ceiling tile, shelf surround, or air vent fitting.
• Interview Room Operators: HR, legal, or law enforcement interview rooms where camera presence may affect witness statements - the flush-mount design keeps the recording invisible to room occupants.
• Corporate Security Teams: High-value server rooms, cash handling areas, or boardrooms where covert monitoring supplements visible deterrence cameras on the same network.
• Professional Security Installers: Integrators building multi-camera covert systems around the DH-IPC-HUM8431N-E1 processing unit, using this lens unit as a replaceable or additional endpoint on the 8-metre cable run.

Honest Assessment

The IPC-HUM8431-L3 does one thing that no standard camera can replicate - it places a 4 MP, 109-degree lens in a location with no visible camera housing. The 120 dB WDR and 0.006 lux colour sensitivity mean it handles real indoor lighting without added IR illumination that would expose the installation. The IP67 rating on the lens unit adds flexibility for non-standard mounting locations. The 8-metre cable separation between lens and processing unit is genuinely useful for concealment planning.

This lens unit will not function without the companion DH-IPC-HUM8431N-E1 processing unit - it has no standalone recording or network output capability. There is no IR illumination, so performance in complete darkness depends entirely on available ambient light. For applications where visibility is acceptable or outdoor coverage is needed, a standard turret or bullet camera available through Security Australia will deliver better range, IR performance, and simpler single-unit installation.

Before You Buy

Quick Fit Check

• Good match if: You are installing a covert system inside a room where subject awareness of the camera would defeat the purpose, and you already have or are purchasing the DH-IPC-HUM8431N-E1 processing unit.
• Good match if: The target area has variable lighting - bright windows, overhead lights and dark corners simultaneously - where the 120 dB WDR will maintain detail across the full 109-degree frame.
• You may need a different model if: You need outdoor coverage, long-range IR illumination, or a single self-contained camera unit - a standard IP turret or bullet camera will be a more practical and cost-effective solution for those applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: The installation requires that no camera be visible to anyone in the monitored space, and the site has suitable concealment points within the 8-metre cable distance from the processing unit.
• You may need a different model if: Visibility is acceptable or the application is outdoors - a standard IP turret, dome, or bullet camera will offer built-in IR, simpler single-unit installation, and better low-light performance at range.
• Pairs well with: A compatible network video recorder with sufficient channels for all lens units connected through the processing unit, and a PoE switch or injector matched to the processing unit's power requirements.

Common Questions

1. Does this camera work on its own, or does it need another unit?

   No. The IPC-HUM8431-L3 is the lens unit only and has no standalone capability. It requires the DH-IPC-HUM8431N-E1 Covert Network Pinhole Processing Unit to function. The processing unit handles all network connectivity, power, and video output. The lens connects to the processing unit via the integrated 8-metre cable. Both units must be present for the system to operate.

2. Will this camera work in a dark room at night?

   It depends on available ambient light. The IPC-HUM8431-L3 has no built-in IR illumination, so it relies entirely on whatever light is present in the space. In colour mode it requires a minimum of 0.006 lux at the F1.8 aperture - roughly equivalent to a dimly lit room with emergency or standby lighting. In complete darkness, the camera will not produce a usable image.

3. What is the maximum cable distance between the lens unit and the processing unit?

   The cable is fixed at 8 metres (26.25 ft) and is integrated into the lens unit. It cannot be extended or replaced with a longer run. Concealment planning must account for this fixed distance - the processing unit must be located within 8 metres of the lens mounting point, whether that is inside a wall cavity, above a ceiling tile, or in an adjacent room.

4. How much of a room does the 2.8 mm lens actually cover?

   The 2.8 mm focal length produces a 109-degree horizontal field of view. Mounted on a ceiling at 2.5 to 3 metres, this covers a room width of approximately 5 to 6 metres across. The DORI specification confirms identification-level detail (76 ppf) at 5 metres and observation-level detail (19 ppf) at 22 metres, making it suitable for rooms of typical residential or commercial size where subjects pass within a few metres of the camera.

5. Is the lens unit waterproof? Can it be installed in a bathroom or external-facing wall?

   Yes, the lens unit carries an IP67 rating, meaning it is fully dust-sealed and protected against temporary water immersion. This makes it suitable for installation in humid environments, locations subject to cleaning, or positions where condensation could occur. Note that the IP67 rating applies to the lens unit specifically - confirm the ingress protection rating of the DH-IPC-HUM8431N-E1 processing unit separately before installing in wet or outdoor-adjacent locations.

6. Does the 120 dB WDR make a practical difference inside a typical office or retail room?

   Yes, noticeably. In any room with windows, mixed artificial lighting, or a mix of bright surfaces and shadowed areas, 120 dB WDR prevents the image from overexposing the bright zones while losing detail in the dark zones. For a covert application where the camera position cannot be adjusted after installation, WDR reduces the likelihood of a specific lighting condition rendering the footage unusable. This is one of the reasons the IPC-HUM8431-L3, part of the Security Australia range, is suited to environments where lighting conditions cannot be controlled.

7. Can the lens angle be adjusted after mounting?

   No. The IPC-HUM8431-L3 uses a fixed lens with no pan, tilt, or rotational adjustment once installed. The pointing direction is set entirely by the physical orientation of the lens unit at the time of mounting. Before embedding the lens behind any surface, verify the field of view coverage using the 109-degree horizontal angle and the DORI distances as reference. Repositioning after installation requires accessing and remounting the lens unit.

Downloads & Resources

No downloads available for this product.
