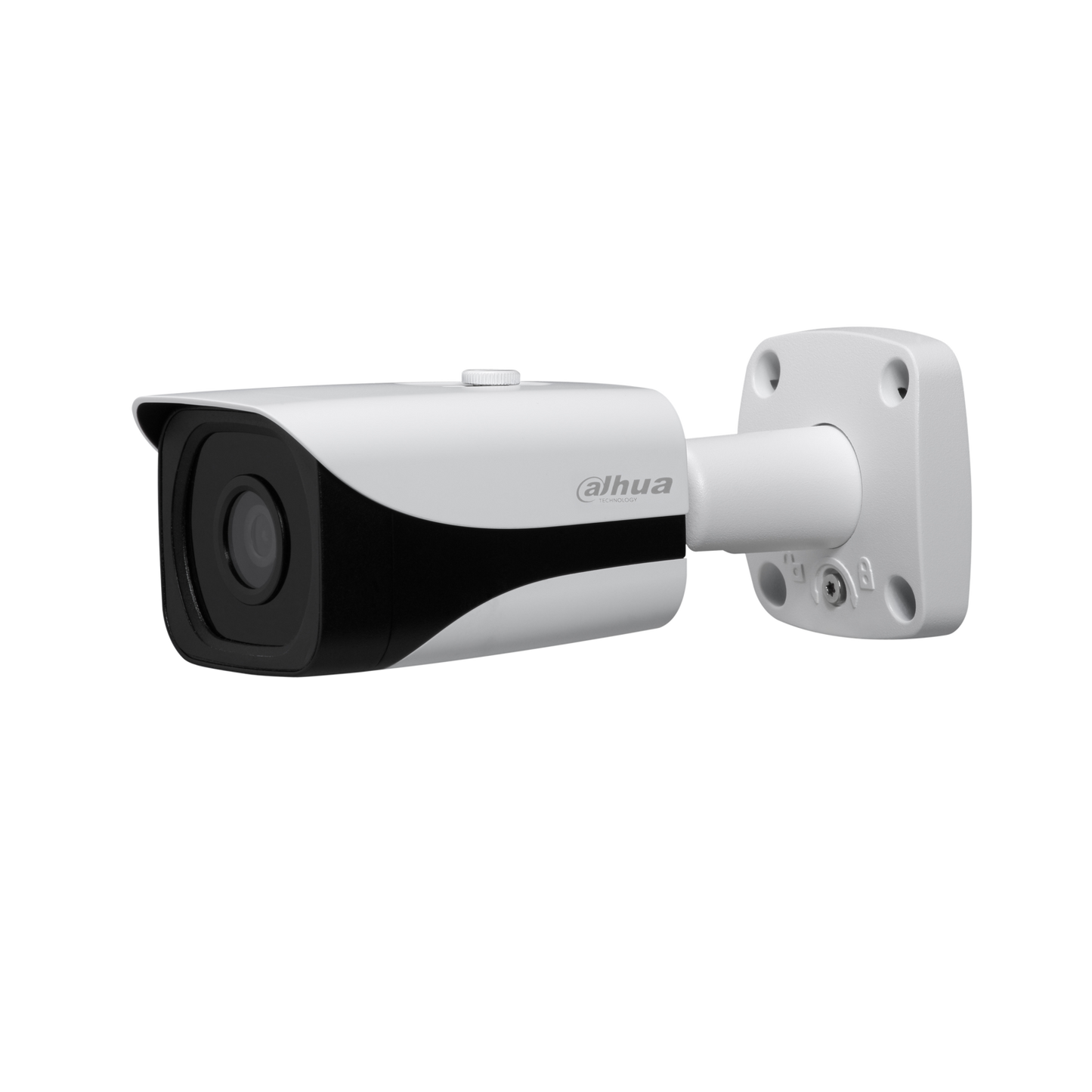

Dahua IPC-HFW4631EP-SE 6MP WDR IR Mini Bullet Network Camera

Model: DH-IPC-HFW4631EP-SE-0280B

Who This Is For

Property managers specifying outdoor camera coverage for car parks, building perimeters, loading areas, or access laneways will find the Dahua IPC-HFW4631EP-SE a strong candidate. This 6MP mini bullet delivers detailed fixed coverage over approaches up to 40 metres using built-in IR, with a 2.8mm lens suited to moderately wide fields of view at closer to medium range. The compact bullet housing keeps the footprint unobtrusive while still signalling visible deterrence. It suits installers who need a PoE-powered, IP67-rated outdoor camera with on-board IVS analytics - tripwire, intrusion detection, and abandoned object detection - without relying on server-side processing. Small commercial premises, strata complexes, schools, and light industrial sites running a Dahua-compatible NVR will get the most from this model.

What This Camera Actually Does

Who Buys This Model

• Strata and body corporate managers: Specifying outdoor cameras for car park entries, bin enclosures, and pedestrian gates where a compact bullet profile keeps the install tidy and IP67 handles variable weather.
• Small business owners with existing Dahua NVRs: Adding a 6MP outdoor camera to an established system and needing confirmed H.265 and IVS compatibility without changing recorder infrastructure.
• Schools and childcare operators: Covering fence lines and external access points with IVS tripwire rules that generate alerts when boundaries are crossed outside monitored hours.
• Light industrial and warehouse managers: Monitoring loading dock approaches and yard entry lanes where 40m IR reach covers the full distance and 6MP resolution supports after-hours incident review.
• CCTV installers on PoE projects: Running neat single-cable installs from a PoE NVR or switch, using the Micro SD slot as a redundant edge-recording backup in case of network interruption.

Honest Assessment

The IPC-HFW4631EP-SE does several things genuinely well. The 6MP STARVIS sensor with 120dB WDR and 40m IR is a capable combination for outdoor fixed-point coverage, and having IVS analytics on-board - without an additional licence - is a real advantage for sites that need event-based alerting rather than continuous recording review. H.265 compression keeps storage practical at 6MP, and the IP67 mini bullet housing is straightforward to install on eaves, walls, or with an optional junction box or pole mount.

Where it has limits: the 2.8mm fixed lens gives a wide angle but no zoom capability, so it will not serve long-distance approaches where focal length matters. It does not produce colour footage at night - IR night vision is monochrome. Sites needing pan/tilt/zoom coverage or full-colour low-light performance should look at PTZ or colour-specific models available through Security Australia. For most standard outdoor fixed-point applications, this camera delivers solid, honest performance at its price point.

Before You Buy

Quick Fit Check

• Good match if: You are covering an outdoor approach, entry point, or perimeter fence line up to 40 metres away and need 6MP detail to support after-hours incident review - the IR range and sensor resolution are well matched to this task.
• Good match if: Your site needs event-based alerting without a server analytics licence - the built-in IVS tripwire and intrusion detection runs on the camera itself and integrates directly with a compatible Dahua NVR.
• You may need a different model if: Your application requires full-colour night footage, optical zoom, or motorised lens adjustment - a full-colour turret or PTZ camera would be a more suitable product type for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a compact, IP67-rated outdoor bullet with 6MP resolution, 40m IR, 120dB WDR, and on-board IVS analytics in a single PoE-powered unit - without paying for a larger housing or server-side analytics licence.
• You may need a different model if: Your site requires full-colour night imaging, variable focal length to cover changing distances, or pan/tilt/zoom coverage of a wide area - a full-colour turret or PTZ camera type would be more appropriate for those requirements.
• Pairs well with: A Dahua PoE NVR with H.265 support and IVS event management, paired with a PoE switch for multi-camera deployments where cable runs exceed standard PoE distances using ePOE-capable infrastructure.

Common Questions

1. Does this camera work with a standard PoE NVR or switch?

   Yes. The IPC-HFW4631EP-SE supports standard PoE power delivery, so any IEEE 802.3af-compatible NVR or PoE switch will power and connect the camera over a single Cat5e or Cat6 cable. No separate power adapter is needed at the mounting point. ePOE is listed as an optional capability for extended cable run applications.

2. Will this camera record in colour at night?

   No. This model uses IR LEDs for night illumination, which produces monochrome footage after dark. The Day/Night ICR filter switches the sensor to infrared-sensitive mode automatically at low light. For full-colour night recording, you would need a different camera type - a full-colour or TiOC model - rather than an IR-based bullet.

3. Does the IVS analytics require a licence or a specific NVR model?

   No licence is required. The IVS analytics - tripwire, intrusion detection, and abandoned/missing object detection - run on the camera's own processor. They can be configured through the camera's web interface directly, or through a compatible Dahua NVR that supports IVS event management. No additional server or software licence fee applies.

4. What does the 120dB WDR rating mean in a real installation?

   It means the camera can correctly expose both bright and dark areas within the same frame simultaneously. In practical terms, a camera covering a shaded driveway with a bright street or sky in the background will not blow out the bright area or underexpose the shadow zone. 120dB is among the higher WDR ratings available in this camera class, making it well suited to high-contrast entry points.

5. Can the Micro SD card replace the NVR for recording?

   It can supplement it, but not fully replace it for multi-camera management. The Micro SD slot allows edge recording directly on the camera - useful as a failover if the NVR or network connection is interrupted. For a managed, searchable multi-camera recording system, a Dahua NVR remains the appropriate solution. The SD card is best treated as a redundancy layer rather than the primary storage method.

6. How much storage does 6MP H.265 recording actually use?

   Storage consumption varies by scene activity, compression efficiency, and frame rate setting, but H.265 encoding typically reduces file sizes by around 50% compared to H.264 at equivalent quality. At 6MP with H.265 and motion-based recording, a 4TB NVR drive can support multiple cameras over several weeks. Dahua's DSS/PSS software and web interface both include storage calculators to estimate requirements for your specific setup - the camera is part of the Security Australia range and integrates with standard Dahua system planning tools.

7. Is this camera suitable for an exposed outdoor installation in coastal or high-humidity conditions?

   Yes, within its rated parameters. The IP67 rating confirms full dust ingress protection and resistance to temporary water immersion, making it suited to exposed eave, wall, and post installations. For coastal salt-air environments, confirm the mounting bracket and hardware are also corrosion-resistant. The optional pole mount PFA152-E and junction box PFA121 accessories are designed for outdoor use with this camera body.

Product Video Samples

Downloads & Resources

• Dahua IPC-HFW4631EP-SE Web Data Sheet
• Dahua IPC-HFW4631EP-SE Spec Sheet PDF
