5MP Starlight HDCVI Quick-to-install IR Eyeball Camera
The Dahua 5MP Starlight HDCVI Quick-to-install IR Eyeball Camera (DH-HAC-HDW2501TMQ-A) offers exceptional image quality with its 5-megapixel resolution, ensuring clear and detailed surveillance footage. Designed with Starlight technology, the camera excels in low-light conditions, providing enhanced visibility and color accuracy even in near-darkness. Its advanced IR capabilities extend up to 30 meters, delivering reliable nighttime monitoring. The camera supports HDCVI technology, enabling long-distance transmission of high-definition video over coaxial cables without significant signal loss.
* The parameters and datasheets below can only be applied to 2501-S2 series.
* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
Key Features
Code/SKU: DH-HAC-HDW2501TMQ-A
Quick Specs:
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.7 inch CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 2880 (H) × 1620 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel | 5 MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | PAL: 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio | > 65 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.001 Lux/F1.6, 30IRE, 0Lux IR on | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 60 m (196.9 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto / Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type | Fixed-focal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type | M12 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.8 mm; 3.6 mm; 6 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F1.6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View | 2.8 mm: 132° × 111° × 58° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Type | Fixed iris | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.8 mm | 63.6 m (208.7 ft) | 25.4 m (83.3 ft) | 12.7 m (41.7 ft) | 6.4 m (21.0 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6 mm | 80 m (262.5 ft) | 32 m (105.0 ft) | 16 m (52.5 ft) | 8 m (26.2 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
6 mm | 120 m (393.7 ft) | 48 m (157.5 ft) | 24 m (78.7 ft) | 12 m (39.4 ft) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate | CVI: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto switch by ICR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC | BLC/HLC/WDR/HLC-Pro | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR | 120 dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto / Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto / Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | 2D NR/3D NR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart IR | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror | Off/On | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | Off/On (8 areas, rectangle) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Interface | One channel built-in mic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | DC 12V ±30% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Max 5.9W (12V DC, IR on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40°C to +60°C (–40°F to +140°F); < 95% (non-condensation) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | –40°C to +60°C (–40°F to +140°F); < 95% (non-condensation) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade | IP67 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | Metal dome+metal cover+plastic decorative ring | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera Dimensions | φ121.9 mm × 99.1 mm (φ4.8" × 3.9") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.43 kg (0.95 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.6 kg (1.32 lb) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

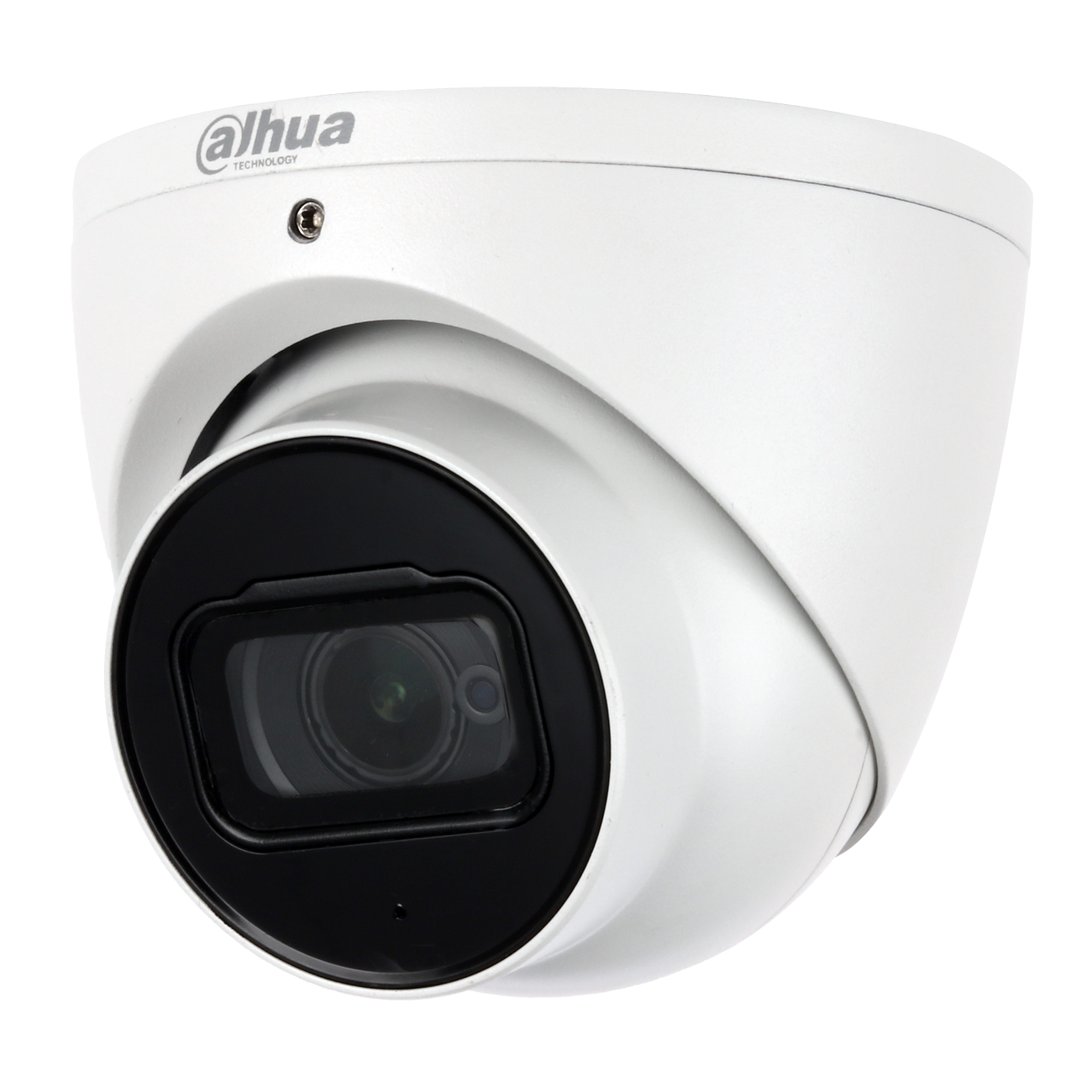

Dahua DH-HAC-HDW2501TMQP-A-0280B-S2 5MP HDCVI IR Eyeball Camera (2.8mm)
The Dahua 5MP Starlight HDCVI Quick-to-install IR Eyeball Camera (DH-HAC-HDW2501TMQ-A) offers exceptional image quality with its 5-megapixel resolution, ensuring clear and detailed surveillance footage. Designed with Starlight technology, the camera excels in low-light conditions, providing enhanced visibility and color accuracy even in near-darkness. Its advanced IR capabilities extend up to 30 meters, delivering reliable nighttime monitoring. The camera supports HDCVI technology, enabling long-distance transmission of high-definition video over coaxial cables without significant signal loss. It features a built-in microphone for audio recording, enhancing the security coverage by capturing sound in the surveillance area.
The camera is equipped with a 2.8mm fixed lens, offering a wide field of view suitable for various monitoring applications. Its quick-to-install design simplifies the setup process, making it ideal for both professional and DIY installations. The camera is built to withstand harsh environmental conditions with an IP67 weatherproof rating, ensuring durability and reliable performance in outdoor settings. It also supports multiple video formats, including HDCVI, CVBS, AHD, and TVI, providing flexibility in integrating with existing systems. The camera's compact design allows for discreet installation, while its aesthetic appearance ensures it blends seamlessly into any environment. It also features advanced noise reduction technology, ensuring clear images even in challenging lighting conditions.
With its high-quality construction and reliable performance, the Dahua 5MP Starlight HDCVI Quick-to-install IR Eyeball Camera is an excellent choice for both residential and commercial security applications. Its superior imaging technology and user-friendly features make it a valuable addition to any surveillance system.
Features
Functions
4 Signals Over a Single Coaxial Cable:
HDCVI technology enables the transmission of four distinct signals—video, audio*, data, and power—through a single coaxial cable. This dual-way data transmission allows the HDCVI camera to communicate with the XVR, facilitating control signals or alarm triggers. Additionally, HDCVI technology supports PoC (Power over Coax) for greater construction flexibility.
*Note: Audio input is available on certain HDCVI camera models.
Long Distance Transmission:
HDCVI technology ensures real-time, long-distance transmission with no signal loss. It supports distances up to 700 meters for 5MP HD video via coaxial cable and up to 300 meters using UTP cable.*
*Actual results are based on real-world testing in Dahua's lab.
Simplicity:
HDCVI technology inherits the simplicity of traditional analog surveillance systems, making it an excellent choice for investment protection. It allows for a seamless upgrade of traditional analog systems without replacing existing coaxial cabling. The plug-and-play approach delivers full HD video surveillance without the need for complex network configurations.
Starlight:
Equipped with a large, high-performance sensor, the camera delivers exceptional performance even in extremely low-light environments. The starlight feature captures more details and provides accurate color representation at night or in scenes with limited illumination.
Broadcast-Quality Audio:
Audio information serves as vital supplementary evidence in video surveillance. The HDCVI camera supports audio signal transmission over coaxial cable and employs advanced audio processing and transmission technology to ensure high-quality, noise-free audio that accurately captures the source.
Smart IR:
Designed with IR LED illumination, the camera delivers superior low-light performance. Dahua's Smart IR technology adjusts the intensity of the infrared LEDs to maintain brightness uniformity in black-and-white images, preventing overexposure as objects approach the camera.
Wide Dynamic Range (WDR):
Featuring industry-leading WDR technology, the camera produces vivid images even in high-contrast lighting conditions. True WDR (120 dB) optimizes both bright and dark areas simultaneously to deliver usable video in challenging environments.
Advanced 3D Noise Reduction (3D NR):
Dahua’s advanced 3D NR technology effectively reduces random noise by comparing sequential frames, ensuring minimal impact on image sharpness, particularly in low-light conditions. This technology also decreases bandwidth usage and saves storage space.
Protection:
The camera's rugged design ensures exceptional reliability. It is IP67-rated for protection against water and dust, making it suitable for both indoor and outdoor use. With an IK10 vandal resistance rating, the camera can withstand impacts equivalent to 5 kg (11.02 lbs) dropped from a height of 40 cm (15.75 in). Additionally, the camera supports a ±30% input voltage tolerance, making it suitable for unstable power conditions, and its 4kV lightning protection safeguards both the camera and its structure from lightning effects.
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.7 inch CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
2880 (H) × 1620 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel |
5 MP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
PAL: 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
> 65 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.001 Lux/F1.6, 30IRE, 0Lux IR on |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
60 m (196.9 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto / Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8 mm; 3.6 mm; 6 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
2.8 mm: 132° × 111° × 58° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Type |
Fixed iris |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
2.8 mm: 0.9 m (3.0 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.8 mm |
63.6 m (208.7 ft) |
25.4 m (83.3 ft) |
12.7 m (41.7 ft) |
6.4 m (21.0 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6 mm |
80 m (262.5 ft) |
32 m (105.0 ft) |
16 m (52.5 ft) |
8 m (26.2 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
6 mm |
120 m (393.7 ft) |
48 m (157.5 ft) |
24 m (78.7 ft) |
12 m (39.4 ft) |
