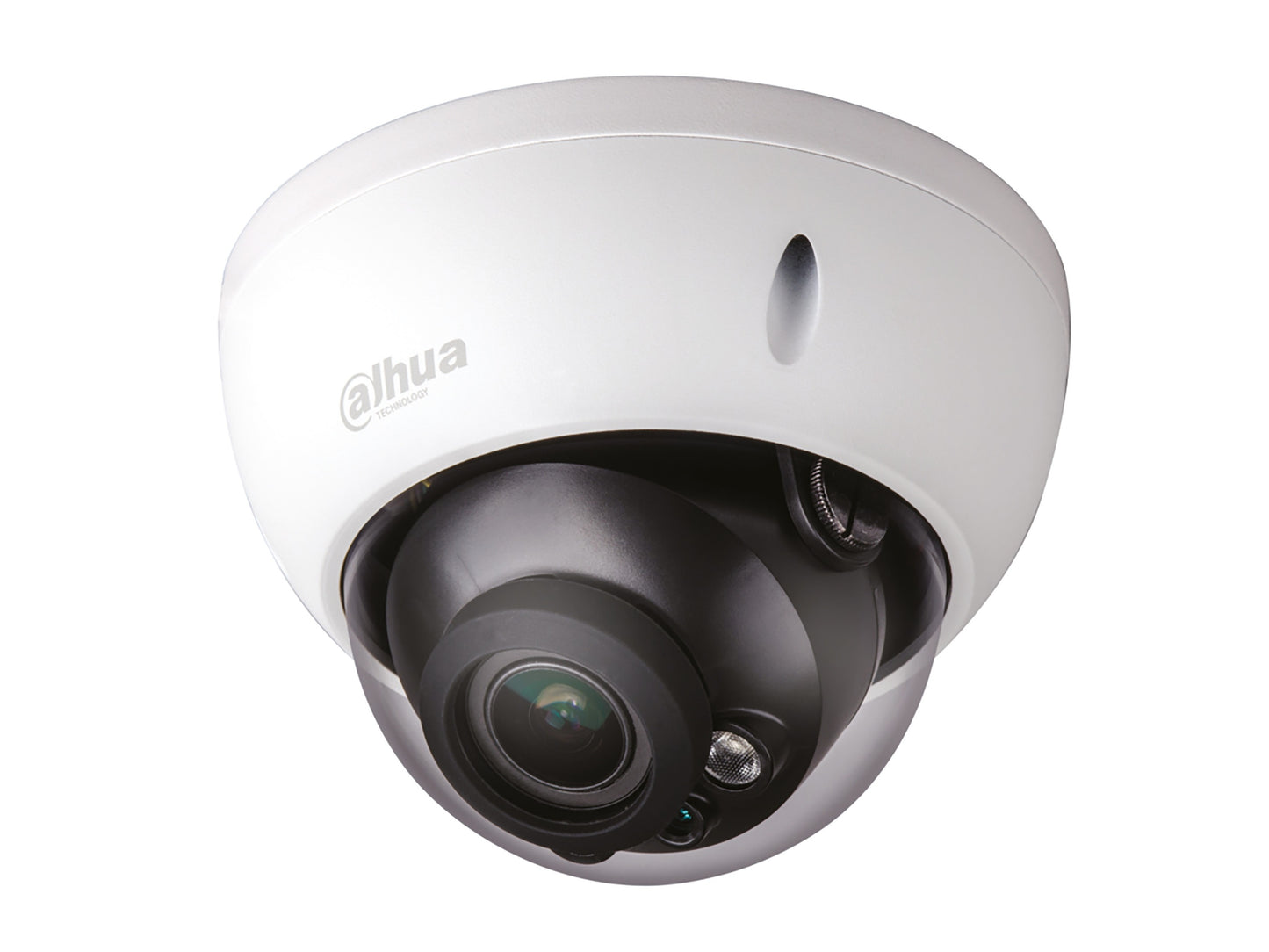

Dahua DH-HAC-HDBW2501EP-0280B-S2 5MP Starlight Pro HDCVI Vandal Dome,WDR,ICR,2.8mm lens

The 5MP Starlight HDCVI IR Dome Camera, model DH-HAC-HDBW2501E, offers exceptional image quality with its 5-megapixel resolution, delivering clear and detailed footage even in low-light conditions. It features Starlight technology, which enhances performance in extreme low light scenarios, providing vibrant color images. This camera is equipped with IR LEDs, enabling effective night vision with a range of up to 30 meters, ensuring reliable surveillance around the clock. Its HDCVI (High Definition Composite Video Interface) technology ensures high-definition video transmission over long distances without loss of quality. The camera is designed with a compact, vandal-resistant dome housing, making it suitable for both indoor and outdoor applications. It supports a variety of video outputs, including HD-CVI, analog HD, and CVBS, for flexible installation options. The DH-HAC-HDBW2501E also includes a range of advanced features such as wide dynamic range (WDR) and noise reduction to improve image clarity in challenging lighting conditions. It supports PoC (Power over Coaxial) for simplified installation by reducing the need for separate power cables.

The camera's durable design includes an IP67 rating, ensuring resistance to harsh environmental conditions and tampering. Additionally, the built-in intelligent features help in detecting and alerting for unusual activities, enhancing security effectiveness. This model is ideal for applications where high-resolution imaging and reliability are essential, such as in commercial or residential security systems. With its robust performance and versatile features, the DH-HAC-HDBW2501E is a reliable choice for comprehensive surveillance solutions.

Features

• Max 25 fps@5MP (16:9 video output)
• Starlight, 120 dB true WDR, 3D NR
• CVI/CVBS/AHD/TVI switchable
• 3.6 mm fixed lens (2.8 mm optional)
• Max. IR length 30 m, Smart IR
• IP67, IK10, DC12V±30%



Functions

4 Signals over 1 Coaxial Cable
HDCVI technology supports the simultaneous transmission of 4 signals over a single coaxial cable: video, audio*, data, and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, enabling functions such as sending control signals or triggering alarms. Additionally, HDCVI technology supports PoC, offering flexibility in construction.
*Audio input is available on certain models of HDCVI cameras.

Long Distance Transmission
HDCVI technology ensures real-time transmission over long distances without any loss. It supports up to 700 meters for 5MP HD video via coaxial cable and up to 300 meters via UTP cable.*
*Actual results are verified by real-world testing in Dahua's test laboratory.

Simplicity
HDCVI technology retains the simplicity of traditional analog surveillance systems, making it an excellent choice for investment protection. It allows for a seamless upgrade from traditional analog systems without the need to replace existing coaxial cabling. The plug-and-play approach provides full HD video surveillance without the complications of network configuration.

Starlight
With a large high-performance sensor, the camera delivers exceptional performance even in extremely low-light conditions. The starlight feature enables the capture of more details and accurate color recognition at night or in low-light environments.

Smart IR
The camera is equipped with IR LED illumination to enhance low-light performance. Smart IR technology ensures brightness uniformity in black-and-white images under low illumination. Dahua's unique Smart IR adjusts the intensity of the camera's infrared LEDs based on the distance of an object, preventing overexposure as the object approaches the camera.

Multi-formats
The camera supports various video formats, including HDCVI, CVBS, and two other common HD analog formats. Users can switch between these formats through the OSD menu, ensuring compatibility with most existing HD/SD DVRs.

Multi-language OSD
The OSD menu offers multiple image adjustments and function settings to accommodate different monitoring scenarios. It includes configurations for backlight mode, day/night settings, white balance, privacy mask, and motion detection. The camera supports 11 languages for the OSD menu: Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian, and Polish.

Wide Dynamic Range
Featuring industry-leading wide dynamic range (WDR) technology, the camera delivers vivid images even in high-contrast lighting conditions. True WDR (120dB) optimizes both bright and dark areas of a scene simultaneously to provide usable video.

Advanced 3DNR
3DNR is a noise reduction technology that removes random noise by comparing two sequential frames. Dahua’s advanced 3DNR technology achieves significant noise reduction with minimal impact on sharpness, especially in low-light conditions. Additionally, advanced 3DNR decreases bandwidth usage and conserves storage space.

Protection
The camera boasts exceptional reliability due to its rugged design. It is protected against water and dust with an IP67 rating, making it suitable for both indoor and outdoor environments. With a temperature range of –40°C to +60°C (–40°F to +140°F), it is designed for extreme temperatures. It also supports ±30% input voltage tolerance, accommodating unstable power supply conditions. The 4 KV lightning rating offers protection against lightning effects on the camera and its structure.

Technical Specifications:

Camera

Image Sensor

1/2.7 inch CMOS

Max. Resolution

2880 (H) × 1620 (V)

Pixel

5 MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/3 s–1/100,000 s NTSC: 1/4 s–1/100,000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001 Lux/F1.6, 30IRE, 0Lux IR on

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto / Manual

Illuminator Number

12

Pan/Tilt/Rotation Range

Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: 132° x 111°x 58° (diagonal x horizontal x vertical) 3.6 mm: 109° x 92°x 48° (diagonal x horizontal x vertical)

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.6 m (5.2 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

63.6 m (208.7 ft)

25.4 m (83.3 ft)

12.7 m (41.7 ft)

6.4 m (21.0 ft)

3.6 mm

80 m (262.5 ft)

32 m (105.0 ft)

16 m (52.5 ft)

8 m (26.2 ft)
